RCA EZ2120BK Quick Start Manual

v1.0 (1.0.1.0) (EN)
English
QuickStartGuide
EZ2120 Series RCA Small Wonder Camcorder
www.rcaaudiovideo.com
Congratulations on purchasing your new RCA Small Wonder Camcorder.
Please read these instructions for quick tips on using the product.
The User Manual PDF fi le can also be found in the memory card installed in the device.

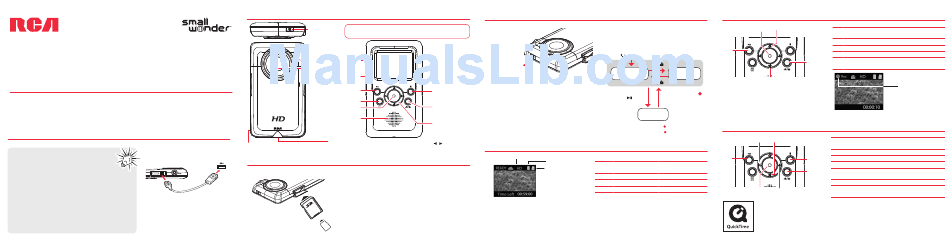

1. Content of the box
• Small Wonder Camcorder • Software disc
• USB cable • HDMI cable
• AV cable • Quick Start Guide
• 4GB memory card (Installed in device)
2. Charging your camcorder
Please charge the battery for at least four hours before fi rst use.
NOTE:
The unit is properly charging when you
Lift up the cover
see the animated charging symbol on the
camcorder display.
If you do not see this charging symbol, follow these
steps:
1. Make sure that you have the camcorder
USB cable
connected to the computer USB port through
USB cable, and the computer is turned on.
2. Press and hold the camcorder power switch to
the ON position to initiate charging.
3. General controls
* To reset the camcorder (in case it is not functioning properly):
On/off switch*
Press and hold the On/off switch for more than 10 seconds.
Microphone
Recording
AV output
indicator
Lens
USB and HDMI
video output
Playback/pause
Setup menu
Record
Audio speaker
Tripod screw hole
Camcorder strap hole
USB port of your
computer 4. Inserting (or removing) memory card
An SD memory card is recommended for recording (memory card supplied).
To insert card: Push the card in until a click is heard
Lift up the cover
To remove card: Push card in until a click is heard, then
slowly release the card. As card is under minimal tension
when locked in memory slot, please use care when removing.
5. Turning on the camcorder
Press and
LCD screen
hold until the
camcorder turns
on or off
SD card slot
Delete recordings
Switch between
Photo preview
and Video preview
modes
+/– Adjust volume
during playback;
zoom during record
and preview
/ – Skip to 6. Selecting recording quality
previous or next
recording; fast rewind
Selected recording quality
or forward
Battery indicator
Memory card indicator
2 Actual recording time and capacity will vary depending on type of video content being recorded, system requirements,
and other factors.
You can also set video quality settings from the Setup Menu. Refer to Recording Videos section
in User Manual for more information.
7. Video recording and photo taking
There are three basic modes for operating the camcorder:
1
Video preview mode, Photo preview mode and Playback
mode. It will always launch in video preview mode after
being switched on. Refer to the diagram below for switching
between modes.
2
Switch on
Press MODE
Video preview Photo preview
mode 1 mode 2
4
Press MODE
To end Playback mode,
simply press RECORD
Press which will then return
the camcorder to Video
preview mode
Playback mode
8. Playing back or deleting recordings
1 In Video preview mode, press to record a video
RECORD
2 In Photo preview mode, press RECORD to record a photo
3 2
1
Settings Resolutions (pixel) & Approx. recording durations
Frame Rates (FPS) on a 32 GB memory card 2
HD 1280 x 720 @ 30fps Up to 16 hours
HQ 720 x 480 @ 30fps Up to 28 hours
WebQ 320 x 240 @ 30fps Up to 80 hours
5
QuickTime and the QuickTime logo are trademarks or registered trademarks of
Apple Computer, Inc., used under license therefrom.
3
1 Start, stop, resume recording in Video preview mode;
enter Video preview mode from other modes
2 Pause and resume recording
3 Zoom in during recording
4 Zoom out during recording
5 Switch between Video preview mode or Photo preview
5
mode
Video recording indicator
1 Enter Playback mode to play the most recent recording;
start or pause playback
2 Adjust volume during playback
6 3 Cue to previous recording
4 Cue to next recording
7 5 Stop playback or enter Video preview mode from playback
mode
6 Press to select delete one or all recordings.
7 When video playback stops, enter Video preview mode
4
from Playback mode
