Hauppauge WINTV-PVR-USB2 MCKIT QI Quick Installation Manual

WinTV-PVR-USB2 MC-Kit
Quick Installation Guide for Windows
Vista Home Premium & Vista Ultimate
© 2007 Hauppauge Computer Works · QI-MCKITPVRUSB2-V4.0-ENG · 2007/06/15
Hauppauge Computer Works, Ltd.
10 Borough High Street
Bank Chambers
London, UK, SE1 9QQ
www.hauppauge.co.uk
Hauppauge Computer Works, Sarl.
91, avenue Kléber
F-75116 Paris, FRANCE
www.hauppauge.fr
Hauppauge Computer Works GmbH
Krefelder Str. 669
D-41066 Mönchengladbach, Germany
www.hauppauge.de
Hauppauge Computer Works, Nordic
Holländargatan 22
S-113 59 Stockholm, Sverige
www.hauppauge.se
Hauppauge Digital Asia, Pte. Ltd.
Blk 1093, Lower Delta Road #04-05
Tiong Bahru Industrial Estate
Singapore 169204
www.hauppauge.com.sg
Included with the WinTV-PVR-USB2 MC-Kit
● The WinTV-PVR-USB2 device, with analogue TV tuner, FM radio
and hardware MPEG encoder
● The Wall mounted power supply 6V/1.5A

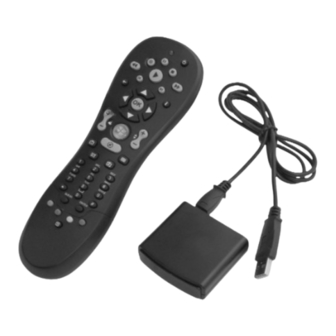

● Media Center Remote control transmitter and two AA batteries
●
Media Center remote control receiver box for USB
●
IR transmitter cable
●
WinTV-PVR MC Driver Installation CD-ROM
●
WinTV for Media Center Quick Installation Guide (this guide)
N ote: The enclosed WinTV Installation CD-ROM also include
WinTV applications. You won't need them to use Microsoft
Media Center application.
Tech Support: (+44) 0207 378 0202
Telephone: (+44) 0207 378 1997
Fax: (+44) 0207 357 9171
support@hauppauge.co.uk
Support Tech. : (+33) 01 56 26 51 20
Téléphone : (+33) 01 56 26 51 21
Fax : (+33) 01 56 26 51 22
support@hauppauge.fr
Tel.-Support: (+49) 02161 694 88 40
Telefon: (+49) 02161 694 88 0
Fax: (+49) 02161 694 88 15
info@hauppauge.de
Tech support: (+46) 851 800 888
Tel: (+46) 851 800 880
Fax: (+46) 851 800 885
support@hauppauge.se
Tech Support: (+65) 276 4412
Telephone: (+65) 276 9163
Fax: (+65) 276 9167
Page 1
Installing the WinTV-PVR-USB2 MC-Kit
for Windows Vista Media Center
Installation overview
1. Connect the TV antenna, FM radio antenna (optional) to WinTV-
PVR-USB2. Connect the USB cable to the WinTV-PVRUSB2 and to a
USB port on your PC.
2. Boot your PC. After Windows is running, plug the supplied Power
Supply into WinTV-PVR-USB2's power input to install the driver.
3. Install the Media Center remote control.
4. Begin setting up Media Center.
1. Connect the WinTV-PVR-USB2 cables
Plug your TV antenna into the TV Connector.
Audio and video from an external A/V device (satellite TV receiver,
cable TV box, VCR, camcorder...) can be brought into the WinTV via
the A/V connectors. If your A/V device uses S-Video, connect to the
S-Video input on the WinTV. If your video device uses composite
video instead of S-Video, use the yellow RCA jack. Audio input from
an external A/V device can be brought into the WinTV via the white
and red audio input jacks.
If you would like to use FM radio, plug the supplied Radio aerial into
the FM radio connector. This may not be necessary if your TV aerial
supplies FM, or if you do not want to listen to radio with Media
Center.
FM Radio Connector input
Left/Right audio input
TV Aerial connector (prefera-
bly connect to a rooftop aerial)
2. Install the WinTV Media Center driver
Start your computer and wait for Windows Vista to fully boot. PIug
the supplied Power Supply into the Power Supply input on WinTV-
PVR-USB2. Cancel any 'Found new hardware wizards' you may see.
Insert your WinTV Installation CD-ROM and click on Start then
'Computer', you should then see
the HCW CD under 'Devices with
removeable media', double click
on this CD-ROM then double
click on the file called
'HCWDriverInstall'.
You will then be presented with a
blue screen which will begin
installing and updating the
drivers for your product.
S-Video input
