SABINE FBX SOLO 620 SL-620 Operating Manual

Feedback control
Hide thumbs
Table of Contents

Advertisement

Quick Links

SL-620
SM-620
FBX-SOLO
Model SM-620
CONGRATULATIONS! You now have the state-of-the-art in feedback control. The Sabine
FBX-SOLO gives you automatic real-time feedback control for any channel on your mix. In
setup and during the performance, it gives you more gain and increases the clarity of your
mains and monitors. It's the affordable solution to feedback problems, perfect for wireless
mics, monitors, acoustic/electric instruments, harmonica mics, multi-mic locations like
conference rooms and courthouses -- wherever there's an open microphone.
The FBX-SOLO incorporates the latest in design and digital signal processing technology.
It automatically senses feedback in a sound system and determines its pitch. It then places
one of its six constant "Q" micro-filters on the resonating frequency and eliminates the
feedback in typically less than one second.
Special features of the SL-620 and SM-620:
• The SL-620 has 1/4" in/out connectors and input/output level switches for any
combination of ins and outs. The SL is for use with acoustic/electric guitars and guitar
amplifiers, mixer insert points, powered mixer patch points and high impedance mics.
• The SM-620, with selectable phantom power, has XLR in/out connectors for use with
balanced microphones.
• Both models offer standard FBX features like switchable filter widths and lockable
fixed filters.
See page 2 for quick-start operating procedures.
FBX and FBX Feedback Exterminator are registered trademarks of Sabine, Inc., and are the brand names of its line of automatic
feedback controllers. Covered by U.S. Patent No. 5,245,665, Australian Patent No. 653,736, Canadian Patent No. 2,066,624-2,
German Patent No. 69118486.0, and British Patent No. 0486679. Other patents pending. © 1996 Sabine Inc.
OPERATING
FBX-SOLO
Model SL-620
GUIDE
INSIDE THIS GUIDE:
2,3
2
4,5
6-8
9
13
14
14
15

Advertisement

Table of Contents
loading

Related Manuals for SABINE FBX SOLO 620 SL-620

Summary of Contents for SABINE FBX SOLO 620 SL-620

  • Page 1: Table Of Contents

    See page 2 for quick-start operating procedures. FBX and FBX Feedback Exterminator are registered trademarks of Sabine, Inc., and are the brand names of its line of automatic feedback controllers. Covered by U.S. Patent No. 5,245,665, Australian Patent No. 653,736, Canadian Patent No. 2,066,624-2,...

  • Page 2: About The Fbx

    ABOUT THE FBX... WORLD'S BEST FEEDBACK CONTROLLER: Before the invention of the FBX, the most common device for controlling feedback was the 31-band graphic EQ. However, the FBX has three distinct advantages. The most obvious is the FBX functions automatically, even during the program. Another is the FBX micro- filters are precisely placed while EQ filters are fixed.
  • Page 3 A DIRECT HIT ON FEEDBACK! 0 dB FBX-SOLO targets feedback without taking a big chunk out of your sound. Tests prove that a single 1/3-octave EQ slider pulled down 12 dB removes almost half the power going to the speakers over a two-octave range.

  • Page 4: Fbx-Solo Controls

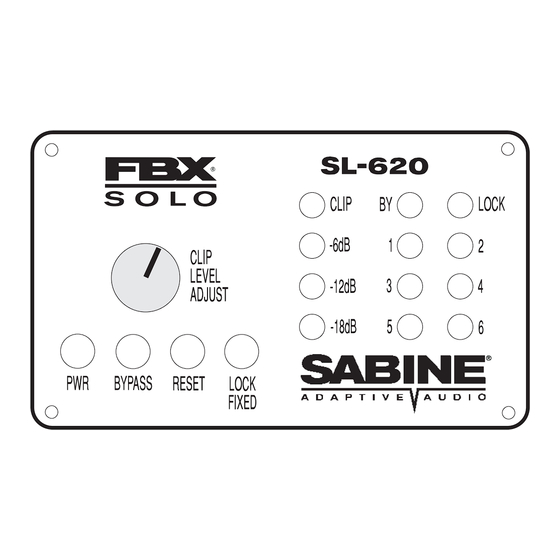

    SL-620 Front & Back Panels FILTER WIDTH SWITCH POWER Switch to narrow 1/10-octave filters for music applications or to The ON/OFF power switch is a two-position push button switch. wider 1/5-octave filters for spoken word applications. The The LEDs corresponding to all active filters will blink on power- change takes effect only on power up.
  • Page 5 SM-620 Front & Back Panels FILTER WIDTH SWITCH POWER Switch to narrow 1/10-octave filters for music applications or to The ON/OFF power switch is a two-position push button switch. wider 1/5-octave filters for spoken word applications. The change The LEDs corresponding to all active filters will blink on power- takes effect only on power up.

  • Page 6: Applications

    APPLICATIONS SL-620: You can use the SL-620 with acoustic/electric guitars and guitar amplifiers, mixer insert points, powered mixer patch points and high impedance mics. Note: In each of these drawings, the output level could be set to line or unity depending on your situation. Use the following wiring diagrams (presented in order of most common to least common setup) as guides for setup: SL-620,...
  • Page 7 SL-620, Configuration 4 SL-620, Configuration 5 SL-620, Configuration 6...
  • Page 8 SM-620: Use the SM-620 with balanced microphones. SM-620, Configuration 1 SM-620, Configuration 2...

  • Page 9: Understanding Fixed & Dynamic Filters

    If any of the terms are not clear, or if the system does not perform as expected, contact your local Sabine dealer for further information. Read on for a basic explanation of FBX features you should understand before using your FBX.

  • Page 10: Operating Instructions

    INSTRUCTIONS FOR OPERATION SL-620 SYSTEM INITIALIZING PROCEDURE Choose the input level. Switch to LOW for instrument or microphone in (use with low level inputs such as piezo mics); this provides a 30dB boost in the FBX's input gain struc- ture. Switch to HIGH for insert or line in (use with high level output instruments and signal processors).
  • Page 11 Select Phantom Power ON/OFF. Your SM is delivered from the factory with the phantom power function disabled. If you wish to use phantom power, you may enable the function by switching to "PHANTOM POWER - ON" on the back panel. The majority of low impedance balanced non-phantom-powered mics are wired to ignore phantom power.
  • Page 12 1-U rack tray (model #SL6RACK): An optional 1-U rack tray holds up to six SOLOs. Mount the SL-620s, SM-620s, or a combination of both side by side on the tray. Use only Sabine supplied screws; use of any other screws may damage the SOLO and void the war- ranty.

  • Page 13: Troubleshooting Tips

    TROUBLESHOOTING TIPS Q. Can I patch the SOLO SL-620 after the mixer and before the power amp, just like other FBX models? A. Yes, but only in cases where just six feedback filters are needed, such as on the moni- tors alone.

  • Page 14: Product Specifications

    ENGINEERING SPECIFICATIONS FILTERS FILTERS FILTERS FILTERS FILTERS Gain Range: -15 to +20dB (at high output) Six independent digital notch filters controlled automatically from Input to Output Gain @ unity setting: +/- 0.5 dBV Bypass: Digital 51Hz to 17,000Hz EIN: -105dBm @ 150 Ohms, 20Hz-17KHz or better Filter width: 1/10 octave, typical, or 1/5-oct.

  • Page 15: Warranty

    THESE LIMITED WARRANTIES ARE IN LIEU OF ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT ONE-YEAR LIMITED WARRANTY/REMEDY SABINE, INC. (“SABINE”) warrants this product to be free from defects in LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE; PROVIDED, HOWEVER,...
  • Page 16 MADE IN USA. Manufactured by: Sabine, Inc. • 13301 Highway 441 • Alachua, FL 32615-8544 USA • Phone: (904) 418-2000 • Fax: (904) 418-2001 • www.sabineinc.com 12/3/96...
