KUSSMAUL 091-92-12 Instruction Manual

Low ripple power supply / automatic load switch for 12vdc vehicle systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FILE: IM_091-92-12_Rev_B
DATE: 09-15-04

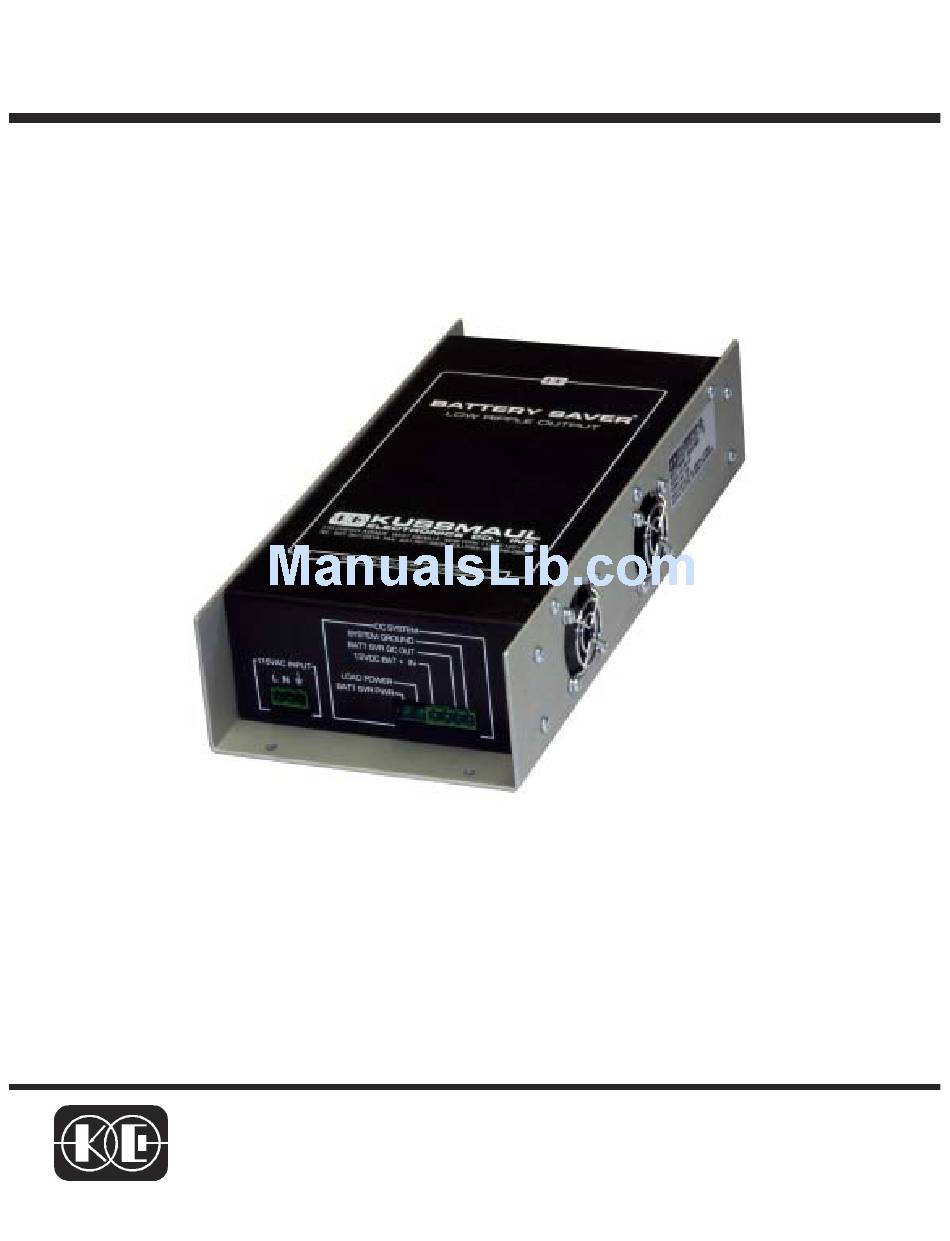

INSTRUCTION MANUAL
BATTERY SAVER
LOW RIPPLE POWER SUPPLY / AUTOMATIC LOAD SWITCH
FOR 12VDC VEHICLE SYSTEMS
MODEL #091-92-12
INPUT: 115 VOLTS, 50/60 Hz AC, 1.8 amps. RMS
OUTPUT: 13.2VDC, 10 AMPS DC, 130VA
3 YEAR WARRANTY
.
KUSSMAUL ELECTRONICS CO., INC
170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796-1221
TEL: in NY 631-567-0314
TOLL FREE: 800-346-0857
FAX: 631-567-5826

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 091-92-12 and is the answer not in the manual?

Questions and answers

Related Manuals for KUSSMAUL 091-92-12

Summary of Contents for KUSSMAUL 091-92-12

  • Page 1 MODEL #091-92-12 INPUT: 115 VOLTS, 50/60 Hz AC, 1.8 amps. RMS OUTPUT: 13.2VDC, 10 AMPS DC, 130VA 3 YEAR WARRANTY KUSSMAUL ELECTRONICS CO., INC 170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796-1221 TEL: in NY 631-567-0314 TOLL FREE: 800-346-0857 FAX: 631-567-5826...

  • Page 2: Installation

    Loads connected to the BATTERY SAVER are powered by the vehicle’s battery when the AC power to the 091-92-12 Battery Saver is OFF. When AC power is applied to the 091- 92-12 Battery Saver special circuitry within the Battery Saver transfers the load(s) to a power supply internal to the 091-92-12 Battery Saver.

  • Page 3: Test And Operation

    TEST and OPERATION The 091-92-12 Battery Saver system interface panel contains two (2) Green LEDs as follows: Refer INSTALLATION WIRING DIAGRAM, Figure 1. "LOAD POWER" LED: Illuminates when power is being supplied to the load(s) regardless of the source of the power (Vehicle Battery or Battery Saver).

  • Page 4: Installation Precautions

    INSTALLATION PRECAUTIONS Refer Figure1, INSTALLATION WIRING DIAGRAM and Specifications & Outline The 091-92-12 Battery Saver is AC Input AND DC Output over-current protected as follows: 115VAC 60Hz Input: 5 Ampere DC Output: ATC, 10 Ampere The ATC 10 Ampere DC OUTPUT FUSE internal to the Battery Saver is common to both the Battery Saver Power Supply output AND the vehicle battery connection that supplies power to the load when the Battery Saver is OFF (115VAC to Battery Saver - OFF).

  • Page 5: Installation Wiring Diagram

    PANEL KEEP CLEAR LINE, AWG 18 LOAD PWR "ON" NEUTRAL, AWG 18 DC OUTPUT 115VAC, 60Hz GREEN LED CONNECTOR EARTH, AWG 18 SYSTEM CABLING CONNECTORS SUPPLIED WITH 091-92-12 BATT SVR. 12V VEHICLE GROUND 12V VEHICLE BATTERY ACCESSORIES RADIOS HAND LIGHTS...

  • Page 6: Specification & Outline

    SPECIFICATION & OUTLINE SPECIFICATIONS: Input Power: 115 volts AC., 50/60Hz, 1.8 Amperes RMS Input Fuse: F1, 5 Ampere, fast acting, 5 X 20mm, Littlefuse P/N 21605, inside enclosure Output Voltage: 13.2 Volts, D.C. ( factory adjustable) Output Ripple: 30 millivolts, AC., RMS Output Current: 10 Amperes, D.C.

  • Page 7: Warranty

    Vehicle Identification Vehicle Owner WARRANTY All product of Kussmaul Electronics Company Inc. are warranted to be free of defects of material or workmanship. Liability is limited to repairing or replacing at our factory, without charge, any material or defects which become apparent in normal use within 3 years from the date the equipment was shipped.

This manual is also suitable for:

Battery saver 091-92-12
