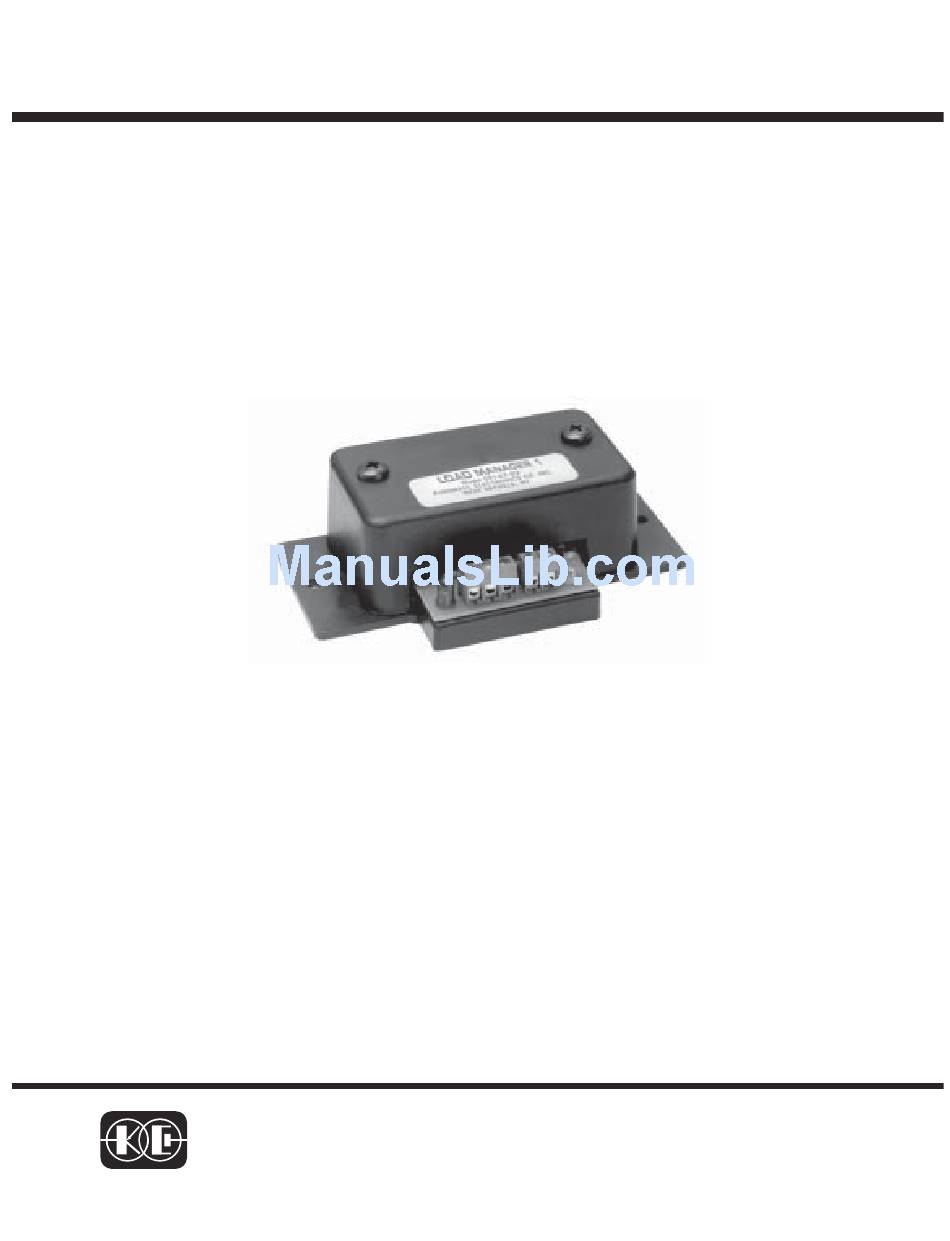

LOAD MANAGER 1
OVER-VOLTAGE DETECTOR RELAY
A
BATTERY SYSTEM VOLTAGE MONITOR
WHICH DETECTS OVERVOLTAGE CONDITIONS
KUSSMAUL ELECTRONICS CO., INC
170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796
TEL: in NY 631-567-0314
INSTRUCTION MANUAL
MODEL #091-63-OV
3 YEAR WARRANTY
TOLL FREE: 800-346-0857
FILE:091-63-OV
REV A: 02-11-04
.
FAX: 631-567-5826
Advertisement
Table of Contents
Related Manuals for KUSSMAUL 091-63-OV
Summary of Contents for KUSSMAUL 091-63-OV
- Page 1 INSTRUCTION MANUAL LOAD MANAGER 1 OVER-VOLTAGE DETECTOR RELAY MODEL #091-63-OV BATTERY SYSTEM VOLTAGE MONITOR WHICH DETECTS OVERVOLTAGE CONDITIONS 3 YEAR WARRANTY KUSSMAUL ELECTRONICS CO., INC 170 CHERRY AVE., WEST SAYVILLE, N.Y. 11796 TEL: in NY 631-567-0314 TOLL FREE: 800-346-0857 FAX: 631-567-5826...
- Page 2 INTRODUCTION The 091-63-OV Over Voltage Detector relay is a device which continuously monitors the voltage of the battery. The unit is factory set to actuate at 14.7 volts but may be field adjust to other voltages. The output relay is capable of switching 5 amperes, and both a “normally open” and a “normally closed”...
- Page 3 WIRING DIAGRAM MODEL 091-63-0V OVER VOLTAGE DETECTOR RELAY NC NO C TO LOAD WILL BE ENERGIZED WHEN VOLTAGE SENSED GOES ABOVE SETPOINT +12V Fuse TO VOLTAGE SENSE POINT OVER VOLTAGE DETECTOR INSTALLATION...
- Page 4 SPECIFICATION & OUTLINE SPECIFICATIONS: Input Voltage: 10 to 16 volts D.C. Input Amps: .020 amps, relay deenergized .10 amps, relay energized Relay Contacts: 5 amperes max., normally open 5 amperes max., normally closed Case: non-weatherproof, polypropylene Weight: 4 ounces OUTLINE DRAWING...
- Page 5 Vehicle Identification Vehicle Owner WARRANTY All products of Kussmaul Electronics Company Inc. are warranted to be free of defects of material or workmanship. Liability is limited to repairing or replacing at our factory, without charge, any material or defects which become apparent in normal use within 3 years from the date the equipment was shipped.
