KUSSMAUL 091-100-012 Installation Instructions

The Model 091-100-012 Time Delay Relay operates in a +12 volt electrical system. The relay
contacts transfer at some time after the application of an input signal to terminal 3. The input
signal may be either +12 volts or a ground as selected by the slide switch adjacent to the
terminal strip. An output relay has contacts capable of switching 30 amperes. A +12 volt
power and ground line are required to operate the time delay circuits. In operation the signal
input to the time delay relay is applied when the first load is energized. At the delay interval
later, the relay closes to operate the second load. The time delay is factory set for either 5 or
60 seconds depending on the model. An adjustment is provided to reduce this or increase it

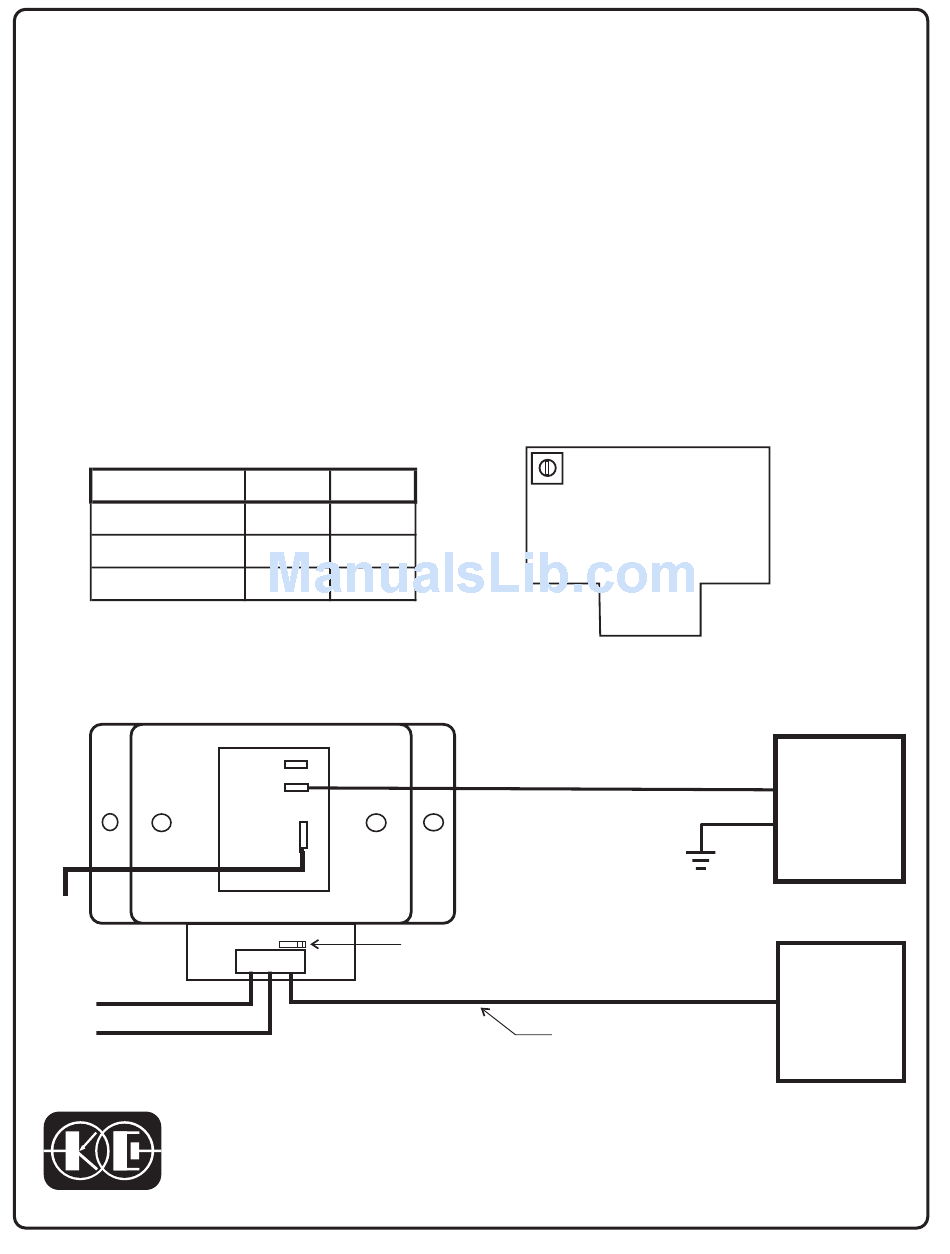

to the values shown in the table. See figure 1 for time adjustment. Figure 2 illustrates the
Time Delay Relay applied to a High Idle/Hydraulic pump control.
TIME DELAY
Specification
Factory Set
Min Time (CW)
Max Time (CCW)
+12 V
FROM
PUMP
CONTROL
+12 volts
Ground
TYPICAL INSTALLATION WITH HIGH IDLE PRECEDING HYDRAULIC PUMP STARTUP
SINCE 1967, DESIGNERS OF INNOVATIVE PRODUCTS
KUSSMAUL ELECTRONICS COMPANY, INC.
170 CHERRY AVENUE, WEST SAYVILLE, NEW YORK, 11796-1221 USA
March 9, 2004
INSTALLATION INSTRUCTIONS

TIME DELAY RELAY - DOPI

DELAY ON PULL-IN

Model 091-100-012

Model A Model B
5 sec 60 sec
2.4 sec 11 sec
28 sec 120 sec

TIME DELAY ADJUST

N.C.
N.O.
COM.
+
Gnd
SIGNAL POLARITY
INPUT SELECTOR
1 2 3
Figure 2
Time delay
Adjust
Figure 1
Note: For grounding signal inputs
move signal polarity input
selector switch to the left
+12 VOLTS WHEN SYSTEM
GOES INTO HIGH IDLE
