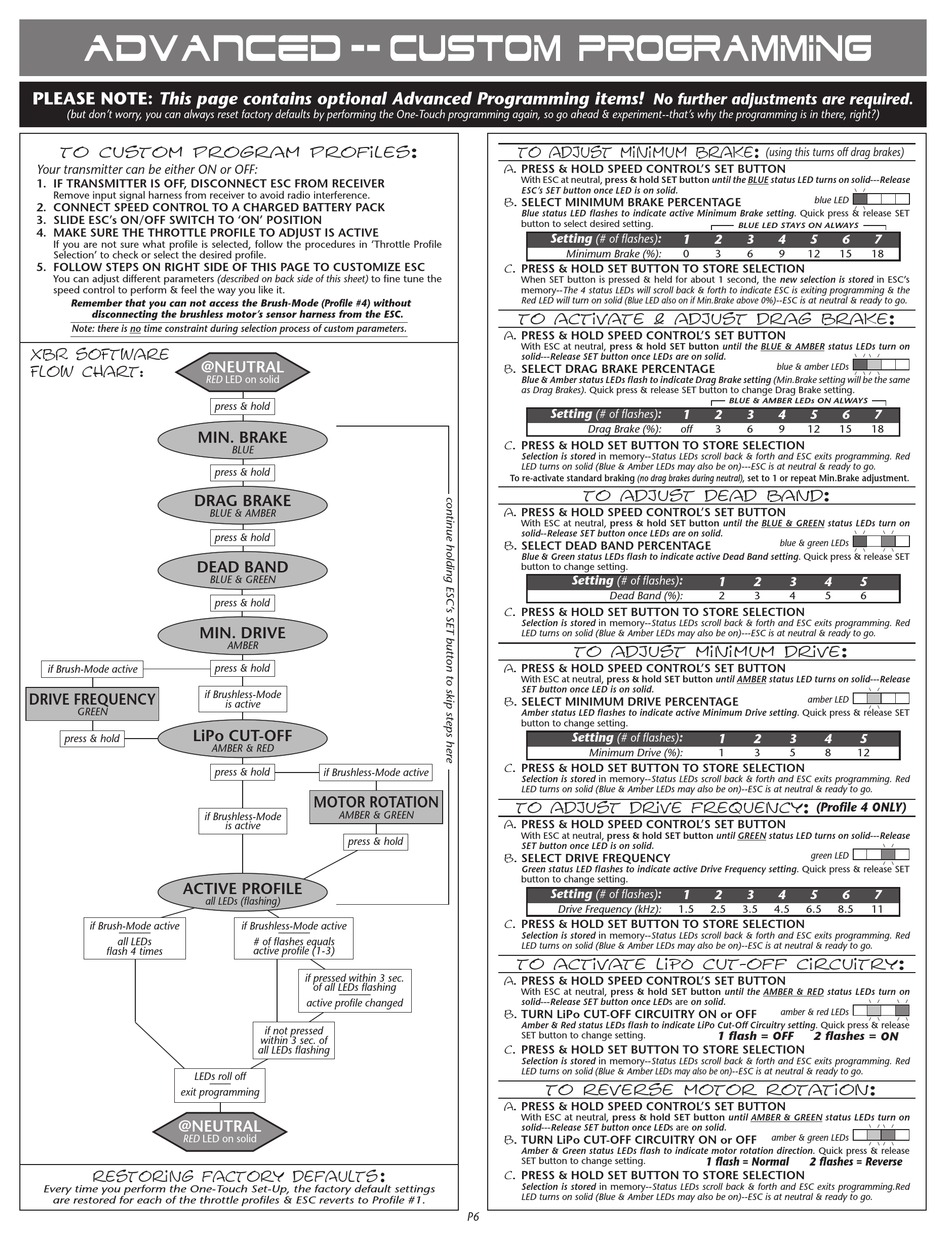

To Custom Program Profiles; Software Flow Chart; Restoring Factory Defaults - NOVAK XBR SPORT - PROFILE & GEARING GUIDE Manual

advanced -- CUSTOM programmiNG
PLEASE NOTE: This page contains optional Advanced Programming items!
(but don't worry, you can always reset factory defaults by performing the One-Touch programming again, so go ahead & experiment--that's why the programming is in there, right?)

to custom program profiles

Your transmitter can be either ON or OFF:
1. IF TRANSMITTER IS OFF, DISCONNECT ESC FROM RECEIVER
Remove input signal harness from receiver to avoid radio interference.
2. CONNECT SPEED CONTROL TO A CHARGED BATTERY PACK
3. SLIDE ESC's ON/OFF SWITCH TO 'ON' POSITION
4. MAKE SURE THE THROTTLE PROFILE TO ADJUST IS ACTIVE
If you are not sure what profile is selected, follow the procedures in 'Throttle Profile
Selection' to check or select the desired profile.
5. FOLLOW STEPS ON RIGHT SIDE OF THIS PAGE TO CUSTOMIZE ESC
You can adjust different parameters (described on back side of this sheet) to fine tune the
speed control to perform & feel the way you like it.
Remember that you can not access the Brush-Mode (Profile #4) without
disconnecting the brushless motor's sensor harness from the ESC.
Note: there is no time constraint during selection process of custom parameters.
xbR soFtware
@NEUTRAL
Flow chart:
RED LED on solid
MIN. BRAKE
DRAG BRAKE
DEAD BAND
MIN. DRIVE
if Brush-Mode active
if Brushless-Mode
DRIVE FREQUENCY
GREEN
LiPo CUT-OFF
press & hold
if Brushless-Mode
ACTIVE PROFILE
all LEDs (flashing)
if Brush-Mode active
––––––
all LEDs
flash 4 times
LEDs roll off
exit programming
@NEUTRAL
RED LED on solid

restoring factory defaults

Every time you perform the One-Touch Set-Up, the factory default settings
are restored for each of the throttle profiles & ESC reverts to Profile #1.
press & hold
BLUE
press & hold
BLUE & AMBER
press & hold
BLUE & GREEN
press & hold
AMBER
press & hold
is active
AMBER & RED
press & hold if Brushless-Mode active
MOTOR ROTATION
AMBER & GREEN
is active
press & hold
if Brushless-Mode active
––––––
# of flashes equals
active profile (1-3)
if pressed within 3 sec.
of all LEDs flashing
––––––
active profile changed
if not pressed
within 3 sec. of
all LEDs flashing
––––
:
:
to adjust minimum brake
a. PRESS & HOLD SPEED CONTROL'S SET BUTTON
With ESC at neutral, press & hold SET button until the BLUE status LED turns on solid---Release
ESC's SET button once LED is on solid.
b. SELECT MINIMUM BRAKE PERCENTAGE
Blue status LED flashes to indicate active Minimum Brake setting. Quick press & release SET
button to select desired setting.
Setting (# of flashes):
Minimum Brake (%):
c. PRESS & HOLD SET BUTTON TO STORE SELECTION
When SET button is pressed & held for about 1 second, the new selection is stored in ESC's
memory--The 4 status LEDs will scroll back & forth to indicate ESC is exiting programming & the
Red LED will turn on solid (Blue LED also on if Min.Brake above 0%)--ESC is at neutral & ready to go.
to activate & adjust drag brake
a. PRESS & HOLD SPEED CONTROL'S SET BUTTON
With ESC at neutral, press & hold SET button until the BLUE & AMBER status LEDs turn on
solid---Release SET button once LEDs are on solid.
b. SELECT DRAG BRAKE PERCENTAGE
Blue & Amber status LEDs flash to indicate Drag Brake setting (Min.Brake setting will be the same
as Drag Brakes). Quick press & release SET button to change Drag Brake setting.
Setting (# of flashes):
Drag Brake (%):
c. PRESS & HOLD SET BUTTON TO STORE SELECTION
Selection is stored in memory--Status LEDs scroll back & forth and ESC exits programming. Red
LED turns on solid (Blue & Amber LEDs may also be on)---ESC is at neutral & ready to go.
To re-activate standard braking (no drag brakes during neutral), set to 1 or repeat Min.Brake adjustment.
to adjust dead band
a. PRESS & HOLD SPEED CONTROL'S SET BUTTON
With ESC at neutral, press & hold SET button until the BLUE & GREEN status LEDs turn on
solid--Release SET button once LEDs are on solid.
b. SELECT DEAD BAND PERCENTAGE
Blue & Green status LEDs flash to indicate active Dead Band setting. Quick press & release SET
button to change setting.
Setting (# of flashes):
c. PRESS & HOLD SET BUTTON TO STORE SELECTION
Selection is stored in memory--Status LEDs scroll back & forth and ESC exits programming. Red
LED turns on solid (Blue & Amber LEDs may also be on)---ESC is at neutral & ready to go.
to adjust minimum drive
a. PRESS & HOLD SPEED CONTROL'S SET BUTTON
With ESC at neutral, press & hold SET button until AMBER status LED turns on solid---Release
SET button once LED is on solid.
b. SELECT MINIMUM DRIVE PERCENTAGE
Amber status LED flashes to indicate active Minimum Drive setting. Quick press & release SET
button to change setting.
Setting (# of flashes):
c. PRESS & HOLD SET BUTTON TO STORE SELECTION
Selection is stored in memory--Status LEDs scroll back & forth and ESC exits programming. Red
LED turns on solid (Blue & Amber LEDs may also be on)--ESC is at neutral & ready to go.
to adjust drive frequency
a. PRESS & HOLD SPEED CONTROL'S SET BUTTON
With ESC at neutral, press & hold SET button until GREEN status LED turns on solid---Release
SET button once LED is on solid.
b. SELECT DRIVE FREQUENCY
Green status LED flashes to indicate active Drive Frequency setting. Quick press & release SET
button to change setting.
Setting (# of flashes):
Drive Frequency (kHz):
c. PRESS & HOLD SET BUTTON TO STORE SELECTION
Selection is stored in memory--Status LEDs scroll back & forth and ESC exits programming. Red
LED turns on solid (Blue & Amber LEDs may also be on)--ESC is at neutral & ready to go.
to activate liPO cut-off circuitry
a. PRESS & HOLD SPEED CONTROL'S SET BUTTON
With ESC at neutral, press & hold SET button until the AMBER & RED status LEDs turn on
solid---Release SET button once LEDs are on solid.
b. TURN LiPo CUT-OFF CIRCUITRY ON or OFF
Amber & Red status LEDs flash to indicate LiPo Cut-Off Circuitry setting. Quick press & release
SET button to change setting.
c. PRESS & HOLD SET BUTTON TO STORE SELECTION
Selection is stored in memory--Status LEDs scroll back & forth and ESC exits programming. Red
LED turns on solid (Blue & Amber LEDs may also be on)--ESC is at neutral & ready to go.
to reverse motor rotation
a. PRESS & HOLD SPEED CONTROL'S SET BUTTON
With ESC at neutral, press & hold SET button until AMBER & GREEN status LEDs turn on
solid---Release SET button once LEDs are on solid.
b. TURN LiPo CUT-OFF CIRCUITRY ON or OFF
Amber & Green status LEDs flash to indicate motor rotation direction. Quick press & release
SET button to change setting.
c. PRESS & HOLD SET BUTTON TO STORE SELECTION
Selection is stored in memory--Status LEDs scroll back & forth and ESC exits programming.Red
LED turns on solid (Blue & Amber LEDs may also be on)--ESC is at neutral & ready to go.
P6
No further adjustments are required.
:
(using this turns off drag brakes)
BLUE LED STAYS ON ALWAYS
1 2 3
0 3 6
BLUE & AMBER LEDs ON ALWAYS
1 2 3
off 3 6
1 2
Dead Band (%): 2 3
1 2
Minimum Drive (%): 1 3
1 2 3
1.5 2.5 3.5
1 flash = OFF
1 flash = Normal
blue LED
4 5 6 7
9 12 15 18
:
blue & amber LEDs
4 5 6 7
9 12 15 18
:
blue & green LEDs
3 4 5
4 5 6
:
amber LED
3 4 5
5 8 12
:
(Profile 4 ONLY)
green LED
4 5 6 7
4.5 6.5 8.5 11
:
amber & red LEDs
2 flashes = ON
:
amber & green LEDs
2 flashes = Reverse
