NOVAK MILLENNIUM PRO Manual

IMPORTANT PRECAUTIONS
The following precautions will help to prevent possible damage to the Millennium Pro,
the battery pack, or the input power source.
• Charge only nickel-cadmium or nickel-metal hydride rechargeable battery packs––
Damage will occur from charging other battery types
• Never allow water, moisture, or other foreign materials to enter Millennium Pro.
• Do not use automobile battery chargers to power the Millennium Pro––False peaks
can occur, and excessive voltage spikes can damage the Millennium Pro.
• Do not obstruct the air intake on the bottom of the Millennium Pro––This will cause
overheating and thermal shut down. Be careful if putting Millennium Pro on a pit towel.
• Do not charge batteries with fewer than 4 or more than 8 cells––connected in series.
• Do not charge battery packs connected in parallel––Batteries will be damaged.
• Enhanced-voltage batteries charge erratically––Consult the battery matching
("zapped")
company for charging recommendations.
• Excessive charge current can damage batteries––Follow battery maker recommendations.
• Never exceed 15 volts DC input power source to power the Millennium Pro.
• Gases from a lead-acid battery may ignite if sparks occur when connecting or dis-
connecting the Millennium's alligator clips––Using a lead-acid battery as a power source
may generate hydrogen gas and should only be used in a well ventilated area. Avoid
open flames and sparks which may ignite battery gases.
PLEASE FOLLOW ALL INSTRUCTIONS CAREFULLY
INPUT POWER SOURCE
Input power source voltage should be 1.5 volts DC above peak-voltage of the battery.
Example 1: (6 cell Ni-Cd pack peak-voltage 10.5 volts) + (1.5 volts) = 12 volts DC
Example 2: (8 cell transmitter pack peak-voltage 13.5 volts) + (1.5 volts) = 15 volts DC
Remember that older battery packs peak at higher voltages.
If power supply's voltage is not high enough to peak battery, charge 8 cell packs as two, 4 cell packs.
Input power source connection on the Millennium Pro is located on the lower corner of
the back of the case. The supplied power harness has a matching connector attached to it,
and will plug directly to the panel-mounted connector on the back of the Millennium Pro.
When looking at the input power connector, the pin marked with a raised rib in the
plastic is the positive (+) connection as shown below.
Panel-mounted
input connector
Positive (+) pin
(Rib in plastic)
Acceptable Input Power Sources: DC power supply* or lead-acid battery**
*Output current of power source should meet/exceed desired charge rate.
**Connect input power harness to lead-acid battery before connecting harness to Millennium Pro.
If using Millennium Pro with power supply, cut wires of included input power harness to
the desired length and secure them to the output terminal screws of the power supply.
If your power supply has post-style output terminals, or if using Millennium Pro with a lead-
acid battery, you can solder the included alligator clips to the input power harness. Solder
the red alligator clip to the wire that goes to the Millennium Pro's positive (+) pin (rib in
plastic of connector). Solder the black alligator clip to other wire.
MAIN SELECTION MENUS
The MAIN MENU screens are the first level of navigation in
the Millennium Pro. The available screens are shown here
In each of the MAIN MENU screens the top line of the LCD
displays the available button choices. ENTER and the up ( )
and down ( ) arrows to prompt you to use one of these
keys to continue navigation.
The bottom line displays your current software location. To
go the second level of the Millennium's software, simply
push the ENTER button at any of the MAIN MENU screens.
When in the Start menu screen, the display will alternate
between the Start option and Active Profile screen which
shows the active Charge Profile
(bottom line)
stored settings
(the top line shows charge mode, # of cells, & current)
The Start option begins the charge process, while the other
options take you to the next software level where you can
change charge modes and various other parameters.
SHORTCUT: At the Start option screen, pressing the BACK
button takes you directly to the Activate Profile Screen to let
you quickly change the Active Profile.
(lead-acid, lithium-ion, gel cells, etc.)
VOLTAGE & CONNECTION
Install rubber feet (4)
ENTER
S t a r t
E N T E R
S t a r t
E N T E R
P r o f i l e S e l e c t
E N T E R
E d i t C h a r g e
E N T E R
D e l a y e d C h a r g e
and the profile's
E N T E R
.
L a s t C h a r g e I n f o
E N T E R
S e t t i n g s
E N T E R
P i t Wi z a r d

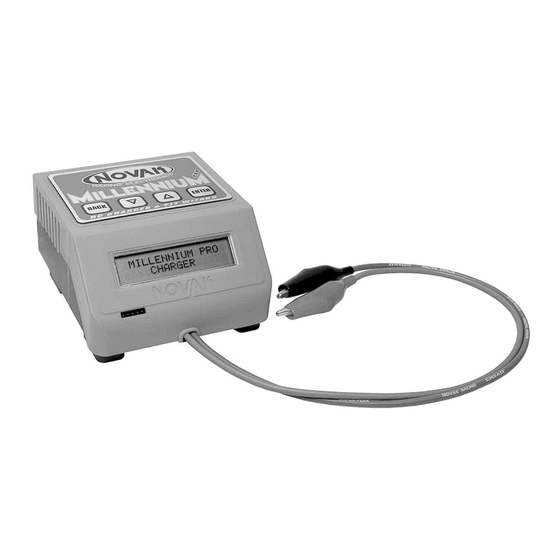

THE MILLENNIUM PRO
The Millennium Pro takes the dependability of the original Millennium charger to new
levels for even better battery performance, new or old. With large backlit display, battery
conditioning, and charge history, you get vital information that is easy to comprehend.
The Millennium Pro is equipped with Ni-Cd Linear Mode for all Ni-Cd cells, Ni-Cd Reverse
Pulse Mode for Ni-Cd cells, and the new NOVAK Ni-MH2 Mode for the ultimate charge of
all sizes of Ni-MH cells. All modes have easy to understand user-adjustable charge parameters.
Case Size ........................................................... 4.00" x 4.38" x 2.33"
Weight ............................................................................................... 14.2 ounces
Input Voltage
(Power Source) .............................................................................................
Charging Modes ........................ Ni-Cd Linear
Charging Capability ............................................................................... 4-8 cells
Ni-Cd Charge Rate
(Linear & Reverse Pulse) ..........................................................
Trickle Charge Rate
(Linear/after peak) ...................................................................
Reverse Pulse Duration
(Reverse Pulse) ............................................................................
Ni-MH Charge Rate ........................................................................... 0.5-7.0 amps
Circuit Protection ............... Input & Output RVP/Short-Circuits, Shorted Batteries, Thermal Overload
PROFILE SELECT OPTION
The Millennium Pro has the ability to store five custom charge profiles in the software's
memory, and to quickly change the active profile and begin charging. Follow the steps
below to navigate through the sub menus of the Profile Select option and change the
active profile. For each screen displayed, follow the given button inputs as shown.
DISPLAY
E N T E R
S t a r t
E N T E R
.
P r o f i l e S e l e c t
A c t i v a t e P r o f i l e
1 o f 5 P R O F I L E 1
EDIT CHARGE OPTION
The Millennium Pro is equipped with three charge modes: Ni-Cd Rev.Pulse
, Ni-Cd Linear
cells) (all sizes Ni-Cd)
mode has various user-adjustable settings. To customize and activate the desired charge
mode, follow the steps below to navigate through the Edit Charge sub menus.
DISPLAY
E N T E R
S t a r t
E N T E R
E d i t C h a r g e
CHARGE MODE
XXXX XXXXXX
CHARGE MODE
NiCd Linear
C e l l s C u r r e n t ( A )
6 4 . 5
Trickle Charge
O f f 0 . 2 A
SELECT MENU
Vo l t T h r e s h o l d
/ C e l l / P a c k
1 4 m V 8 4 m V
E N T E R t o S a v e
t o C a n c e l
CHARGE MODE
NiCd Rev Pulse
Cells Amps Pulse
6 4.5 1 2 ms
SELECT MENU
Vo l t T h r e s h o l d
/ C e l l / P a c k
1 4 m V 8 4 m V
E N T E R t o S a v e
t o C a n c e l
CHARGE MODE
NOVAK NiMH2
C e l l s C u r r e n t ( A )
6 4 . 0
E N T E R t o S a v e
t o C a n c e l
(10.16 x 11.13 x 5.92 cm)
• Ni-Cd Rev.Pulse
(Ni-Cd) (Ni-Cd)
0.5-7.0 amps
0.1-0.4 amp
P r o f i l e S e l e c t
Press down ( ) or up ( ) arrows to
scroll to Profile Select menu option.
Press ENTER to go to
Activate Profile screen.
Press down ( ) or up ( ) arrows to
change the active charge profile.
(Memory position & profile name displayed)
Then press ENTER to activate profile
and jump back to Start screen.
E d i t C h a r g e
, & NOVAK Ni-MH2
(all sizes Ni-MH cells)
Press down ( ) or up ( ) arrows to
scroll to Edit Charge option screen.
Press ENTER to go to
Charge Mode screen.
Press down ( ) or up ( ) arrows to
change the active charge mode.
(NiCd Linear/NiCd Rev.Pulse/NOVAK NiMH2)
Press ENTER to activate charge mode
and move to next screen.
Press down ( ) or up ( ) arrows to
change the underlined parameter.
Press ENTER to move to next parameter.
Press down ( ) or up ( ) arrows to
change the underlined parameter.
Press ENTER to move to next parameter.
Press ENTER to move to next screen.
Press down ( ) or up ( ) arrows to
change the underlined parameter.
Press ENTER to move to next screen.
Press ENTER to save changes ( or to
cancel) and jump back to Start screen.
Press ENTER to activate charge mode
and move to next screen.
Press down ( ) or up ( ) arrows to
change the underlined parameter.
Press ENTER to move to next parameter.
Press ENTER to move to next screen.
Press down ( ) or up ( ) arrows to
change the underlined parameter.
Press ENTER to move to next screen.
Press ENTER to save changes ( or to
cancel) and jump back to Start screen.
Press ENTER to activate charge mode
and move to next screen.
Press down ( ) or up ( ) arrows to
change the underlined parameter.
Press ENTER to move to next parameter.
Press ENTER to save changes ( or to
cancel) and jump back to Start screen.
(402 grams)
12-15 volts DC
• Ni-MH2
(Ni-Cd/Ni-MH)
(1.2 VDC/cell)
(adjustable)
(adjustable)
5-20 milliseconds
(adjustable)
E N T E R
BUTTON
or
ENTER
or
then:
ENTER
E N T E R
(larger Ni-Cd
. Each charge
BUTTON
or
ENTER
or
ENTER
or
then:
ENTER
or
then:
ENTER
ENTER
or
then:
ENTER
ENTER
ENTER
or
then:
ENTER
ENTER
or
then:
ENTER
ENTER
ENTER
or
then:
ENTER
ENTER
