NOVAK GTX - PROFILE SELECTION & MIN BRAKE SELECTION Manual page 2

PLEASE NOTE: This page contains Advanced Programming items only!
Because of the GTX's high degree of adjustability, the items on this page give you access to a very powerful tool.
This level of tuning also means you have the ability to thoroughly mess-up the GTX's performance.
• These programming items are STRICTLY ADVANCED--No further adjustments are required •
(but don't worry, you can always reset factory defaults by performing the One-Touch programming again, so go ahead & experiment--that's why you bought it , right?)
The GTX'S 7th Throttle Profile can be customized for fine tuning
the speed control to feel just the way you like it with any motor.
The GTX lets you tune the following items in 7th Throttle Profile:
•Drive Frequency--
1 of 7 frequencies from 1.5 to 11kHz.
•Minimum Drive Percentage--
•Brake Frequency--
1 of 5 frequencies from 1.5 to 6.5kHz.
•Minimum Brake Percentage--
•Braking Type--
1 of 2 types of braking styles (standard Constant Force
braking or DRAG BRAKING).
•Dead Band--
1 of 5 Dead Band settings from 2 to 6%.

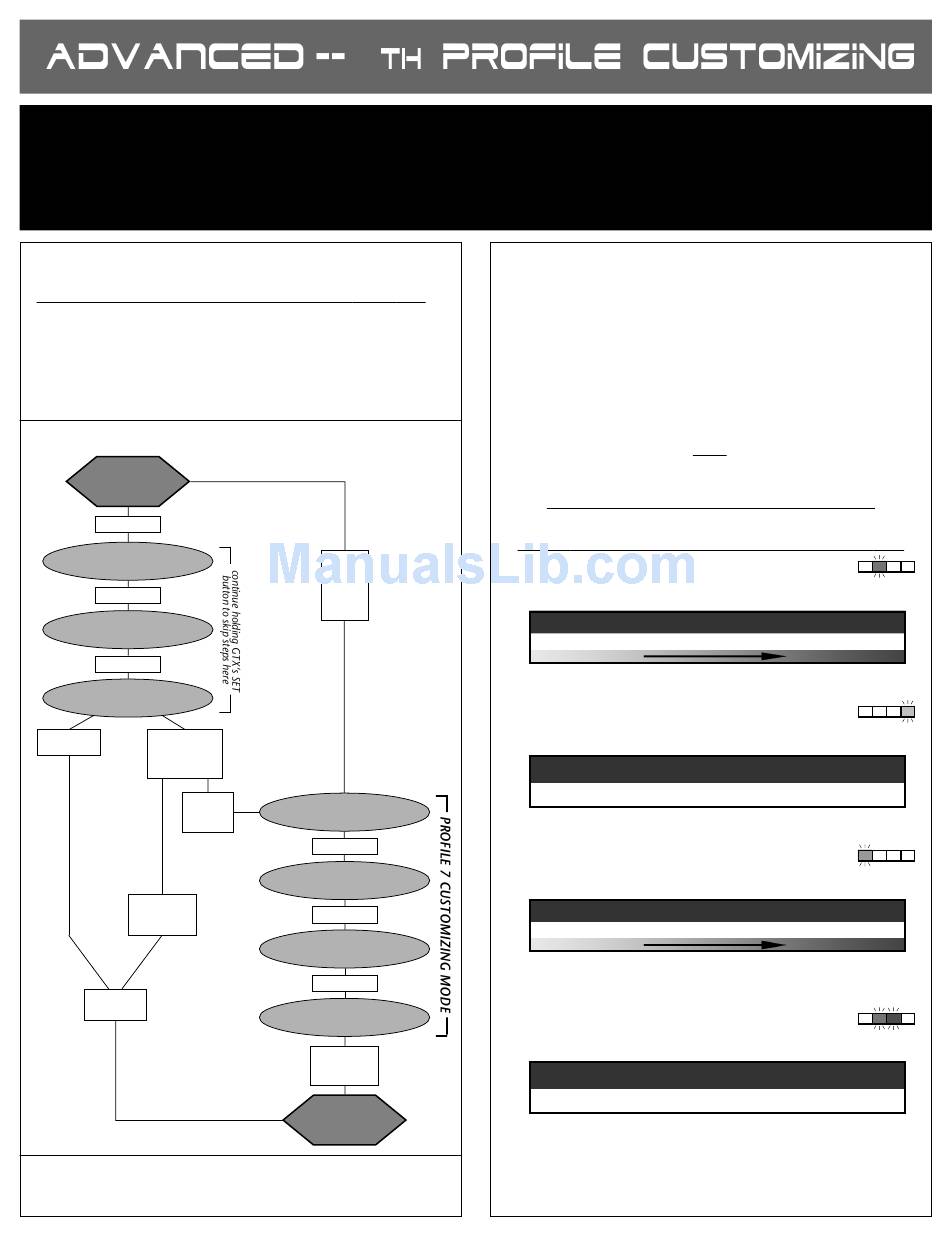

gtx software flow chart gtx software flow chart
@NEUTRAL
RED or RED & GREEN
press & hold
MIN. BRAKE
BLUE
press & hold
DRAG BRAKE
BLUE & AMBER
press & hold
ACTIVE PROFILE
all LEDs (flashing)
if Profile 1-6 if Profile 7
selected selected
––––––
wait & all LEDs
come on solid
if pressed
––––––
while all
LEDs on
if not pressed
––––––
while all
LEDs on
LEDs roll off
––––
save & exit
restoring gtx factory default restoring gtx factory defaults s
Every time you perform the One-Touch Set-Up, the GTX's factory default profile
settings are restored--as shown in 'Factory-Installed Profile 1-7' chart.
7
1 of 5 settings from 2 to 12%.
1 of 7 settings from 0 to 50%.
: :
two
quick
presses
if
profile 7
active
DRIVE FREQ.
GREEN
press & hold
MIN. DRIVE
AMBER
press & hold
BRAKE FREQ.
RED
press & hold
DEAD BAND
GREEN & BLUE
press & hold
––––
LEDs scroll
––––
save & exit
@NEUTRAL
RED or RED & GREEN
: :
to enter profile e to enter profil
With GTX connected to a charged battery (transmitter ON or OFF):
1. IF TRANSMITTER IS OFF, DISCONNECT GTX FROM RECEIVER
To avoid possible radio interference from other transmitters, remove
the GTX's input signal harness from the receiver.
2. TURN ON THE SPEED CONTROL'S POWER
3. MAKE THROTTLE PROFILE 7 ACTIVE
If you are not sure that Profile 7 is selected, follow the procedures
in 'Throttle Profile Selection' to check or select Profile 7.
4. DOUBLE-CLICK SPEED CONTROL'S SET BUTTON
With Profile 7 active & speed control in neutral, quickly press &
release GTX's SET button twice to enter Profile 7 customizing
mode. All 4 LEDs will turn on solid for about 1 second, then turn
off. The green status LED
the active Drive Frequency
to adjust profil to adjust profile e
Note: there is no time constraint during the Profile 7 customizing process.
5. SELECT DRIVE FREQUENCY
Green status LED (2nd from left)
Frequency setting. Quick press & release to select desired setting.
Setting
(# of flashes)
Drive PWM Frequency
6. PRESS & HOLD SET BUTTON TO MOVE ON
When amber status LED
7. SELECT MINIMUM DRIVE PERCENTAGE
Amber status LED flashes to indicate active Minimum Drive setting.
Quick press & release to select desired setting.
Setting
(# of flashes)
Minimum Drive
8. PRESS & HOLD SET BUTTON TO MOVE ON
When red status LED
9. SELECT BRAKE FREQUENCY
Red status LED flashes to indicate active Brake Frequency setting.
Quick press & release to select desired setting.
Setting
(# of flashes)
Drive PWM Frequency
Note: Same as Drag Brake frequency if Drag Brakes are active.
10. PRESS & HOLD SET BUTTON TO MOVE ON
When green & blue status LEDs
11. SELECT DEAD BAND PERCENTAGE
Green & blue status LEDs flash to indicate active Dead Band setting.
Quick press & release to select desired setting.
Setting
(# of flashes)
Dead Band
12. PRESS & HOLD SET BUTTON TO COMPLETE CUSTOMIZING
When SET button is pressed & held for about 1 second, the new
Profile 7 selections are stored in GTX's memory--The 4 status LEDs
will then scroll back & forth to indicate you are exiting the Profile 7
Customization part of GTX's software. The red LED will turn on solid
(red & green if no transmitter signal present)
P6
7 7
customizing mod customizing mode e
will then flash to indicate
(2nd LED from left)
(& that you're in the customizing mode)
7 7
parameters s parameter
flashes to indicate active Drive
:
1 2 3 4 5 6 7
: 1.5 2.5 3.5 4.5 6.5 8.5 11.0
(kHz)
LESS AGGRESSIVE
comes on, release SET button.
(4th from left)
:
1 2 3 4
: 2 3 5
(%)
(1st from left) comes on, release SET button.
:
1 2 3 4
(kHz) : 1.5 2.5 3.5 4.5
LESS AGGRESSIVE
come on, release SET button.
(2nd & 3rd)
green & blue
:
1 2 3 4
: 2 3 4
(%)
--GTX is at neutral & ready to go.
: :
.
: :
green
amber
5
8 12
red
5
6.5
5
5 6
