Optoma EW1610 Command List

Optoma EW1610 Command List

Rs232 commands
Hide thumbs Also See for EW1610:
1
2
3

Advertisement

Quick Links

Download this manual
Appendices
52
English

RS232 Commands

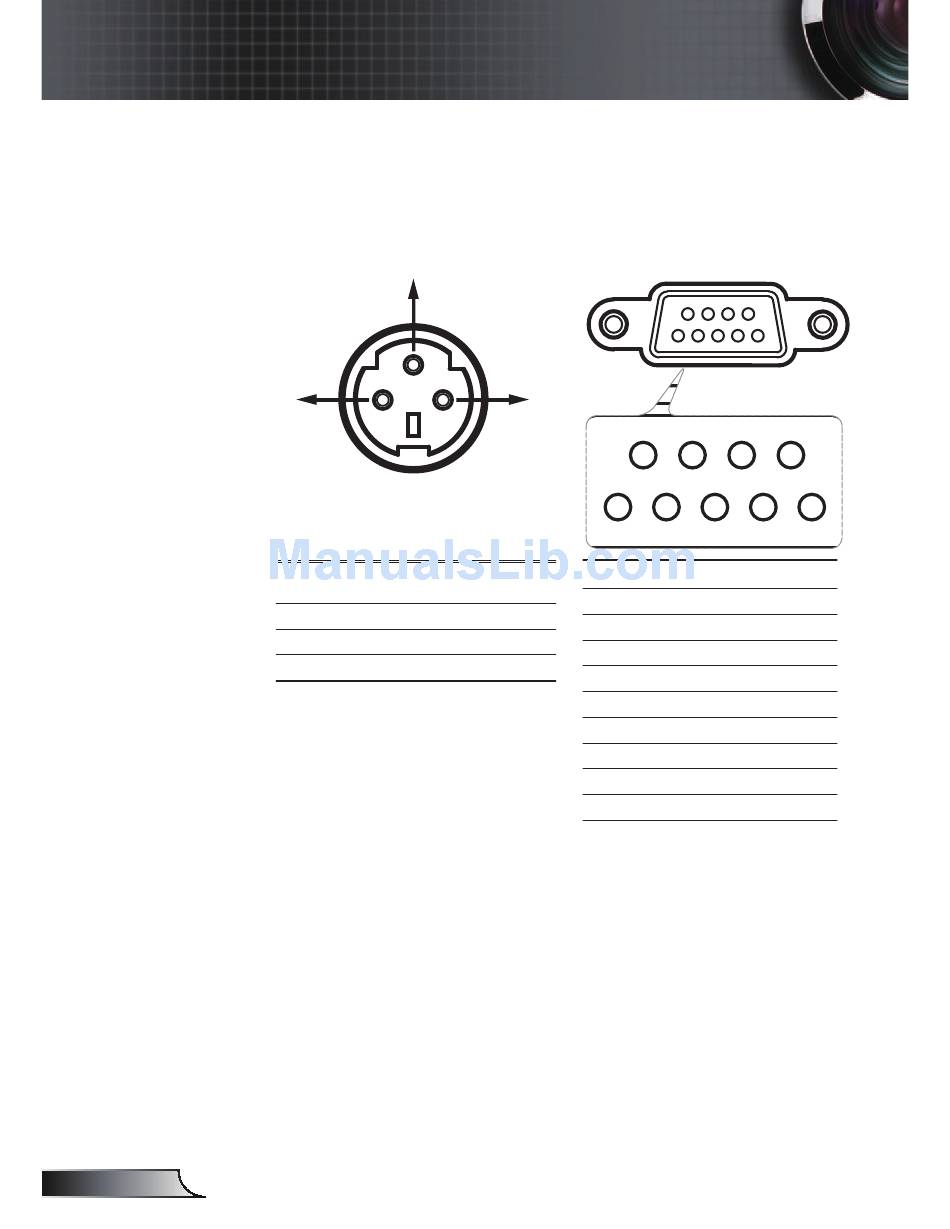

RS232 Connector
3
2
I/O (From Projec-
Pin no.
Name
1
TXD
2
RXD
3
GND
1
5
Pin no.
tor Side
1
OUT
2
IN
3
__
4
5
6
7
8
9
9
8
7
6
4
3
2
1
Spec.
N/A
RXD
TXD
DRT
GND
DSR
RTS
CTS
N/A
