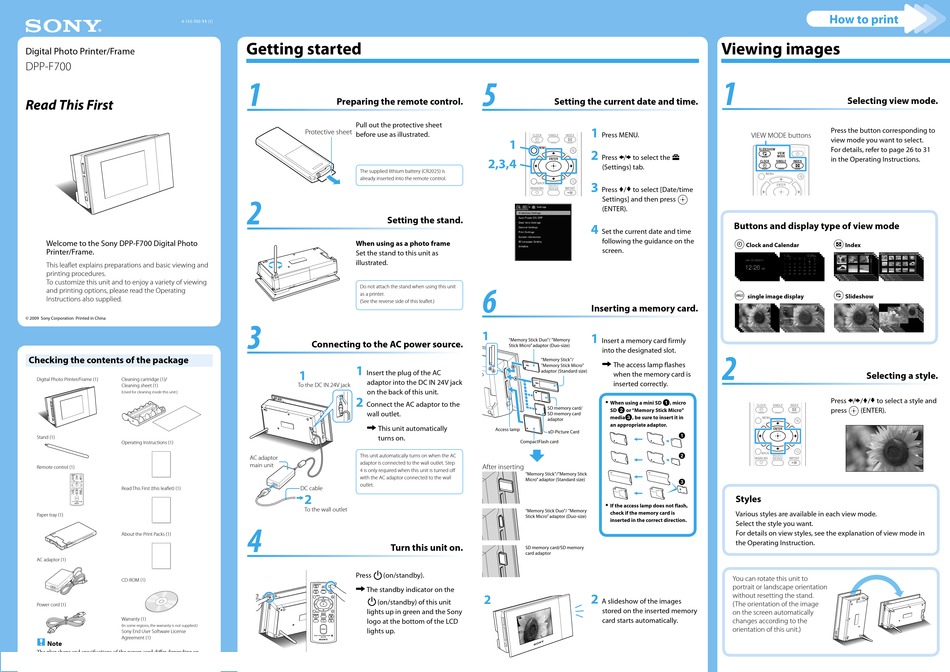

Sony DPP-F700 - Digital Photo Printer/frame Instruction Leaflet

4-155-703-11 (1)
Digital Photo Printer/Frame
DPP-F700

Read This First

Welcome to the Sony DPP-F700 Digital Photo
Printer/Frame.
This leaflet explains preparations and basic viewing and
printing procedures.
To customize this unit and to enjoy a variety of viewing
and printing options, please read the Operating
Instructions also supplied.
© 2009 Sony Corporation Printed in China
Checking the contents of the package
Digital Photo Printer/Frame (1) Cleaning cartridge (1)/
Cleaning sheet (1)
(Used for cleaning inside this unit.)
Stand (1)
Operating Instructions (1)
Remote control (1)
Read This First (this leaflet) (1)
Paper tray (1)
About the Print Packs (1)
AC adaptor (1)
CD-ROM (1)
Power cord (1)
Warranty (1)
(In some regions, the warranty is not supplied.)
Sony End User Software License
Agreement (1)

Note
The plug shape and specifications of the power cord differ depending on
the region in which you purchased this unit.
Getting started
1
Preparing the remote control.
Pull out the protective sheet
Protective sheet
before use as illustrated.
The supplied lithium battery (CR2025) is
already inserted into the remote control.
2
Setting the stand.
When using as a photo frame
Set the stand to this unit as
illustrated.
Do not attach the stand when using this unit
as a printer.
(See the reverse side of this leaflet.)
3
Connecting to the AC power source.
1
1
Insert the plug of the AC
adaptor into the DC IN 24V jack
To the DC IN 24V jack
on the back of this unit.
2
Connect the AC adaptor to the
wall outlet.
C This unit automatically
turns on.
This unit automatically turns on when the AC
AC adaptor
adaptor is connected to the wall outlet. Step
main unit
4 is only required when this unit is turned off
with the AC adaptor connected to the wall
outlet.
DC cable
2
To the wall outlet
4
Turn this unit on.
Press (on/standby).
C The standby indicator on the
(on/standby) of this unit
lights up in green and the Sony
logo at the bottom of the LCD
lights up.
5
Setting the current date and time.
1
Press MENU.
1
2
Press / to select the
2,3,4
(Settings) tab.
3
Press / to select [Date/time
Settings] and then press
(ENTER).
4
Set the current date and time
following the guidance on the
screen.
6
Inserting a memory card.
1
1
"Memory Stick Duo"/ "Memory Insert a memory card firmly
Stick Micro" adaptor (Duo-size)
into the designated slot.
"Memory Stick"/
C
The access lamp flashes
"Memory Stick Micro"
adaptor (Standard size)
when the memory card is
inserted correctly.
ˎ
When using a mini SD
SD memory card/ 
SD or "Memory Stick Micro"
SD memory card

media , be sure to insert it in
adaptor
an appropriate adaptor.
Access lamp
xD-Picture Card
CompactFlash card
After inserting
"Memory Stick"/"Memory Stick
Micro" adaptor (Standard size)
ˎ If the access lamp does not flash,
"Memory Stick Duo"/ "Memory
check if the memory card is
Stick Micro" adaptor (Duo-size)
inserted in the correct direction.
SD memory card/SD memory
card adaptor
2 2
A slideshow of the images
stored on the inserted memory
card starts automatically.

How to print

Viewing images

1
Press the button corresponding to
VIEW MODE buttons
view mode you want to select.
For details, refer to page 26 to 31
in the Operating Instructions.
Buttons and display type of view mode
Clock and Calendar
single image display
SINGLE
2
Press /// to select a style and

, micro
press



Styles
Various styles are available in each view mode.
Select the style you want.
For details on view styles, see the explanation of view mode in
the Operating Instruction.
You can rotate this unit to
portrait or landscape orientation
without resetting the stand.
(The orientation of the image
on the screen automatically
changes according to the
orientation of this unit.)
Selecting view mode.
Index
Slideshow
Selecting a style.
(ENTER).
