USER MANUAL
LCD-Monitor

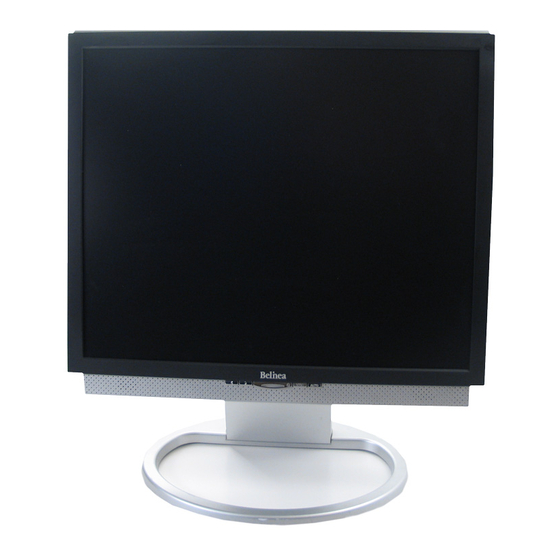

Belinea 10 19 25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 101925 and is the answer not in the manual?

Questions and answers

Summary of Contents for BELINEA 101925

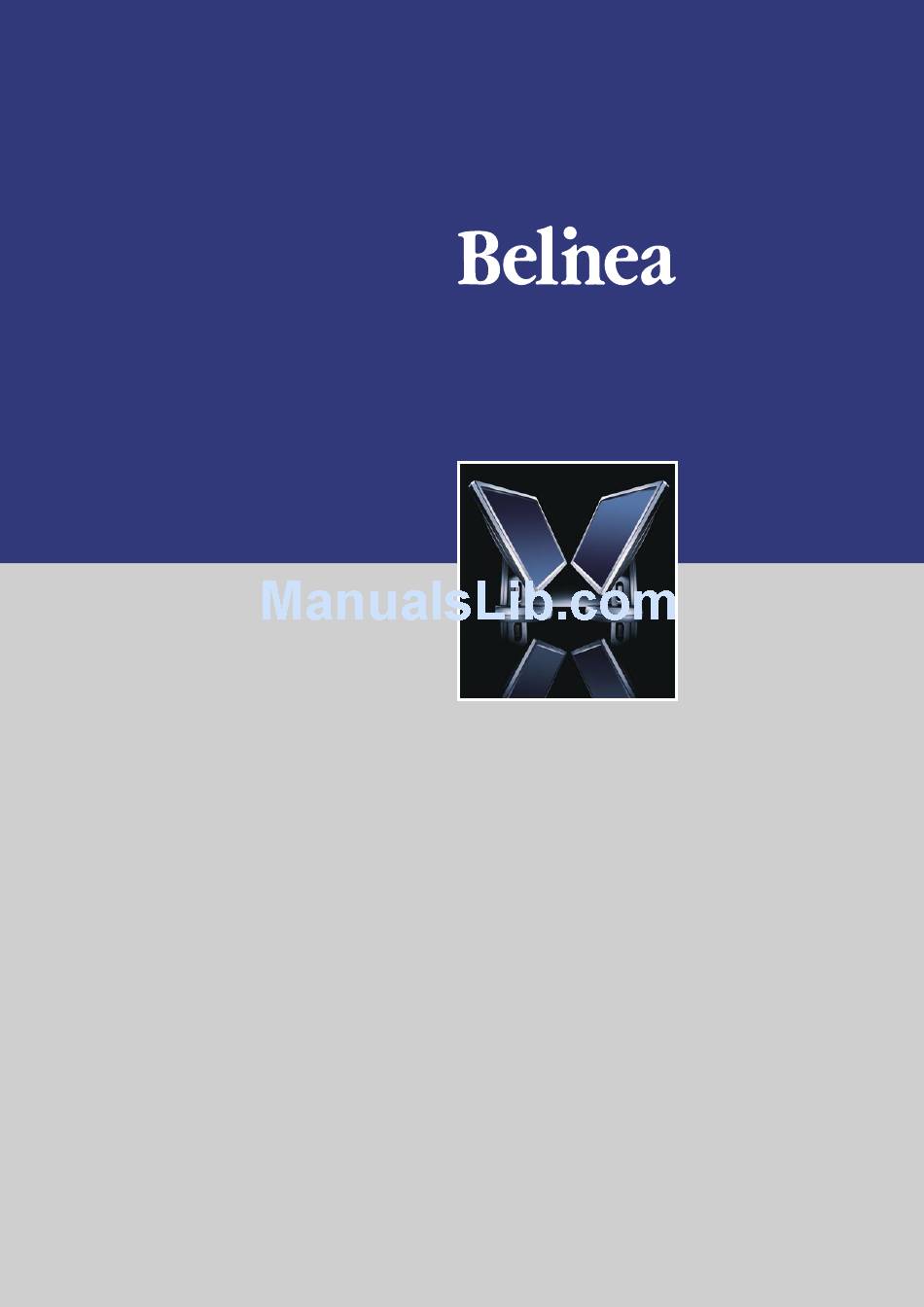

  • Page 1 USER MANUAL LCD-Monitor Belinea 10 19 25...
  • Page 2 BELINEA PREMIUM SERVICE The three-year return to base warranty for your Belinea monitor includes all parts and labour. In addition many countries offer a free of charge swap out warranty programme. This does not affect English your Statutory Rights. Please visit http://www.belinea.com or call the numbers below for further warranty or service information.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS This manual will familiarize you with the installation and INTRODUCTION ............2 use of your Belinea monitor. Please take the time to look IMPORTANT INFORMATION ........3 through these instructions even if you are familiar with monitors.
  • Page 4: Important Information

    WALL MOUNTING The Belinea monitor is shipped with the standard desktop configuration. However, you can optionally mount the device on a wall or on a monitor swivel arm (optional accessory). Please follow the corresponding instructions (4-hole assembly with a spacing of 100 × 100 mm according to the international VESA FDMI standard).
  • Page 5: Unpacking

    ENGLISH USB upstream port DC-IN ��� ����� ������� USB downstream port Signal cable Belinea 10 19 25 - Operating Instructions - 4...
  • Page 6: Configuration

    Belinea configura- directly from within the “Settings”  “Control Panel”  tion file. You can obtain this file from your Belinea dealer “Display”  “Settings” menu. or download it from the MAXDATA FTP server at ftp.
  • Page 7: Osd Menu Functions

    24-pin DVI-D interface (see fig. 2b). Speaker Volume: Adjusts the monitor loud- speaker output volume. Information: There is an optional OSD window (on/off) that displays the newly adjusted screen resolution settings. Belinea 10 19 25 - Operating Instructions - 6...
  • Page 8: Troubleshooting

    Width: 411 mm, height: 444 mm, depth: 220 mm; 4.9 kg (net) Operation: 0 to +40 °C, humidity: 20–80% (without condensation) Operating environment Storage: -20 to +60 °C, humidity: 8–95% (without condensation) Belinea 10 19 25 - Operating Instructions - 7...
  • Page 9: Definition Of The Maxdata Warranty

    MAXDATA • Breaks and scratches on TFT panels and CRT displays • Damage through use of force and external impact respectively • Spots on the panel caused by external impacts Belinea 10 19 25 - Operating Instructions - 8...
  • Page 10 The data must be backed up before the warranty claim is made. MAXDATA excludes liability for any data or information lost for this reason during a warranty claim. For further details regarding the MAXDATA warranty conditions please refer to www.maxdata.co.uk. Belinea 10 19 25 - Operating Instructions - 9...
  • Page 11 ���������������� ������������������������������������������������������������������������������������������������������������������������������������������������ ������������� ����������������� ������������ ����������� ��� ���� ��������������������� ��� ���� ���������������������������������������������������������� ��������� ����� �������� ������ ���� ������������� ���� ���� ������� ������� ������ ��������� ���� ��� �������������� �������������� ���� �������� ���������� ��� �������� ����������� ���� ���������� ������� ���� ���������� ��� �� ������ ������� ��� ���� ���� ����� �������� �������������� ��� ������������� ������������ ������� ����������������������...
  • Page 12 Austria MAXDATA Computer GmbH Ignaz-Köck-Straße 9 • A-1210 Wien Benelux MAXDATA Benelux B.V. Bredaseweg 113-115 • NL -4872 LA Etten-Leur Germany MAXDATA Computer GmbH & Co. KG Elbestraße 12-16 • D-45768 Marl France MAXDATA S.A.R.L. 1, rue du Gevaudan • SILIC 1726 F-91017 EVRY-LISSES Italy MAXDATA Italia S.r.l.
