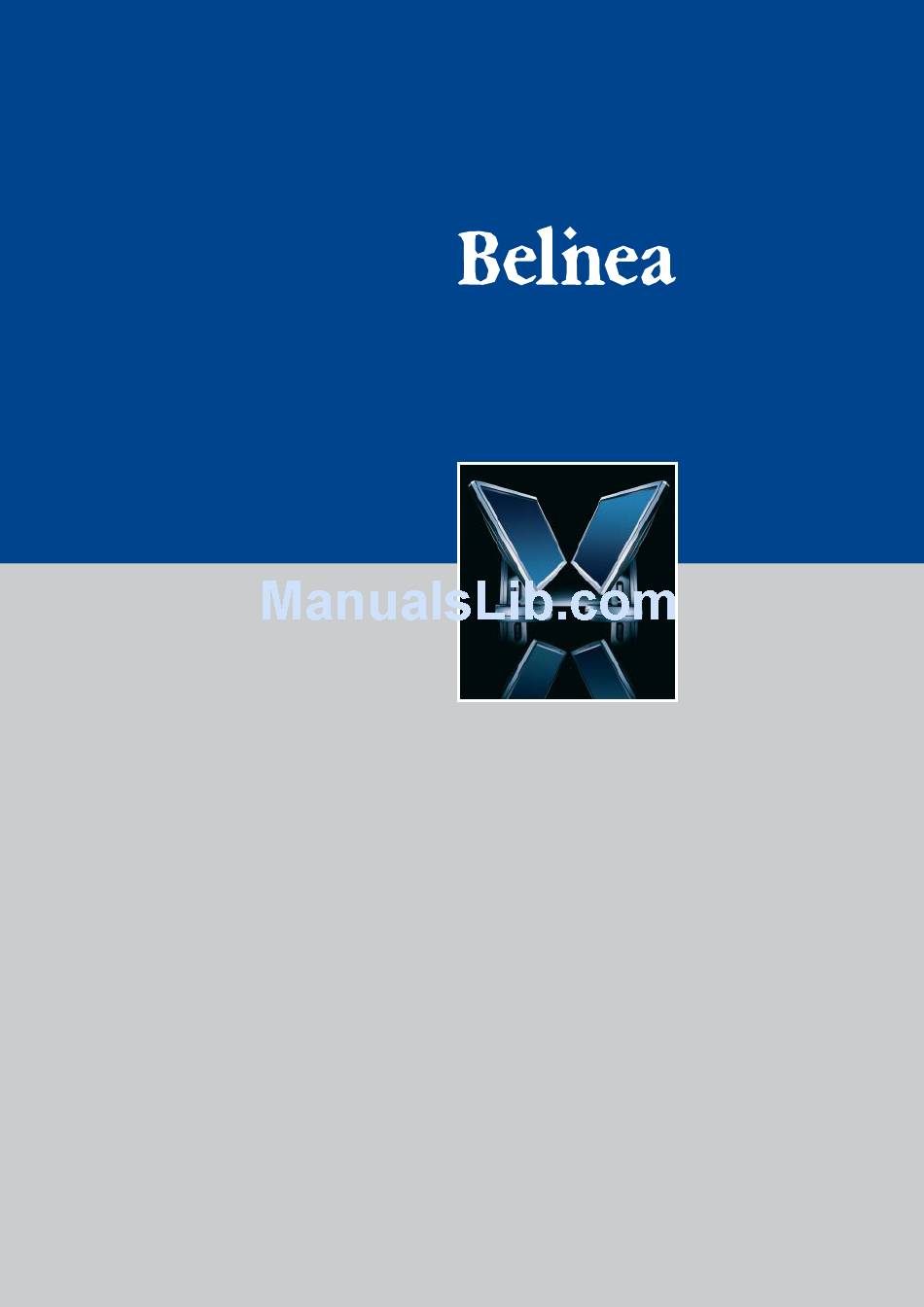

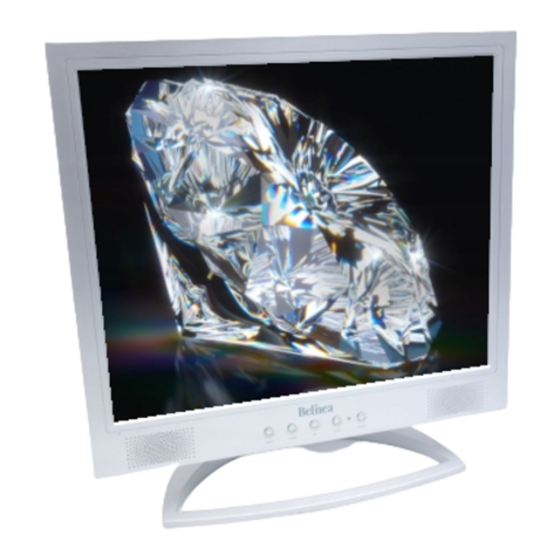

- Page 1 USER MANUAL LCD-Monitor Belinea 10 19 11...
- Page 2 BELINEA PREMIUM SERVICE The three-year return to base warranty for your Belinea monitor includes all parts and labour. In English addition many countries offer a free of charge swap out warranty programme. This does not affect your Statutory Rights. Please visit http://www.belinea.com or call the numbers below for further warranty or service information.
-
Page 3: Table Of Contents
TABLE OF CONTENTS This manual will familiarize you with the installation and INTRODUCTION ............2 use of your Belinea monitor. Please take the time to look IMPORTANT INFORMATION ........3 through these instructions even if you are familiar with monitors. -
Page 4: Important Information
WALL MOUNTING The Belinea monitor is shipped with the standard desktop confi guration. However, you can optionally mount the device on a wall or on a monitor swivel arm (optional accessory). Please follow the corresponding instructions (4-hole assembly with a spacing of 75 × 75 mm according to the international VESA FDMI standard). -
Page 5: Unpacking
fi g. 3) to the monitor and a grounded outlet. STARTUP 1. First start your PC and then turn on your Belinea moni- 2. Adjust the image to meet your requirements (see the tor using the power switch ( in fi... -
Page 6: Configuration
Belinea confi gura- directly from within the “Settings” “Control Panel” tion fi le. You can obtain this fi le from your Belinea dealer “Display” “Settings” menu. or download it from the MAXDATA FTP server at ftp. -
Page 7: Osd Menu Functions
You can also defi ne the RGB values yourself. Press the buttons DOWN or UP ( in fi g. 4) to select the red, green and blue settings and then press the MENU button. Belinea 10 19 11 - Operating Instructions - 6... -
Page 8: Troubleshooting
Width: 482 mm, height: 460 mm, depth: 168 mm; 6.1 kg (net) Operating environment Operation: 0 to 40 °C, humidity: 20–80% (without condensation) Storage: -20 to +60 °C, humidity: 8–95% (without condensation) Belinea 10 19 11 - Operating Instructions - 7... -
Page 9: Definition Of The Maxdata Warranty
MAXDATA • Breaks and scratches on TFT panels and CRT displays • Damage through use of force and external impact respectively • Spots on the panel caused by external impacts Belinea 10 19 11 - Operating Instructions - 8... - Page 10 The data must be backed up before the warranty claim is made. MAXDATA excludes liability for any data or information lost for this reason during a warranty claim. For further details regarding the MAXDATA warranty conditions please refer to www.maxdata.co.uk. Belinea 10 19 11 - Operating Instructions - 9...
- Page 11 Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.
