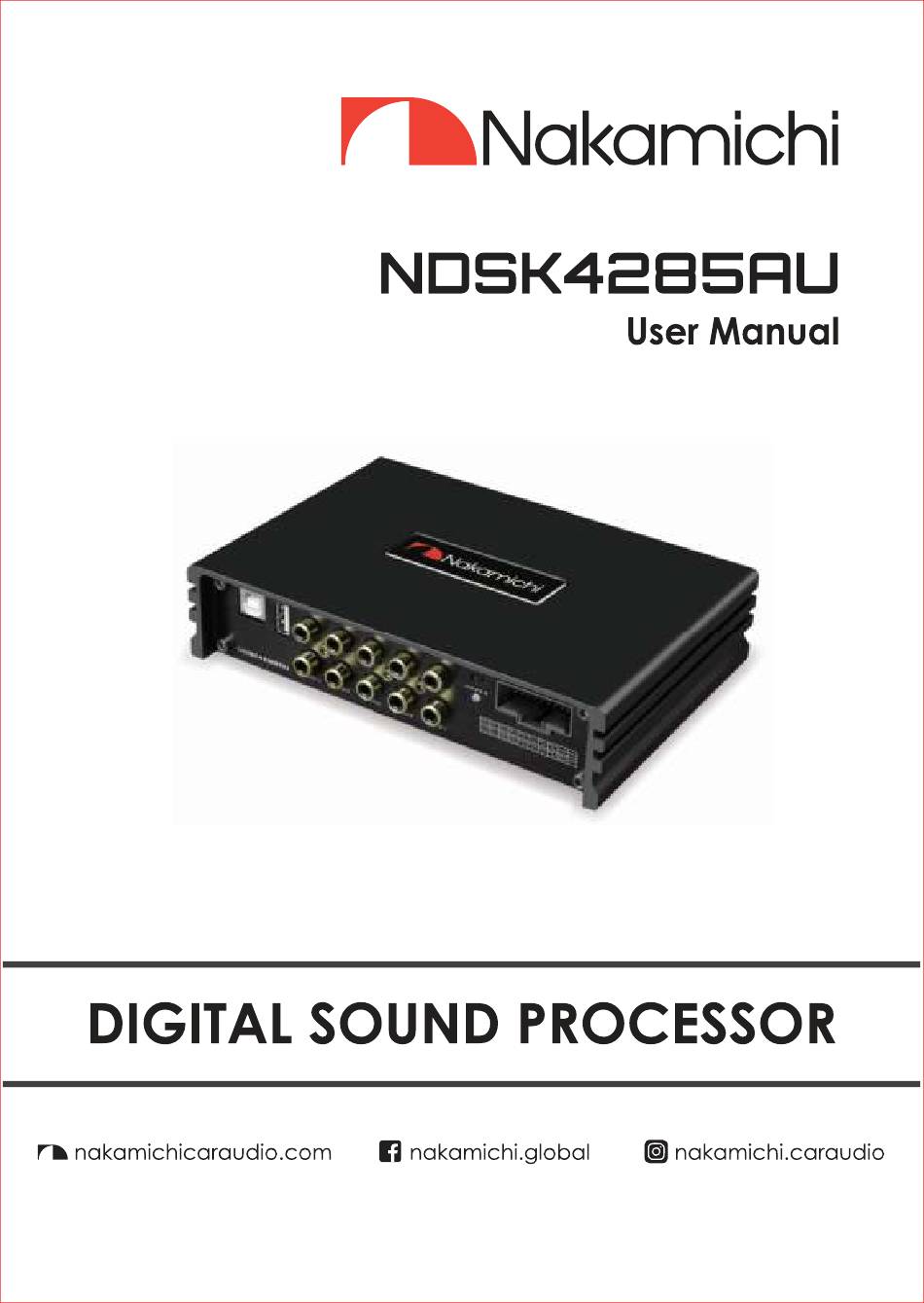

- Page 1 Nakamichi NOSK42BSRU User Manual DIGITAL SOUND PROCESSOR nakamichicaraudio.com nakamichi.global nakamichi.caraudio...
- Page 2 NOTICE I . To prevent the risk of short citcuits, please keep the device away from water, Iquid areas. 2. If water or any other liquid enters the device, please cut of power to the device immediately and contact the nearest service centre for inspection.
- Page 3 PRODUCT TECHNOLOGY DATA Product Data Signal Input RCA Input: 8Vpp: High Level:26Vp Output Range RCA Output: 12Vpp;N-power Output :4x35W;Max power: 4x70W Working Temperature -20-700 Power DC9V-16V REM nput High Level nput Signal: FR+/FR- or ACC control cable REM Output +12V Startup Voltage Output Standby Power...
- Page 4 DIMENSIONS(UNIT:MM) 174.5 FÄNakamichi 0B 1000000 00000000 Installation Instruction as Below AC3 (Optional wiring controller) 3 EN...
- Page 5 PANEL CONTROLS FEATURES 1000000 00000000 A. PC PORT, CONNECT TO THE COMPUTER TUNING SOFTWARE NO need to download the driver installation, connected to the computer sound software installed automatically. B. USB PORT nsert the IJ disk, and play the songs in the U disk under the audio source of the p ayer. C.
- Page 6 PASS A. Main menu edit section Nakamichi Main features: Memory, option, mixing, audio and input source selection operations. * Click on the "Memory' up window and select to load machine preset scenarios or save as preset...
- Page 7 SOFTWARE INTRODUCTION * Click "Mixed' for mixing interface, the interface may enter the corresponding mixing input source by switching, high evel interface is as follows. * Click "Not Connected" button to connect to the host with a PC. C onnected l_lnconnectee * Click on the input source drop down list to select the input source.
- Page 8 SOFTWARE INTRODUCTION *Restore Equalizations button: Switch between the currently designed equalizer state parameters and the pass-through mode (the gain of al equalization points is restored OdB, the frequency and value are unchanged) button: click to select graphic equalization or parametric equalization.
- Page 9 SOFTWARE INTRODUCTION SMART-PHONE SOFTWARE OPERATION INTRODUCTION APP can be downloaded from the official website (http://www.nakamichicaraudio.com, Downloads) Home Output Mixer Main Interface The medium, high share sound effects, save audio ow volume range 12dB— 12dB. Tap sound effects, open ocal sound speaker button mute...
- Page 10 SOFTWARE INTRODUCTION Channel type selection: front audio, EQ Interface rear audio, center audio, subwoofer Corresponding to the adjustment audio. the OUtPUt channel EQ curve (gain, Q value and frequency); reset Channel volume: The volume equalization, pass-through adjusted by sliding eft and right, equalization or parametric...
- Page 11 SOFTWARE INTRODUCTION R. Output EQ frequency, gain and Q Restore factory settings: Click [Restore value settings: factory settings], click [0K], all values The frequency setting of the OUtPUt will be restored to the initial values. EQ: a total of 31 EQ, slide screen left and right to select the EQ, you...
- Page 12 CONNECT WITH US ONLINE TO EXPLORE NAKAMICHI'S COMPLETE RANGE, INSTRUCTIONS SOFTWARE DOWNLOADS AND WARRANTY REGISTRATION. WWW.NAKAMICHICARAUDIO.COM O nakamichi.caraudio nakamichi.global Nakamichi Corp. Japan Made in China...
