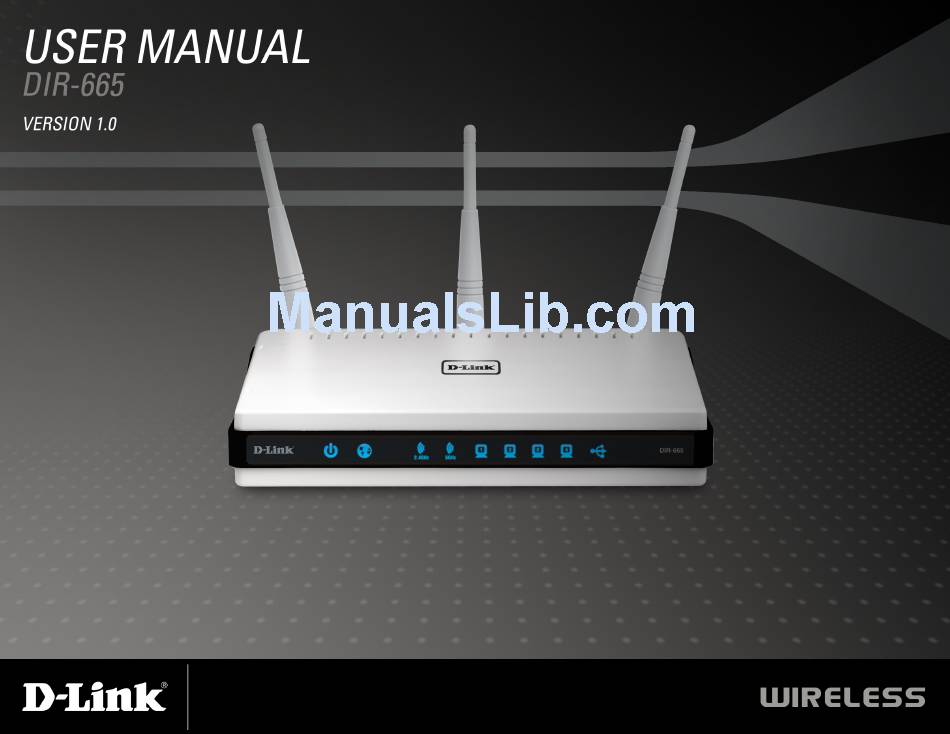

D-Link DIR-665 User Manual

Product manual
Hide thumbs Also See for DIR-665:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for D-Link DIR-665

Summary of Contents for D-Link DIR-665

  • Page 2: Preface

    Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Revision Date Description November 19, 2009 DIR-665 Revision A1 with firmware version 1.00...

  • Page 3: Table Of Contents

    Internet Port Speed ........42 PPTP ............16 Multicast Streams ......... 42 L2TP ............. 18 Administrator Settings ........43 Static (assigned by ISP) ....... 20 Change Password ........43 Wireless Settings ..........21 Remote Management ........43 D-Lnk DIR-665 User Manual...
  • Page 4 Connect.to.a.Wireless.Network......... 65 Using Windows 7 ..........65 ® Configure Router Encryption ......68 Using Windows Vista ..........72 ® Configure Wireless Security ........73 WCN 2.0 in Windows Vista / Windows 7 ..... 75 ® ® D-Lnk DIR-665 User Manual...

  • Page 5: Product.overview

    • CD-ROM with Installation Wizard, User Manual, and Special Offers Note:.Using a power supply with a different voltage rating than the one included with the DIR-665 will cause damage and void the warranty for this product. System Requirements • Ethernet-based Cable or DSL Modem •...

  • Page 6: Introduction

    The D-Link Xtreme N ® 450 Dual Band Gigabit Router (DIR-665) is a 802.11n compliant device that delivers real world performance of up to 650% faster than an 802.11g wireless connection (also faster than a 100Mbps wired Ethernet connection). Create a secure wireless network to share photos, files, music, video, printers, and network storage throughout your home.

  • Page 7: Features

    The performance of this 802.11n wireless router gives you the freedom of wireless networking at speeds 650% faster than 802.11g. •.Compatible.with.802.11g.Devices - The DIR-665 is still fully compatible with the IEEE 802.11g standard, so it can connect with existing 802.11g PCI, USB and Cardbus adapters.

  • Page 8: Hardware Overview

    Internet.Port LAN.Ports.(1-4) Power.Receptor The auto MDI/MDIX Internet port is Connect Ethernet devices such as Receptor for the supplied power the connection for the Ethernet cable computers, switches, and hubs. adapter. to the cable or DSL modem. D-Lnk DIR-665 User Manual...

  • Page 9: Leds

    A blinking light indicates that the DIR-665 is ready. Power.LED Local.Network.LEDs. A solid light indicates a A solid light indicates a connection to an proper connection to the Ethernet-enabled computer on ports 1-4. power supply. This LED blinks during data transmission. D-Lnk DIR-665 User Manual...

  • Page 10: Installation

    If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoet, Broadjump, or Enternet 300 from your computer or you will not be able to connect to the Internet. D-Lnk DIR-665 User Manual...

  • Page 11: Wireless Installation Considerations

    1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum since each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.

  • Page 12: Getting Started

    Secton  - Installaton Getting Started The DIR-665 includes a Quick Router Setup Wizard CD. Follow the simple steps below to run the Setup Wizard and guide you quickly through the installation process. Insert the Quick.Router.Setup.Wizard.CD in the CD-ROM drive. The step-by-step instructions that follow are shown in Windows XP.

  • Page 13: Configuration

    Secton  - Configuraton Configuration This section will show you how to configure your new D-Link wireless router using the web-based configuration utility. Web-based Configuration Utility To access the configuration utility, open a web-browser such as Internet Explorer and enter the IP address of the router (192.168.0.1).

  • Page 14: Setup Wizard

    If you want to enter your settings without running the wizard, click Manual.Configuration and skip to page 17. Click Internet.Connection.Setup.Wizard to begin. If you want to configure your wireless settings, click on Wireless. Connection.Setup.Wizard and skip to page 60. D-Lnk DIR-665 User Manual...
  • Page 15 Create a new password and then click Next to continue. Select your time zone from the drop-down menu and then click Next to continue. Select the type of Internet connection you use and then click Next to continue. D-Lnk DIR-665 User Manual...
  • Page 16 Note: Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through the router. If you selected PPTP, enter your PPTP username and password. Click Next to continue. D-Lnk DIR-665 User Manual...
  • Page 17 Click Connect to save your settings. Once the router is finished rebooting, click Continue. Please allow 1-2 minutes to connect. Close your browser window and reopen it to test your Internet connection. It may take a few tries to initially connect to the Internet. D-Lnk DIR-665 User Manual...

  • Page 18: Manual Configuration

    The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone.Your.PC’s.MAC. Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card. D-Lnk DIR-665 User Manual...

  • Page 19: Pppoe (Dsl)

    The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone.Your.PC’s. MAC.Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card. D-Lnk DIR-665 User Manual...

  • Page 20: Pptp

    Enter the Server IP provided by your ISP (optional). Username: Enter your PPTP username. Password: Enter your PPTP password and then retype the password in the next box. Reconnect Mode: Select either Always-on, On-Demand, or Manual. D-Lnk DIR-665 User Manual...
  • Page 21 MAC address unless required by your ISP. You can use the Clone.Your.PC’s. Address: MAC.Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card. D-Lnk DIR-665 User Manual...

  • Page 22: L2Tp

    Enter the Server IP provided by your ISP (optional). Username: Enter your L2TP username. Password: Enter your L2TP password and then retype the password in the next box. Reconnect Mode: Select either Always-on, On-Demand, or Manual. D-Lnk DIR-665 User Manual...
  • Page 23 Address: recommended that you change the default MAC address unless required by your ISP. You can use the Clone.Your.PC’s. MAC.Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card. D-Lnk DIR-665 User Manual...

  • Page 24: Static (Assigned By Isp)

    Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone.Your.PC’s.MAC.Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card. D-Lnk DIR-665 User Manual...

  • Page 25: Wireless Settings

    5G.Mode: The DIR-665 utilizes the 5GHz band, which is the best technology available for wirelessly streaming multiple HD videos across your network. It achieves this by operating in a clear wireless band to avoid interference that may slow down and limit the range of current wireless technologies like 802.11g.
  • Page 26 Select Invisible if you do not want the SSID of your wireless network to be broadcasted by the DIR-665. If Invisible is selected, the SSID of the DIR-665 will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DIR-665.

  • Page 27: Network Settings

    Local Domain: Enter the Domain name (Optional). Enable DNS Relay: Uncheck the box to transfer the DNS server information from your ISP to your computers. If checked, your computers will use the router for a DNS server. D-Lnk DIR-665 User Manual...

  • Page 28: Dhcp Server Settings

    DHCP Server Settings DHCP stands for Dynamic Host Control Protocol. The DIR-665 has a built-in DHCP server. The DHCP Server will automatically assign an IP address to the computers on the LAN/private network. Be sure to set your computers to be DHCP clients by setting their TCP/IP settings to “Obtain an IP Address Automatically.”...
  • Page 29 ‘Learn NetBIOS information from WAN’ is activated.” NetBIOS Mode Select the different type of NetBIOS node: Broadcast.only, Point-to-Point, Mixed-mode, and Hybrid. Type: Primary/ Enter your Primary (and Secondary) WINS IP address(es). Secondary WINS IP Address: D-Lnk DIR-665 User Manual...

  • Page 30: Dhcp Reservation

    If you want to assign an IP address to the MAC Address: computer you are currently on, click this button to populate the fields. Save: Click Save to save your entry. You must click Save. Settings at the top to activate your reservations. D-Lnk DIR-665 User Manual...

  • Page 31: Virtual Server

    Secton  - Configuraton Virtual Server The DIR-665 can be configured as a virtual server so that remote users accessing Web or FTP services via the public IP address can be automatically redirected to local servers in the LAN (Local Area Network).
  • Page 32 The schedule of time when the Virtual Server Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section. D-Lnk DIR-665 User Manual...

  • Page 33: Port Forwarding

    The schedule of time when the Virtual Server Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section. D-Lnk DIR-665 User Manual...

  • Page 34: Application Rules

    These applications have difficulties working through NAT (Network Address Translation). Special Applications makes some of these applications work with the DIR-665. If you need to run applications that require multiple connections, specify the port normally associated with an application in the “Trigger Port” field, select the protocol type as TCP or UDP, then enter the firewall (public) ports associated with the trigger port to open them for inbound traffic.

  • Page 35: Qos Engine

    ISP. This is determined by your ISP. ISP’s often speed as a download/upload pair. For example, 1.5Mbits/284Kbits. Using this example, you would enter 284. Alternatively you can test your uplink speed with a service such as www.dslreports.com. D-Lnk DIR-665 User Manual...

  • Page 36: Network Filters

    To find the MAC address on a computer, please refer to the Networking Basics section in this manual. DHCP Client: Select a DHCP client from the drop-down menu and click << to copy that MAC Address. D-Lnk DIR-665 User Manual...

  • Page 37: Access Control

    P2P utilities or games. Click the Add.Policy button to start the Access Add Policy: Control Wizard. Access Control Wizard Click Next to continue with the wizard. D-Lnk DIR-665 User Manual...
  • Page 38 Enter the following information and then click Next to continue. • Address.Type - Select IP address, MAC address, or Other Machines. • IP.Address - Enter the IP address of the computer you want to apply the rule to. D-Lnk DIR-665 User Manual...
  • Page 39 Dest.IP.End - Enter the ending IP address. Protocol - Select the protocol. Dest.Port.Start - Enter the starting port number. Dest.Port.End - Enter the ending port number. To enable web logging, click Enable. Click Save to save the access control rule. D-Lnk DIR-665 User Manual...

  • Page 40: Website Filters

    Save.Settings. The text to be blocked will appear in the list. To delete the text, click.Clear.the.List.Below. Website URL/ Enter the keywords or URLs that you want to Domain: block (or allow). Any URL with the keyword in it will be blocked. D-Lnk DIR-665 User Manual...

  • Page 41: Inbound Filters

    Inbound Filter This section will list any rules that are created. Rules List: You may click the Edit icon to change the settings or enable/disable the rule, or click the Delete icon to remove the rule. D-Lnk DIR-665 User Manual...

  • Page 42: Firewall Settings

    Secton  - Configuraton Firewall Settings A firewall protects your network from the outside world. The D-Link DIR-665 offers a firewall type functionality. The SPI feature helps prevent cyber attacks. Sometimes you may want a computer exposed to the outside world for certain types of applications.

  • Page 43: Application Level Gateway (Alg) Configuration

    Allows devices and applications using VoIP (Voice over IP) to communicate across NAT. Some VoIP applications and devices have the ability to discover NAT devices and work around them. This ALG may interfere with the operation of such devices. If you are having trouble making VoIP calls, try turning this ALG off. D-Lnk DIR-665 User Manual...

  • Page 44: Routing

    A value 1 is the lowest cost and 15 is the highest cost. Interface: Select the interface that the IP packet must use to transit out of the router when this route is used. D-Lnk DIR-665 User Manual...

  • Page 45: Advanced Wireless Settings

    WMM Enable: Check box if you wish to enable this feature. Short GI: Check this box to reduce the guard interval time therefore increasing the data capacity. However, it’s less reliable and may create higher data loss. D-Lnk DIR-665 User Manual...

  • Page 46: Advanced Network Settings

    Internet Ping: Unchecking the box will not allow the DIR-665 to respond to pings. Blocking the Ping may provide some extra security from hackers. Check the box to allow the Internet port to be “pinged”.

  • Page 47: Administrator Settings

    (Internet) host. Remote Admin The port number used to access the DIR-665. Port: Example: http://x.x.x.x:8080 whereas x.x.x.x is the Internet IP address of the DIR-665 and 8080 is the port used for the Web Management interface. Change Password Remote Management Inbound Filter: This section will list any rules that are created.

  • Page 48: Time Settings

    Enter the NTP server or select one from the drop-down menu. Manual: To manually input the time, enter the values in these fields for the Year, Month, Day, Hour, Minute, and Second and then click Set.Time. You can also click Copy. Y our.Computer’s.Time. Settings. D-Lnk DIR-665 User Manual...

  • Page 49: Syslog

    The address of the SysLog server that will be Address: used to send the logs. You may also select your computer from the drop-down menu (only if receiving an IP address from the router via DHCP). D-Lnk DIR-665 User Manual...

  • Page 50: Email Settings

    Selecting this option will send the logs via email according to schedule. Schedule: This option is enabled when On Schedule is selected. You can select a schedule from the list of defined schedules. To create a schedule, go to Tools.>.Schedules. D-Lnk DIR-665 User Manual...

  • Page 51: System Settings

    Any settings that have not been saved will be lost, including any rules that you have created. If you want to save the current router configuration settings, use the Save button above. Reboot Device: Click to reboot the router. D-Lnk DIR-665 User Manual...

  • Page 52: Update Firmware

    You can upgrade the firmware of the Router here. Make sure the firmware you want to use is on the local hard drive of the computer. Click on Browse to locate the firmware file to be used for the update. Please check the D-Link support site for firmware updates at http://support.dlink.com.

  • Page 53: Ddns

    Enter the Host Name that you registered with your DDNS service provider. Username or Key: Enter the Username for your DDNS account. Password or Key: Enter the Password for your DDNS account. Timeout: Enter a time (in hours). D-Lnk DIR-665 User Manual...

  • Page 54: System Check

    The Ping Test is used to send Ping packets to test if a computer is on the Internet. Enter the IP Address that you wish to Ping, and click Ping. Ping Results: The results of your ping attempts will be displayed here. D-Lnk DIR-665 User Manual...

  • Page 55: Schedules

    Save Settings at the top for your schedules to go into effect. Schedule Rules The list of schedules will be listed here. Click List: the Edit icon to make changes or click the Delete icon to remove the schedule. D-Lnk DIR-665 User Manual...

  • Page 56: Device Information

    Secton  - Configuraton Device Information This page displays the current information for the DIR-665. It will display the LAN, WAN (Internet), and Wireless information. If your Internet connection is set up for a Dynamic IP address then a Release button and a Renew button will be displayed.

  • Page 57: Log

    This option will send a copy of the router log to the email address configured in the Tools > Email screen. Save Log: This option will save the router to a log file on your computer. D-Lnk DIR-665 User Manual...

  • Page 58: Statistics

    Secton  - Configuraton Statistics The screen below displays the Traffic Statistics. Here you can view the amount of packets that pass through the DIR-665 on both the Internet and the LAN ports. The traffic counter will reset if the device is rebooted.

  • Page 59: Routing

    This screen displays the routing details configured from your router. Wireless The wireless client table displays a list of current connected wireless clients. This table also displays the connection time and MAC address of the connected wireless clients. D-Lnk DIR-665 User Manual...

  • Page 60: Support

    Secton  - Configuraton Support D-Lnk DIR-665 User Manual...

  • Page 61: Wireless.security

    Secton  - Securty Wireless Security This section will show you the different levels of security you can use to protect your data from intruders. The DIR-665 offers the following types of security: • WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key) ™...

  • Page 62: Wireless Connection Setup Wizard

    The SSID is also case sensitive. Select from the following choices: • Automatically assign a network key • Manually assign a network key Click Next to continue. The Setup is now complete. Keep the information provided for future reference. Click Save to finish. D-Lnk DIR-665 User Manual...
  • Page 63 Select a wireless security password between 8 and 63 characters. Click Next to continue. Your setup is now complete. Print the information provided or write on a piece of paper to configure the correct settings. Click Save.to finish. D-Lnk DIR-665 User Manual...
  • Page 64 If you selected Best, the following screen will show you your Pre-Shared Key to enter on your wireless clients. Click Save to finish the Security Wizard. If you selected WPA-Enterprise, the RADIUS information will be displayed. Click Save to finish the Security Wizard. D-Lnk DIR-665 User Manual...

  • Page 65: Wireless Device With Wps Wizard

    PIN: Select this option to use PIN method. In order to use this method you must know the wireless client’s 8 digit PIN and click Connect. PBC:.Select this option to use PBC (Push Button) method to add a wireless client. Click Connect. D-Lnk DIR-665 User Manual...

  • Page 66: Configure Wpa-Personal (Psk)

    6. Click Save.Settings to save your settings. If you are configuring the router with a wireless adapter, you will lose connectivity until you enable WPA-PSK on your adapter and enter the same passphrase as you did on the router. D-Lnk DIR-665 User Manual...

  • Page 67: Configure Wpa-Enterprise (Radius)

    6. Next to RADIUS Server IP Address enter the IP Address of your RADIUS server. 7. Next to RADIUS Server Port, enter the port you are using with your RADIUS server. 1812 is the default port. 8. Next to RADIUS Server Shared Secret, enter the security key. D-Lnk DIR-665 User Manual...
  • Page 68 9. If the MAC Address Authentication box is selected then the user will need to connect from the same computer whenever logging into the wireless network. 10. Click Advanced to enter settings for a secondary RADIUS Server. 11. Click Apply.Settings to save your settings. D-Lnk DIR-665 User Manual...

  • Page 69: Connect.to.a.wireless.network

    If you are joining an existing network, you will need to know the security key or passphrase being used. 1. Click on the wireless icon in your system tray (lower-right corner). Wireless Icon 2. The utility will display any available wireless networks in your area. D-Lnk DIR-665 User Manual...
  • Page 70 If you get a good signal but cannot access the Internet, check your TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information. 4. The following window appears while your computer tries to connect to the router. D-Lnk DIR-665 User Manual...
  • Page 71 It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the security settings are correct. The key or passphrase must be exactly the same as on the wireless router. D-Lnk DIR-665 User Manual...

  • Page 72: Configure Router Encryption

    Secton  - Securty Configure Router Encryption The WPS feature of the DIR-665 can be configured using Windows 7. Verify that your computer is connected to the router prior to beginning the following steps. See page 67. Carry out the following steps to use Windows 7 to configure the WPS feature of the DIR-665: 1.
  • Page 73 Secton  - Securty 3. Double-click the DIR-665 router. 4. Input the WPS PIN number (displayed in the WPS window on the Router’s LCD screen or in the Setup.> Wireless.Setup menu in the Router’s Web UI) and click Next. D-Lnk DIR-665 User Manual...
  • Page 74 Secton  - Securty 5. Type a name to identify the network. 6. To configure advanced settings, click the icon. Click Next to continue. D-Lnk DIR-665 User Manual...
  • Page 75 7. The following window appears while the Router is being configured. Wait for the configuration to complete. 8. The following window informs you that WPS on the DIR-665 has been setup successfully. Make a note of the security key as you may need to provide this security key if adding an older wireless device to the network in the future.

  • Page 76: Using Windows Vista

    Click on a network (displayed using the SSID) and click the Connect button. If you get a good signal but cannot access the Internet, check you TCP/IP settings for your wireless adapter. Refer to the Networking. Basics section in this manual for more information. D-Lnk DIR-665 User Manual...

  • Page 77: Configure Wireless Security

    1..Open the Windows Vista Wireless Utility by right-clicking ® on the wireless computer icon in your system tray (lower right corner of screen). Select Connect.to.a.network. 2..Highlight the wireless network (SSID) you would like to connect to and click Connect. D-Lnk DIR-665 User Manual...
  • Page 78 It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the security settings are correct. The key or passphrase must be exactly the same as on the wireless router. D-Lnk DIR-665 User Manual...

  • Page 79: Wcn 2.0 In Windows Vista ® / Windows ® 7

    Generate.New.PIN button or Reset.PIN.to.Default button. If you are using third party software to set up Wi-Fi Protection, carefully follow the directions. When you are finished, proceed to the next section to set up the newly-configured router. D-Lnk DIR-665 User Manual...

  • Page 80: Using Windows ® Xp

    Click on a network (displayed using the SSID) and click the Connect button. If you get a good signal but cannot access the Internet, check you TCP/IP settings for your wireless adapter. Refer to the Networking. Basics section in this manual for more information. D-Lnk DIR-665 User Manual...

  • Page 81: Configure Wpa-Psk

    XP Wireless Utility by right-clicking ® on the wireless computer icon in your system tray (lower-right corner of screen). Select View. Available. Wireless.Networks. 2..Highlight the wireless network (SSID) you would like to connect to and click Connect. D-Lnk DIR-665 User Manual...
  • Page 82 It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the WPA-PSK settings are correct. The WPA-PSK passphrase must be exactly the same as on the wireless router. D-Lnk DIR-665 User Manual...

  • Page 83: Troubleshooting

    1..Why.can’t.I.access.the.web-based.configuration.utility? When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website on the Internet or have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself.
  • Page 84 • Close your web browser (if open) and open it. • Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This should open the login page for your the web management.
  • Page 85 • Windows and Windows 7 users ® ® type in cmd) and press Enter.(or click OK). • Once the window opens, you’ll need to do a special ping. Use the following syntax: . ping.[url].[-f].[-l].[MTU.value] Example: ping.yahoo.com.-f.-l.1472 D-Lnk DIR-665 User Manual...
  • Page 86 • To change the MTU enter the number in the MTU field and click Save.Settings to save your settings. • Test your email. If changing the MTU does not resolve the problem, continue changing the MTU in increments of ten. D-Lnk DIR-665 User Manual...

  • Page 87: Wireless.basics

    Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers.

  • Page 88: What Is Wireless

    Why.D-Link.Wireless? D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link delivers the performance you need at a price you can afford. D-Link has all the products you need to build your network. How.does.wireless.work? Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B.
  • Page 89 Who.uses.wireless?. Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, office, business, D-Link has a wireless solution for it. Home • Gives everyone at home broadband access •...

  • Page 90: Tips

    The wireless connection in public places is usually called “hotspots”. Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like: Airports, Hotels, Coffee Shops, Libraries, Restaurants, and Convention Centers.

  • Page 91: Wireless Modes

    • Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network adapters on each computer, such as two or more DIR-665 wireless network Cardbus adapters. An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the wireless router or access point.

  • Page 92: Networking.basics

    Check your IP address After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.

  • Page 93: Statically Assign An Ip Address

    Windows XP - From the desktop, right-click My.Network.Places > Properties. Windows 2000 - Step.2 Right-click on the Local.Area.Connection which represents your D-Link network adapter and select Properties. Step.3 Highlight Internet.Protocol.(TCP/IP) and click Properties. Step.4 Click Use.the.following.IP.address and enter an IP address that is on the same subnet as your network or the LAN IP address on your router.

  • Page 94: Technical.specifications

    * Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. D-Lnk DIR-665 User Manual...
  • Page 95 Appendx C - Techncal Specficatons Dimensions • L = 7.6 inches • W = 4.6 inches • H = 1.3 inches Warranty • 1 Year D-Lnk DIR-665 User Manual...

  • Page 96: Contacting.technical.support

    • Hardware Revision (located on the label on the bottom of the router (e.g. rev A1)) • Serial Number (s/n number located on the label on the bottom of the router). You can find software updates and user documentation on the D-Link website as well as frequently asked questions and answers to technical issues.

  • Page 97: Warranty

    Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement hardware need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware.
  • Page 98 Warranty Period and is subject to the same limitations and exclusions. If a material non-conformance is incapable of correction, or if D-Link determines in its sole discretion that it is not practical to replace the non-conforming Software, the price paid by the original licensee for the non-conforming Software will be refunded by D-Link;...
  • Page 99 • The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery (“COD”) is allowed. Products sent COD will either be rejected by D-Link or become the property of D-Link. Products shall be fully insured by the customer and shipped to D-Link Systems, Inc., 17595 Mt.
  • Page 100 RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NONCONFORMING PRODUCT.
  • Page 101 The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. For operation within 5.15 & 5.25 GHz frequency range. This product is restricted to indoor environment. D-Lnk DIR-665 User Manual...
  • Page 102 The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems. High power radars are allocated as primary users of 5250-5350 MHz and 5650-5850 MHz and these radars could cause interference and/ or damage to LE-LAN deviced. D-Lnk DIR-665 User Manual...

  • Page 103: Registration

    Appendx F - Regstraton Registration Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights. Version 1.0 January 12, 2010 D-Lnk DIR-665 User Manual...
