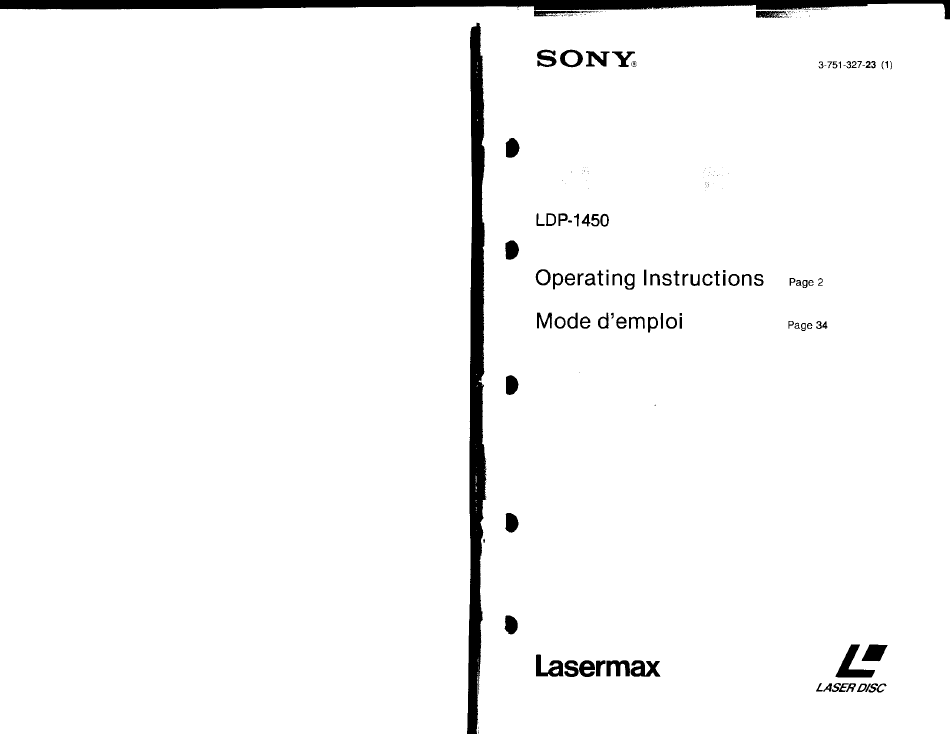

- Page 1 SONY 3-751-327-23 (1) LDP.1450 Operating Instructions Page 2 Mode d'emploi Page 34 Lasermax LASER DISC...
- Page 2 Owner's Record The model and serial numbers are located at the rear of the unit. Record INFORMATION the serial number in the space provided below. Refer to these numbers This equipment generates and uses radio frequency energy and if not wheneveryou call upon your Sonydealer regardingthis product.
- Page 3 Table of Contents Features CAUTION Tips on videodiscs Theuseof opticalinstruments w iththis product w ill increase eyehazard. Precautions ....Notes on handling videodiscs ......As the laserbeamusedin this videodisc playeris harmfulto theeyes, Parts identification....Connections do notattemptto disassemble the cabinet.Referservicing to qualified personnel only.
- Page 4 Features LDP-1450 is designed to be controlled mainly by an external microcom- Mountable on 19" rack puter with an RS-232C interface connector. Control codes from the The videodisc player can be mountea on an ElA standard 19" rack. An computer allow various operations such as playback in varied speeds, optional RMM-121 rack mount...
- Page 5 Tips on Videodiscs Precautions TYPES OF VIDEODISCS On safety • Operate the unit with 120V AC, 60 Hz. CAV (constant angular velocity) disc • Should any solid object or liquid fall into the cabinet, unplug the unit TheCAVdisc always rotatesat a constant speedof 1800r.p.m.and the and have it checked by qualified personnel before operating...
- Page 6 COMPARISON OF SONY VIDEODISC CODE TYPES customer's creation encoding method method location on disc capacity Type purpose l. CAV Discs Vertical blanking (partial listing) added automatically not available 00001 to 54000 all vertical blankings —frame number* 1) frame access during mastering...
- Page 7 Notes on Handling Videodiscs On cleaning Handle the disc by its edge, and keep the disc clean. Cleanthe cabinet, panel and controls with a dry soft cloth, or a soft cloth lightly moistenedwith a mild detergentsolution. Do not use any type of solvent, such as alcohol or benzine,which may damagethe finish.
- Page 8 Parts Identification FRONT PANEL REAR PANEL VIDEO BAUD RATE connector OPEN/CLOSE @ REMOTE selector button connector RS232C OPTIONAL connector AC outlet POWER switch FUNCTION IN USE Indicator LINE OUT jacks indicator selector EXT CPU indicator VIDEO OUT connector BNC connector for output of composite video signals POWER switch and indicator Press to turn the videodisc player on.
- Page 9 Connections 5 LINE OUTjacks The video monitor which has a BNC video input can be used with Phono jacks(RCA-type) for audiosignaloutput. T heaudiosignalsof LDP-1450.Use a BNC-BNC coaxial cable for video signal connection, thechannel 1 (CH-I) areoutputfromthe1/1- j ack,andthesignalsof the and a cable with phono plugs for audio signal connection. channel 2 are output from the 21Rjack.
- Page 10 To Play Back a Videodisc Theprocedure outlinedbelowshowsonly the simpleoperations of the 3 Place the disc with the desired program label facing up. videodisc playerto play backthe videodisc. T hedisc is automatically andendlesslyplayedbackafter it is set in the videodiscplayer.Without the remotecontrolunit or controlsignalsfromthe external c omputer, other operations such as pause, repeat, search, playback in various speeds are not available.
- Page 11 Extended Operation Modes The LDP.1450 is equipped with the OPTIONAL FUNCTION selector at TO ENTER STILL OR STOP MODE WHEN POWER IS TURNED its rear. Use switch 1 of the OPTIONAL FUNCTION selector. 1 Turn the power off, if it is turned on. 123456 switch 1 to ON.
- Page 12 TO USE THE REMOTE CONTROL UNIT WHILE THE VIDEODISC In this state, the videodisc player accepts the signal issued by the PLAYER IS CONTROLLED BY AN EXTERNAL COMPUTER remote control unit, and returns the code to the external computer. The codes returned correspond to the keys on the remote control unit press- In the standardoperationmode,the videodiscplayerdoesnot accept ed as...
- Page 13 Operation with the RM-2001 Connections with an External Remote Control Unit Computer Bofore controlling the videodisc player from the RM-2001,be sure to Connect the computer with a standard RS232C interface to the connect the remote control unit to the player. The main functions videodisc player.
- Page 14 19" rack. • Three ventilation fans with flux 3 m3/min should be used for five players installed in a standard 19" rack. If you have any questions regarding ventilation in a rack, consult your authorized Sony re- presentative. Note Recommended ventilation...
- Page 15 An equipment is near the player to • and contact your authorized Sony service facility. transmit noise and affect the picture The following list includes troubles when the RM-2001optional re- quality of the videodisc.
- Page 16 Specifications Playback system The picture is muted and • The PAUSE button on RM-2001 Disc format Laser Vision the IN USE indicator is lit. been pressed (with a CLV disc). Pick-up method Laser beam (reflective) • A search operation is taking place. Diode laser (k = 7800Å) Laser If the specified...
- Page 17 General Power requirements 120 V AC, 60 Hz Power consumption 39 w Operating temperature 50C to 3500 (400F to 950F) Operating humidity Storage temperature -200C to 600C (—40F to 1400F) Dimensions Approx. 430 x 100 x 410 mm (w/hld) (1615/16 x 315/16 x 161/8inches) Weight Approx.
- Page 18 Please change pages 7, 8, 9, 10 of your LDM-G 1000 Interface Manual to these new pages inserted. COMMAND LIST (1) LDP.1500/ LDP.1550/ LDP.2000 LDP.1600P LDP.1450 LDP-3300P LDP-3600 1500P 1550P ACK (OAH): Acknowledge receipt of a command ADDR INQ (60H): Inquire for current address AUDIO MUTE OFF (25H): Cancel audio muting AUDIO MUTE ON (24H): Mute audio...
- Page 19 LDP-1500/ LDP.1550/ LDP.2000 LDP.1600P LDP-1450 LDP.3300P LDP-3600D 1500P 1550P FWD STEP AND STILL (2BH): Advance one frame forward still REV STEP AND STILL (2CH): Advance one frame backward still FWD TRACK JUMP (2DH): Jump multiple tracks forward REV TRACK JUMP (2EH): Jump multiple tracks backward FRAME # MODE (55H): Set to frame...
