Sears 113.278590C Owner's Manual

Sears 113.278590C Owner's Manual

10-inch cabinet maker's radial saw
Hide thumbs

Advertisement

Quick Links

Download this manual
Save
this
manual
for
future
reference
SEARS
owner's
manual
STOCK
NO.
9227859
MODEL
NO.
113.278590C

Advertisement

loading
Need help?

Need help?

Do you have a question about the 113.278590C and is the answer not in the manual?

Questions and answers

Related Manuals for Sears 113.278590C

Summary of Contents for Sears 113.278590C

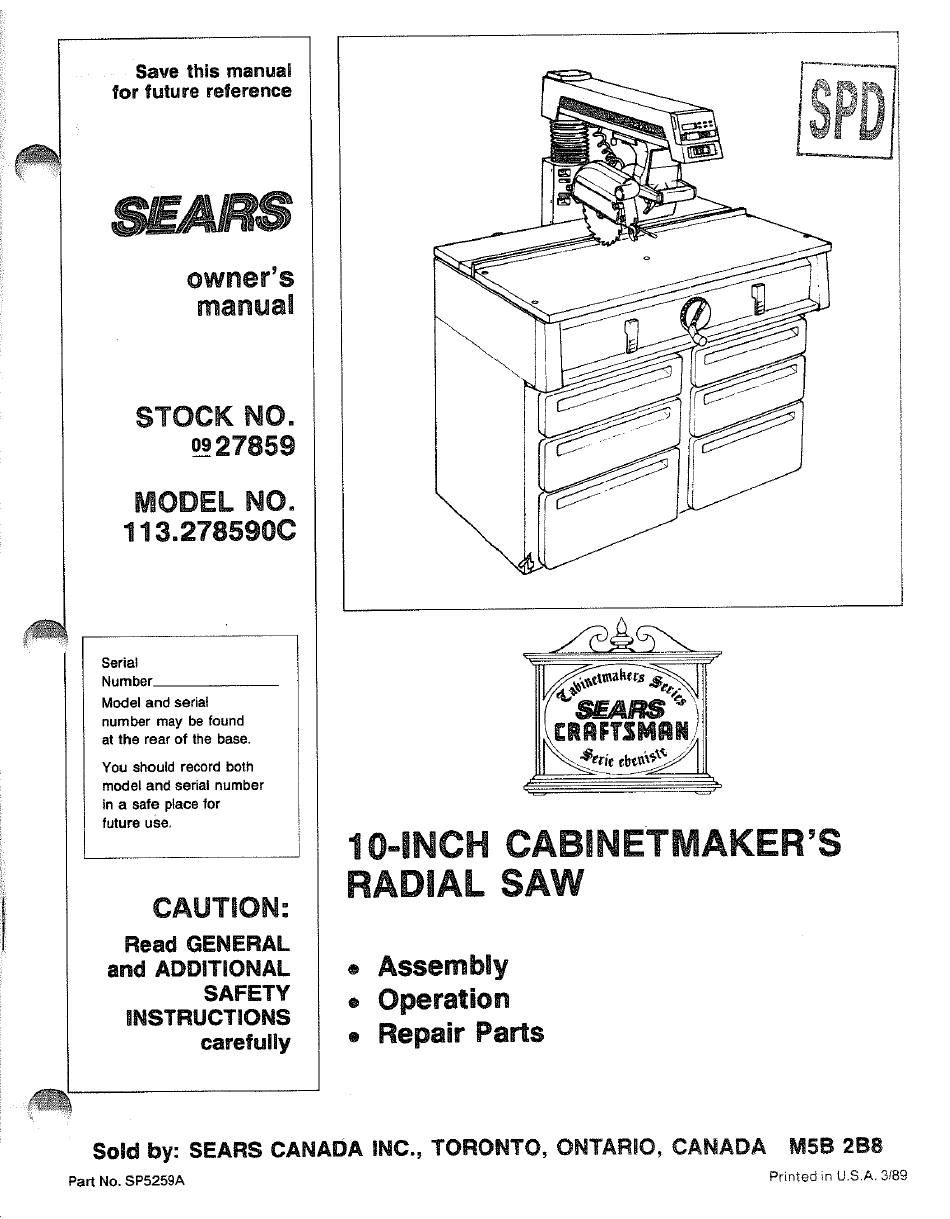

  • Page 1 Save this manual future reference SEARS owner's manual STOCK 9227859 MODEL 113.278590C...
  • Page 2 FULL THREE YEAR WARRANTY If thiSCraftsman Toolfailstooperatewithinthreeyearsfromthe d Ince("Sears") store and "Sears" will repair it, free of charge. If this tool is used for commercial or rental purposesthis warran This warranty is in addition to any statutory warranty. SEARS CANADA INC., TORONTO, ON...
  • Page 3 Safety Infor The operator'smanualcontains safetyinfor- mation, instructions and signsfor your protec- tion against s eriousinjuries,including: Lossof fingers,hand,arm or leg from contact with the saw blade. Eye injuries, including beingblinded from beinghit by a thrownworkpiece,workpiece chipsor piecesof the sawblade. Impact injuries, including broken bonesand internal organ damage,from being hit by a thrown workpiece, workpiece chips or pieces of the saw blade.
  • Page 4 3. Wrong Way Feed Wrong way feed is feeding the workpiece into the end of the saw with the anti-kickback pawls.The workpiece canbe grabbedby the blade and pull your hands into the blade before you can let go or pull back. Fingers, hand or arm can be cut off.
  • Page 5 Personal Safety 1. Wear safety goggleslabeled "CSA Z94.3— 1969 on the package. Do not wear regular glasses, t hey are not safety glasses. 2. Wear snugfitting clothes,shortsleeve shirtsandnonslipfootwear.Coverup or tie longhair.Do notwearloose, b aggy clothes, gloves neckties, rings, w atches o r anyother jewelry.
  • Page 6 14. Rip workpieces that are longer than the diameter of the blade being used. Do not rip a workpiecethat is shorter than the diameter of the blade being used. 15. Cut only one workpiece at a time. Do not cut stacked workpieces or lay them edge to edgefor cutting.
  • Page 7 Putting Your Your radial arm sawis easyto put together, howeverit will take time. Ask a friend to help, a ndfollowthese assembly instructions. It isimportantfor yoursafety, a ndfor the quality of yourcuts, t hatthesaw beput togetherwith care. The following assembly sections should be followed: Unpacking/ Setup Information...
  • Page 8 4, Open the loose parts bags, and sort the contents into piles on the floor or table. This will make it easier for you to find the part(s) you need during assembly. The following loose parts are included: Drawer Fasteners .
  • Page 9 Information 1.If youaremissing anypart whileputting yoursawtogether, d o not continue assembly. Contact y our Sears Service Centeror Retail Storeandget the missingpart beforecontinu- ingassembly o r tryingto usethesaw. Complet partslistsarelocated attheendof this manual. Use these lists to identify the number of any missing part.
  • Page 10 5. Placethe shelfstiffeneron the shelf so that the two ends fit beween the edgesof the shelf, and the two center holes line up with the holesat the endof the undersuppat.(Figure18) 6. Put truss head bolts through the eight holes indicated. Put a lockwasher and hex nut on eachbolt tighten using a 7/16 inch wrench or socket.
  • Page 11 C-Shaped Slot Fig. 23 Actuator 6.Putagroovedpin throughtheholein the 7. Put a washerandspringin placeon the bot- tom of the rod, and then slide the rod all the waydown.(Figure24) Smailer Square Opening Grooved Washer Spring Actuator Fig.24 - BuildingLeftFootAssembly 8. Slide aleverthrough the C-shapedslotin the actuator box, through the square hole in...
  • Page 12 2.Lockthelever o ntheright f ootassembly in the downposition. 3. Attachthisfoot assembly t o therightside panel by sticking the leverthrough the J" shape slotin thesidepææl, andscrewing i n two slotted screws. (Figures31 & 32) Right Foot Assembly J-Shaped Slot Right Side Panel Lever - Locked Down...
  • Page 13 Angled End Of Lower Support Fig. 36 Bottom Side Of Shelf Right Side Panel 11.Put bolts through the four holes along the bottom edgeof the rightsidepanel.Put a lockwasher and hex nut on each bolt and tightenusinga7/16inch wrenchor socket. (Figure 36) Note: It is sometimes difficult to get bolts throughthese four holes.Youmayneedto useaPhillipsscrewdriver t o helpshift the...
  • Page 14 If the leveling feet do not lift the front two wheels off the floor, or If the cabinet rocks, go to step 27. 27. Loosen the the hex nut on each leveling foot and rotate until the front wheels are slightly off the floor or until the cabinet does not rock.
  • Page 15 Putting Drawers Together Thefollowingpartsareusedto assemble t he drawers. 10 inch Drawers 6 inch Drawers ...2 3 inch Drawers 10 inch Drawer Fronts 6 inch Drawer Fronts ...2 3 inch Drawer Fronts Center Slide Brackets Stand Slide Brackets Grease Packets Drawer Fastener Note: The center slide brackets and stand slide bracketshave alreadybeen put together...
  • Page 16 Attaching Handwheel Place the handwheel on the front of the saw. The front Of the saw has a D-shaft that fits into a D-slot in the handwheel. 2. Attach the handwheel using a screw and external lockwasher. (Figures 65 & 66) Handwheel Fig.
  • Page 17 8. Slide the bevel encoder to the top center position soit will fit intothenotchonthe motorsupportbracket. (Figure67) 9. Slide the motor onto the motor pivot sup- port. Makesurethatthemotorisfirmlyin place. 10.Put the flat washer and locknut back in placeandtightenusinga3/4inchsocket wrench. Move the bevellock back and forth asyoutightenthelocknut.Do not over- tighten.
  • Page 18 Attaching Trim Ledge and Trim Caps 1. Hold the trim ledgeagainst the front of the saw. 2. Reach through the top of the saw and use four screwsto fastenthe trim ledgein place. Tighten using a Phillips screwdriver. (Figures 70 & 71)
  • Page 19 Square Hole Lock Handle With Mounting Underneath Fig. 75 3. Slide the rod through one of the square holes in the front of the saw.Then put the hex head bolt through the round hole above it. (Figure 75)
  • Page 20 Fig. 78 - Parts for Mounting Table 1. Place a tee nut over each of the leveling holesand hammer them into place. (Figure 79)
  • Page 21 7. Placethefront table on the saw sothat the mountingscrews line up with the U-clips.The front tableshouldextendaboutone inch beyondthe trim caps. 8. Start the mounting screws into the U-clips usinga Phillips screwdriver.Tighten the screwsuntil the heads are just touching the table. Make sure that the table is not squeez- ing the rubber grommets.
  • Page 22 Recommended Accessories Lower Retractable Guard A lower retractable guard is available, The lower guard is designed to provide protec- tion from contact with the flat sides of the blade when the radial saw is in the 900 CrosscUtposition and in its rearmost posi- tion behind the fence.
  • Page 23 SEARS/ CRAKSNRW Fig. 87 - Miter Lock - Unlocked To lock the miter lock, push the lock to the left. (Figure 88)
  • Page 24 Ther ar e five pre- set bevel a ngles a t-900, - 4 5%0 and 900. To unlockthebevel k whe the blade i sat oneof these a ngles the beve lock allthewayto theright d turnthemotor w hile holding thelock in this position.
  • Page 25 Handwheel The handwheelcontrols the height of the radial arm. TO raise the radial arm, turn the handwheel clockwise. To lower the radial arm, turn the handwheel counterclockwise. ( Figure 95) .'SA#ETY.
  • Page 26 Alignment The blade of your radial arm sawmust be aligned properly for two reasons:to make cuts accurate, and to prevent binding of the blade and workpiece which cancausejams or thrown workpieces. These adjustmentsmust be done in order, before usingyour sawfor the first time. If they are not done in order the sawwill not cut accurately.If you miss an adjustment,you must go back to the adjustmentyou missed...
  • Page 27 Leveling Front Table. 'Ihegoal o fthisadjustment isto make the frontworktableflat andparallelto theradial arm.In orderto do this,youwill choose four point onthetable. When these f ourpoints arelevel,theentiretableshould belevel. You will usetwo methodsto makethe four points level: 0Tighte themounting screws which pull downon the table makinga givenpoint lower.
  • Page 28 8.Unlock the miter lock andswingthe arm to the right until the arborshaftis over the right line. 9. Mark the point on the line under the cen- ter of the arbor shaft. 10, Move the arm and motor until the arbor shaft is over the right line at the rear of the front table.
  • Page 29 Fig. 102 25. Lock the bevellock, rip lock, swivellock and miter lock Adjusting Table Locks "Ihe table locks are designed to hold the rear table,spacer,and fencein placewhile cute...
  • Page 30 Squaring Crosscut Travel The blade musttravel perpendicularto the fencealong the radial arm in order for crosscuts to be accurate. If the radial arm is not perpendicular to the fence, there will be a slight miter angle in all crosscuts. WARNING: Plugging in the saw during alignment can result in your fingers, hands, or arm being cut off from...
  • Page 31 Fig. 105 13. Loosenthefour screwsin the front of the columnsupport s lightly,if youhavenotal- ready done soin theAdjusting Elevation sec- tion. (Figure 106)
  • Page 32 Locktherip lock,putthe spacer,fence andrear tablebackin place, lock the table clamp, and go to the next section. Squaring Blade to Table for Crosscutting These steps are necessary so that your blade will be perpendicular to the table and cuts will be accurate.If this is not done correctly, your cuts will havea slight bevel angle.
  • Page 33 9. Hold the motor tightly and lock the bevel lock.Do not letthemotormoveout of place. 10.Check the square to make sure that it is still flush with the blade. 11.Tightenthefour screws behind theyoke. 12. Raise the radial arm until the blade is 1-1/2 inches above the table.
  • Page 34 4. Turn the blade with your hand several times and Cheekto see if the square is flush with the blade. 5. If the square is flush with the bladeafter each rotation, no change is needed. (Figure 112)Go to the next section,or It there is a gap between the square and the blade after any rotation, go to step 6.
  • Page 35 Squaring Blade to Table for Ripping 1. Unlock the swivel lock and turn the motor to the out-rip position with the motor be- tween the blade andfence. (Figure 114) Fig. 114 Out-rip Position 2. Lock swivel lock and rip lock.
  • Page 36 7,Hold the square in placeandusethe9/16 inch wrench to turn the bolt until the square is flush with the blade. 8. Hold the bolt firmly, and retighten the hex nut using a 1/2 inch wrench. 9. Turn the blade several times and check to seeif the squareis still flush with the blade.
  • Page 37 Making Blade Parallel to Table These steps are done to help prevent the workpiece from being thrown or damaged when the sawis used for edging. Fig. 119...
  • Page 38 9. Unlock the bevel lock 10. Loosen the two screwson the back ofthe motorsupport u singa 1/8inchhex-Lwrench andpliers if necessary. (Figure122) WARNING: The hex-L wrench may break when used with pliers to loosen screws. Thrown pieces could hit you in the face and/or eyes.
  • Page 39 WARNING: Kickback can occur w the spreader Is not In une with the blade. You can be Injured or killed. At- ways adjust the spreader and make sure that It is directly in line with the blade. 1.Loosenthe guardclampscrew until it no longer t ouches t hemetal plate.
  • Page 40 Antikickback Pawls Spreader Fence Table Fig. 127 12. Ifthe spreaderand blade both rest against the fence, no adjustment is needed. (Figure 128-A) Go to step 17, or If the spreader is in front of thefence but not touching it (Figure 128-B), go to step 13, or...
  • Page 41 Digital SEARS/CRRFTSMRN ELECTRONIC MEASUREMENT LOCK REMOVE YELLOW Fig. 129 Digital Display Your radial arm saw has a digital display which tells you the position of the blade and arm at the touch of a button. This display...
  • Page 42 Installin the Battery 1 . Slid e the batter into theopening b ehind th e dWta displa withthe angledcorner on top. (Figure 130) Battery Fig. 130- Installing the Battery 2. Pushthebattery all the way into thisspace...
  • Page 43 6. Unlock the miter lock. 7. Move the arm to the right until it snaps into the 450position. 8. Lock the miter lock. 9. The displayshould say: 10. Unlock the miter lock 11. Move the arm to the left until it snaps into the -450position.
  • Page 44 Bevel Encoder 1. Push the ON/OFF button to turn the dis- play one 2. Put the sawin the crosscutposition with the radial arm perpendicular to thefence and the blade perpendicular to the table. 3. Lock the bevel lock 4. Push the BEVEL button.
  • Page 45 22. If the display is still not correct, repeat Step 15- 21until the bevel e ncoder i s in the right position, or If thedisplayis correct,goto the nextsection. Setting Zero References Bevel, Miter and Elevation The "(Yt r eferencepoints for miter, bevel, and elevation are usually set with the: Saw in the crosscut position with the radial arm perpendicular to thefence...
  • Page 46 go to the next section,or If the display says: pushthe REFSETbuttonagain. T hengoto the next section. Out-rip Reference The"01' referencepoint for out-rip isusually set with the blade ten inches from the fence. 1. Unlock the swivel lock 2. Turn the motor to the out-rip position with the motor between the blade and the fence.
  • Page 47 Electrical Power Suppiy 120 Volts Motor Specifications The A-C motor used in this saw is a non-reversible type having the following specifications: Voltage Amperes Hertz (cycles) Single Phase . .3450 Rotation as viewed from blade Clockwise YOUR IS WIRED FOR 120 VOLTS AND HAS A PLUG THAT...
  • Page 48 Crossc Crosscutting is used to cut a workpiece to length. The workpiece is held againstthe fence. The saw blade is pulled through the workpiece. Cuts are usually made across the grain Of the workpiece. Types of Crosscuts The basic types of crosscuts are shown below. Notice the hand and body position in each.
  • Page 49 Safety Information for Crosscutting Readand follow the safetyinformationbelow before making any type of crosscut. A WARNING 1. Set guard and anti-kickback pawls to proper heightto serveas a partialbarrier. 2. The saw blade can throw the workpiece over the fence if the blade is pushed backwards into workpiece.You or others can be hit and injured by the thrown workpiece.
  • Page 50 10. The workpiece cannot be controlled or held stable enough to do free hand cutting. The workPiece can be thrown or slip and pull fingers and hand into the saw blade. Fingers or hand can be cut off. Set the radial arm to the desired cutting angle.
  • Page 51 Crosscutting Checklist Use the following checklistat the beginning of eachnew cutting period to reducethe risk of an accident. Crosscut Checklist Yellow key removedfrom red switch. Sawunpluggedandswitchoff. No playin the Carriage b earings, motor support o r column. S ee Alignment o f the Blade Sectionfor instructions.
  • Page 52 WARNING: The saw blade will sud- denly come toward you when lowered into the table if the rip lock is unlocked. Fingers and hand can be cut off. Lock the rip lock before and after each crosscut. Fig. 143 Locked Position for Rip Lock 4.
  • Page 53 Making Crosscuts Thefollowing section contains s afety informa- tionandinstructions f or making crosscuts. Anyone who usesyour saw should read and follow these steps. WARNING: Theblade guardmustbe horizontal to provide protection from contact with the upper half of the blade and avoid the workpiece being jammed in the blade.
  • Page 54 Pull the saw blade through workpiece to the distance shown below. Efe:ctiOoiöRDdie8 Fig. 147DistanceNeededto CompleteCrosscut 10.Insert yellowkey into red switch. 11. Turn saw on. WARNING: Saw blade can be...
  • Page 55 Ripp Ripping is used to changethe width of the workpiece by sawingalong its length. The workpiece is fed into the saw blade. Tie fenceis used asa guide. Rip cuts are usually made with the grain of the workpiece. Saw Positions for Ripping There are two sawblade positionsfor making rip cuts: in-rip and out-rip.
  • Page 56 Safety Information Ripping Read and follow the safety information below before making any type of rip cut. A DANGER 1. Kickback can happen when the saw blade is pinched or bound by the workpiece. This creates force in the op- posite direction to which the workpiece is being fed.
  • Page 57 4. Non-thru cuts increase the chance of kickback because the anti-kickback pawlscannot alwaysgrab the irregular workpiece surface. Use a featherboard. e Cutting Accessories section on how to make and use a featherboardi 5. The workpiece can snag or hang up on a fence with a kerf in it.
  • Page 58 Blade Guard, Anti-kickback Pawls and Spreader Thebladeguard, a nti-kickback pawlsand workpiece spreader aredesigned t o reduce or eliminate the risk of injury from blade con- tact,workpiece kickback andwrongwayfeed. The Blade Guard: e servesasa partial barrier to help keephands from contacting t he blade at the infeed end of the saw blade.
  • Page 59 Making a Rip Cut Table Kerf You will need to make a table kerf before a rip cut canbe made.Everytime you move the blade a new distance from the fence, you will need to make a new kerf. 1. Put saw in desiredrip position and lock the saw arm in the 00position.
  • Page 60 Anti-kickback Pawls and Spreader Adjust- ments 1. Go to the outfeed end of the saw blade. '2.Put edgeof workpiecebesidethe blade and under the pawls. 3.Loosenwing screwand lower the anti-kick- backpawlsandspreaderuntil the spreader hangs next to the edgeof the workpieceand the pawls,on one side of the spreader,rest on the workpiece.
  • Page 61 AWARNING:When making t hrough rip cuts do not set the blade closer than 1/2 inch from the fence or auxiliary fence, your hands will be brought too close to the blade. Your fingers hand can be cut off. Do not use a radial arm saw to rip cut less than 1/2 inch wide workpieces.
  • Page 62 DANGER Kickback, Blade Contact. Fingers hand or arm can be cut off. Follow instructions for ripping. Fig- 159 Kickback,BladeContactSafetySign 13. Turn the saw off WARNING: Blade continues to turn for about 12 seconds after power is turned off. Do not reach for cut workpiece until blade stops.
  • Page 63 WARNING: If the auxiliary fence is not used when the saw arm is in the 00 crosscut position, the molding head can- not be located behind the fence for safe and proper operation. 4.Edgingcanalsobe donein the 300 left miter without the use of an auxiliary fence. Follow the instructions below.
  • Page 64 Cutting Fences Fences are required for all saw operations. Crosscutting requires fences with kerfs (slots) to match the path of the saw, because the saw blade is pulled through the kerf in the fence to cut the workpiece. Ripping requires a solid fencewith no kerfs or slots, because the fence serves as a guide for the workpiece being pushed into the saw blade.
  • Page 65 Auxiliary Fence and Push Block An auxiliaryfencemustbe usedif the blade is positioned between1/2inchand2 inches from the fence during ripping. An auxiliary fencemust always be usedwith a pushblock. Their purposeis to keepyour handsaway from the saw blade. They are also needed whenyou usethe molding head.
  • Page 66 Cut out a notch from the 12 inch side o the3/8plywoodthatis 9 1/2inches longb 3/8 inch wide, Tie dimensions of the rem ing3/8plywoodareshownin Fig. 165. 6. Gluethe 3/4inchplywoodon topof th 3/8 inch plywood so that their 12 inch side are square, as shown; These Edges Must Be Parallel 3/4"...
  • Page 67 Featherboard Featherboardsare usedduring rip cutting to helpkeeptheworkpiece against thefence. The featherboard is clamped to the front table,sothat the anglededgeof the feather- boardis against t he workpiece on theinfeed end of the blade. 'Ihe other edge of the workpieceis against t he fence. Make new featherboards when existing ones have been damaged.
  • Page 68 Anti-kickback Pawls: Pivoted objects with teethwhich help preventworkpiecekickback Arbor: The bar or shaft that holds the saw blade. Bevel: The slanting of the motor and blade to an angle between 00 and 900. Crosscut: Cutting a workpiece to length. Dado: Non-throughcut which producesa squaresidednotch or trough in the workpiec Featherboard:Deviceusedto keep workpiece in contactwith thefenceduringrip...
  • Page 69 Helpfu In order to get accuratecuttingresultsfrom yourradialarmsaw,dothefollowing: 1. Follow all stepsin the Alignment of the Blade section. 2. Placethe long edgeof your framing square against t he edgeof the workpiecethat will be heldagainst t he fenceduringcutting.Makesurethat this edgeof the workpieceis straight. 3.
  • Page 70 To extendthe life of the front table of your saw,tack a piece of 1/4inch plywoodover it Make surethat the tacksare not in the path of the saw blade. Use of a front table coverdoesthe followin .Allows all cuts to be made in the cover rather than the front table.
  • Page 71 Maintain General AWARNING: F or y our o wn safet turn power switch off and remove plug from power source outlet before maln- tainlng or lubricating your saw. When you receive your new Craftsman rad saw, it requires no lubrication. The radial saw has been partially aligned and all bear ings are lubricated and sealed for life.
  • Page 72 Fig. 174 Swivel and Bevel Index Pins eLubricate the bearing points where the attaches to the column tube. With a #2 Phillips screwdriver remove two...
  • Page 73 Adjustments for Wear Bevel Lock The purpose of the bevellock is to lock th motor at anybevel angle. An adjustment required if the motor canbe easilymoved hand when the bevel lock is locked or if be lock offers minimal resistance when movin to the locked position.
  • Page 74 Fig. 4. Holding the wrench and arm in position rotate yoke to a non-preset position and rotate swivel lock to the locked position. If th yoke can still be moved the square nut has no been tightened enough. Repeat step 3. 5.
  • Page 75 2. Push the carriageback againstthe rear stop 3. Hold thefront carriagebearingwith your fingersastight aspossible andpull carriage Tj å' forward at the same time. If you can prevent the bearing from turning an adjustment i s re- quired. (Figure 181)
  • Page 76 Miter Lock Hand Fig. 183 - Miter Lock - Unlocked 2. With a 3/16 inch hex "L" wrench find the 1/4-20hexsocket capscrewthrough thehole in the rear of the arm cover.To tightenturn the wrenchclockwiseapproximately1/4turn. (Figure 184)
  • Page 77 Motor To avoid motor damagethis motor should be blown out or vacuumed frequently to prevent sawdustbuildup whichwill interfere with nor- mal motor ventilation. Your sawis equipped with a manual reset button designedto open the power line cir- cuit when the motor temperature exceedsa safe level, motor is overloaded, or a low volt- ageconditionexists.(Figure186) Manual...
  • Page 78 Troublesh WARNING: To avoid injury turn power swi source outlet before troubleshooting. Electronics Probable Cause Problem No displaywhenOn/Off Battery not installed c button is pressed. Battery contacts dirty. Battery dead. Indicator display failu Normal display when Display shows first installed in unit.
  • Page 79 Electronics Probable Cause Problem Arm or carriagemove Display showsEEE.E or rapidly for indicatorto EE.EE. Encoder or indicator Display will reset to zero defective. but immediately shows EEE.E or EE.EE when arm or carriageis moved. Wrong indicator func Display doesnot change selected.
  • Page 80 Motor Probable Cause Problem Power line overloa Motor fails to develop full lights, appliances power. (Power output of motor motors. decreases rapidly with decrease in voltage at Undersize wires motor terminals. For ex- long. ample: a reduction of 10% in voltage causes a General overload company's faciliti reduction...
  • Page 81 Saw Operations Probable Cause Problem Looseness between Crosscuts accurate and column support. 00 and 450 miter. Crosscut travel not with fence Column is loose in Arm not indexing p Carriage assembly Loosenessbetween riage assembly.
  • Page 82 Saw Operations - 2 Probable Cause Problem Workpiece kerf rough Saw blade not sq with tooth marks from to fence. blade (also called heel). Saw blade not pa to table. Using improper cut desired. Dull blade or wa Wood binds, smokes, and motor slows down or stops when ripping.
  • Page 83 Saw Operations - 3 Problem Probable Cause Clamping force not suffi- Bevel lock needs a cient at bevel anglesother than 450. Depth of cut varies from Table top not para one end of the workpiece to the other. Blade tends to advance Dull blade.
  • Page 84 PARTS LIST FOR CRAF MODEL Always order by Part Nu...
  • Page 85 PARTSLIST FORCRAFT MODEL NO. (SEE FIG- 8) (SEE PIG 6}...
  • Page 86 PARTS LIST FOR CRA MODEL Always order by Part Part Description STD601103 *Screw, Pan Rec. Type T 10-32 x 3/8 *Washer, 13/64 x 7/16 x 1/16 STD551010 815857-1 Screw, Hex Washer 3/8-16 x 1-1/2 Screw, Pan Rec. Hd. 808380-6 Plastite 8 x 1 815710 Strap...
  • Page 87 PARTS LIST FOR CRAFT MODEL...
  • Page 88 PARTS LIST FOR CRAF MODEL Always order by Part N FIGURE 3 - BASE Part Description Screw, Hex Washer 815857-1 3/8-16 x 1-1/2 815649 Bearing, Arm *Screw, Socket Hd. Cap 141594-31 1/4-20 x 1-1/4 Rivet, 1/4 x 1/2 815774 Lock Assembly 815702 60208 Nut, Push 1/4...
  • Page 89 PARTS LISTFOR CRAFT MODEL NO. BEVEL ENCODER CORD...
  • Page 90 PARTS LIST FOR CRAFT MODEL NO Always order by Part Nu FIGURE YOKE Part Description Cap, Motor Support 815803 Screw, Low Hd.t 810214-2 cap 1/4-20 x 5/8 Lockwashert Hi Collar 815798 •washer, 17/64 x 9/16 x 1/16 STD551012 816845 • Motor-120V. 816834 Yoke Assembly (see Figure 5) Screw,...
  • Page 91 PARTS LIST FOR CRAFTS MODEL NO. 1 32 ——...
  • Page 92 PARTS LIST FOR C MODEL Always order by Per FIGURE Part Description 810214-3 Screw, Low Hd cap 5/16-18 x 7/8 STD315485 *Bearing, Ball .3150 1.D. STD551031 'Washer, 21/64 x 5/8 x 1/32 817181 Wiper, Track Carriage 815689 STD551062 •washer, .630x 1-1/8 x 3/32 815827 Actuator,...
  • Page 93 PARTS LIST FOR CRAF MODEL...
  • Page 94 PARTS LISTFORCR MODEL Always orderbyPartN FIGURE 6 Part Description 815688 Arm, Radial 815809 Cable 815774 Rivet, 1/4 x 1/2 8i5790 Actuator Assembly STD601103 *Screwt Pan Rec. Type "T" 10-32 x 3/8 815703 Knob, Miter Lock 815856 Screw, Hex Washer Hd. 5/16-18 x 3/4 815779...
  • Page 95 PARTSLIST FOR CRAFTSMAN MODEL NO. 113.27 5 44 J...
  • Page 96 PARTS LIST FOR CRAF MODEL N Always Orderby Part Num FIGURE8 - CABINETASSEM Part Deccriptlon 805589-5 Screw, Truss Hd. 1/4-20 x 1/2 815898 Skirt 44" 815892 Supports Center Rear STD541025 Hex 1/4-20 STDS51225 •Lockwasher, External 1/4 815893 Support, Upper 815890 Bracket* Stand Slide 815886 Support, Front Center...
  • Page 97 PARTS LIST FOR CRAFTSM MODEL NO. 113. Always order by Part Num...
  • Page 98 PARTSLISTFORCR MODEL AlwaysorderbyPer...
  • Page 99 PARTS LIST FOR CRAFTS MODEL NO. 1 Always order by Part Num...
  • Page 100 In manufacturing t his product,manystepshavebeentak errorsor omissions occasionally occur.In the eventthat y nearest Sears store. tfyouhaveanysuggestions thatwould helpustoimprove o write them down and mail it to: Sears Canada Inc. 222 Jarvis Street Toronto, Ontario M5B 2B8 Attention: Buyer Dept. 609 NAME...
