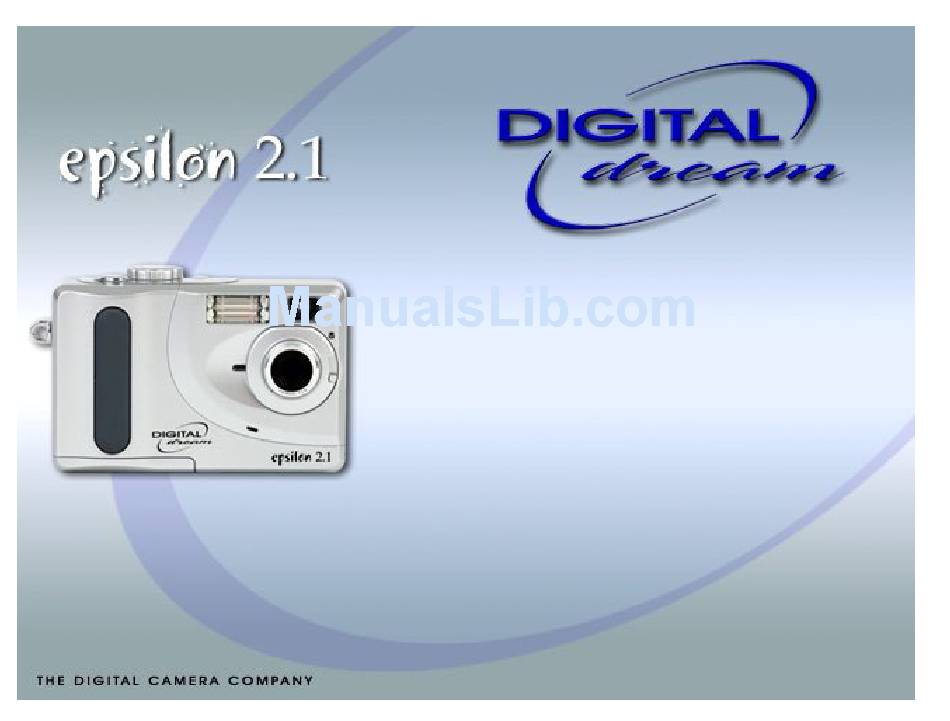

- Page 1 Users Manual...
-
Page 2: Camera Overview
Camera Overview Flash Front View Viewfinder Macro switch Microphone Top View Mode Selection switch Power On/Off Shutter Rear View Display On/Off Mode Set/Flash Mode selection Automatic picture mode Side View Manual picture mode TV out Select/Zoom/ Self timer/ Speaker Playback mode Video Mode Audio mode Webcam mode... - Page 3 Your camera comes with 4 x AAA high performance alkaline batteries. It is recommended that you use high performance alkaline batteries in your epsilon 2.1 digital camera. It is possible to use rechargeable batteries but these may have a shorter life especially if you use Ni-CD rather than Ni-Mh.
- Page 4 Inserting SD Memory You can use SD to increase the amount of storage capacity of your epsilon 2.1 camera. The card can vary in capacity from16MB upwards, a 16MB card can hold up to 102 images. To insert the SD (Secure Digital) card into the camera open the battery door on the bottom of the camera.
- Page 5 Setting up the Camera Switch the epsilon 2.1 on by holding down the Power On/Off switch for a second. Turn the mode selection switch so that the Press the displayed. Use the 4 way controller up and down to cycle through the options.
- Page 6 Settings Date and time: Set the date and time by moving the 4 way controller left/right for the day/month/year/hour/minute, Move up/down to change and press Set to confirm. Date style: Choose the type of date/time style you prefer moving up and down with the 4 way controller and then press Set to confirm.
- Page 7 LCD Display Battery status Burst shoot mode: To enable/disable this simply press the 4 way controller right to switch On/Off in picture taking mode. Once the shutter is pressed the display will go black and an image will be shot every second for 5 seconds. Flash: Press the button on the rear of the camera to change between flash On/Off/Auto mode.
- Page 8 Taking pictures Switch on your epsilon camera by holding down the power button for a second. Turn the Mode selection switch to the You can either use the viewfinder or display screen to focus on the picture you want to take. When you are ready press down the shutter button hard and release.
- Page 9 & Audio clips Video To record video clips with your epsilon 2.1 digital camera turn the mode selection button to the position. To start recording video with sound press the shutter button. To stop the recording simply press the shutter button again.
- Page 10 Viewing images, Video & Audio To view your images, Video or Audio on the camera display screen turn the mode selection switch to the To move between the images press the 4 way controller right to move forward through the images or left to move backward through the images.
- Page 11 Television playback To view your images on your TV plug in the supplied TV lead into the AV Socket of your television and the other end into the TV Out on the camera. Switch the camera on and turn the mode selection switch to playback mode.
-
Page 12: Software Installation
Before plugging in your camera to your computer insert the CD that came with your epsilon 2.1 into your CD/DVD drive of your computer. After a few seconds the installation screen will appear. Select the language of your choice and the following screen will then appear. - Page 13 Downloading Your images To download your images from your camera turn the mode selection dial to the large end of the USB lead to your computer and the smaller end of the USB lead to the camera. There is no need to switch the camera on as it will automatically turn on when connected to the USB lead.
- Page 14 You will now have a window that appears with your images, videos and audio clips inside. Double click this and you will be able to view the picture taken Please note that these files are still located on the camera. If you wish to copy them over to your computer for storage simply drag and drop them onto your computer.
- Page 15 Option2 To open your images and edit them double click on the MGI PhotoSuite® 4 icon on your desktop. Click on this icon. Click the drop down arrow Select the “removable Drive” from the list Double mouse click on the “DCIM” folder. Click on the “computer”...
- Page 16 Double click on the “101V2210” folder. Once you have opened an image and finished editing or printing it you can save it to your computer. If you click on “file” and “save” it will be saved back onto the camera and will be lost if you format the camera. If you want to store your images on your computer click on the “file” menu and click on “save as”.
-
Page 17: Windows Xp
If you have Windows® XP you can download your images as previously described, however you can also use the Camera wizard built in to Windows® XP. Plug in your epsilon 2.1 to the USB port and the following auto download will appear. Click on the... - Page 18 Web camera function To use your epsilon 2.1 as a web camera on your computer you will need to turn the mode selection dial to the PC Cam mode. You can use any web camera software that is available on the internet or use the standard Microsoft®...
- Page 19 Help and Support For a more comprehensive guide to using the software that comes on the epsilon 2.1 CD please refer to the Help menu within that particular program. For epsilon 2.1 Technical Support please contact Digital Dream: Business Hours...
- Page 20 Microsoft® , Windows® and NetMeeting® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. MGI, PhotoSuite®, PhotoVista® and VideoWave® are trademarks of Roxio, Inc. Digital Dream is a trademark of Digital Dream Co Europe Ltd.
