Quick
•oovee
Quick
Start
Start
Guide
O
O
.
X12
O
o
Guide

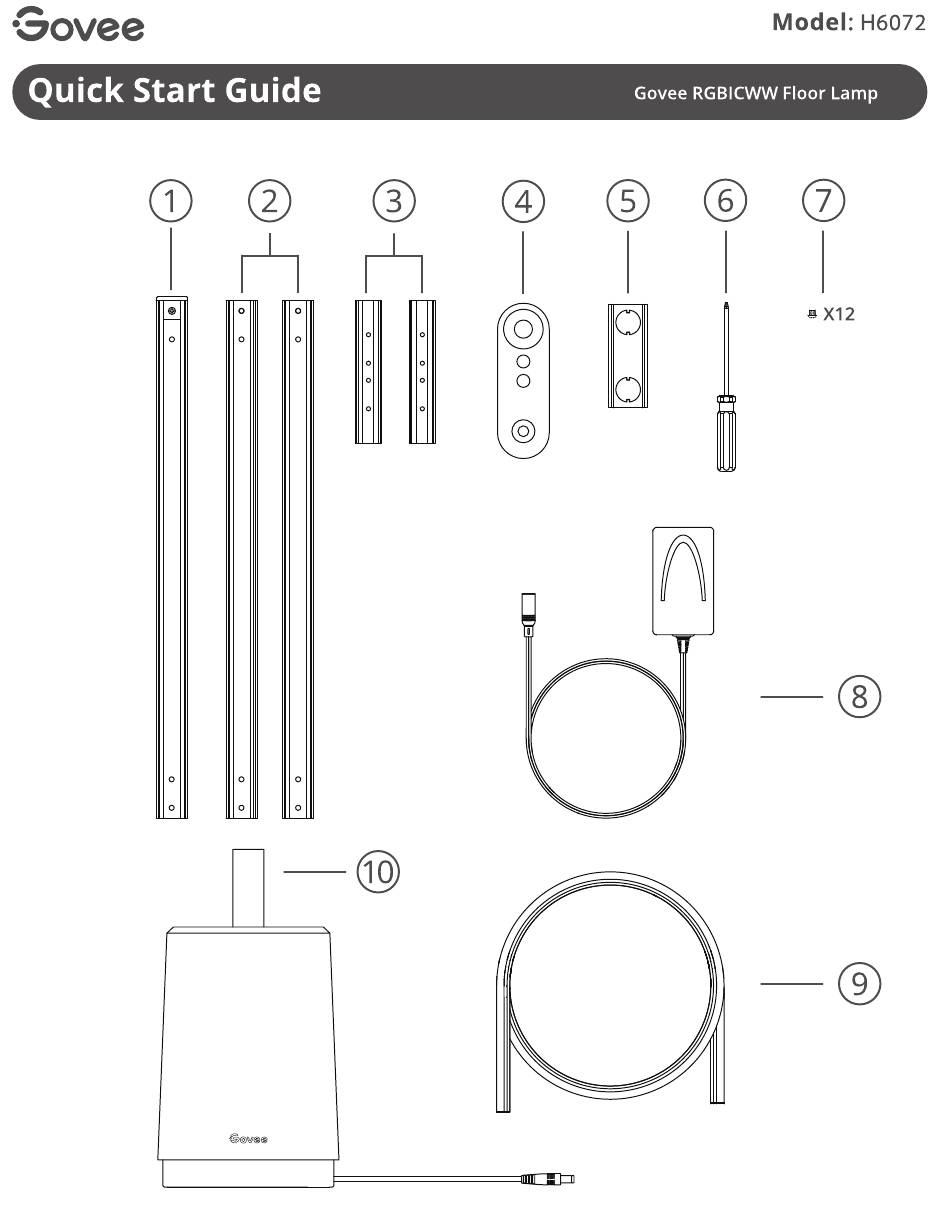

Govee RGBICWW Floor Lamp
In the
Box
O
O
Metal Slot 1 (Top with a cover)
Metal Slot 2 (With 4 symmetrical holes)
Metal Connecting Parts
O
Remote
Controller
Remote
Controller
o
Screwdriver
O
Short Screw x12 (2 extra)
Power Adapter
Silicone Strip Light
Lamp Base
Model:
O
.
X12
Holder
1-16072
Advertisement
Related Manuals for Govee H6072
Summary of Contents for Govee H6072
- Page 1 Model: 1-16072 Quick Start Guide •oovee Quick Start Guide Govee RGBICWW Floor Lamp In the Metal Slot 1 (Top with a cover) Metal Slot 2 (With 4 symmetrical holes) Metal Connecting Parts Remote Controller Remote Controller Holder Screwdriver Short Screw x12 (2 extra)
- Page 2 In the Metal Slot 1 (Top with a cover) Metal Slot 2 (With 4 symmetrical holes) Metal Connecting Parts Remote Controller Remote Controller Holder Screwdriver Short Screw x12 (2 extra) Power Adapter Silicone Strip Light Lamp Base...
- Page 3 Installation Step Step 1 Metal Slot Metal Slot Short Screw Metal Slot 2 Assemble the lamp pole: Align the three metal slots in the correct sequence and connect them with the 2 metal connecting parts. Use the screws in the corresponding holes to secure each connecting part to the metal slots.
- Page 4 step 2 Short Screw Connecting the lamp pole and lamp base: Insert the connected lamp pole into the lamp base. Use the screws to secure the final connecting part via the two holes on the base.
- Page 5 step 3 Straighten the silicone strip light. Connect the wires on the silicone strip light to the wires in the port Of the lamp base (wires should be connected by color).
- Page 6 Step 4 Ensure the exposed wires are inside the lamp base. Attach the silicone strip light by following the image above. Finally pressthe strip light from the middle outwards to the two ends.
- Page 7 step 5 Connect the adapter to the cable Of the lamp base and plug the adapter into a socket. Then you can start using the product. Optional: Attach the holder to the lamp pole and then the remote controller. Rotate the holder to detach it from the lamp pole if you need to remove...
- Page 8 Troubleshooting 1. The silicone light strip is too long. • Take out the strip from the pole; • Follow Step 4 to reinsta . Note: To avoid deforming the silicone light strip, please press from the top and bottom first, and then press the middle.
