Lenovo M11 Product/Maintenance Manual
  1. Manuals
  2. Brands
  3. Lenovo Manuals
  4. Tablet
  5. K11 Power
  6. Product/maintenance manual
Lenovo M11 Product/Maintenance Manual

Lenovo M11 Product/Maintenance Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

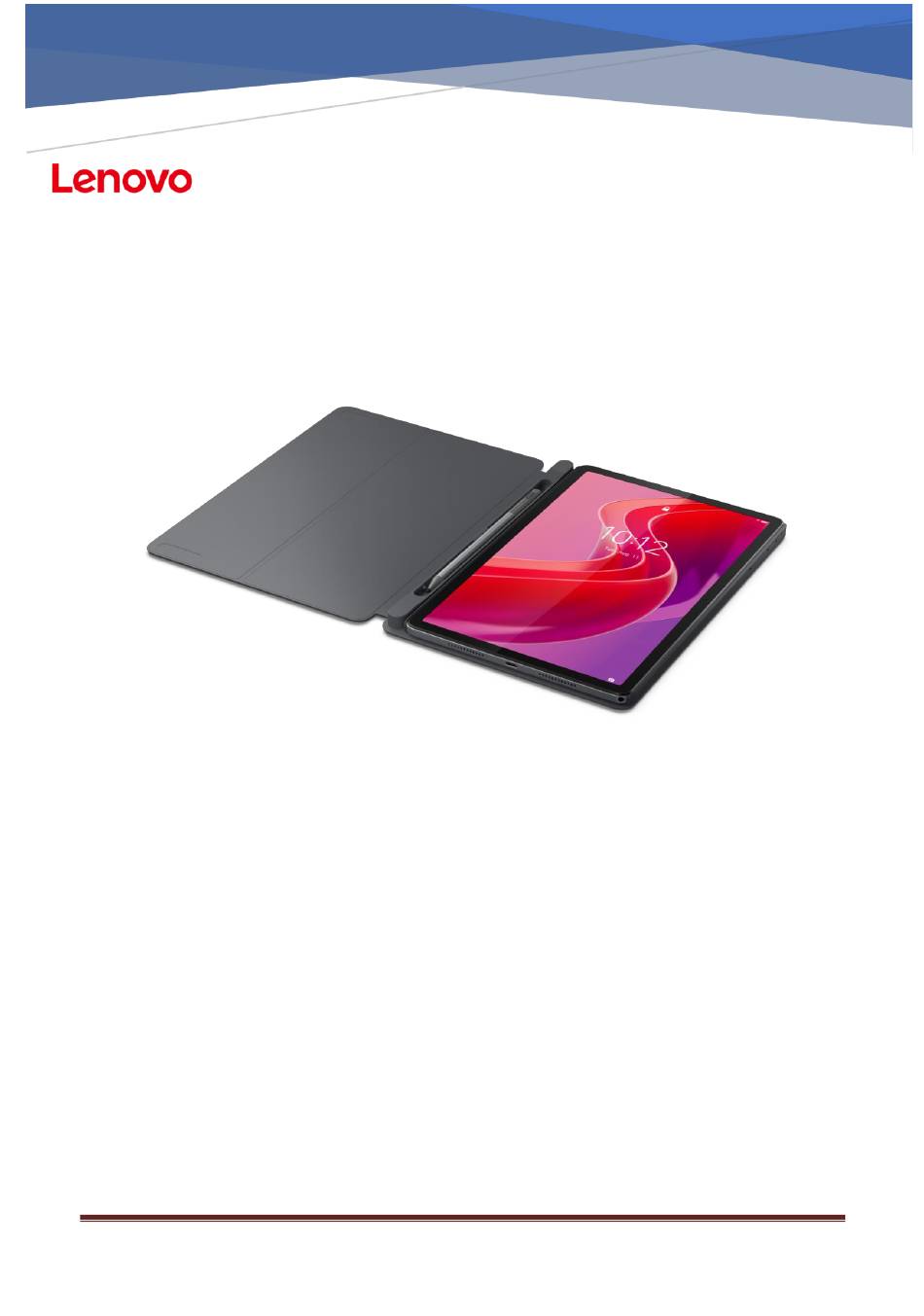

Product Maintenance Manual
Lenovo Tab M11&K11&K11Enhanced-Edition
TB330FUXU&TB330FUPXUP
Issued by: T&SD WW Service
Date of issue: 2025/6/5
Document version: 1.0.0
Read this guide carefully before repair
Page 1
Lenovo – PROPRIETARY
