Page 2: Preface
Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Revision Date Description February 19, 2010 DGS-1008G - Hardware revision A1 May 18, 2010 Added Windows®... -
Page 3: Table Of Contents
Before You Connect to the Network ............14 Mounting the Switch on the Wall ............15 Mounting on a cement wall ............15 Mounting on a wood wall ..............15 Connecting the Switch ................16 DGS-1008G to End Node ..............16 Hub/Switch to DGS-1008G ............16 Connecting To Network Backbone or Server ......16... -
Page 4: Safety Instructions
Safety Instructions Use the following safety guidelines to ensure your own personal safety and to help protect your system from potential damage. Safety Cautions To reduce the risk of bodily injury, electrical shock, fire, and damage to the equipment, observe the following precautions. Observe and follow service markings. - Page 5 • To help avoid damaging your system, be sure the voltage selection switch (if provided) on the power supply is set to match the power available at your location: – 115 volts (V)/60 hertz (Hz) in most of North and South America and some Far Eastern countries such as South Korea and Taiwan. – 100 V/50 Hz in eastern Japan and 100 V/60 Hz in western Japan. – 230 V/50 Hz in most of Europe, the Middle East, and the Far East. • Also be sure that attached devices are electrically rated to operate with the power available in your location.
-
Page 6: Protecting Against Electrostatic Discharge
Protecting Against Electrostatic Discharge Static electricity can harm delicate components inside your system. To prevent static damage, discharge static electricity from your body before you touch any of the electronic components, such as the microprocessor. You can do so by periodically touching an unpainted metal surface on the chassis. -
Page 7: Product Overview
• Do not place heavy objects on the switch. Introduction D-Link Green Ethernet Technology D-Link Green Ethernet Technology implements special power-saving features under speed at 1000Mbps that detect cable length and link status and adjust power usage accordingly. Green Ethernet Technology saves energy in two specific ways: 1. If there is no link on a port (when there is no connection or the device connected is turned off ) the port(s) will enter a “... -
Page 8: Fast Ethernet Technology
Fast Ethernet Technology The growing importance of LANs and the increasing complexity of desktop computing applications are fueling the need for high performance networks. 100BASE-TX (Fast Ethernet) provides a cost-effective and high-performance solution for small workgroups, SMBs (Small to Medium Businesses), and any network supporting bandwidth-intensive applications. -
Page 9: Switching Technology
VoIP phone that supports 802.1p can assign a priority to its VoIP traffic and when it enters the switch the switch can give it a higher priority so that voice traffic is always clear and jitter free. The DGS-1008G supports the 802.1p feature with 4 preconfigured priority queues. When a frame tagged with an 802.1p priority bit is received by the switch it places the frame into one of 4 queues prioritized according to its tag number. -
Page 10: Features
Features The DGS-1008G 8-port 10/100/1000BASE-T Gigabit Ethernet Switch was designed for easy installation and high performance in an environment where traffic on the network and the number of users increase continuously. • Eight (8) 10/100/1000BASE-T Gigabit Ethernet ports • Supports Auto-Negotiation for 10/100/1000Mbps and duplex mode • Supports Auto-MDI/MDI-X for each port • Supports Full/Half duplex transfer mode for 10 and 100Mbps • Supports Full-duplex transfer mode for 1000Mbps • Supports IEEE 802.1p Priority Queuing, up to 4 queues... -
Page 11: Hardware Overview

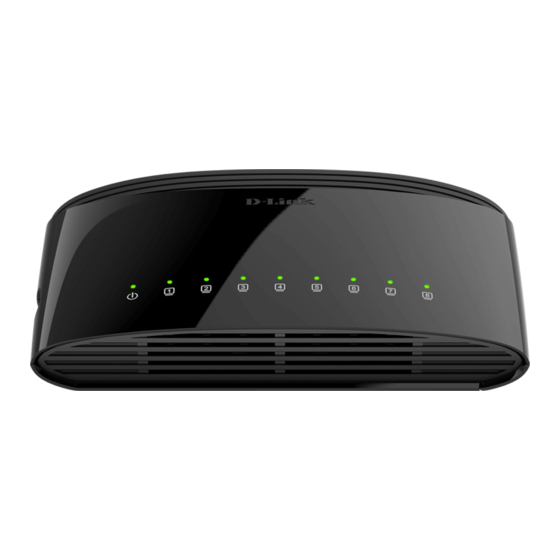

Hardware Overview Top Panel (LEDs) The LED indicators of the Switch include Power and Link/Act/Speed. The following shows the LED indicators for the Switch along with an explanation of each indicator (refer to the next page). - Page 12 Power Indicator This green indicator illuminates when the Switch is receiving power. Link/Act/Speed This indicator illuminates steadily when a port is connected to a device successfully and has a good link. The indicator will blink to indicate that a port is transmitting or receiving data on the network. The LED will illuminate amber when the port is connected to a 10/100Mbps Ethernet station.
-
Page 13: Rear Panel (Connections)
Power is supplied through an external power adapter. Check the technical specification section for information about the power input voltage. Since the DGS-1008G does not require a power button, plugging its power adapter into a power outlet will immediately power it on. -
Page 14: Installation
Installation This section will explain how to connect Ethernet devices to your new D-Link switch and how to mount the switch. Before You Connect to the Network The site where you install the Switch may greatly affect its performance. Please follow these guidelines for setting up the Switch. • Install the Switch on a sturdy, level surface that can support at least 3 kg (6.6 lbs.) of weight. Do not place heavy objects on the Switch. • The power outlet should be within 1.82 meters (6 feet) of the Switch. -
Page 15: Mounting The Switch On The Wall
Mounting the Switch on the Wall The DGS-1008G can also be mounted on a wall. Two mounting slots are provided on the bottom of the switch for this purpose. Please make sure that the front panel is exposed in order to view the LEDs. Please refer to the illustration below: Mounting on a cement wall 1. -
Page 16: Connecting The Switch
Connecting the Switch DGS-1008G to End Node End nodes include PCs outfitted with a 10, 100, or 1000Mbps RJ-45 Ethernet Network Interface Card (NIC) and most routers. An end node can be connected to the Switch via a twisted-pair Category 3, 4, 5, or 5e UTP/STP cable. The end node can be connected to any of the ports of the Switch. -
Page 17: Troubleshooting
The DGS-1008G has Auto-MDI ports which automatically sense the type of cable being used (e.g. Crossover or Straight-through) and adjust themselves accordingly to pass data over the network. 3. What is the maximum length of Category 3, 4 or 5 twisted pair cable that can be used between the DGS-1008G and other devices such as routers, switches, computers, etc.? The maximum length of Category 3, 4 or 5 twisted pair cable that can be used between computers and other devices on a network is 100 meters or about 328 feet. Keep in mind that this is a theoretical limit. Usually, you will want to keep the distance between devices well... -
Page 18: Networking Basics
Check your IP address After you install your new D-Link adapter or if you already have an Ethernet adapter installed on your computer, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. router) automatically. To verify your IP address, please follow the steps below. -
Page 19: Statically Assign An Ip Address
Statically Assign an IP address If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below: Step 1 Windows® 7 - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Change Adapter Setting. Windows Vista®... -
Page 20: Glossary
Glossary 1000BASE-LX A short laser wavelength on multimode fiber optic cable for a maximum length of 550 meters. 1000BASE-SX A long wavelength for a “long haul” fiber optic cable for a maximum length of 10 kilometers. 100BASE-FX 100Mbps Ethernet implementation over fiber. 100BASE-TX 100Mbps Ethernet implementation over Category 5 and Type 1 Twisted Pair cabling. 10BASE-T The IEEE 802.3 specification for Ethernet over Unshielded Twisted Pair (UTP) cabling. - Page 21 Bandwidth Information capacity, measured in bits per second, that a channel can transmit. The bandwidth of Ethernet is 10Mbps, the bandwidth of Fast Ethernet is 100Mbps. Baud Rate The switching speed of a line. Also known as line speed. BOOTP The BOOTP protocol allows you to automatically map an IP address to a given MAC address each time a device is started.
- Page 22 Fast Ethernet 100Mbps technology based on the Ethernet/CD network access method. Flow Control – (IEEE 802.3x) A means of holding packets back at the transmit port of the connected end station. Prevents packet loss at a congested switch port. Forwarding The process of sending a packet toward its destination by an internetworking device.
- Page 23 MDI-X Medium Dependent Interface Cross-over. An Ethernet port connection where the internal transmit and receive lines are crossed. Management Information Base. Stores a device’s management characteristics and parameters. MIBs are used by the Simple Network Management Protocol (SNMP) to contain attributes of their managed systems. The Switch contains its own internal MIB. Multicast Single packets copied to a specific subset of network addresses.
- Page 24 Spanning Tree Protocol – (STP) A bridge-based system for providing fault tolerance on networks. STP works by allowing you to implement parallel paths for network traffic, and to ensure that redundant paths are disabled when the main paths are operational and enabled if the main paths fail. Stack A group of network devices that are integrated to form a single logical device.
-
Page 25: Technical Specifications
Technical Specifications Standards Temperature • IEEE 802.3 10BASE-T Ethernet • Operating: 0° ~ 40° C (32º to 104º F) • IEEE 802.3u 100BASE-TX Fast Ethernet • Storage: -10° ~ 70° C (14ºto 158º F) • IEEE 802.3ab 1000BASE-T Gigabit Ethernet • IEEE 802.3x Flow Control Dimensions (W x H x D) • IEEE 802.1p Priority Queuing • 6.5 x 4.5 x 1.4 inches (164.5 x 112.4 x 35.0 mm) Protocol Humidity • CSMA/CD • Operating: 10% ~ 90% RH, Non-condensing • Storage: 5% ~ 90% RH, Non-condensing Data Transfer Rate Ethernet: • 10Mbps (half-duplex) • FCC Class B, CE Class B • 20Mbps (full-duplex) Fast Ethernet:... -
Page 26: Rj-45 Pin Specifications
RJ-45 Pin Specifications The following table shows the standard RJ-45 receptacle/connector and their pin assignments. RJ-45 Connector pin assignment Contact Media Direct Interface Signal Rx +(receive) Rx - (receive) Tx + (transmit) Not used Not used Tx - (transmit) Not used Not used... -
Page 27: Contacting Technical Support
Before you contact technical support, please have the following ready: • Model number of the product (e.g. DGS-1008G) • Hardware Revision (located on the label on the bottom of the switch (e.g. rev A1)) • Serial Number (s/n number located on the label on the bottom of the switch) You can find software updates and user documentation on the D-Link website as well as frequently asked questions and answers to technical issues. For customers within the United States: Phone Support:... -
Page 28: Registration
Registration Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights. Version 1.1 May 18, 2010...
