ThirtyTwoMAXX

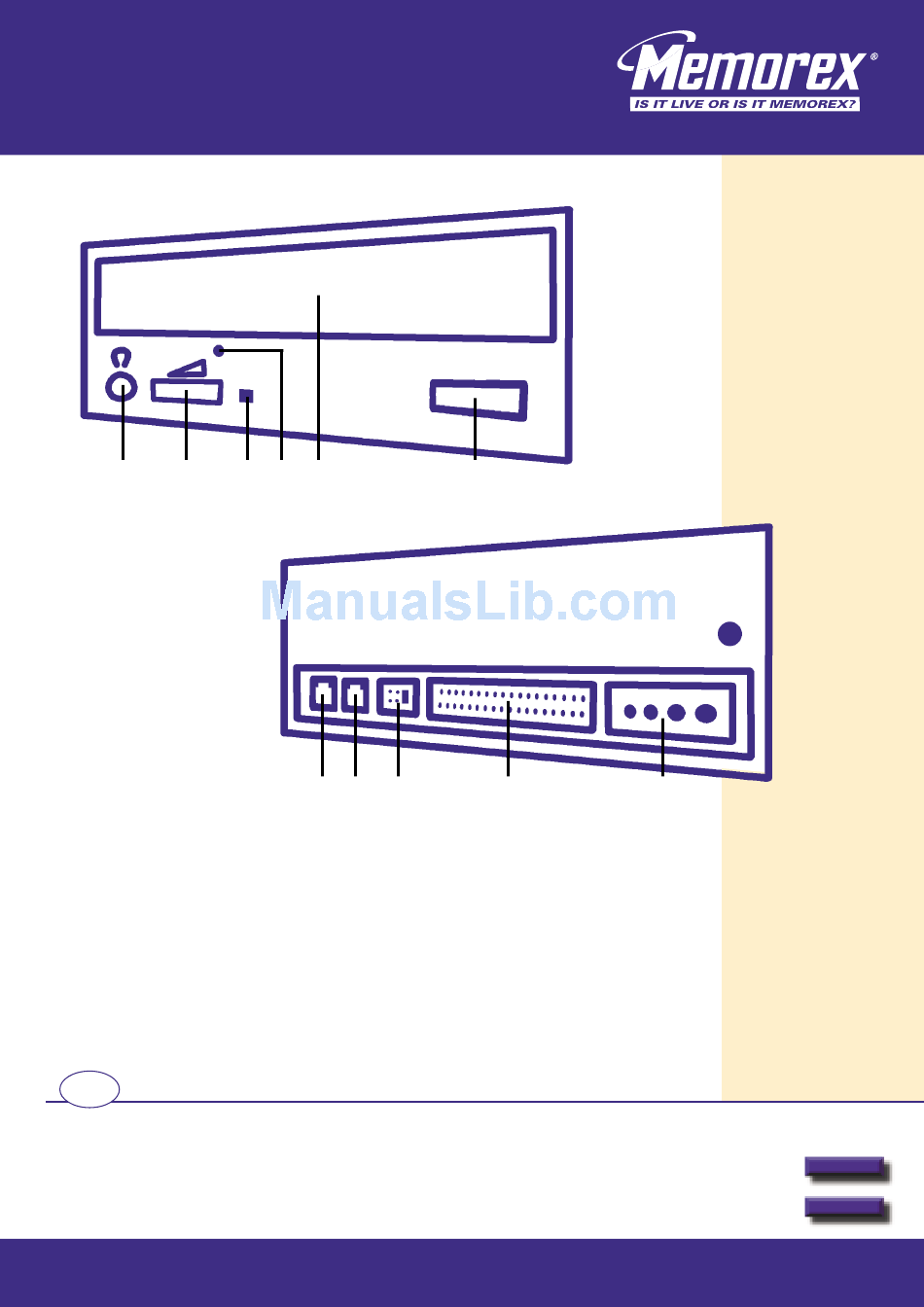

Front view
1
2
Front view
1.
Headphone jack
2.
Headphone volume control
3.
Busy indicator
4.
Disc Tray
5.
Open/Close button
6.
Emergency eject
U S
Additional and updated
information can be found
directly on our fully
interactive website
www.memorex.com
3
6
4
Rear view
7 8
9
Rear view
7. Digital Audio connector
8. Analog Audio connector
9.
10. IDE connector
11. Power connector
5
10
Jumperblock
M o d e l
N u m b e r :
11
T h i r t y T w o M a x x 1 2 4 0 A K
Next
Other options
1
Advertisement
Table of Contents
Related Manuals for Memorex THIRTYTWOMAXX1240AK
Summary of Contents for Memorex THIRTYTWOMAXX1240AK
- Page 1 N u m b e r : T h i r t y T w o M a x x 1 2 4 0 A K Additional and updated Next information can be found directly on our fully Other options interactive website www.memorex.com...
- Page 2 This manual is copyright Memorex Products with all rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of Memorex. No patent liability is assumed, however, with respect to the information contained herein.
- Page 3 • 12x speed CD-ReWritable device to use as your personal storage medium, by using Incremental Packet Writing The Memorex ThirtyTwoMAXX Drive is the ideal tool for publishing large amounts of data in compact form on CD. The Incremental Packet Writing function will make this drive attractive to the general desktop PC-user for personal data storage.
-
Page 4: Installation
3 In order to mount the drive inside your PC (or other type of computer), locate a free 5.25" bay and follow the instructions, as provided with your computer systems, for installing the drive. Next Additional and updated Back information can be found directly on our fully Other options interactive website www.memorex.com... - Page 5 4 You have several possibilities to install your IDE data cable depending on your existing configuration: A) Single Hard-disc connected as master to Primary IDE Port: Connect the Memorex drive as Master to Secondary IDE Port. Existing PC Configuration PC Configuration after installation...
- Page 6 8 Replace the cover. Connect the mains plug of your configuration. When you have successfully installed the drive and established all connections, it is now time to switch on the PC. You are ready to install the software. Next Additional and updated Back information can be found directly on our fully Other options interactive website www.memorex.com...
-
Page 7: Summary Of Controls
This procedure is only to be used in the case of an emergency and not meant for normal operation. Next Additional and updated Back information can be found directly on our fully Other options interactive website www.memorex.com... -
Page 8: Rear View
Any unauthorized use of such pins may result in the drive not operating correctly and will void the warranty. Next Additional and updated Back information can be found directly on our fully Other options interactive website www.memorex.com... -
Page 9: Operation
To write a CD-RW disk with a speed greater than 4X, you should use a ‘High Speed’ ReWritable CD-RW disk. Operating the Memorex drive Specific Application Software running on the computer platform in use, designed to work with the Memorex drive, must be used in order to be able to operate the drive correctly. -
Page 10: Technical Data
CD-R & CD-RW conforming to “Orange Book” part II (CD-Recordable) and part III (CD-ReWritable). Certification FCC Class B, EMC CE, UL, CSA, TUV, DHHS NEMKO, C-Tick Next Additional and updated Back information can be found directly on our fully Other options interactive website www.memorex.com... - Page 11 INTRQ -DD(12) 16 BIT I/O -DD(2) -DD(13) PDIAG- -DD(1) -DD(14) -DD(0) CHIP SELECT 0 -DD(15) CHIP SELECT 1 GROUND DASP- Removed GROUND Next Additional and updated Back information can be found directly on our fully Other options interactive website www.memorex.com...
-
Page 12: Jumper Block
JUMPER BLOCK • When the shorting jumper is placed in the "M" (MASTER) or "S" (SLAVE), the drive will be configured accordingly. Next Additional and updated Back information can be found directly on our fully Other options interactive website www.memorex.com... -
Page 13: List Of Key Words
CD-ROMs. This process requires an enormous amount of space, using up approximately 15 MB. This space is definitively lost for other recordings. This means that less data can be written on multisession CDs than on single session CDs. Next Additional and updated Back information can be found directly on our fully Other options interactive website www.memorex.com... - Page 14 A “raw” file contains data which is already in CD format. It can be directly written without further modification. One “raw” file corresponds to one track. For example, a “raw” audio file can be used as the contents of one CD-DA track. Image files are “raw” files. Next Additional and updated Back information can be found directly on our fully Other options interactive website www.memorex.com...
- Page 15 “On-the-Fly.” If problems occur (insufficient data transfer rates), you should use physical images to separate the image creation and data transfer/writing processes. Yellow Book Specification for CD-ROM (data CDs) and CD-ROM XA. Next Additional and updated Back information can be found directly on our fully Other options interactive website www.memorex.com...
- Page 16 This class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. FOR EUROPE The Memorex ThirtyTwoMAXX is in conformity with the EMC directive and low-voltage directive. IMPORTANT Any change or modifications to the equipment by the user not expressly approved by the guarantee or manufacturer could void the user's authority to operate such equipment.
