XP1039-QJ
2.5 W Power Amplifier
5.6 - 7.1 GHz
Features
 17 dB Small Signal Gain
 48 dBm Third Order Intercept Point (OIP3)
 2 W P1dB
 Integrated Power Detector
 Lead-Free 6 mm 24-lead QFN Package
 RoHS Compliant and 260°C Reflow Compatible
Description
The XP1039-QJ is a packaged linear power
amplifier that operates from 5.6-7.1 GHz. The device
provides 17 dB gain and 48 dBm Output Third
Order Intercept Point
amplifier comes in an industry standard, fully molded
6 mm QFN package and is comprised of a two stage
power amplifier with an integrated, temperature
compensated on-chip power detector. The device
includes on-chip ESD protection structures and DC
by-pass capacitors to ease the implementation and
volume assembly of the packaged part.
The device is specifically designed for use in 6 GHz
Point-to-Point radio applications.
External DC blocks are required. See the reliability
note on page 3 for more information.
Ordering Information
Part Number
XP1039-QJ-0G00
XP1039-QJ-0G0T
XP1039-QJ-EV1
1. Reference Application Note M513 for reel size information.
2. All sample boards include 5 loose parts.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
• North America Tel: 800.366.2266 / Fax: 978.366.2266
• Europe Tel: 44.1908.574.200 / Fax: 44.1908.574.300
• Asia/Pacific Tel: 81.44.844.8296 / Fax: 81.44.844.8298
(OIP3). The packaged
1,2
Package
bulk quantity
tape and reel
evaluation module
Visit www.macom.com for additional data sheets and product information.

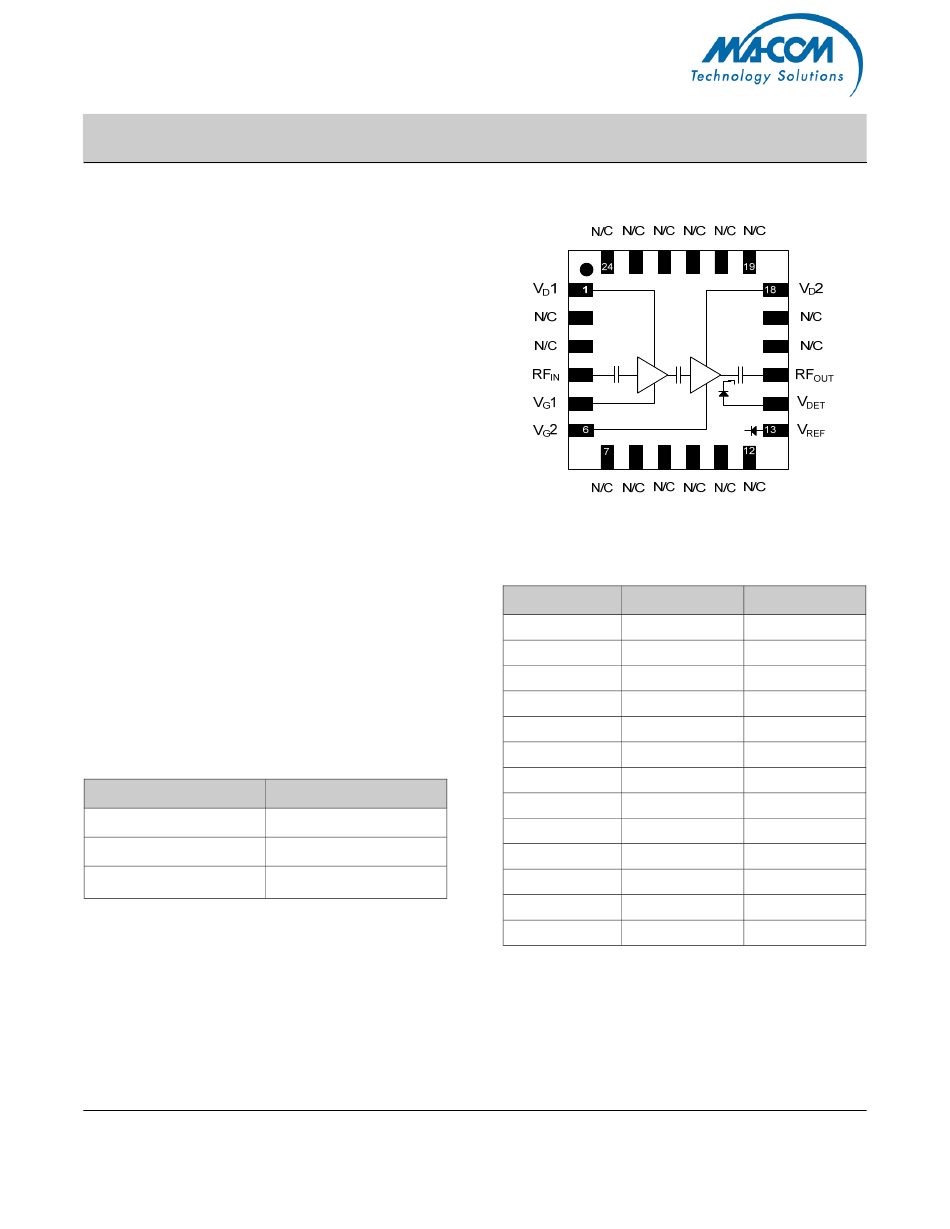

Functional Schematic
3
Pin Configuration
Pin No. Pin Name
1 V
D
2-3 N/C
4 RF
5 V
G
6 V
G
7-12 N/C
13 V
REF
14 V
DET
15 RF
16-17 N/C
18 V
D
19-24 N/C
4
25 Pad
3. It is recommended to connect unused pins to ground.
4. The exposed pad centered on the package bottom must be
connected to RF and DC ground.
Rev. V1
Function
1 Drain 1 Bias
No Connection
RF Input
IN
1 Gate 1 Bias
2 Gate 2 Bias
No Connection
Power Det. Ref.
Power Detector
RF Output
OUT
No Connection
2 Drain 2 Bias
No Connection
Ground
