MACOM AEC-Q100 Manual

Low Noise Amplifier
0.15 - 6 GHz
Features
• AEC-Q100 Grade 2 Qualified (-40°C to +105°C)
• Low Noise Figure:
•
0.60 dB @ 0.15 GHz
0.35 dB @ 1.9 GHz
0.70 dB @ 2.6 GHz
• High Gain:
23.5 dB @ 0.15 GHz
23.0 dB @ 2.6 GHz
18.0 dB @ 6.0 GHz
• High Linearity: 33 dBm OIP3
• Single Voltage Bias: 3 - 5 V
• Integrated Active Bias Circuit
• Current Adjustable 30 - 80 mA
• Lead-Free 2 mm 8-LD PDFN Package
• RoHS* Compliant
Applications
This part is ideal for Automotive applications such as
Compensators and
designed for V2X infrastructure technologies (either
DSRC or C-V2X) based Telematics Control Units
(TCUs).
Description
The MAAL-011207 is a high dynamic range, single
stage MMIC LNA with ultra low noise figure, high
gain and excellent linearity. This amplifier is
designed for operation from 0.15 to 6 GHz and is
housed in a lead-free 2 mm 8-lead PDFN plastic
package.
This low noise amplifier has an integrated active
bias circuit allowing direct connection to 3 V or 5 V
bias and minimizing variations over temperature and
process. The bias current is set by an external
resistor, so the user can customize the power
consumption to fit the application. V
utilized as an enable pin to power the device up and
down during operation.
In the 50 Ω environment and at 3 V, the
MAAL-011207 offers 0.7 dB noise figure at 2.6 GHz,
with 23 dB of gain and over 33 dBm output third
order intercept point (OIP3).
* Restrictions on Hazardous Substances, compliant to current RoHS EU directive.
1 1
1
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
For further information and support please visit:
https://www.macom.com/support
Smart Antenna Systems,
can be
BIAS
Visit www.macom.com

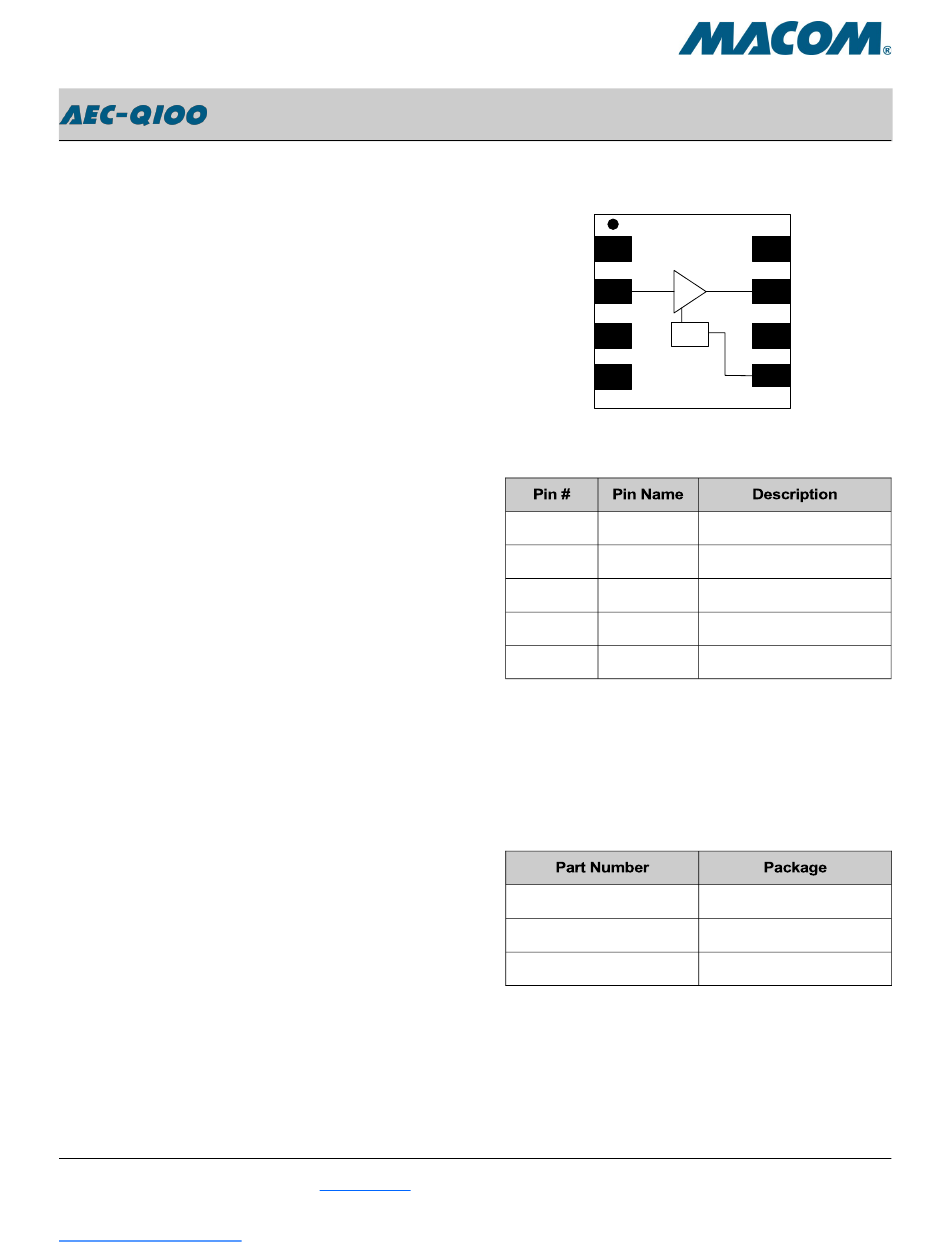

Functional Block Diagram
N/C
RF
IN
N/C
N/C
Pin Configuration
1, 3, 4, 6, 8
2
5
7
9
1. MACOM recommends connecting unused package pins to
ground.
2. The exposed pad centered on the package bottom must be
connected to RF, DC and thermal ground.
Ordering Information
MAAL-011207-QR3000
MAAL-011207-Q01SMB
MAAL-011207-Q02SMB
3. Reference Application Note M513 for reel size information.
4. All sample boards include 5 loose parts.
for additional data sheets and product information.
MAAL-011207-QR3000
1
8
7
2
6
3
BIAS
5
4
1
N/C No Connection
RF RF Input
IN
V Bias Voltage
BIAS
RF / V RF Output / Drain Voltage
OUT DD
2
Pad Ground
3,4
3000 Piece Reel
5.9 GHz Sample Board
0.76 GHz Sample Board
Rev. V4
N/C
RF /
OUT
V
DD
N/C
V
BIAS
DC-0026091
