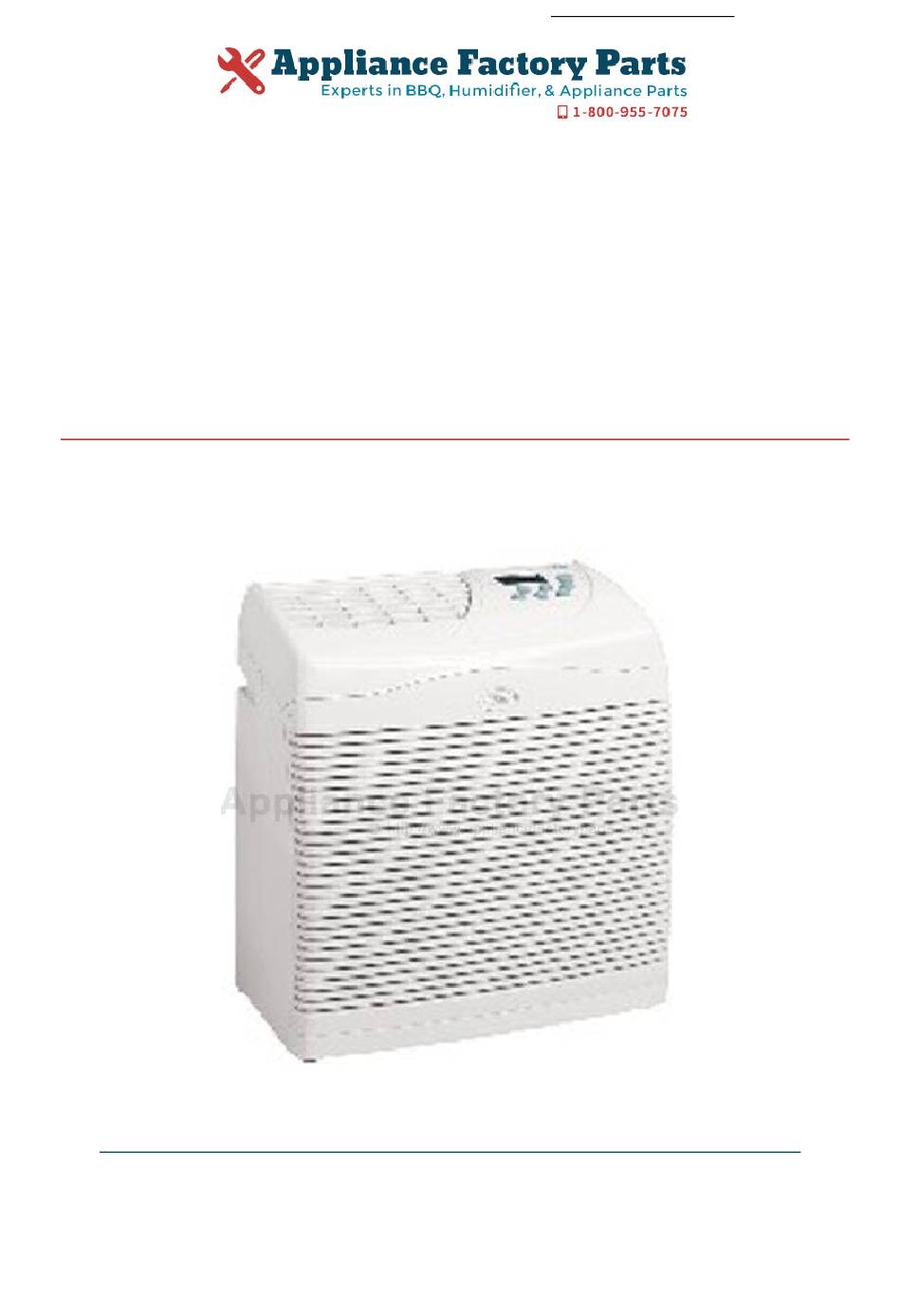

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. HUNTER HR30130 Owner's Manual Shop genuine replacement parts for HUNTER HR30130 Find Your HUNTER Air Cleaner Parts - Select From 138 Models -------- Manual continues below --------...
- Page 2 Models 30170, 30175 & 30185 Model 30400 & 30401 Replacement Filter Information Model Pre-Filter HEPA Filter 30130 30901 30936 30170, 30175, 30185 30901 30938 30400, 30401 30901 30940 www.hunterfan.com 41451-01 08/06/2004 © 2004 Hunter Fan Company 41451-01_Rev 8-6-04.pmd 8/5/04, 5:05 PM...
- Page 3 Table of Contents Safety Instructions ....................3 Introduction ......................3 Description of Air Filtration System How the Air Purifier Works ................4 Air Purifier Components ................4 Display and Control Keys ................5 Operation Initial Operation ..................... 6 Display Modes ....................8 Manual and Auto Operating Modes ...............
- Page 4 Thank you for purchasing the programmable QuietFlo ® HEPA Air Purifier from Hunter Fan Company. You have purchased our latest development in portable air purification which has been designed to improve the quality of the air that you breathe. The following innovative features are included in your Hunter Air Purifier.
- Page 5 Description of Air Filtration System How the QuietFlo HEPA Air Purifier System Works ® As the air is pulled into the purifier, the activated carbon pre-filter absorbs odors and catches large particles. Then, the air travels through the HEPA filter where the smaller particles are collected.
- Page 6 Description of Air Filtration System Display and Control Keys The display and control keys allow for easy operation of the air purifier. ON/OFF: Turns the unit on and off. DAY/TIME: Used to set the day and time. (Set- ting day and time on pg. 12.) UP/DOWN KEYS (+/-): Adjusts the blower speed and changes values in clock setting and FILTER RESET: Resets the pre-filter and fil-...
- Page 7 Operation Initial Operation This section provides basic instructions on the use of your air purifier. After following these initial directions, please continue reading this booklet to learn how to operate the more advanced features of your air purifier. Basic Operation of the Air Purifier: 1.
- Page 8 Operation Adjusting Day and Time: (For example, Wednesday at 3:45 pm) 1. To set the day or time, press the DAY/TIME key. All display features except the day and time will go blank and the hour will flash. Fig. 7 2.
- Page 9 Operation Display Modes Your air purifier has 3 display modes – Clock Display, Pre-Filter Display, and Filter Dis- play. When the unit is running, the display also provides additional information about the settings of the air purifier. The features for each mode and how to change modes is de- scribed below.
- Page 10 Operation Manual and Auto Operating Modes Your Hunter Air Purifier has two distinct operating modes – Manual and Auto. The Manual Mode allows you to override the control programs that have been set and to hold the settings until you adjust them. In Manual Mode, the automatic programs are not active. You select whether the unit is on or off and choose the blower speed.
- Page 11 Operation Override of Auto Mode You can use two different methods to override Auto Mode. If you choose temporary over- ride, the air purifier will run at the temporary setting until the next scheduled program change. Permanent override will remain in effect until you return the unit to auto mode. Temporary Override •...
- Page 12 The pre-filter and filter are critical to the proper operation of the air purifier. To help you know when to change the filters, your Hunter Air Purifier has Filter Run-Time Counters that will monitor the number of hours your filters have been in use. Although the exact life of the filters depends on the environment, the table below gives typical usage times of the filters.
- Page 13 Programming Setting Day and Time Setting the correct day and time allows the programs to work effectively and provides a clock for your reference. Although the instructions for setting the day and time are listed under Initial Operation, they are repeated below for your convenience. Adjusting Day and Time: (For example, Wednesday at 3:45 pm) 1.
- Page 14 Programming NOTES: • The clock flashes when the time has not been set. • At any time while you are setting the Day/Time, you can press the PROGRAM key to toggle between AM/PM format and military time format. • To quickly exit the Day/Time setting mode, you can press the DISPLAY key or wait 15 seconds without pressing any keys.
- Page 15 Programming User Programming User programming allows you to set when the air purifier is on and what blower speed to use. You may define up to 4 programs for the weekdays and up to 4 programs for the week- end. Before starting the programming process, first you should determine what times and blower speeds will best fit your needs.
- Page 16 Programming To set or change the programs: 1. Press the PROGRAM key. Program 1 for weekdays will be shown with the hour position flashing to denote that you should set that value now. 2. Use the UP/DOWN keys to adjust the hour setting. Once set, press the PROGRAM key again.
- Page 17 Programming Reviewing Programs You may want to review the programs to confirm that the settings are still acceptable. The following steps show you how to review the programs. To review programs: 1. With the air purifier On, press and hold the PROGRAM key. After 2 seconds, the display will advance through the 4 programs for weekdays and then the 4 pro- grams for the weekend.
- Page 18 The only information that will be saved is the pre-filter and filter counter values. If you still have problems after resetting the air purifier, please contact Hunter for additional assistance (refer to Technical Assistance pg. 21).
- Page 19 Air Purifier Maintenance Cleaning Your Air Purifier Proper maintenance of your Hunter Air Purifier will help ensure years of trouble free service. Follow these steps to properly maintain your air purifier: 1. Approximately every 90 days, the outside of the unit should be cleaned with a soft, damp cloth.
- Page 20 Air Purifier Maintenance 6. Install the grill back onto the unit. First, line up the tabs on the bottom of the grill with the openings on the purifier base and then push the top of the grill forward until it is closed. 7.
- Page 21 The model number will be listed on the label. Then, call 1-800-4HUNTER for your nearest retailer or Hunter Customer Service at 1-800-313-3326 (CAN 1-888-855-8300) to order directly. To or- der online, visit our Website at www.hunterfan.com.
- Page 22 Changing the Filter on pg. 19.) Technical Support If you have any additional questions or problems with your Hunter air purifier, please call 1- 888-830-1326 from 8:00 am to 5:00 pm Central Time or contact us over the Internet at www.hunterfan.com.
- Page 23 This warranty does not cover Air Purifiers used in commercial applications. There are no express or implied warranties as to commercial purchasers or users. To obtain service, contact the nearest Hunter authorized service centre or the Hunter Fan Company Service Department, 2500 Frisco Avenue, Memphis, Tennessee 38114, 1-888- 830-1326.
- Page 24 Warranty write to the Hunter Fan Company at the preceding address. You will be responsible for insurance and freight or other transportation to our factory service center. We will return the Air Purifier freight prepaid. The Air Purifier should be properly packaged to avoid damage in transit since we will not be responsible for any such damage.
- Page 25 The Care-Free Programmable ® Fans Humidifier ™ Thermostat To learn more about Hunter Fan Company products, please see our Web page at: www.hunterfan.com ® HUNTER FAN COMPANY 2500 FRISCO AVENUE MEMPHIS, TN 38114, USA 41451-01 Printed in China and Taiwan 41451-01_Rev 8-6-04.pmd...
