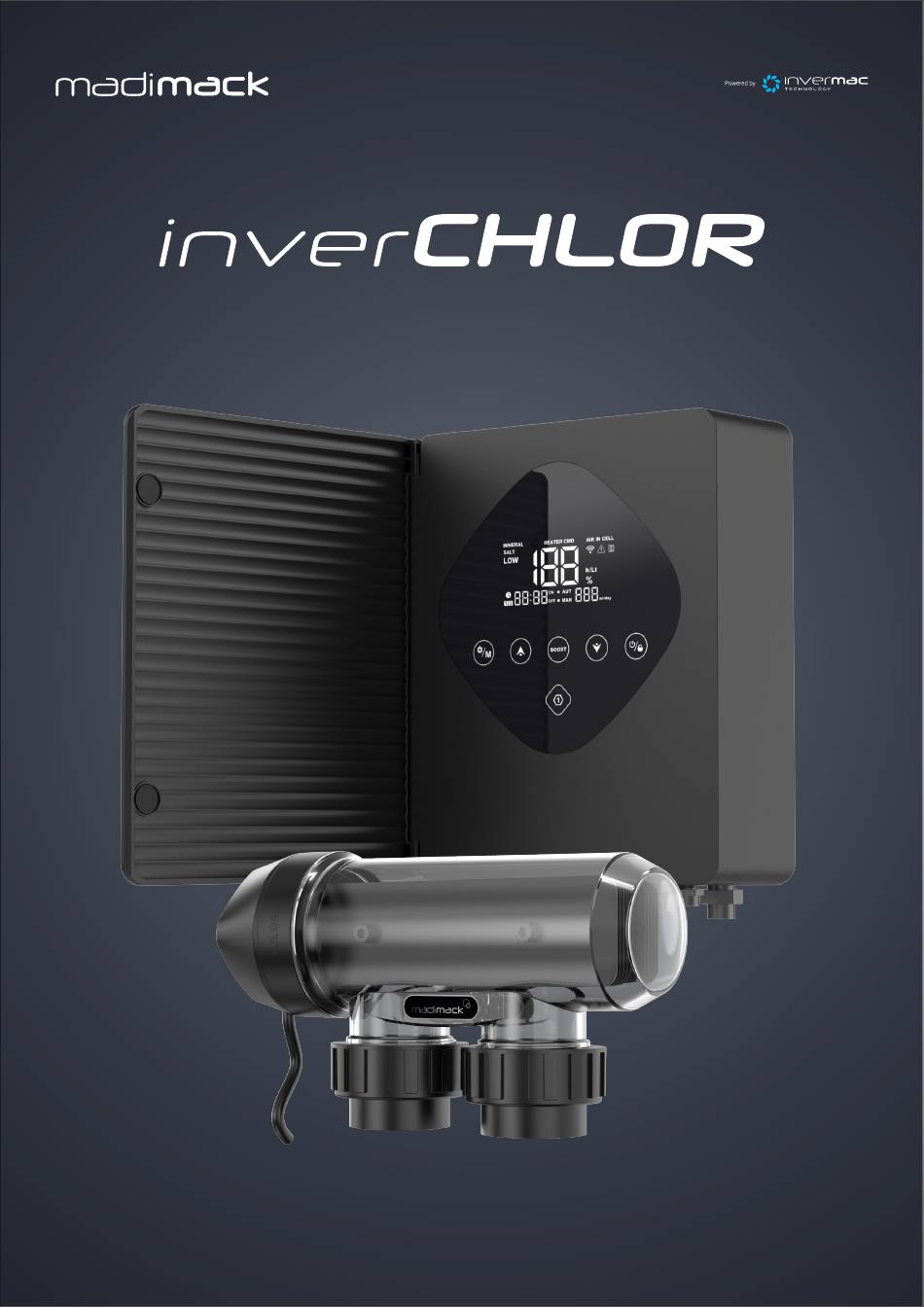

- Page 1 Mineral & Salt Chlorinator INSTALLATION MANUAL...

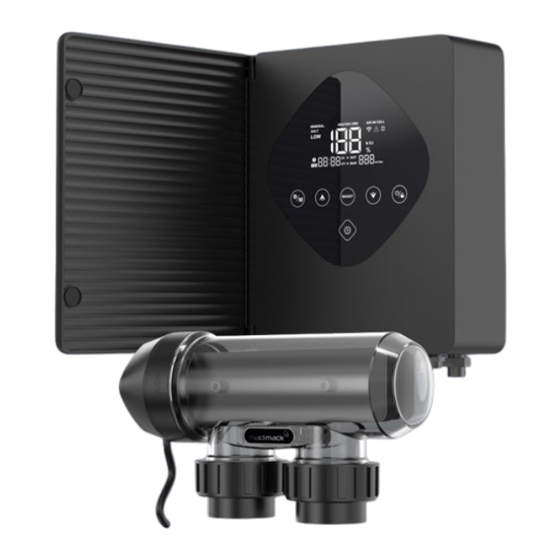

- Page 2 WELCOME This is the instruction manual for your Madimack’s InverCHLOR Mineral & Salt Chlorinator. This guide will help you understand the operation and maintenance of your chlorinator, ensuring clean and clear pool water for your enjoyment.
- Page 3 CONTENTS 1 SAFETY WARNINGS 2 SPECIFICATIONS 3 INVERCHLOR CONNECTIONS 4 Ph DOSER (Optional) 5 CONTROLLER OPERATION 5.1 Controller Commands & Functions 5.2 Controller Shortcuts 6 INSTALLATION 6.1 Pool Water Preparation 6.2 Adding salt before operation 6.3 Water Balance 6.4 Installing the InverCHLOR 6.4.1 Location 6.4.2 Mounting the InverCHLOR 6.4.3 Cell housing installation...
- Page 4 4. Children must not play with this device. User maintenance and cleaning must not be carried out by unsupervised children. 5. Use only genuine Madimack spare parts. WARNING: Electrical Hazard This equipment is intended to be used on swimming pools only.
- Page 5 SPECIFICATIONS MODEL inverCHLOR 10 inverCHLOR 20 inverCHLOR 30 inverCHLOR 40 100% Chlorine Production 10g/hr 20g/hr 30g/hr 40g/hr (salinity @ 3000ppm) 100% Chlorine Production 4g/hr 9g/hr 14g/hr 18g/hr (salinity @ 1200ppm) Recommended Salinity 3000ppm (3g/L) Salinity Operating Range 1200-6000ppm Power Supply (v) 220~240VAC 50/60Hz Power Supply (A) 1.5A...
- Page 6 INVERCHLOR CONNECTIONS PORT NAME DESCRIPTION Power Input AC Power Connector (220~240V, 50/60Hz) Pump Pump power outlet connection (max 9amps) (Water Pump Socket) Connector for the optional pH Doser. Push in the plug end Doser (Optional) and hand tighten the locking nut. RS 485 **Future provision only Connect the lead from the Cell housing to the port labelled...
- Page 7 pH DOSER (optional) Roller Squeeze Tube Acid Inlet Acid Outlet Power Supply from inverCHLOR (Left to Right: Spare squeeze tube, Lubricant, Suction filter, Injection Tee, 5m Dosing tube)
- Page 8 CONTROLLER OPERATION MARKED AREA DESCRIPTION ICON Icon • Pool Salt Type (mineral/salt) • Low Salt Alarm Heater- pump call activated • Air detected in cell • Wi-Fi connection status • Error notification • Chlorine Production% • Pool Volume m3 • Timers Enabled •...
- Page 9 5.1 Controller Commands and Functions COMMAND KEYS FUNCTION • Power ON/OFF: Tap on home screen • Lock/Unlock: Hold for 3 seconds (The auto lock function will be activated after 1 minute without any operation) • Activate BOOST: Tap on for 24 hours constant operation •...
- Page 10 INSTALLATION 6.1 Pool Water Preparation Before operating the InverCHLOR it is important to prepare the pool water. The water chemistry must be balanced, and salt or minerals added. Certain adjustments to the chemical balance of the pool can take several hours. 6.2 Adding Salt Before Operation 1.
- Page 11 InverCHLOR controller. Madimack advises that the power supply should not be placed within 3 metres of the pool water. Connect the InverCHLOR power supply to an appropriate weatherproof power outlet/controller.
- Page 12 6.5 Installing the pH Doser The Madimack pH Doser is an automated algorithmic acid dosing pump designed to help maintain the pH levels in a chemically balanced pool. The pH Doser will dose controlled amounts of diluted acid only during the operating timers of the InverCHLOR.
- Page 13 6.5.2 Mounting the pH Doser 1. The pH Doser comes with a mounting bracket attached. 2. Fix one of the self-tapping screws into the desired location and hang the dosing pump using its wall bracket on the back 3. Connect the power supply cable to the port on the InverCHLOR marked ‘DOSER’. 6.5.3 Connecting the pH Doser 1.
- Page 14 OPERATION (USING THE INVERCHLOR) 8.1 Setting the 24-hour clock 1. Hold for 3 seconds 2. When the local time is blinking, set hours of the local time by tapping 3. Tap to set the minutes in the same way. 4. Hold for 3 secs to save the new time or press to continue to set the pool volume.
- Page 15 8.5.2 Setting the Acid Dosage Volume IMPORTANT: This is a guide only. The required amount is affected by many variables. TIP: During the initial startup period, have the water tested frequently (i.e. daily) and make small adjustments every 2-3 days, until the pH level remains balanced. 1.
- Page 16 Heat Pump Status Water Pump Status 8.10 WiFi and App Connection To connect the Madimack InverCHLOR to the Invergo App please follow these steps. 1. Download the Invergo App on your smart device. 2. Unlock the InverCHLOR and tap to enter the menu.
- Page 17 MAINTENANCE 9.1 Restore Factory Settings • Tap to enter the menu screen. • Hold for 3 seconds. A beep will sound. • will light up then the InverCHLOR will reset, and the first-time startup process will begin. 9.2 Power-down Memory: If there is an abnormal power failure during operation, when the power is restored, the controller automatically restarts and continues to run according to the state before power failure.
- Page 18 5. Leave the cleaning solution to dissolve the scale deposit for about 15 minutes. 6. Dispose of the cleaning solution at an approved waste recycling site, never pour into the rainwater drainage system or into the sewers. 7. Rinse the electrode using clean water and put it back on the cell fixture collar (there is an alignment mark). 8.
- Page 19 9.9 Error Codes Pool acid fumes are corrosive. It must be handled safely and according to the manufacturer’s instructions. Not diluting the acid will result in premature deterioration of the dosing and squeeze tube potentially leading to leaks and voiding warranty. The use of undiluted acid is indicated by discoloration of the tubing and/or the tubing losing flexibility.
- Page 20 10 Maintenance Mode – Authorised Technicians Only 1. Press to OFF status. 2. To enter ‘Maintenance Mode’ hold for 3 seconds. 3. Press for 3s to return the main Menu.
- Page 21 Please visit www.madimack.com.au for all warranty terms and conditions Madimack will, at its discretion, repair or replace any product proven to be defective during the warranty period for either materials or manufacture. Alternatively, Madimack will pay the cost of repair or replacement within 90 days of receiving the defective product, subject to unforeseen delays.
- Page 22 MAD353_InverCHLOR User Manual A4_v2.pdf...
