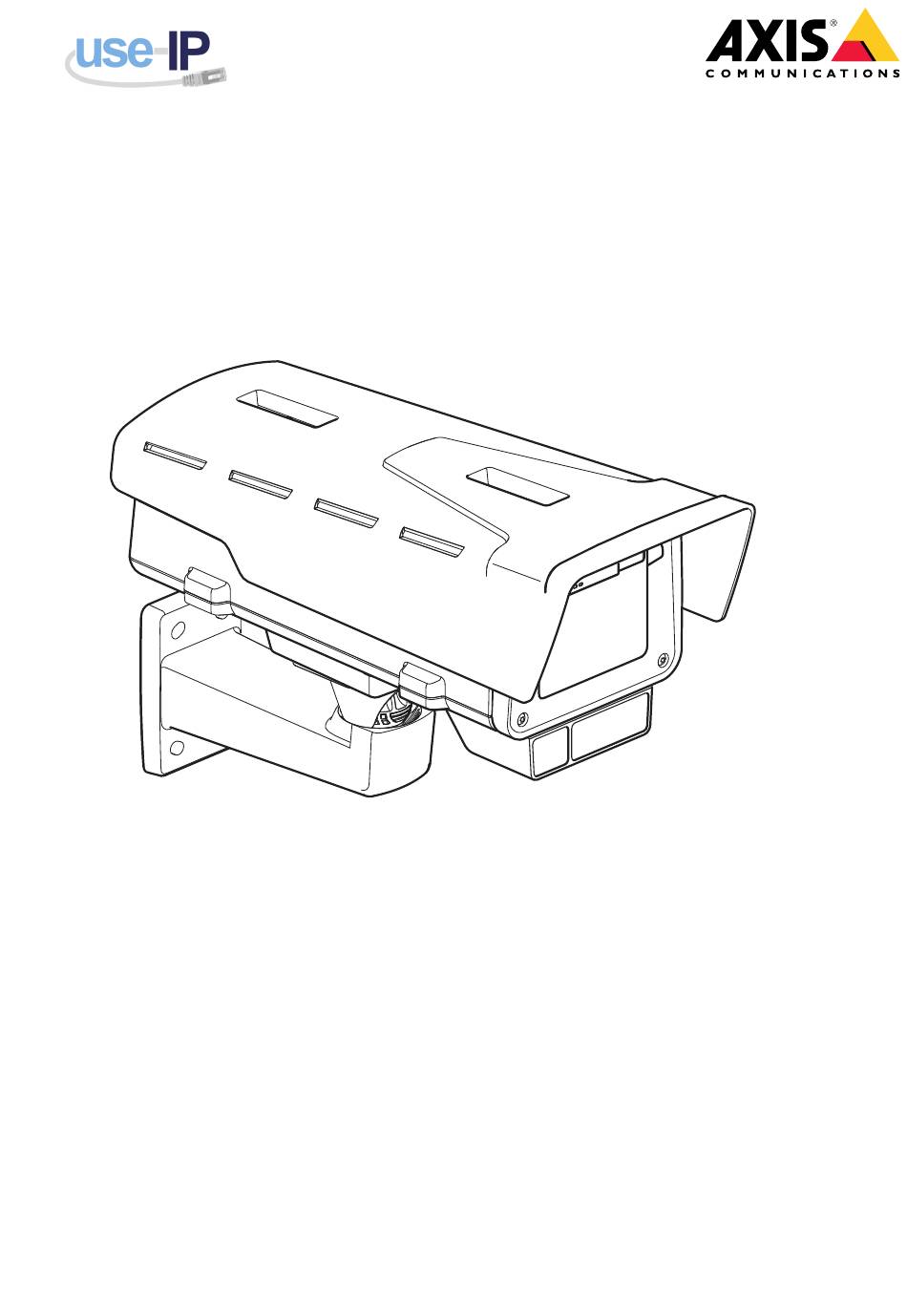

- Page 1 AXIS Q1728-LE Block Camera AXIS TQ1815-E Housing AXIS TQ1819-E Housing Repainting instructions...
- Page 2 Impact on warranty This product is approved for repaint by Axis, provided that you follow the instructions in this document and at axis.com/warranty-implication-when-repainting. Risks with repainting There are several risks when disassembling or assembling an Axis product. Training of operators and the use of correct tools mediates some of the problems but they can never be fully avoided.
- Page 3 Repaint the product Preparations • If applicable, disassemble the device according to the instructions in this document. • Clean all parts that will be repainted thoroughly to remove grease, dust, or oil. • To ensure reassembly and functionality of the product, mask any openings (for example for screws, LED indicators, or microphones) before you paint.
- Page 4 Disassembly Disassemble the housing 1 Arm adapter 2 Screw T20 (4x) 3 Bottom chassis 4 Top cover 5 Weathershield 6 Screw T20 (2x) Remove the arm adapter. Remove the 4x screws and the bottom chassis. Disconnect the safety wire. Remove the top cover. Remove the 2x screws and the weathershield.
- Page 5 Disassemble the wall mount bracket 1 Arm 2 Screw T30 3 Ball 4 Screw T20 (4x) Remove the T30 screw at the bottom of the arm. Separate the ball and the ball joint. Remove the 4x screws from the ball joint. Masking Masking the top cover Mask the following parts of the top cover:...
- Page 6 1 Top side 2 Screw holes (4x) 3 Label 4 Wall mount surface 5 Illuminator front glass Masking the arm adapter Mask the following parts of the arm adapter: 1 Outside of the arm adapter 2 Inside of the arm adapter...
- Page 7 Masking the weathershield 1 Black Mask the black part of the weathershield. Masking the wall mount bracket Mask the following parts: 1 Contact surface camera housing 2 Screw hole (4x) 3 Contact surface ball joint 4 Ball 5 Contact surface wall 6 Slots 7 Socket teeth 8 Screw hole...
- Page 8 To get a better coverage and clearer color, apply a second layer of spray paint. When the paint is dry, remove the masking and reassemble the product. Reassembly Reassemble the product. For more information, see the Installation Guide available at axis.com...
- Page 10 T10223302 2025-02 (M1.3) © 2025 Axis Communications AB...
