  • Page 1 OnePlus 13 (CPH2653) Repair Manual_V1.1 Page 1 of 57...
  • Page 2 Content 1.Guidelines ..........................3 2.General Repair Information ....................5 3. Component Disassembly Diagram ..................6 3.1 Product appearance diagram ....................6 3.3 Material list corresponding to explosion diagram ............... 8 4. Disassembly steps ........................ 18 4.1 List of Disassembly/Assembly Tools ................... 18 4.2 Preparation ........................
  • Page 3 1.Guidelines This manual is only applicable to the repair operation of OnePlus 13. All contents are owned by One Plus, and it is strictly forbidden to copy, modify or reprint without authorization. Please read the manual carefully and strictly follow the instructions for maintenance service. If you have any questions, please contact the official customer service of OnePlus.
  • Page 4 USB power adapters and a cable with USB Type-C plug. Note: OnePlus shall not be liable for any property damage, personal injury or other safety problems resulting from failure to follow the repair and maintenance instructions. OnePlus' liability under applicable product liability laws remains unaffected.
  • Page 5 2.6 Please use the original spare parts. 2.7 It is necessary to use equipment provided by OnePlus to test whether the phone is functioning properly. For example, if a customer reports an issue with the charging function, please use the original OnePlus adapter for testing to ensure the accuracy of the test results.

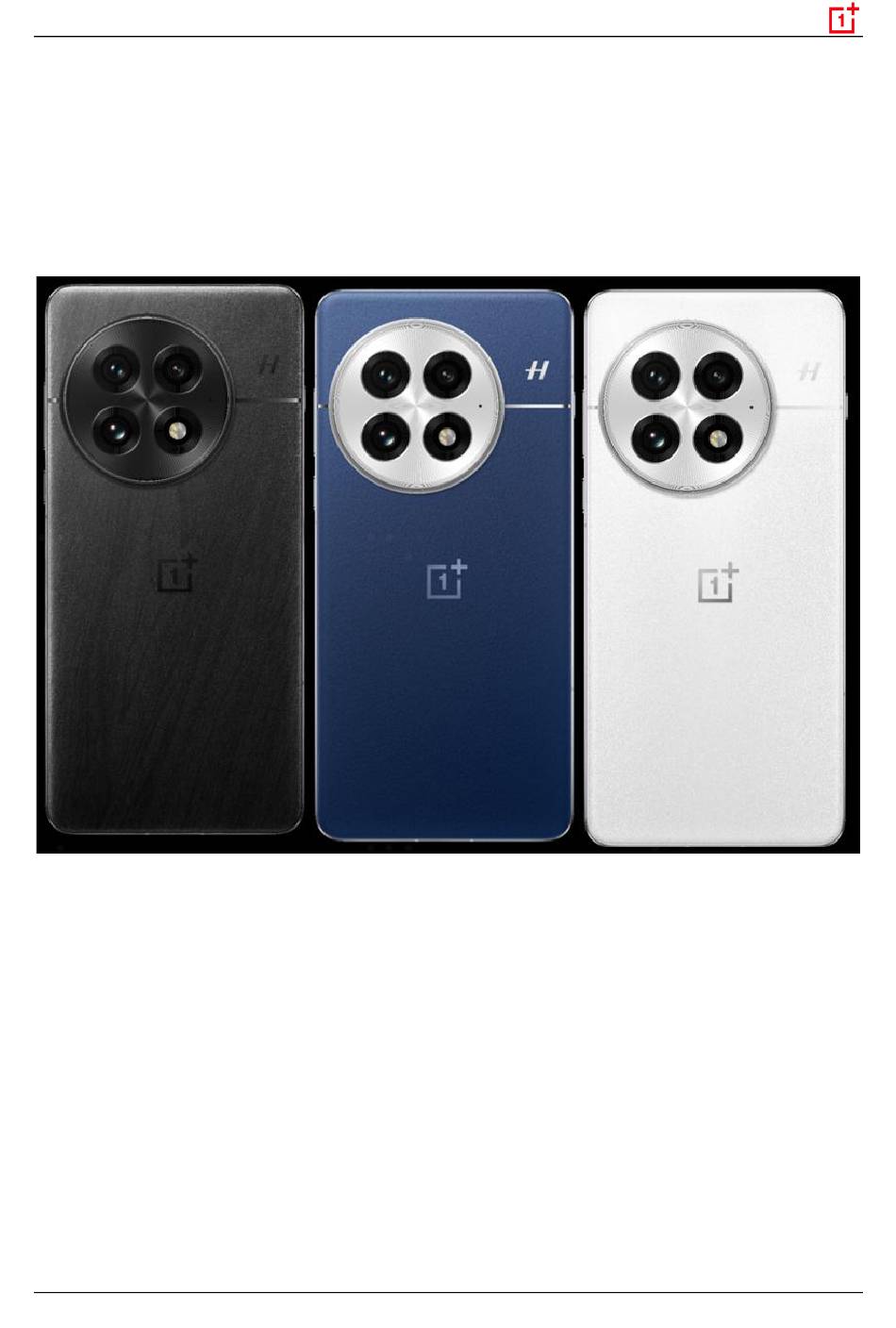

  • Page 6 3. Component Disassembly Diagram 3.1 Product appearance diagram Figure 3-1-1 Page 6 of 57...
  • Page 7 3.2 Component Exploded View Diagram Figure 3-2-1 Page 7 of 57...
  • Page 8 3.3 Material list corresponding to explosion diagram Materials Required for Replacing This Component * Numb Material (In addition to replacing the component, the relevant er in Name Physical Image auxiliary materials must also be replaced. If two or (Componen more components are replaced at the same time, only figure one set of the same auxiliary material is required)
  • Page 9 Materials Required for Replacing This Component * Numb Material (In addition to replacing the component, the relevant er in Name Physical Image auxiliary materials must also be replaced. If two or (Componen more components are replaced at the same time, only figure one set of the same auxiliary material is required)
  • Page 10 Materials Required for Replacing This Component * Numb Material (In addition to replacing the component, the relevant er in Name Physical Image auxiliary materials must also be replaced. If two or (Componen more components are replaced at the same time, only figure one set of the same auxiliary material is required)
  • Page 11 Materials Required for Replacing This Component * Numb Material (In addition to replacing the component, the relevant er in Name Physical Image auxiliary materials must also be replaced. If two or (Componen more components are replaced at the same time, only figure one set of the same auxiliary material is required)
  • Page 12 Materials Required for Replacing This Component * Numb Material (In addition to replacing the component, the relevant er in Name Physical Image auxiliary materials must also be replaced. If two or (Componen more components are replaced at the same time, only figure one set of the same auxiliary material is required)
  • Page 13 1#AA569 glass battery cover StructualDoubleFacedAdhesiveTape (repair adhesive) 1 Bottom 2#AA569 Glass battery cover StructualDoubleFacedAdhesiveTape 1 PCS speaker If the phone has leather battery cover: 1#AA569 leather battery cover StructualDoubleFacedAdhesiveTape (repair adhesive) 1 2#AA569 battery cover StructualDoubleFacedAdhesiveTape Leather 1PCS Page 13 of 57...
  • Page 14 Materials Required for Replacing This Component * Numb Material (In addition to replacing the component, the relevant er in Name Physical Image auxiliary materials must also be replaced. If two or (Componen more components are replaced at the same time, only figure one set of the same auxiliary material is required)
  • Page 15 Materials Required for Replacing This Component * Numb Material (In addition to replacing the component, the relevant er in Name Physical Image auxiliary materials must also be replaced. If two or (Componen more components are replaced at the same time, only figure one set of the same auxiliary material is required)
  • Page 16 Materials Required for Replacing This Component * Numb Material (In addition to replacing the component, the relevant er in Name Physical Image auxiliary materials must also be replaced. If two or (Componen more components are replaced at the same time, only figure one set of the same auxiliary material is required)
  • Page 17 Materials Required for Replacing This Component * Numb Material (In addition to replacing the component, the relevant er in Name Physical Image auxiliary materials must also be replaced. If two or (Componen more components are replaced at the same time, only figure one set of the same auxiliary material is required)
  • Page 18 4 Disassembly steps 4.1 List of Disassembly/Assembly Tools (hereinafter referred to as the “tool list”) Tool Image Description Remark Either of the two meets the Anti-static wrist Prevents electrostatic requirements; strap damage please feel free to select one. Either of the two Tool for disassembling meets the Heating tool...
  • Page 19 Tools for removing and requirements; installing screws(Cross, please feel free to diameter 1.6mm) select one. Either of the two Button bracket meets the Tool for disassembling disassembling requirements; button bracket tool please feel free to select one. 4.2 Preparation 4.2.1 Caution: to avoid data loss, please back up personal data (such as SMS, photos, videos, contacts, etc.) from your phone to computers or other external storage devices.
  • Page 20 By using alternative heating equipment, please operate according to the corresponding instructions; 2. use No. 3 tool in the Tool list to absorb the battery cover, and slowly pull it up to separate the double-sided adhesive tape; Then draw a circle around the bottom of battery cover with No.
  • Page 21 Note: Please take out the SIM tray according to the instructions, remove the back cover assembly and 2 # screw (only remove 12PCS in the figure); 1. Then use No. 5 tool in the Tool list to tear off two graphite sheets (as indicated by the red Remove the arrow).
  • Page 22 Once the easy-tear paper is removed, it should look like the image shown. 3. Drop 0.2 ml of organic solvent (such as alcohol or isopropyl alcohol) into each pull tab position (as indicated by the red lines). 4. Place the phone on its side for 5-10s, and let organic solvent dissolve the double-sided adhesive tape, which is convenient for quick disassembly.
  • Page 23 8. Remove both handle stickers. 9. Remove the battery easy-tear tape. Caution: after the battery is removed, it must be checked for any punctures, dents, leaks, or other defects. If any issues are found, the battery should be replaced. Note: Please take out the SIM tray according to the instructions, remove the back cover and the mainboard bracket.
  • Page 24 2. Open the BTB buckle (as indicated by the red arrow) and slowly pull it up to take out the wide-angle camera. Note: Please take out the SIM tray, then remove the back cover and the mainboard bracket according to the instructions . 1.
  • Page 25 Note: Please take out the SIM tray, remove the rear cover assembly and 2# screws (only 8PCS in the figure) according to the instructions. Remove the bottom speaker (recommended to be operated by professional repairers) Then gently pry open the speaker box from the speaker position (as indicated by the arrow).
  • Page 26 Note: Please take out the SIM tray, remove the rear cover assembly, the battery, the bottom speaker and the FPC assembly of C board according to the instructions. 1. Open the BTB of the screen (as indicated by the red arrow). [ Disconnect the black RF cable] 2.
  • Page 27 the RF cable. Note: Please take out the SIM tray, remove the rear cover assembly, the bottom speaker and the sub-board assembly/RF cables according to the instructions. 1. Then clamp the motor from its corner (as indicated by the red arrow) with No. 5 tool in Tool list.
  • Page 28 3. Use the plastic tweezers to lift the camera BTB, and slowly pull up to take out the front camera. Note: Please take out the SIM tray, remove the back cover, the mainboard bracket, the front camera assembly and all the 3 rear cameras according to the instructions.
  • Page 29 Note: Please take out the SIM tray, remove the back cover, the mainboard bracket, the front camera assembly, all the 3 rear cameras and the mainboard according to the instructions. 1. Use tool No. 5# to detach the receiver FPC at the disassembly point (as indicated by the red arrow).
  • Page 30 Note: Please take out the SIM tray, remove the back cover, the Mainboard Bracket, the front camera assembly, all the 3 rear cameras and the mainboard according to the instructions. 1. Use tool No. 7# from the Tool List to insert into the hole at the bottom of the black power button bracket (as indicated by the red arrow), and gently lift the power button bracket...
  • Page 31 Note: Please take out the SIM tray, remove the back cover, the Mainboard Bracket, the front camera assembly, all the 3 rear cameras and the mainboard according to the instructions. 1. Use tool No. 7# from the tool list to gently lift upwards at the alert slider disassembly position (as indicated by the red arrow) and remove the alert slider cover plate.
  • Page 32 Note: Please take out the SIM tray and remove the back cover, the mainboard bracket, the Remove the front camera assembly, all the 3 rear cameras, display the mainboard, the battery, the bottom assembly speaker, the C board FPC, the sub-board, the motor assembly.
  • Page 33 5. Assembly steps Contents Illustration Notes Using the new screen assembly, remove all release-film from the screen. Note: After installing the main display assembly, please install the Mainboard, front camera assembly, rear main camera Install the display assembly, rear wide-angle camera assembly assembly, rear telephoto camera assembly, battery, bottom speaker, C...
  • Page 34 4. Grip the alert slider cover plate, first install the bottom, then install the top 3 clips, and press the locking position. Finally, check if the tactile feel of the alert slider is good. Note: After installing the alert slider, please install the Mainboard, the front camera assembly, rear main camera assembly, rear wide-angle camera assembly, rear telephoto...
  • Page 35 rear telephoto camera assembly, mainboard bracket, back cover and SIM tray according to the instructions. 1. Place the phone in a side-standing position, and insert the volume button parallel to the power button slot (no need to distinguish the direction) 2.
  • Page 36 3 Use tool No. 5 from the Tools List to press the receiver FPC, ensuring it adheres tightly to the double-sided adhesive tape. Note: After installing the upper speaker, please install the Mainboard, front camera assembly, rear main camera assembly, rear wide-angle camera assembly, rear telephoto camera assembly, mainboard bracket, back cover and SIM tray according to the...
  • Page 37 2. Hold the edge of the mainboard, insert it from the top, and press it flat to ensure it is properly aligned and assembled. 3. Use a cross screwdriver to tighten the 1#, 2Pcs screws (as shown in the red circle) to secure the mainboard in place.
  • Page 38 1.When installing the sub-board, it is necessary to check whether the black and white RF cables have been installed on the sub-board. If not, please install them. If they are correctly installed, they should look like the image shown. Install the sub- board assembly (including external audio...
  • Page 39 1. install the black RF cable into the cable groove of the sub-board (as shown by the red lines). 2. Then install it onto the RF (BTB) socket on the mainboard (as shown in the red circle). 3. Install both the white and black RF cables into the FR cable grooves (as shown by the red lines).
  • Page 40 3. Press the C board FPC in the battery compartment towards both ends (as shown by the arrows), ensuring that they fit tightly. 4. Use plastic tweezers to hold the shielding copper foil tape and attach it to the designated position (as shown in the red box).
  • Page 41 3. Use plastic tweezers to hold the main camera BTB shield cover, then align it and latch it into place. Note: After installing the rear main camera assembly, please install the mainboard bracket, back cover and SIM tray. 1. Attach the new graphite sheet for the telephoto camera to the telephoto camera BTB area (as shown in the red box), ensuring it is completely flat.
  • Page 42 WARNING: Always follow the prescribed guidelines when handling built-in batteries! Improper handling may lead to accidents, such as leakage, bulging and other major risks endangering personal and property safety. 1 After disassembly, a new easy-tear tape must be used. It is prohibited to reuse the easy-tear tape.
  • Page 43 （3） Hold one side of the easy-tear tape and tear off the release paper from the other side of the easy-tear tape. （4）Tear off the release paper from the other side of the easy-tear tape. （5）Wrap the easy-tear tape around both sides of the battery, then press the easy-tear tape flat to remove any air bubbles.
  • Page 44 1. Hold both sides of the mainboard bracket, install the upper part first, then gradually install it downwards, ensuring that the clips are properly secured in place. 2. Smooth the graphite sheet from top to bottom to ensure that the film is pasted well.
  • Page 45 1#- AA569 Leather Battery Cover Structural Adhesive Double-sided Adhesive 1 PCS （small: 612717000539, As shown on the right） 2# AA569 Battery Cover Structure Adhesive Double-sided Tape Leather 1 PCS If the back cover assembly is replaced, 1#double-sided(small) adhesive tape shall be used. If you do not replace the back cover assembly, use both 1 #(small) and 2# double-sided adhesive tape.
  • Page 46 6 Calibration after repair 6.1 Calibration Scene 6.1.1 In order to ensure the normal operation of mobile phone, calibration must be carried out after disassembly. Failure to calibrate may cause issues such as the inability to blur in portrait mode or affect the blur effect.
  • Page 47 Printing requirements: Keep the original size and do not scale it; keep the color uniform; keep it flat and avoid scratches when using it 6.2 Calibration mode 6.2.1 Input the *#899# code in the phone dialer app to enter the engineering mode. 6.2.2 Click "...
  • Page 48 4. click “Back Color Sensor Success 6. Click Pass to automatically enter 5. “ ” means the calibration is Calibration” successful the next item: after sale Steps wavelength calibration Picture 7. Click " after wavelength 8. Calibrate with “PASS” result 9.
  • Page 49 12. Click NEXT (place the striped Steps calibration fingerprint rubber head now) rubber head in position) 13. When the interface 4. After-sales triple camera 15. Follow the instructions for the displays "Test complete, calibration (calibration tool 2 #), "Optical Image Stabilization - Static please restart,"...
  • Page 50 16. Manually return after 17. In the amplifier calibration 18. In the motor calibration successful test interface, click " Calibrate". interface, click " Start", and Automatically proceed to the vibration will appear after a few Steps next step once “pass” is seconds displayed Picture...
  • Page 51 23 Manual return after light The calibration process is now 22. Put the upper part of leakage calibration shows PASS complete. the phone into a black Steps object (e.g. black bag) and click (light leakage calibration) Picture Caution: After the calibration process is completed, the phone must be restarted for the calibration to take effect.
  • Page 52 7. Fault diagnosis and functional test 7.1 General diagnosis of Phone Manager APP 7.1. 1 Function Description: general diagnosis provides basic information of your device, conducts hardware and related function checks and performs self-diagnostics to identify any potential faults. It also offers guidance and suggestions for troubleshooting any detected issues, helping you resolve device problems.
  • Page 53 7.2 Automatic Test in the engineering mode 7.2.1 Alternatively, you can also run the Automatic Test in the engineering mode. Test Path: Open the phone dialer app > Enter*#899# > Select the automatic test. Note: Once the corresponding test item is completed, a 'Confirm' dialog box will pop up. If the dialog box does not automatically pop up after the specified time, you need to press the 'Back' button to trigger the 'Confirm' dialog box.
  • Page 54 After 5 seconds, the 'Confirm' dialog box will appear. Super VOOC Use the original OnePlus fast charging adapter and USB cable for testing. If it Charger shows “PASS” and jumps to the next test automatically, the function is good;...
  • Page 55 Test Items Test Requirements Fingerprint Auto If the interface shows “PASS” and jumps to the next test, the function is good; Test Click the '20-4K (-3dB) signal' to play sound for 5 seconds. If there is no Media test silence, weak sound, noise, or distortion, and the interface shows 'PASS' and automatically jumps to the next test, the function is considered good.
  • Page 56 8. Upgrade and reset the system software 8.1 OTA upgrade: 8.1.1 Go to Settings > About device > Tap the top version number to check for updates manually or enable 'Automatic Update overnight' in the options at the top right. Once enabled, the phone will automatically download the firmware package in a Wi-Fi environment and perform the update during idle hours at night.
  • Page 57 9. Appendix 1. Wire connection and electronic board diagram 2. ESD protection requirements： 3. Camera calibration diagram： Page 57 of 57...
