OnePlus 12 Manual

Guideline

The purpose of this document is only to guide OnePlus technicians to carry out maintenance service to OnePlus products. The content shall be keep in confidential, only avail be able to OnePlus authorized service centers, and cannot be provided to third parties without authorization. Please follow the regulations and the guidance for maintenance service.

  1. The service center may be required to install the mobile phone in-vehicle system in the car if necessary. In the case of some failures, the radio frequency signal of the mobile phone may affect the car's power management system and ABS (ANTI-SKID BRAKING SYSTEM) anti-lock braking system. If necessary, please consult the car dealer or manufacturer to determine the antiinterference performance of the car electronic system to radio frequency energy.
  2. Mobile phones cannot be operated in the following places: places with potential explosions, such as: gas stations, gas stations, blasting work areas, etc.
  3. Any wireless transceiver equipment, including cell phones, may interfere with medical equipment protected by industrial establishments. If necessary, please communicate with the medical equipment manufacturer, other electronic equipment may also be interfered.

  1. Repair services and calibrations must be undertaken by qualified personnel only.
  2. Ensure all components, modules screws and insulators are correctly re-fitted after servicing and alignment.
  3. Electrostatic discharge is the main cause of damage to sensitive components of electronic products. Service centers must operate in accordance with OnePlus's requirements for ESD protection. Ensure all work is carried out at an ESD workstation and that an ESD wristband is worn.

General Repair Information

  1. Ensure all work is carried out at an ESD workstation and that an ESD wristband is worn before starting maintenance. Wear ESD gloves to avoid oil stains and fingerprints.
  2. Use protective films to protect the display, camera, camera lens to prevent dust and scratches.
  3. Use a clean cloth, ESD brush and alcohol (Concentration above 95%) for appearance cleaning. Do not use other items (such as an eraser) for cleaning to prevent the protective layer from being scratched, which may lead to oxidation and corrosion.
  4. Faulty welded mechanical parts (except shield cover and shield frame parts) can only be replaced and not repairable.
  5. Use accessories provided by OnePlus.
  6. Check the contacts or solder joints of devices that may cause simple faults (e.g. soldered interfaces or switches). Re-weld if necessary (only for service centers where lead-free soldering is available) and clean the flux remaining after soldering.
  7. Use the equipment provided by OnePlus to test the phone (e.g. When the charging function of the device is abnormal, do use the original OnePlus adapter to test to ensure the accuracy of the test results).
  8. Fill in the fault phenomenon code and fault reason code according to the actual situation, and accurately enter the replacement material code in the CRM system.
  9. For more information, please visit the GKM system.

Phone Structure Diagram

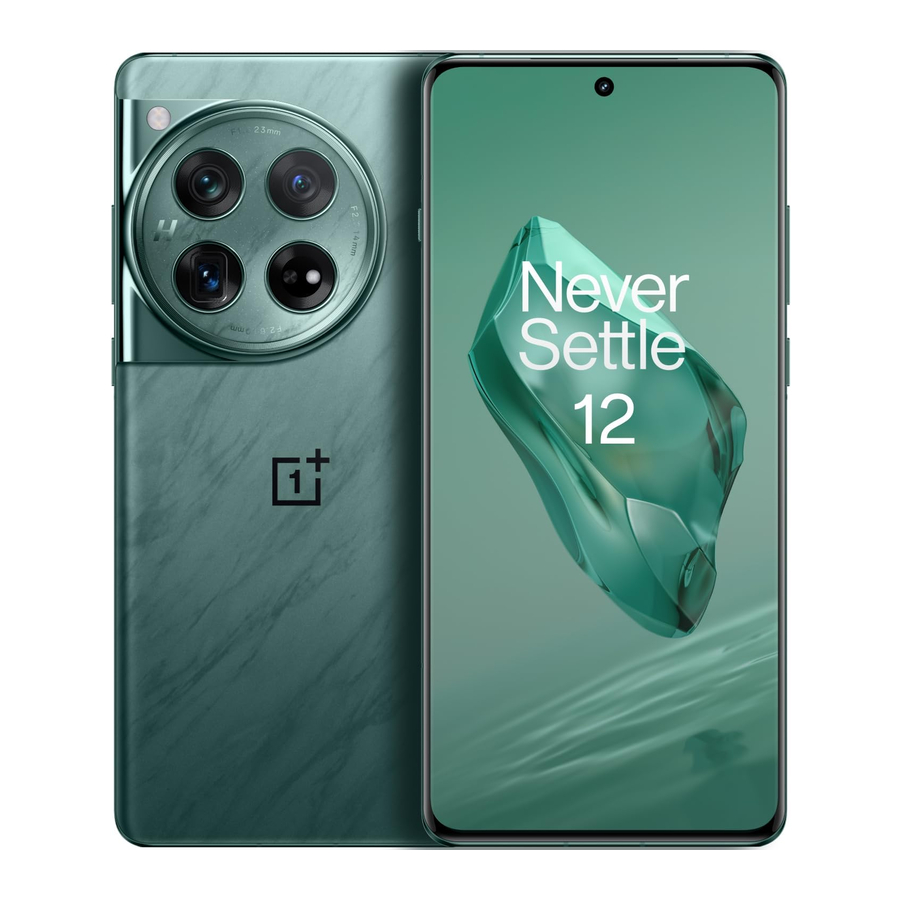

Product Appearance

As shown in Figure 3-1-1
Product Appearance

  1. Receiver
  2. Speaker
  3. Front Camera
  4. Screen fingerprint
  5. SIM
  6. Ambient light/proximity sensor
  7. volume key
  8. power key
  9. Speaker
  10. Sub MIC
  1. Flashlight
  2. rear camera (Top left: main camera, Top right: wide-angle camera, Bottom left: Telephoto camera)
  1. color temperature sensor
  2. USB Type-C
  3. Infrared remote control
  4. NFC
  5. Silent/Vibrate/Ring key
  6. wireless charging circle
  1. Main MIC

Phone Structure Explosive View

As shown in Figure 3-2-1
Phone Structure Explosive View

Explosive Map BOM

No Material name Components Picture QTY Unit
1 Rear camera decoration 1 PCS
2 Battery cover 1 PCS
3 flash shield 1 PCS
4 screw
3 PCS
20 PCS
3 PCS
5 Motherboard bracket 1 PCS
6 speaker 1 PCS
7 Telephoto camera 1 PCS
8 main camera 1 PCS
9 Wide angle camera 1 PCS
10 Main board 1 PCS
11 front camera 1 PCS
12 Main board cover 1 PCS
13 screen cover assembly 1 PCS
14 Fingerprint Module 1 PCS
15 SIM 1 PCS
16 RF cable 1 PCS
1 PCS
17 motor 1 PCS
18 Sub board 1 PCS
19 L board 1 PCS
20 U board 1 PCS
21 battery 1 PCS
22 C board 1 PCS
23 Sub board bracket 1 PCS
24 Box 1 PCS

Note:This table is used only for the name of the annotation but not for the preparation of materials.

Disassembly Steps

Disassembly Tools

Disassembly Tools

Preparation

The phone must be powered off before disassembly. System Power Off: Press the power key and volume up key then slide to power off. Forced Power Off: Long press the volume "+" key and power key for about 8 seconds until the display is off.

Disassembly Steps

Step Content Key Picture Precautions
1 Preparation Prepare tools for disassembly
2 Remove the SIM card tray Before disassembling, power off the device. Remove the SIM card tray and check for any deformation or scratches.
3 Remove battery cover


Machine disassembly steps

  1. Heating requirements: The parameters of the constant temperature platform are required to be 80℃±5℃, heating for 5min.
  2. Put the device into the fixture for disassembling the battery cover (machine parameter requirements: air pressure of 0.5~0.6MPa), and press the start button to automatically disassemble the battery cover.
  3. Remove the battery cover, clean the residue on the battery cover and bracket, and remove the low adhesive protective film to protect the rear camera hole and flash hole of the battery cover.
  4. Clean the residual adhesive on the BP surface of the middle frame, the surface of the motherboard bracket (as shown in the left 3D model diagram), and the surface of PET and the right speaker bracket.

Manual disassembly plan:

  1. Heating requirements: The parameters of the constant temperature platform are required to be 80℃±5℃, heating for 5min
  2. Wear electrostatic gloves on the left hand, and use a suction cup on the right hand to pull the bottom until a gap is opened (the suction cup is close to the bottom edge).
  3. Adjust the suction cup position, pull the middle left position and middle right position in sequence, until the bottom of the battery cover is pulled open (if it is not pulled open at once, reheat it), readjust the suction cup position, pull the top and middle positions in sequence, and pull the entire battery cover open.
  4. Dismantling the battery cover does not allow the use of a dismantling stick. Finally, when the battery cover is separated from the middle frame, it is forbidden to pull the battery cover vigorously
4 Remove screws Remove the screws
5 Disassembling the motherboard bracket Use tweezers to gently cut and tear off the adhesive area of the graphite sheet from the bottom (be careful not to touch the battery), and remove the motherboard bracket from the bottom up
6 Remove battery



  1. Disassemble the BTB of the battery on the mainboard, and open the BTB of the C board. Fully open the edge of the easy to tear paper on the side of the battery, and then use a small syringe to inject about 0.2ML of alcohol into the upper and lower handle positions. Tilt the phone and stand it up for 5-10 seconds to allow the alcohol to fully penetrate under the sticker, and the other side of the easy to tear paper should also follow the above steps.
  2. After standing still, hold the handle and slowly lift the battery (note that try to pull the battery straight to avoid vertical pulling, which may cause deformation of the battery). When pulling to the rear, remove the battery along with the easy to tear paper from the phone. Slowly remove the battery tear off paper and mark the repair label at the corresponding position of the battery.
  3. After removing the battery, it is necessary to check whether the double-sided adhesive is damaged, dirty or defective. For defective products, a special note should be made stating "double-sided adhesive is damaged". The repair team should replace the back adhesive. If it is OK, immediately attach the battery double-sided adhesive release paper.
7 Remove the rear camera Disassemble the three camera BTBs of the rear telephoto, wide-angle, and main camera, and remove the rear camera module. The bottom of the main camera has a weak adhesive backing, which can be slightly raised from the side before removing the camera (do not pull the camera FPC).
8 Disassemble the battery compartment foam Use tweezers to peel off the foam on the right and bottom of the battery compartment
9 Remove the box Disassemble the BOX
10 Disassemble the C board and small board bracket
  1. Disassemble the black RF cable
    Note:
    1. Lift the RF cable in the upper right corner of the battery compartment,
    2. Then lift the cable clamp,
    3. Then lift the RF socket), the small board bracket, and the BTB of the C board on the motherboard, and then remove the C board
  2. Disassemble the U-board on the motherboard/small board BTB and remove the Uboard
11 Disassemble fingerprint/scre en BTB Remove fingerprint/screen BTB
12 Disassemble L board Disassemble the L board
13 Disassemble the sub board Disassemble the white RF cable, move it to the small board position, and remove the sub board
14 Disassemble the front camera and motherboard
  1. Tear off the graphite sheet of the front camera and disassemble the front camera BTB
  2. Use an electric screwdriver to remove the preset screws of the motherboard, take out the motherboard from bottom to top, be careful not to scratch the FPC of the front camera, and clean the thermal conductive gel on the back of the motherboard and the corresponding position of the middle frame
  3. Gently pry away from the side of the camera with your fingertips, then tilt and remove the camera
15 Disassemble the motor Use a metal pry bar to lift and push out the motor from the disassembly position
16 Disassemble the receiver Use tweezers to lift the FPC adhesive position of the receiver from the disassembly position, use fingertips to pull it out from the side, tilt and remove the receiver, and tear off the adhesive residue on the receiver and the middle frame
17 Disassemble the Alert Slider
  1. Use tweezers to gently lift the disassembly position of the red arrow on the three section button, and then use tweezers to clamp out the three section cover plate
  2. Use tweezers to remove the three-stage bracket (usually with steel balls, be careful when handling to avoid steel balls rolling off and losing them)
  3. Remove the three-stage side key and gently remove the steel ball

Assembly Steps

Bill of Must-Be-Replaced Materials

During the assembly process, the following material must be replace new one.

No Material code Material name Material specification QTY Notice
1 612717000116 Accessories part AA545 battery cover structure adhesive double-sided adhesive 1 Remove the battery cover, the above accessories must be replaced
2 612714000261 Accessories part AA545 front camera holder with ordinary double-sided adhesive tape 1 Remove the front camera, the above accessories must be replaced
3 612720000083 Accessories part AA545 front facing graphite film 1 Remove the front camera, the above accessories must be replaced

Assembly Steps

Step Content Picture Precautions
1 Assemble the alert Slider


  1. Install the alert slider into the middle frame, note that the magnet is at the top, if installed upside down, it will cause no function issue.
  2. Use tweezers to gently place the steel ball into the center hole of the side key bracket
  3. Slowly place the assembled alert slider into the middle frame, note that the arrow above the side keys is facing downwards and the steel balls are not misaligned.
  4. Use tweezers to install the alert slider, first align the upper positioning hole, and then push it into the card slot. Press the upper and lower sides into place
  5. Use tweezers to press both sides of the lower end of the cover plate to ensure proper installation
2 Install power button
  1. Insert the power key FPC switch into the middle hole of the power key slot on the upper cover
  2. When installing the power button FPC bracket, pay attention to the groove facing the body
  3. Stick the power button with waterproof foam
3 Install Volume keys Install volume keys, and pay attention to the arrow indicating that the side with the pillar is facing inward, and press it down
4 Install receiver/motor /mainboard/front camera


  1. Install the receiver, motor and point conduction gel.
  2. Install the mainboard and tidy up the RF cables. install two fixing screws for the mainboard.
  3. Install the front camera, attach double-sided adhesive to fix the front facing camera, and attach a graphite sheet to the front facing camera.
  4. Install a rear main camera and telephoto.
  5. Install the rear wide-angle and stick the motherboard conductive cloth onto the wideangle conductive cloth;
  6. Buckle the front BTB and attach the front graphite.
Remark:
  1. Check if the conductive foam and cloth in the middle frame are intact
  2. After reinstalling the mainboard, check if the conductive cloth of the camera is intact
  3. Check if the conductive foam on the wide-angle BTB clamping steel plate of the antenna bracket is intact
5 Install the sub board Install the sub board and tighten the RF cable
6 Install U board, L board, small board, C board, RF cable
  1. Install the L board and apply LCMBTB doublesided adhesive on the small board;
  2. Install U-board and C-board;
  3. Secure the BTB;
  4. Buckle the RF cable at the small board end and incorporate the RF cable into the cable tray;
  5. Install the small board bracket
7 Install speaker box bracket, attach RF cable foam, and attach foam at the bottom and top of the battery compartment
  1. Install the speaker BOX bracket and lock the screws with 8Pcs;
  2. Apply RF wire foam;
  3. Stick foam at the bottom of the battery compartment;
  4. Stick foam on the top of the battery compartment.
8 Install the rear camera Install the rear camera
9 Install the battery Stick the battery easy to tear sticker, fasten the battery BTB buckle and press it firmly;
10 Install the F board and motherboard bracket

  1. Install the C board
  2. Install the main board bracket, insert it from the top side, press it from top to bottom according to the buckle position, and use your hand to smooth out the graphite sheet from top to bottom.
  3. Install the screws 20PCS.
Remark:
  1. Check if the conductive cloth of the camera is intact
  2. Check if the conductive foam on the wide-angle BTB clamping steel plate of the antenna bracket is intact
  3. If disassembling the camera is involved, check if the conductive cloth on the middle frame is intact
11 Attach battery cover accessories Stick double-sided adhesive tape on the battery cover (61271700116);
12 Install battery cover
  1. Install the battery cover
  2. Install the card holder and turn it on for inspection.
13 Pressurize Use a universal pressure maintaining fixture to maintain pressure for 10 minutes.

Calibration

Enter the calibration interface: dial > *#899# > After Sale Devices Calibration > enter the password 6776.

Front Color Sensor Calibration

Steps
  1. Manually click "Front Color Sensor Calibration
  1. "Pass" means calibration is successful
  1. Manually return and confirm the result

Back Color Sensor Calibration

Steps
  1. Manually click "Back Color Sensor Calibration"
  1. "Pass" means calibration is successful
  1. Manually return and confirm the result

After Sale back spectrum wavelength calibration

Steps
  1. Manually click "After Sale back spectrum wavelength Calibration"
  1. "Pass" means calibration is successful
  1. Manually return and confirm the result

Fingerprint optical calibration

Steps
  1. Click "START" to start calibration after it jumps into the fingerprint optical calibration
  1. According to the prompt "please place the yellow rubber ", put the yellow rubber on the fingerprint spot area (the groove is facing down), and click "NEXT" until it prompts " please place the black rubber".
  1. According to the prompt "please place the black rubber", put the black rubber on the fingerprint spot area (the groove is facing down), click "NEXT" until the "please place the yellow stripe rubber " prompts to remove the black rubber;
Steps
  1. According to the prompt "Please place the yellow- striped rubber", put the yellow stripe rubber (striped down) in the spot area, click "NEXT";
  1. Note: The stripe direction of the yellow stripe rubber should follow the long side of the phone
  1. Use the new fingerprint calibration tool

After-sale Efficiency Triple Camera Calibration

Calibration Scenario
The Device will show"All Engineer Camera to take picture and record video" to allow. All mobile phones that have been disassembled and repaired must be calibrated before they can be returned to the user.

Calibration Tool
After-sales calibration Chart,
As shown in Figure 6.4.2-1:

Figure 6.3.2-1

Calibration Method
After entering the calibration interface, the first step is to select "After-sales three-camera calibration", align the yellow frame with the edge of the black and white grid on the chart, and then click to take a photo. The mobile phone will enter the calculation interface. Do not perform any operations during the calculation until the calibration shows "Pass"; then select "After-sales three-camera calibration (105cm)" to calibrate in the same way until the calibration shows "Pass". If "failed" is displayed all the time, you need to reinstall or replace the hardware for troubleshooting.

Calibration items Operation steps Calibration interface Calibration result
Aftersale Efficiency Triple Camera Calibration (main camera + wide angle)
  1. Align the calibration frame with the chart, and then click the "0 CAPTURE" button to calibrate;
  2. After a brief calculation by the system, the word "Pass" appears, indicating that the calibration is successful.
Aftersale Efficiency Triple Camera Calibration(105cm) (main camera + telephoto)
  1. Move a little farther away, align the calibration frame with the chart, and then click the "0 CAPTURE " button to calibrate;
  2. After a brief calculation by the system, the word "Pass" appears, indicating that the calibration is successful.

OIS-Still

Calibration items Operation steps Calibration interface Calibration result
OIS-Still
  1. Put the phone flat on the table;
  2. Enter the "OIS-Still" calibration interface;
  3. Click the "OIS-Still" calibration button;
  4. Wait for the calibration result until it displays "Test succeeded"
The third rear camera OIS-Still
  1. Put the phone flat on the table;
  2. Enter the " The third rear camera OIS-Still" calibration interface;
  3. Click the "OIS-Still" calibration button;
  4. Wait for the calibration result until it displays "Test succeeded"

Smart power amplifier calibration

Calibration items Operation steps Calibration interface Calibration result
Smart power amplifier calibration
  1. Select "Smart power amplifier calibration" to enter the calibration interface;
  2. Click the "Calibrate" button and wait for the calibration result.

Vibrator Calibrate

Calibration items Operation steps Calibration interface Calibration result
Vibrator Calibrate
  1. Select " Vibrator Calibrate " to enter the calibration interface;
  2. Click the "Start" button and wait for the calibration result.

Tri State Hall Calibration

Calibration items Operation steps Calibration interface Calibration result
Tri State Hall Calibration
  1. Select " Tri State Hall Calibration " to enter the calibration interface;
  2. Click the "Start" button, and then toggle the mute button on the right side of the phone until the calibration is passed.
    Pay attention to stay away from magnetic field interference during the calibration process. such as magnets, etc.

At this point, the calibration process has ended. After the calibration process is completed, the phone must be restarted for the calibration to take effect! Enter functional testing after restarting.

Function Test

Test Path

Dialing Interface>Enter*#899#>Enter automatic test. The "Confirm" dialog box will pop up after the test complete, if there is no problem choose "Pass", otherwise choose "Fail".

Test Requirements

No. Test Items Test Requirements
1 LCD Test Observe the red, green, blue, white, black, gray, grayscale and color interface successively; If there are black spots, bright spots and other anomalies, the function is good;
2 Vibration Test Get ear close to check the vibration from the motor for 3 seconds.
If the motor vibrates normally (No noises or weak vibration), the function is good;
3 Touch Screen Auto Test If the interface shows "PASS" and jumps to the next test, the function is good;
4 Front Camera Preview Align the camera with a white surface and a black surface. If there is no black dot, black line or blurred screen on the screen after aligning the white surface, and there is no bright spot on the screen after aligning the black surface, the camera is good;
5 Rear camera preview Align the rear camera with a white surface, a black surface, and a surface with text. If there is no black dot, black line or blurred screen on the screen after aligning the white surface, there is no bright spot on the screen after aligning the black surface, white point or blurred screen, the camera is good;
6 Second rear camera preview Align the Second rear camera with a white surface, a black surface, and a surface with text. If there is no black dot, black line or blurred screen on the screen after aligning the white surface, there is no bright spot on the screen after aligning the black surface, white point or blurred screen, the camera is good;
7 Third rear camera preview Align the Third rear camera with a white surface, a black surface, and a surface with text. If there is no black dot, black line or blurred screen on the screen after aligning the white surface, there is no bright spot on the screen after aligning the black surface, white point or blurred screen, the camera is good;
8 Echo test Testing Main MIC: Blow the air to the MIC hole on the bottom of the phone. If the receiver (earphone) sounds, the function of Main MIC is good;
Testing Sub MIC: Blow the air to the sub MIC hole on the top of the phone. If the speaker sounds, the function of Main MIC is good;
9 Flashlight Test Open the flashlight. If it can be opened normally with color deviations, the function is good;
10 Super Vooc Charger Use the original OnePlus adapter and USB cable to charge. If the interface shows "PASS" and jumps to the next test, the function is good;
11 Headset in-out plug test Enter the headset test interface, when it is recognized that the headset is plugged in, it is a good product
12 Sensor Self-test and Calibration When the phone enters into the Sensor self-calibration interface, the phone must be placed on the desk flatly. Then click the first calibration item. After the test is passed, it will automatically jump to the next test item;
13 Gyroscope Take the mobile phone to draw the "8" word graphic. If the interface shows "PASS" and jumps to the next test, the function is good;
14 MSensor Shake the phone from the left to the right side. If the interface shows "PASS" and jumps to the next test, the function is good;
15 Proximity Test Use the palm to cover the light sensor hole, and the screen will turn green from black. If the interface shows "PASS" and jumps to the next test, the function is good;
16 Button test Press the power key and volume key one by one. If keys can be pressed normally and the interface jumps to the next test, the function is good;
17 Finger print Auto Test If the interface shows "PASS" and jumps to the next test, the function is good;
18 Media test Click the "20-4K(-3db)signal" to test the sound of the media function for 5s. If there is no silence, weak sound, noises, and breaking sound, the interface shows "PASS" and jumps to the next test, the function is good;
19 Call test If the phone has been installed with the operator's SIM card, dial the corresponding operator's phone number. If no card is installed, call the 112 to test (Calling the Operator is recommended). If the call can be performed normally and the receiver is without noises or weak sounds, the function is good;
20 NFC test Connect the NFC card reader to the computer. After the phone automatically selects the SIM1 simulation(5s), move the phone's rear camera area close to the NFC card reader, and the card reader's signal light changes from red to green with a beep sound.

After the above 20 items are tested, they will prompt to the test result interface. If the test PASS, project will show "√"; If the test FAIL, project will show "×" as shown below.
Test Requirements
Figure 7-2-1

  1. Pay attention to the mandatory replacement of materials during the disassembly and assembly process.
  2. To prevent white spots and fuzz on the lens, please prioritize protecting the camera and its decorative cover after disassembly.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download OnePlus 12 Manual

Advertisement

Need help?

Need help?

Do you have a question about the 12 and is the answer not in the manual?

Questions and answers

Related Manuals for OnePlus 12

Save Article as PDF

Table of Contents
