DH Instruments PK-PPC-BG-DVU Installation Sheet

INTERCONNECTIONS KIT, P/N 401699,
INCLUDES
FIGURE
QTY PART NO CALLOUT
1 401697 N/A
1 101450-Z 1
2 103279 2
4 101477 3
2 101985 4
2 101487 5
2 101482 6

TO INSTALL THE DUAL VOLUME UNIT (DVU)

Identify a location for the DVU™ that minimizes
the length of tubing between the DVU connections
and the PPC BG0002™ TEST(+) and TEST(-) ports.
The PPC BG0002 and the DVU are designed to
stack one on top of the other. The DVU may be
rack mounted using the rack mount kit (P/N 400440).
Recommended configurations are for the PPC and
DVU to be stacked directly one on top of the other
or with their rear panels face to face.

TO CONNECT THE DVU AND PPC BG0002

You will be making and connecting two identical
assemblies, one for the TEST(+) port and one for
the TEST(-) port.
Install a union (4) into a 1/4 in. tube x 1/4 in. NPT
M adaptor (3) (do this twice). Screw the 1/4 in.
NPT M end of the adaptors into the two ports of
the DVU using Teflon
DVU, PPC, PPC2+, PPC3, and PPC BG0002 are trademarks, registered and otherwise, of DH Instruments, Inc.
Document 560041a
DH Instruments, Inc.
4765 East Beautiful Lane
Phoenix AZ 85044-5318
USA
DESCRIPTION
Dual Volume Unit (DVU)
Tubing, PFA, 1/4 in. x 160 cm
Adaptor, 1/4 in. tube x O-seal
1/8 in. NPT M
Adaptor, 1/4 in. tube x 1/4 in.
NPT M
Union, 4P
Tee, 1/4 in. tube
Adaptor, 1/4 in. tube x 1/4 in.
NPT F
®
tape as a sealer.
®
Teflon is a registered trademark of E.I. du Pont de Nemours and Company.
PK-PPC-BG-DVU Dual Volume Unit
and Interconnections Kit
P/N 401699
Installation Sheet

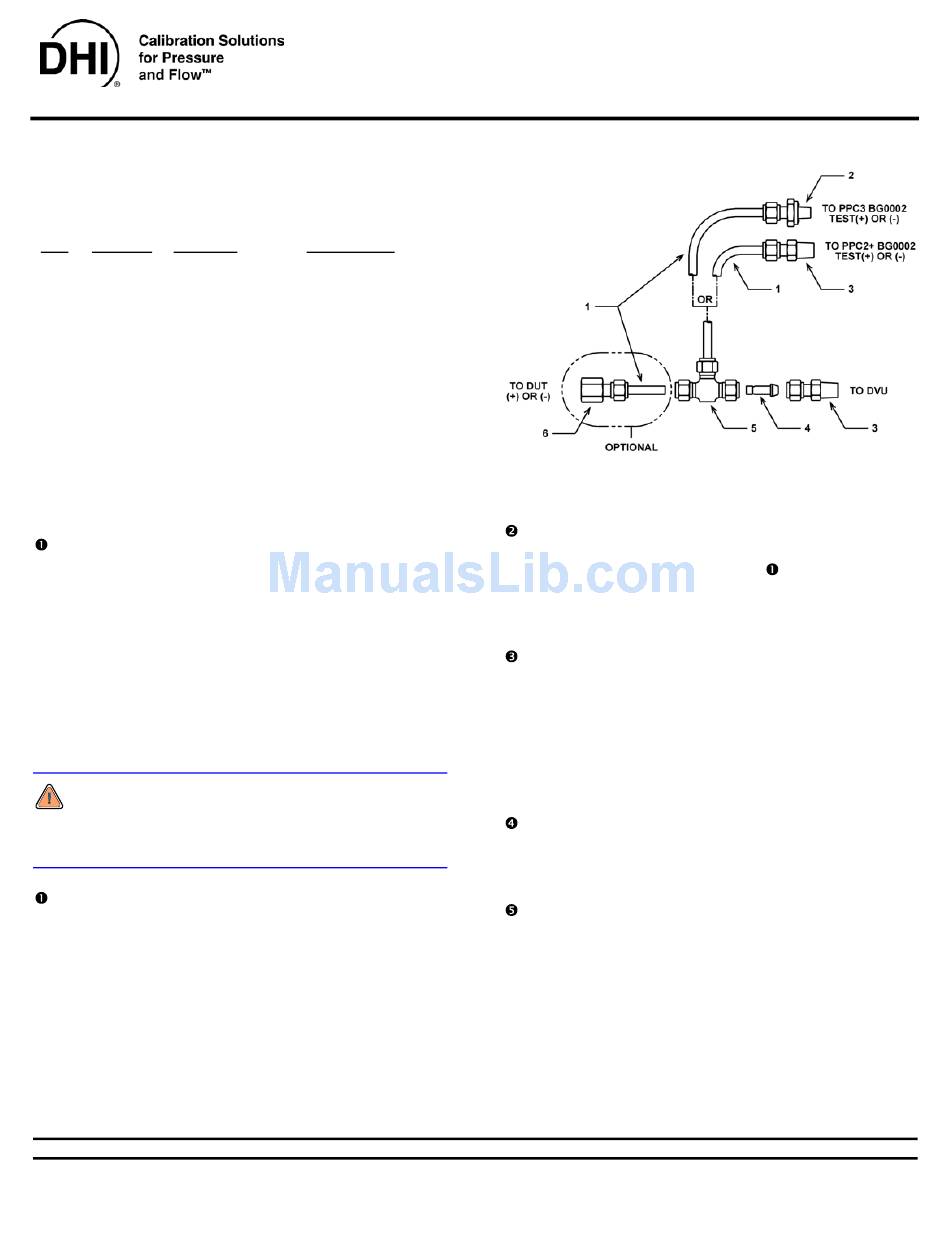

Figure 1 Interconnections Kit
Install a 1/4 in. tube tee (5) onto each of the
union/adaptor assemblies that were just installed
into the DVU ports in Step
considering the connection to the PPC BG0002
(schematic above is for PPC stacked on top of
the DVU).
Install the appropriate adaptors onto the PPC BG0002
TEST(+) and TEST(-) ports:
For PPC3™ Install the 1/4 in. tube x O-seal
1/8 in. NPT M (2).
For PPC2+™ Install the 1/4 in. tube x 1/4 in.
NPT M adaptor (3) using Teflon
tape as a sealer.
Cut lengths of PFA tubing as needed to connect
the 1/4 in. tube tee to the adaptors on the PPC
TEST ports. Take care that the cut is at a right
angle to the tube and only cut the length needed.
Optional for a connection "For DUT" of 1/4 in. NPT M
rather than 1/4 in. tube:
• Cut a small length of PFA tubing to use as
a union between the 1/4 in. tube tee (5) and
the 1/4 in. tube x 1/4 in. NPT F adaptor (6)
(see schematic above).
. Orient the tee
030211
