DH Instruments PK-7000-MPC1-D Installation Instructions

Calibration Solutions
for Pressure
and Flow™

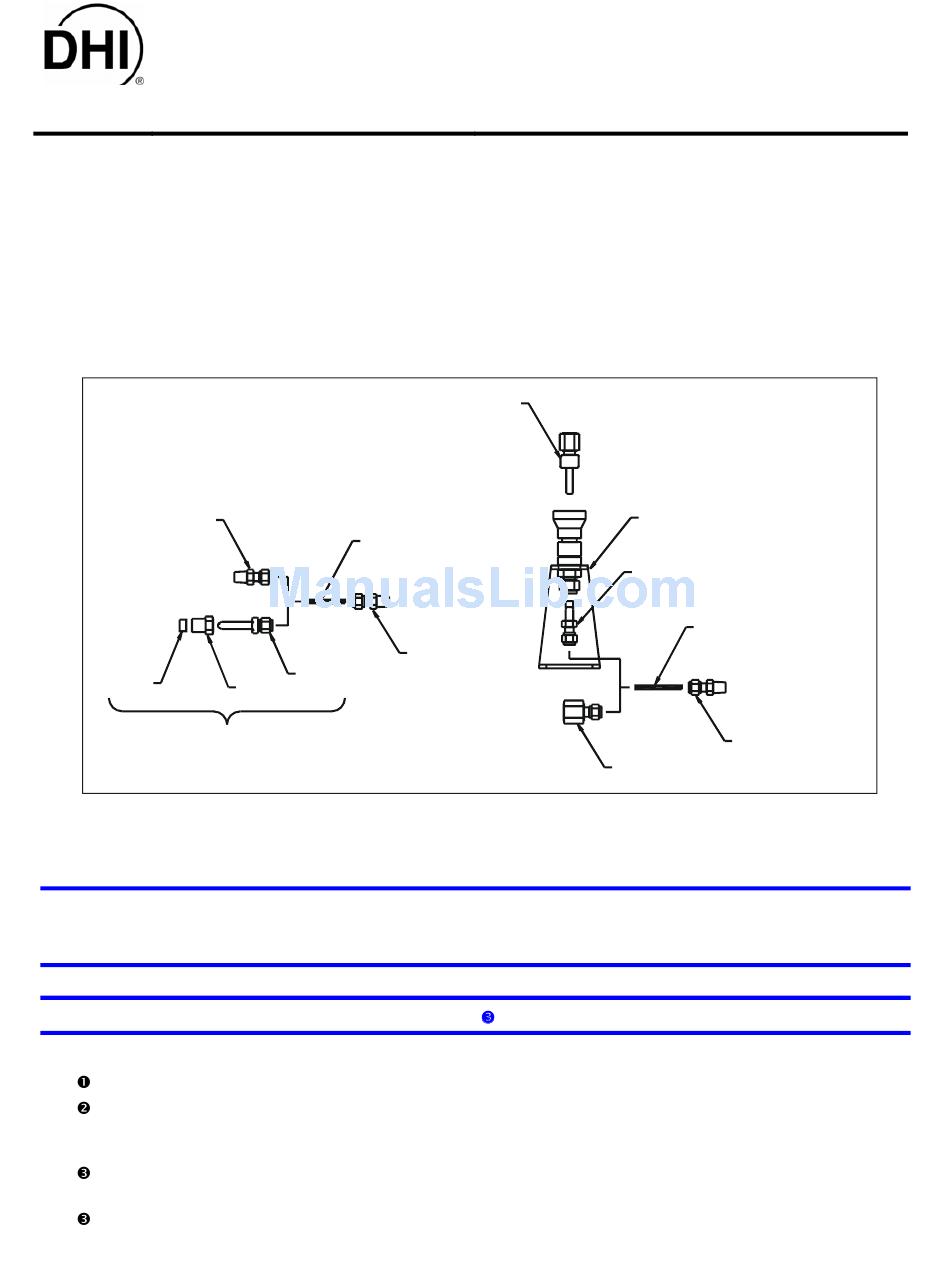

INTERCONNECTIONS KIT, P/N 401645, INCLUDES

•
100319 Adaptor, 1/8 in. tube x 1/8 in. NPT M
6
•
100317 Adaptor, 1/8 in. tube x 1/4 in. NPT F
2
•
401459 Quick Connect and Stand Assy
2

PARTS ON TEST PORT OR IN ACCESSORIES OF PG7000

•
101200 Collar
1
•
100272 Gland
1
100319
TO RPM3
TO P 7000 G
101200
INCLUDED WITH P 7000
TO PNEUMATICALLY CONNECT THE PG7000
•
MPC1-D is intended for controlling pressures in a high line differential pressure system where there is a "high" side and
a "low". The instructions below should be repeated, once for the high side and once for the low side. See the MPC1-D
Operation and Maintenance manual for a schematic of a typical system layout.
•
If you are using RPMs (not PG7000s) go directly to Step

Remove gland, collar and plastic plug from the PG7000 TEST port.

Install gland and collar onto 1/8 in. tube x DH200 male adaptor supplied in PG7000 accessories.
Note that the collar threads left handed. Assure it is properly attached. The orange plastic plug is
not used.
a PG7000 - Screw the adaptor (as assembled) into the PG7000 TEST port. Torque to 15 Nm (Newton
meter).
b RPM3 - Screw 1/8 in. tube x 1/8 in. NPT male adaptor into the RPM3 TEST port using Teflon tape as
a seal.
101988-Z
TO MPC1-D
REF HI or REF LO
100319
400518
100272
G
PK-7000-MPC1-D
Interconnections Kit
Installation Instructions
•
102184 Reducer, 4P x 2P
2
•
101988-Z Tubing, SS, .125 in. OD x 300 cm
1
•
102116 Quick Connect, 1/8 in. NPT F
2
•
400518 Adaptor , 1/8 in. tube x DH 200 M
1
102116
401459
102184
100317
OR RPM TO THE MPC1-D
S S
b.
101988-Z
TO MPC1-D
TEST HI or TEST LO
100319
