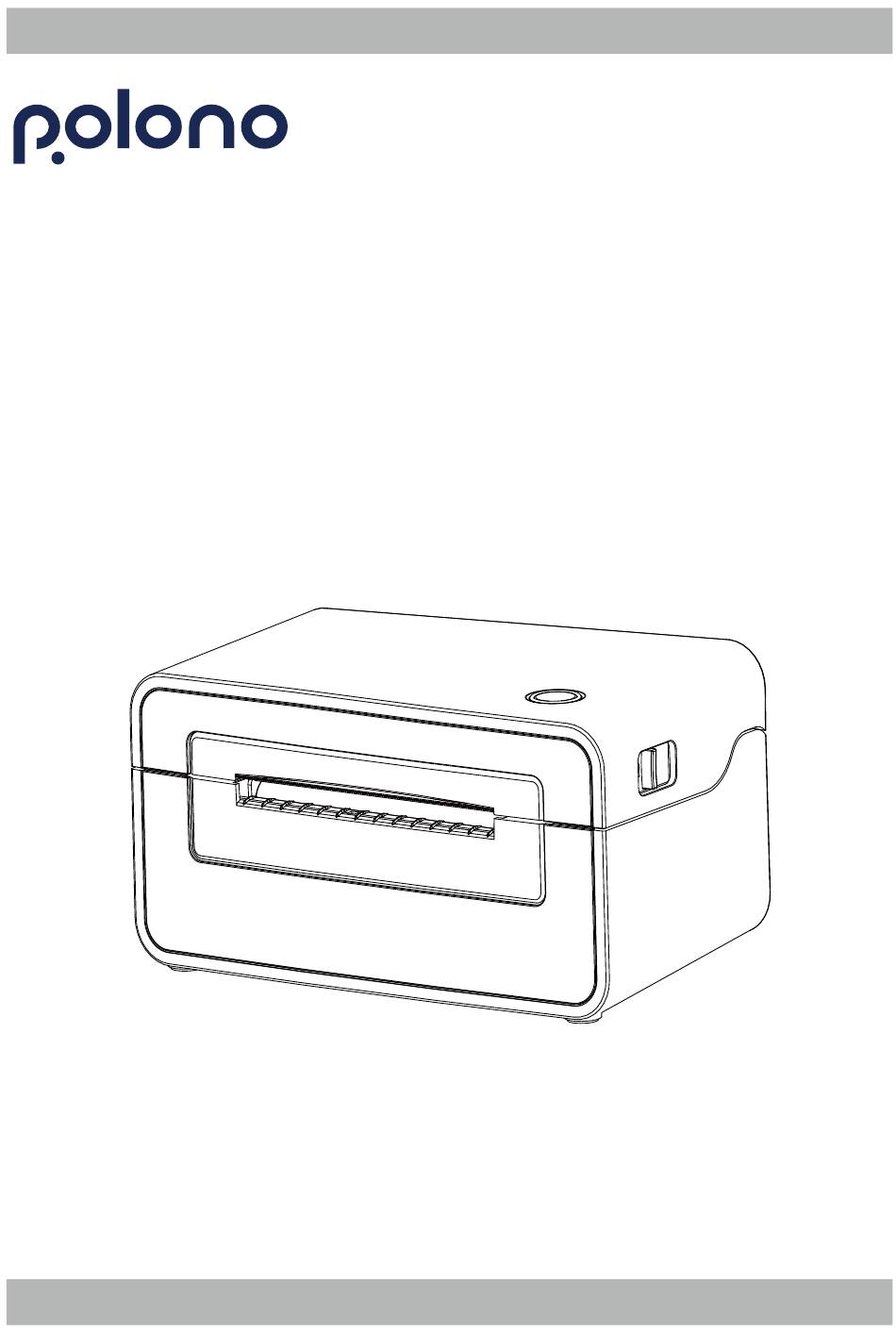

- Page 1 User guide Logistics label printer PL60 Visit polono.com for more information...
- Page 2 Warning The print head can be very hot after printing. Do not touch the print head. Do not allow the print head to be scratched or damaged in any way. Do not use unprovided accessories. Do not attempt any repairs on your own. Contact sales for assistance. Keep away direct sunlight, water, dust, and other debris.
- Page 3 Inside view Print Head Module Kick-stand Cover Lock Adjustable Paper Guides Movable Paper Sensor Paper Platen (for dragging paper to continue printing) Note: The above diagrams are to be used for reference only; parts and components may vary depending on your model.
- Page 4 1、Before installation, plug and power on the printer. Connect it to your computer or laptop. 2、Browse the U-disk for the windows driver file and click on it to install. You can also visit http://www.polono.com/contents/114/115.html to download the windows driver file.
- Page 5 Set up 1.Go to “settings”-“device”-“Printers & scanners”-“PL60”-“manage”-“Printing preferences” to set up page size or other settings.
- Page 6 Mac setup Driver installation Browse the U-disk for the windows driver file and click on it to install. You can also visit http://www.polono.com/contents/114/115.html to download the MAC driver file. Page setup...
- Page 7 Loading the Roll Loading Folding Paper 1、Power on the printer and adjust the paper 2、Insert the paper into the external paper guides to fit the width of paper. roll inlet. Loading External Paper Roll 3、The paper will automatically feed into the printer.
- Page 8 Clearing Paper Jams 1、Press the cover open levers and hold 2、Open the printer cover. upwards. 3、Take out the jammed paper, then clean 4、Reload new paper. up the print head and platen. Note: Power off the printer when clearing a paper jam.
- Page 9 1.Connect the power cord to the power receptacle on the printer. 2.Connect the other end of power cord to the socket. Note: Please refer to the PL60 User Manual for the tool and driver installation. Cleaning and Maintenance 1.Power off the printer and unplug the power cord from both ends. Open the printer’s top cover.
- Page 10 Specifications Printing method: Direct thermal Resolution: 203dpi(8dots/mm) 150mm/s (approximately 6 /s) Max printing speed: Printing width: 2-4.65 in./50-118 mm Media thickness: 0.003– 0.0087 in./80-220 μm Power: 30V/1.5A Operating environment: 41-104℉(5-40℃), 30%-85%,non-condensing Storage environment -4℉-122℉(-20-50℃), 10%-90%,non-condensing Dimension 220(L) x 120.49(W) x 108(H)mm Weight 3.3lbs/1.5Kg Driver support...
- Page 11 Windows:Devices - Printers & Scanners - PLONO PL60 - Manage - Printing preferences. Additional settings can be found in the Advanced tab. Mac:Launchpad - System Preferences - Printers & scanners - PL60 - Options & Supplies Warranty Polono offers an extensive warranty for all products that extends through 1YEAR delivery date.This warranty covers quality related issues and product defects.
