S e r v i c e L i t e r a t u r e

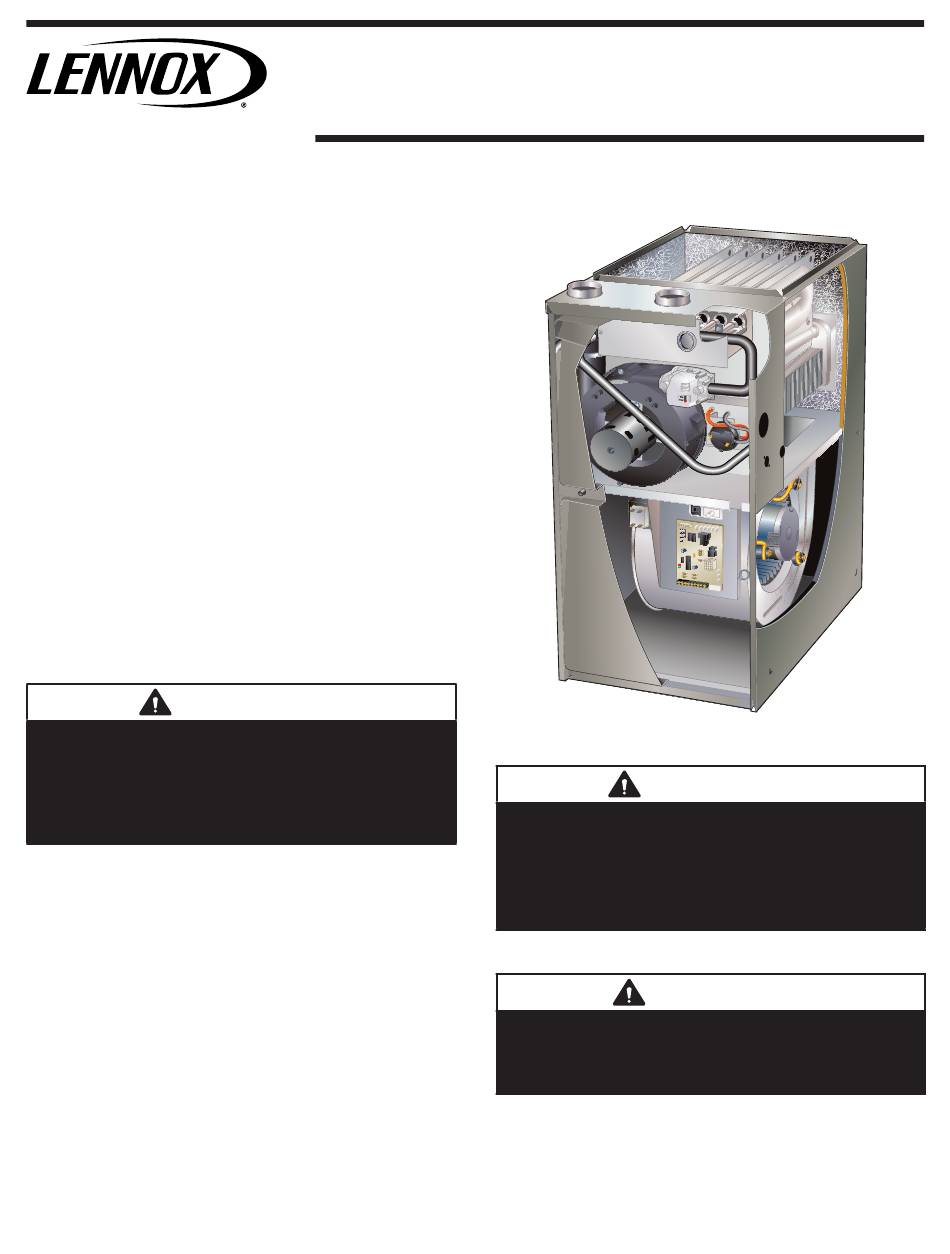

ML193UHEK series units are high-efficiency gas furnac-
es manufactured with Lennox DuralokPlus
steel clamshell-type heat exchangers, with a stainless
steel condensing coil. ML193UHEK units are available in
heating input capacities of 30,000 to 110,000 Btuh (8.8 to
32.2 kW) and cooling applications from 2 through 5 tons
(7.0 through 17.6 kW). Refer to Engineering Handbook for
proper sizing.
Units are factory equipped for use with natural gas. A kit
is available for conversion to LPG operation. All ML193U-
HEK units are equipped with a hot surface ignition system.
The gas valve is redundant to assure safety shut-off as
required by C.S.A.
The heat exchanger, burners and manifold assembly can
be removed for inspection and service. The maintenance
section gives a detailed description on how this is done.
The ML193UHEK can be "twinned" with a second unit.
Two units can operperate as one, in a shared duct system
controlled by a single thermostat. All specifications are
subject to change. Procedures outlined in this manual are
presented as a recommendation only and do not super-
sede or replace local or state codes.
WARNING
This furnace is equipped with an ignition control
factory enabled for use with A2L refrigerant systems.
Disabling the refrigerant detection functionality on
A2L system is prohibited by safety codes. Refer
to furnace installation instructions for refrigerant
system setup.
Table of Contents
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Optional Accessories
. . . . . . . . . . . . . . . . . . . . . . . . . . 3
Blower Performance Data
Twinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
I-Unit Components
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
II Placement and Installation . . . . . . . . . . . . . . . . . . . . 26
III-Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
IV-Heating System Service Checks
V-Typical Operating Conditions
VI-Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
VII-Low GWP Application . . . . . . . . . . . . . . . . . . . . . . . . . . 54
VIII-Sequence of Operation and Flow Charts . . . . . . . .. .57
IX-Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
UNIT INFORMATION
UNIT INFORMATION
ML193UHEK With R-454B SERIES UNITS
aluminized
™
. . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . 46
. . . . . . . . . . . . . . . . . 50
100163
Improper installation, adjustment, alteration, service
or maintenance can cause property damage,
personal injury or loss of life. Installation and service
must be performed by a licensed professional HVAC
instale (or equivalent), service agency or the gas
supplier.
As with any mechanical equipment, contact with
sharp sheet metal edges can result in personal
injury. Take care while handling this equipment and
wear gloves and protective clothing.
Page 1
ML193UHEK
WARNING
CAUTION
.
