COBRA II (F-12G-A-D-T/R-TX/RX)

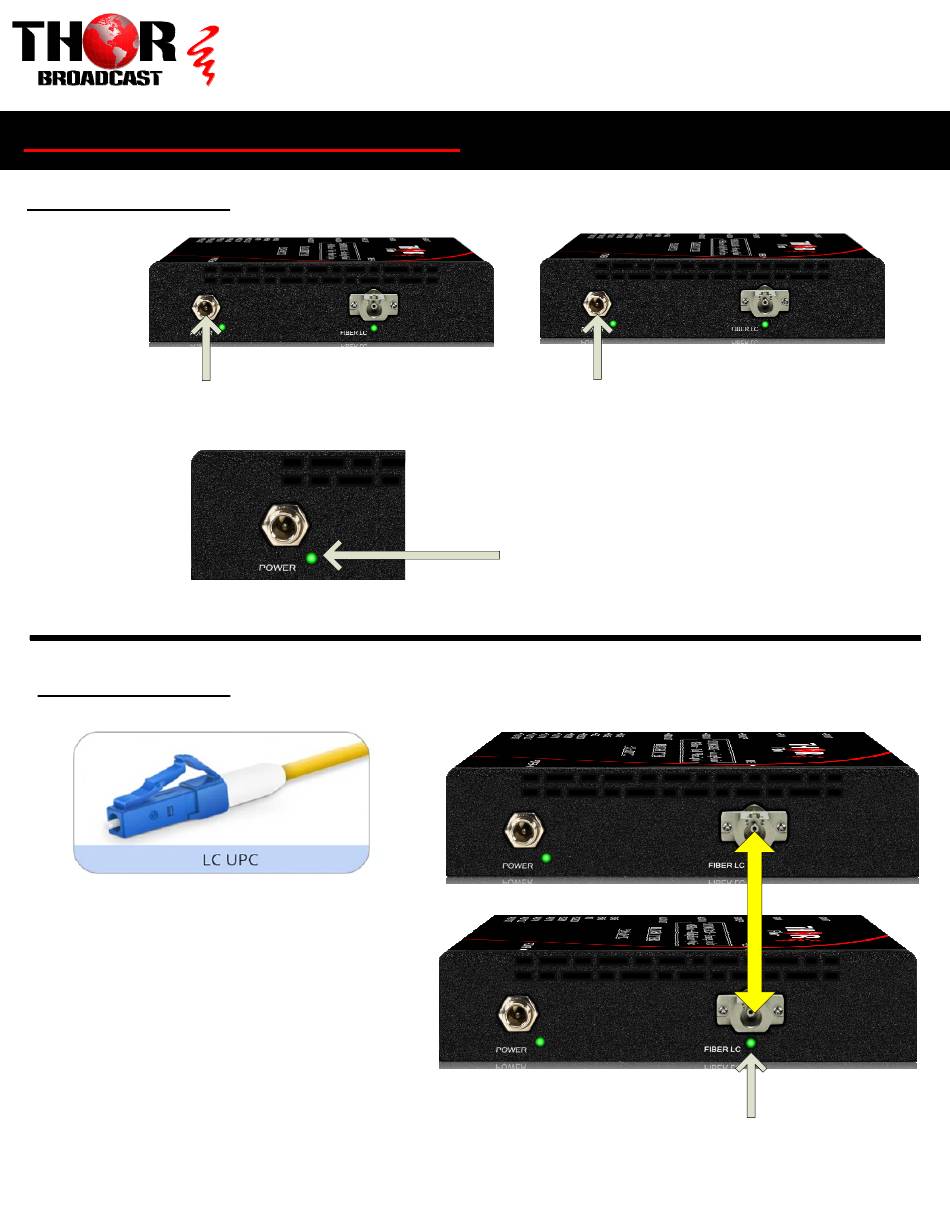

Step 1: Connect Power
1). Connect the included DC12V Power Supplies to the TRANSMITTER (TX) and the RECEIVER (RX)
Step 2: Connect Fiber
1). Connect the FIBER ports of
the TX and RX using single
mode fiber with LC connectors.
(up to 10km distance)
2). When the fiber is properly
connected, the Fiber Indicator
LEDs on both units will light
GREEN.
https://thorbroadcast.com
800-521-8467
Quick Setup Guide
2). Power indicator LEDs on
both the TX and RX will light
GREEN when the units are
receiving power.
Fiber Indicator LED
