Netbell-KB Installation and Wiring
Instructions
Package Contents Checklist
☐ Netbell-KB Server (01-910-00022) (1)
☐ RJ45 Cable (01-390-00028) (1)
☐ Power Cable (01-850-00029) (1)
☐ 24VAC Power Supply (01-850-00024) (1)
☐ Wago Connector (01-350-00129) (1)
☐ 1 Set of Mounting Brackets (1)
☐ Buzzer Volume Adjustment Kit (1)
☐ Netbell Setting Instructions
☐ This Installation Guide
Installation Steps
Step 1: Mounting the Netbell-KB
1. Choose a dry, indoor location for installation
2. Using the provided mounting brackets:
– Attach mounting brackets to the SERVER using
provided self-tapping screws (4 places)
– Install the SERVER at desired location using
appropriate screws for your wall type
– Ensure adequate ventilation around the unit
Step 2: Digital Input Connections (Optional)
The Netbell-KB features one digital input (DIN 1) that
can detect external on/off states of sensors. The most
common use of the digital inputs for the Netbell is to
connect a push button switch to activate the bell
manually for emergency.
- Connect the push button to the digital input
connector (DIN 1)
- Open the device enclosure carefully.
- Position the device so the connector side faces you.
- Locate the digital input switches (labeled DIN1 and
DIN2) in the lower left corner near the Ethernet
connector.
- Make sure the digital input switches are at the UP
position to enable PU (Pull-Up) mode.
- Configure the software

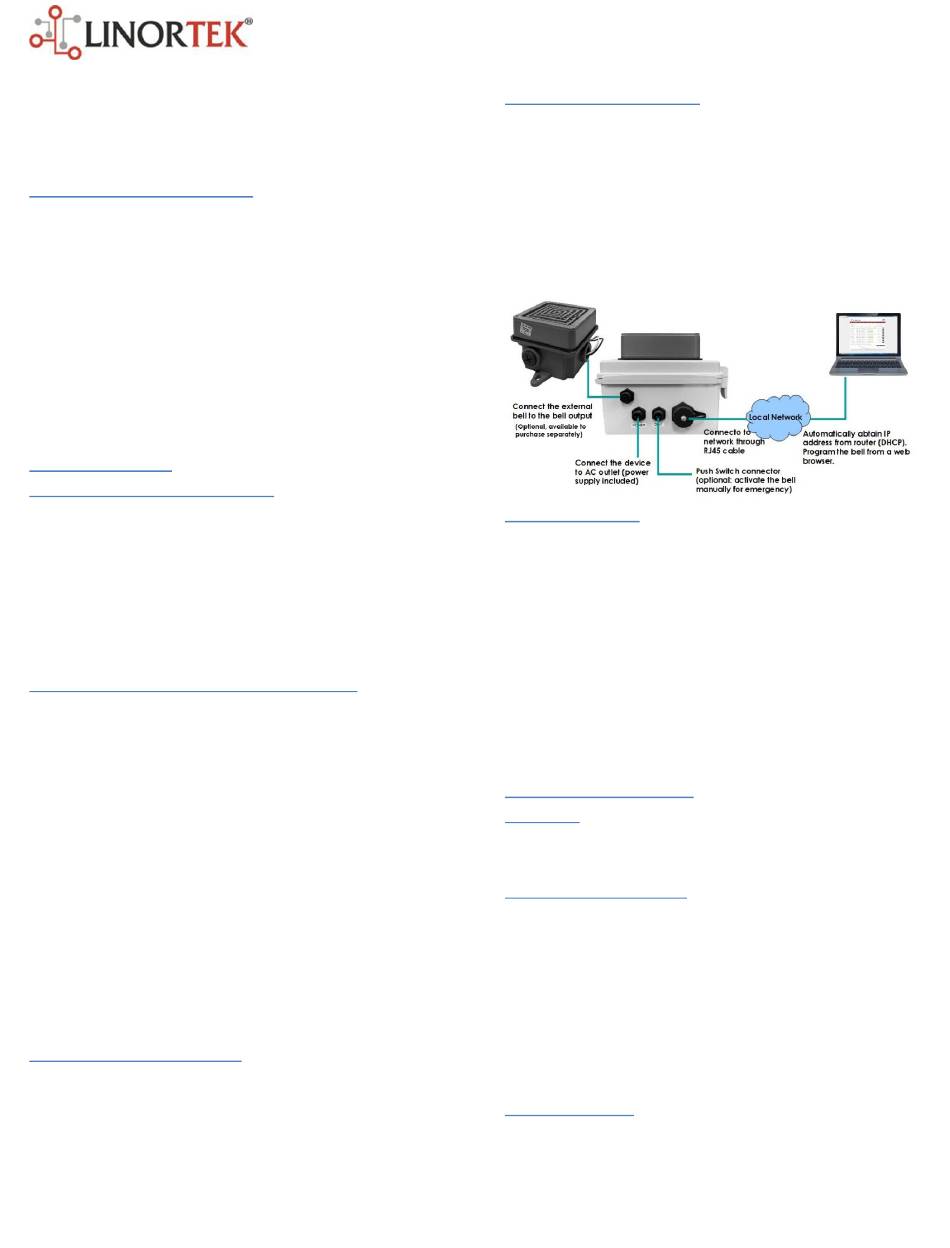

Step 3: Network Connection
1. Plug RJ45 cable into NET connector
2. Connect to router or network switch
IMPORTANT NOTE:
- Netbell-KB board requires 1000Mbps (Gigabit)
port/switch
- Will not work on 10/100Mbps port/switch
- Verify switch compatibility with IT department
Step 4: Power Connection
1. Connect power cable to the 24VAC power supply
terminals
2. Plug power supply into suitable AC outlet
3. Connect power cable CP connector to Server's
POWER port
WARNING: Use only provided power adapter from
Linortek
Safety Warnings
1. Indoor use only - NOT FOR OUTDOOR USE
2. Avoid high humidity environments
3. Keep away from water and liquids
4. No explosive environments
5. Do not use during thunderstorms
6. Never remove power during firmware updates
(when RED LED blinks and GREEN LED is on)
7. Use only Linortek-provided power adapter
8. Avoid cable damage from mechanical pressure
9. Route cables to prevent tripping hazards
Troubleshooting Guide
No Power
- Check power connections
- Test with alternate power method
No Network Connection
- Verify cable connections
- Check network switch status
- Make sure the network port/switch is 1000Mbps
(Gigabit)
- Confirm LED indicators
- Green LED light is flashing, orange LED is solid (To
check the LED indicators, you need to open the
enclosure)
Bell Not Working
- Verify wiring connections, check contact
connection. If you use the Wago connector we
provide:
o Lift the lever completely to fully open position
