Linortek Netbell-2-2Bel Installation And Wiring Instructions

Netbell-2-2Bel Installation and Wiring
Instructions
Package Contents Checklist
☐ Netbell-2 Server (01-910-00014)
☐ Bell Kit (01-910-00044)
☐ Netbell Setting Instructions
☐ This Installation Guide
Installation Steps
Step 1: Mounting the Netbell-2 Controller
1. Choose a dry, indoor location for installation
2. For DIN rail mounting:
– Attach DIN rail clip (sold separately) to the back of
the unit
– Snap onto 35mm DIN rail
– Ensure unit is firmly secured
3. For wall mounting:
– Use appropriate mounting hardware for your wall
type
– Ensure adequate ventilation around the unit
Step 2: Bell Wiring Instructions
Relay Output Specifications:
- Two relay outputs (OUTPUT 1 and OUTPUT 2)
- Dry Contact type (1-Form-A relay)
- Maximum rating: 48VAC @ 8A per relay
- Normally Open (NO) contacts, convertible to NC if
needed
Bell Wiring
1. Buzzer Mounting and Cable Requirements:
- Mount the pre-wired bell kit at the location you
would like to have your bell
- You can extend the power cable of the bell if
needed
- Bell can be installed at 500 feet away from the
controller using 16AWG cable

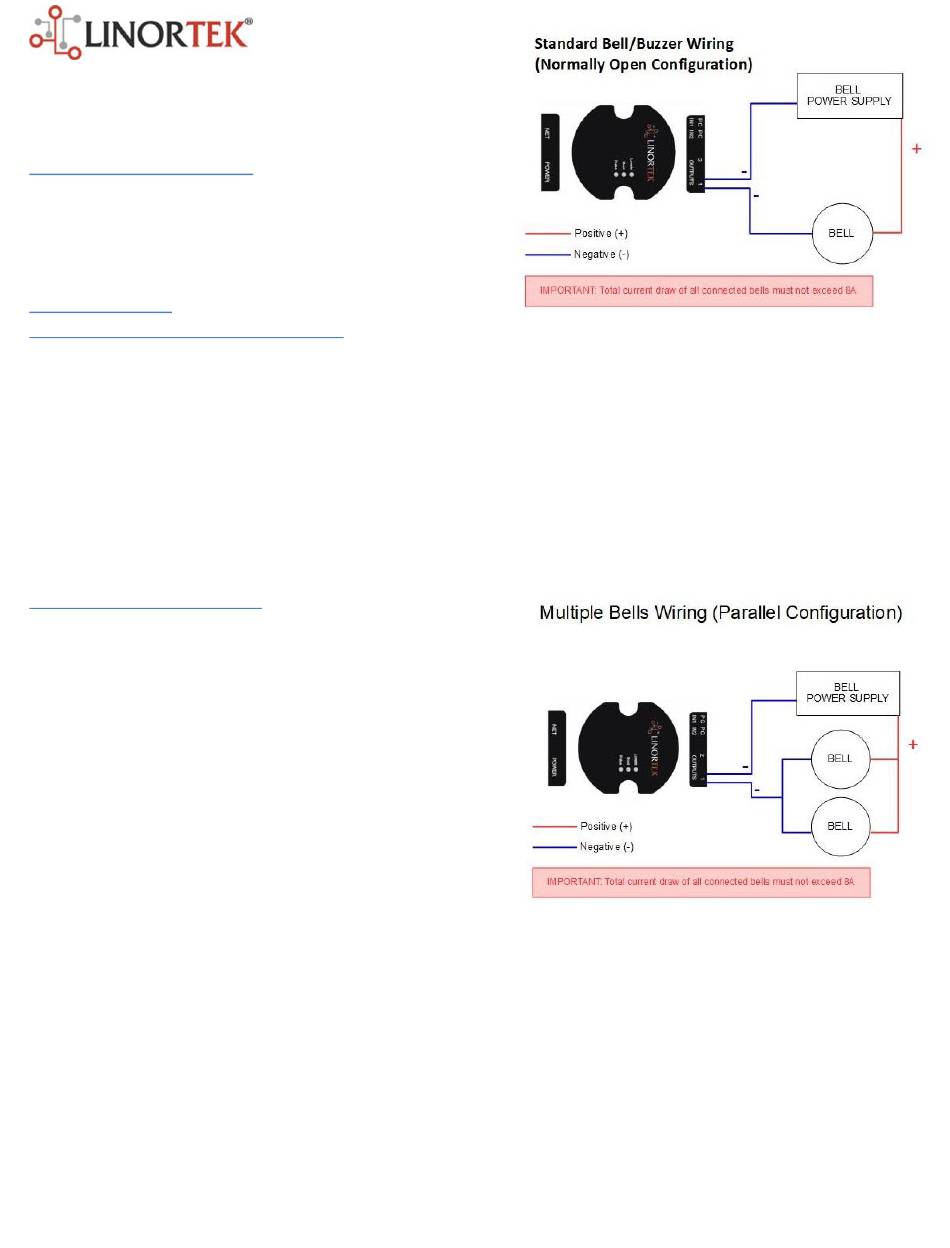

2. Basic Wiring Diagram:
– Connect one wire from power supply to one of the
bell wires
– Connect the other power supply wire to one o the
terminals of Netbell-2's relay (OUTPUT 1 or 2)
– Connect the remaining bell wire to the other
terminal of the same relay output
– Plug the bell power supply into an AC outlet
– Repeat wiring process for all two bells
(1)
(2)
3. Multiple Bell Configuration:
– Each relay can control devices up to 8A total current
– You can connect multiple bells to one output if
needed
– Total current draw of all connected bells must not
exceed 8A
– Ensure power supply rating matches total bell
current requirements
– Verify total current draw is within specifications
before operation
IMPORTANT NOTES:
- This device is NOT designed to directly switch line
voltage (120V/240V)
- For line voltage devices, an intermediary relay
MUST be installed
- Verify all connections before applying power
- You can install the bell at up to 500 ft away from
the controller using 16 AWG 2-conductor wire
- Use appropriate wire gauge for current rating.
