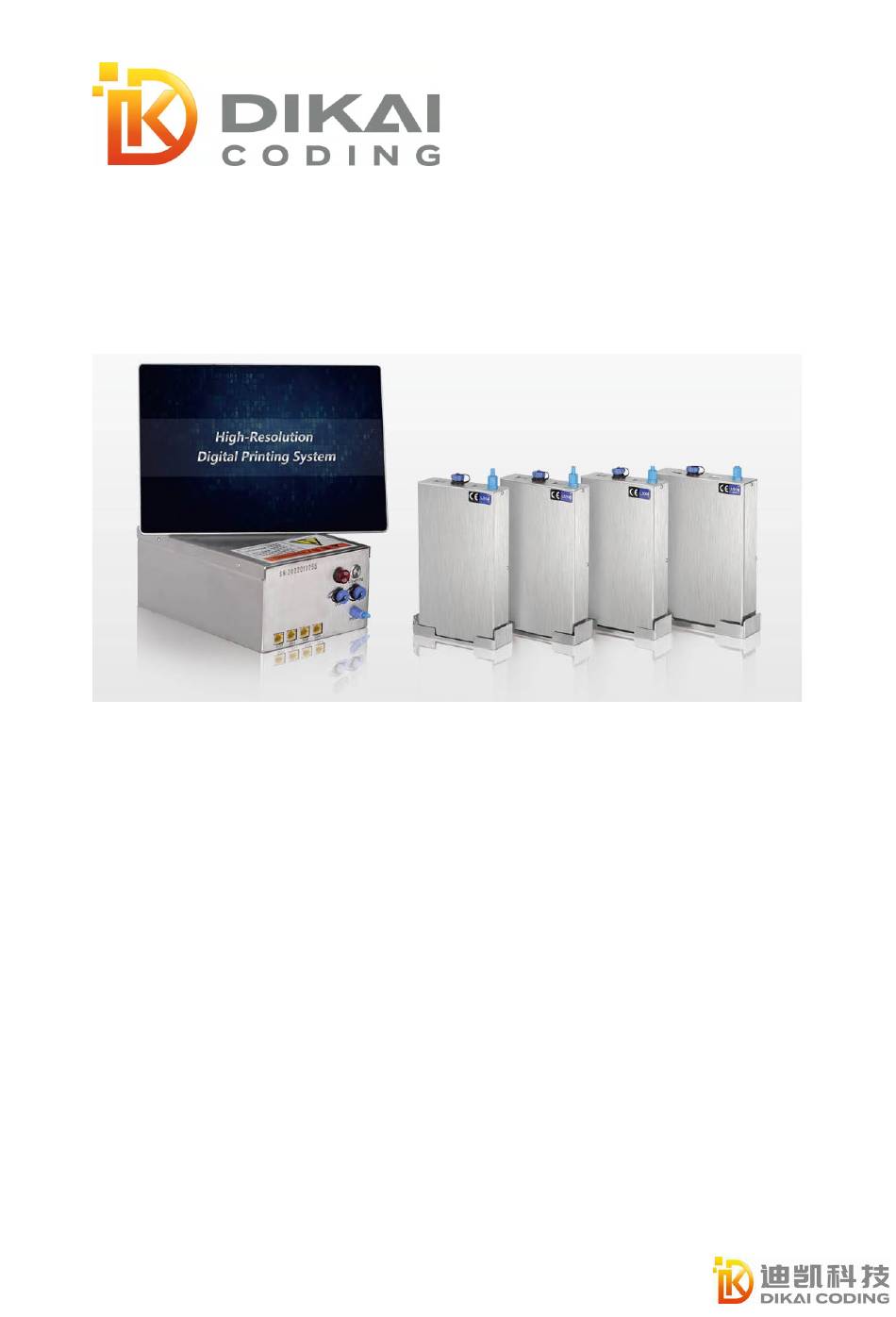

DC500L Series Piezo Inkjet Printer

User Manual V1.0

Shanghai Dikai Coding Technology Co., LTD

Add: Building No.1, SCI-TECH ONE, No. 489, Wenchuan

Road, Baoshan District, Shanghai, 201906, PRC.

DK 3.08 T240802A-01-CNSJ

Need help?

Do you have a question about the Coding DC500L Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Dikai Coding DC500L Series

Page 1 DC500L Series Piezo Inkjet Printer User Manual V1.0 Shanghai Dikai Coding Technology Co., LTD Add: Building No.1, SCI-TECH ONE, No. 489, Wenchuan Road, Baoshan District, Shanghai, 201906, PRC. DK 3.08 T240802A-01-CNSJ...
Page 3 User Manual DC500L Series DIKAI Summary General ........................... 5 Intro.......................... 5 Inspection ......................... 5 Warning........................5 Caution ........................6 Description ........................8 Parameter ........................ 8 Hardware composition ....................9 Module size ......................10 Installation ........................13 Installation procedure ..................... 13 Bracket mounting ....................
Page 4 User Manual DC500L Series DIKAI...
Page 5 General User Manual DC500L Series DIKAI General Intro The DC500L series is a small printhead module designed to meet the requirements of strict single-station environments, with limited installation space, and can print vertically, horizontally, and flat. The DC series is equipped with DIKAl intelligent siphon ink supply system, which can realize 360-degree printing in any direction.
Page 6 General User Manual DC500L Series DIKAI 2. The nozzle can not be scraped by hard objects, especially sharp things, otherwise it will cause damage to the nozzle, thus affecting the printing effect. 3. The nozzle is a damageable part, and the surface of the nozzle is not allowed to contact any liquid except our certified ink and cleaning agent.
Page 7 General User Manual DC500L Series DIKAI treatment on the spot to prevent human eyes or skin from contact with light for a long time. 3. The UV curing light source supported by the equipment is the LED cold light source, but if it stays under the light...
Page 8 Description User Manual DC500L Series DIKAI Description Parameter DC500L series Printer type Nozzle type Industrial high definition piezoelectric nozzle Unlimited number of lines, nozzle printing Print lines height range, any arrangement Print font Any fonts supported by Windows Fixed and variable text, images, various...
Page 9 Description User Manual DC500L Series DIKAI Hardware composition...
Page 10 Description User Manual DC500L Series DIKAI Module size 513L/523L/525L Nozzle module Bracket Ink circuit module...
Page 11 Description User Manual DC500L Series DIKAI Holes for securing the 545L Nozzle module backplane 517L Nozzle module 517LPlus Nozzle module...
Page 12 Description User Manual DC500L Series DIKAI 1. PH1-PH4: nozzle 1 to nozzle 4 cable interface 2. PC LAN: gigabit network port connected to a PC or touch screen 3. RESERVE: reserve ports 4. SENSOR: indicates a sensor port 5. ENCODER: indicates the encoder interface 6.
Page 13 Installation User Manual DC500L Series DIKAI Installation Installation procedure 1. Independent floor bracket installation. 2. Check whether the following components are properly installed: 2.1 Installation and fixing of operating screen, ink bottle, ink path module and bracket. 2.2 The nozzle and nozzle bracket.
Page 14 Installation User Manual DC500L Series DIKAI 5 Power on: After filling up the ink, turn on the device. The voltage is automatically shift from 100-240V, and the power supply must be securely grounded. 6. Ink apply: Turn on the power switch of the filter on the side of the chassis;...
Page 15 Installation User Manual DC500L Series DIKAI Bracket mounting Side-injection installation...
Page 16 Installation User Manual DC500L Series DIKAI 1. There are three types of standard 29PIN cables: 0.6m, 1m, 1.5m; for more types please contact sales. 2. Please tighten the quick screw joint of input ink mouth, the middle ink tube connect the pre-head filter, and pay attention to the inking direction of the filter.
Page 17 Installation User Manual DC500L Series DIKAI Down-injection installation 1. There are three types of standard 29PIN cables: 0.6m, 1m, 1.5m; for more types please contact sales. 2. Please tighten the quick screw joint of input ink mouth, the middle ink tube connect the pre-head filter, and pay attention to the inking direction of the filter.
Page 18 Installation User Manual DC500L Series DIKAI Startup software and get the device ready 1. Startup the software: double click or right-click to open the Easyprint software on the touch screen to run the coding software. If the software cannot run, please Check whether the blue and white USB software encryption lock is correctly inserted into the USB port on the touch screen, and the encryption lock light is on.
Page 19 Operation User Manual DC500L Series DIKAI Operation Function button introduction Top toolbar: 1. New Label: Make a new template or file. 2. Open: Open a saved template or file. 3. Save: Save the edited template or file. 4. Save as: The current editing content is saved with another template name.
Page 20 Operation User Manual DC500L Series DIKAI Quick search of print files 1. Choose the "Open" button to open all local templates. 2. Quick search and preview the print content of templates through right-side search bar shown as the left image.
Page 21 Operation User Manual DC500L Series DIKAI 1. Choose the "Open" button-The system menu is shown on the above. 2. Language switch: change various operation languages. 3. Nozzle width: set according to different models device. 4. Color threshold: the color threshold of the imported image.
Page 22 Operation User Manual DC500L Series DIKAI Zoom in. Zoom out. Up, Down, Left, Right. 11. Text increase: Zoom in, zoom out, and move the step size of text. 12. Graphical increase: Zoom in, zoom out, and move the step size of graphic.
Page 23 Operation User Manual DC500L Series DIKAI 1. Base: 1.1 X/Y: the coordinate position of the content. 1.2 Width/height: refers to the size of the content. 1.3 Angle: the content rotation angle. 1.4 Back color/Front color: the color of text background and content.
Page 24 Operation User Manual DC500L Series DIKAI 2.7 Alignment: align in left and right, center and align the two ends; When selected multi-line or multi-line fill, you can check align top, align middle, and align bottom. 2.8 Line Spacing: when selected multi-line or multi-line fill, adjust the space between lines.
Page 25 Operation User Manual DC500L Series DIKAI 1.5 Back color: the color of selected content. 1.6 Unmovable, Unresizable, Full-scale, Fill-scale: All for imported graphics. 1.7 Mirror: the property that changes all the content. 2. Text: 2.1 Distance: adjust the distance of numbers or letters and bar code.
Page 26 Operation User Manual DC500L Series DIKAI 3. Barcode: 3.1 Type: select the type of 1-D code. 3.2 Sample: select the sample of the selected bar code type. 3.3 Encoding: select encoding method of the 1-D code. 3.4 X-unit(mm): manual set the X-unit of 1-D code; Chose the “Optional”...
Page 27 Operation User Manual DC500L Series DIKAI 2D-code 1. Barcode: 1.1 Format: three options for Default, UccEan, Industry. 1.2 Version: provide Default and other versions for options. 1.3 Correction: choose the correction grade of 2-D code, the higher grade, the higher the 2-D code version. Provide four options, from bottom to top is Low、Medium、Quartile、High.
Page 28 Operation User Manual DC500L Series DIKAI (generation) , just like we are building a RAID disk array, if there is a disk damage will not affect the data stored in the hard disk. 1.4 Compress: the method for compressing 2-D code. Provide four options of Default, None, Kanji, Chinese, corresponding to default, none, Kanji, Chinese.
Page 29 Operation User Manual DC500L Series DIKAI 1. Input: 1.1 Input content directly in the data object edit box. 1.2 Confirm and exit after input. 1.3 When manual input, the Starting, Copies and Steps don’t work. 2. Database: 2.1 Starting: import from the number of records in the database.
Page 30 Operation User Manual DC500L Series DIKAI 3. Import-TXT: 3.1 File path: click the right browse button, to choose the date base file from file catalog. 3.2 List separator: types of symbols used to separate fields in the data base file, comma, TAB, specific length, customed symbols; Example: 123, 456, 789, if chosen the comma as separation, the software will divide the data into three fields.
Page 31 Operation User Manual DC500L Series DIKAI 4. Import-EXCEL: 4.1 File path: click the right browse button, to choose the date base file from file catalog. 4.2 Encoding: choose the method of encoding, if the first row of data base file is the name of column, check this option and the data will be imported from the second line.
Page 32 Operation User Manual DC500L Series DIKAI 5. Import-SOCKET: 5.1 Port: specifies the port number of the local computer used to obtain external communication data. 5.2 Encoding: choose the method of encoding. 5.3 List separator: types of symbols used to separate fields in the data base file, comma, TAB, specific length, customed symbols;...
Page 33 Operation User Manual DC500L Series DIKAI 6. Image: 6.1 Image input: click the + icon in the data source, as shown in the upper left picture, click the "File path" to appear in the lower left picture. Select the path and name of the image to be imported, that is, the image import is completed.
Page 34 Operation User Manual DC500L Series DIKAI 7. Date time: 7.1 Date format: yyyy stands for year (yy display two digits of the year), MM stands for month, dd stands for date, H stands for hour, mm stands for minute, ss stands for second, and Month and minute letters are case sensitive.
Page 35 Operation User Manual DC500L Series DIKAI 8.7 Increment/decrement: whether the sequence is generated in increasing or decreasing mode. 8.8 Cycle: the maximum cycle of sequence generation, such as 10, starts with a string of 1, and sequence generation will be generated from 1 to 10, and then periodically from 1 to 10.
Page 36 Operation User Manual DC500L Series DIKAI 10.5 Trim: select the position of trimming, provide two options: left end, right end, to trim invisible characters in the batch end of the data source. 10.6 Replace: for data in the data source, replace the old string with the new string.
Page 37 Operation User Manual DC500L Series DIKAI All four types of content require data source driven loading: Click ADD , EDIT , DELETE , UP , DOWN to complete the content editing and definition. Select the data object on the left and click "Processing Method" on the right to adjust and process the data object in various ways.
Page 38 Operation User Manual DC500L Series DIKAI Remaining pages: how many pages are left in the current job. Ink consumption: the content of this article, the quantity that can be printed per milliliter of ink. Total ink consumption: total ink consumption in this printer.
Page 39 Operation User Manual DC500L Series DIKAI 1. Mainboard card: Select the parameter Settings of the corresponding printhead mainboard. 2. Network: 2.1 IP: Printhead mainboard IP address, unique IP address of each printhead mainboard, default: 192.168.1.17 (The value of the last field of multiple printhead increases by 1 bit from 17-56).
Page 40 Operation User Manual DC500L Series DIKAI 3.7 Heat temperature: Nozzle auxiliary heating temperature setting, UV ink default between 40-45, oil ink default 20. 3.8 Reference voltage B: Refer to Part 3.5 above. 3.9 Column offset voltage B: Refer to Part 3.6 above.
Page 41 Operation User Manual DC500L Series DIKAI 4.2.10 Column calibration, between the nozzle column calibration value, default 5726, advanced operation contact the manufacturer engineer. 4.2.11 Column spacing, default 0, slightly adjusts the print effect. 4.2.12 Stitching width, multi nozzle seamless stitching closed stitching hole width value.
Page 42 Operation User Manual DC500L Series DIKAI 5.7 FLASH self-check: 0-pass, 1-failure. 5.8 DDR self-check: 0-pass, 1-failure. 5.9 Configuration detection: 0-pass, 1-failure. 5.10 DDR idle: 0-idle, 1-busy. 5.11 DDR empty: 1 indicates that the data in the DDR is run out.
Page 43 Operation User Manual DC500L Series DIKAI DC513L/523L/525L/545L Open the "Device" menu and enter the engineer's advanced mode. Shown on the image：Click "show advanced options" and enter the password “123”, you can modify hidden advanced parameters. After each parameter is modified, click "Apply Param" to save the parameters.
Page 44 Operation User Manual DC500L Series DIKAI 1.5 Bidirectional printing: Support forward and reverse. 1.6 High bidirectional calibration value: Used for bidirectional print position calibration. 2. Encoder: 2.1 Encoder type: External encoder/internal encoder (when there is no encoder in the production line, we need to keep the external speed to be relatively stable).
Page 45 Operation User Manual DC500L Series DIKAI 3. Sensor: 3.1 Electric sensor: Select the electric sensor generated by software simulation or triggered by external hardware. 3.2 Trigger: Rising edge trigger, falling edge trigger. 3.3 Detect times: The actual trigger times of the electric eye in the printing process, that is, the actual number of printed pages.
Page 46 Operation User Manual DC500L Series DIKAI be infinite compensation, there is a certain upper limit, if you want unlimited compensation, it is recommended to directly use the link printing function, set the corresponding printing interval. 5. Spray: 5.1 Spray frequency: Times of flashes per second.
Page 47 Operation User Manual DC500L Series DIKAI 6.2 Test software image processing speed function switch: This function is only used to test the limit speed of software processing a template. The actual printing speed is affected by other external factors. 6.3 Switch to function the log record: If enabled, the mainboard and software will record the number of printing pages and various states during printing in real time.
Page 48 Operation User Manual DC500L Series DIKAI required software. Otherwise, the mainboard of the sprinkler head cannot connect to the software. 7.5 Local PC port: Port number of the local PC used by the software, default: 1021. 7.6 Headboard IP address: Generally select the192.168.1.*field, IP addresses cannot be the same when multiple print heads are configured.
Page 49 Operation User Manual DC500L Series DIKAI 9. Print mode: 9.1 Nozzle enable: Switch for nozzle printing. 9.2 X direction dpi: The actual print resolution depends on the template. This parameter is invalid. 9.3 X Direction Mirror Swathe: Mirror swathe switch.
Page 50 Operation User Manual DC500L Series DIKAI 10. Alignment and spray: 10.1 The distance from the nozzle to sensor: In MM. 10.2 Dynamic adjustment of electric eye distance of sprinkler head: used to dynamically adjust the printing position of paper direction in the printing process.
Page 51 Operation User Manual DC500L Series DIKAI 10.5 Dynamic adjustment of initial image position in Y direction of sprinkler head: dynamic adjustment in Y direction is basically consistent with that in X direction. 10.6 The nozzle is disabled on the left and right side, which is used to deal with overlapping area nozzles when multiple heads are spliced.
Page 52 Ink and electric circuit User Manual DC500L Series DIKAI Ink and electric circuit Common ink circuit diagram Circulating ink circuit diagram...
Page 53 Ink and electric circuit User Manual DC500L Series DIKAI Mainboard chip light paraphrase Number Item code paraphrase Ink pump work Negative pressure pump work Positive pressure pump work Circulating pump work Nozzle solenoid valve work Positive pressure valve work Pressure switching valve work...
Page 54 Ink and electric circuit User Manual DC500L Series DIKAI Mainboard wire diagram...
Page 55 Fault troubleshooting User Manual DC500L Series DIKAI Fault troubleshooting Fault 04 symptom and troubleshooting Cause and symptom: The secondary ink cartridge is in low level state continuously for 30 seconds. 1. The red alarm lamp is continuously on; 2. The buzzer continuously sounds;...
Page 56 Fault troubleshooting User Manual DC500L Series DIKAI ink cartridge, ensure that ink drips out, connect a transparent container under the ink tube, and power on the device again. Check whether ink quickly flows out of the ink tube. 7. If there is a rapid outflow of ink, quickly power off the device, insert the ink...
Page 57 Fault troubleshooting User Manual DC500L Series DIKAI 3. Power on the Mo road again, observe whether the D30 light of the main board of the Mo Road is off, and the 05 fault code is eliminated; 4. If the D30 light is not off, gently tap the side of the second-level cartridge with a tool.
Page 58 Fault troubleshooting User Manual DC500L Series DIKAI 3030 The nozzle The voltage of Software error Check the status of other faults voltage the nozzle is report output was not output, enabled and it will generally occur at the same time with other...
Page 59 Fault troubleshooting User Manual DC500L Series DIKAI insists that the temperature of the nozzle reaches the preset temperature, check whether the heating output of the board stops, measure the voltage and resistance at both ends of the heating sheet of...
Page 60 Fault troubleshooting User Manual DC500L Series DIKAI changed 3. After the temperature decreases, the machine is connected, and if the temperature continues to be abnormal, check the data line of the nozzle head. It may also be that the temperature...
Page 61 Fault troubleshooting User Manual DC500L Series DIKAI printing stop board does not have bottom plate of the nozzle main a password or the board are not fastened properly password expires 2. Contact the supplier or send the nozzle main board back to the printer...
Page 62 Fault troubleshooting User Manual DC500L Series DIKAI trigger each false trigger point will be deposited by the main board within the set electric eye protection distance Black label The set black label Check the print medium for black compensation compensation...
Page 63 Maintenance User Manual DC500L Series DIKAI Maintenance Nozzle cleaning and maintenance Nozzle cleaning Cleaning the nozzle is usually not recommended, only after the nozzle is blocked, and cleaning the nozzle risks damaging the nozzle. 1. Do a good job of protecting the nozzle circuit before cleaning the nozzle head.
Page 64 Maintenance User Manual DC500L Series DIKAI Common problem troubleshooting Hardware unconnected The indicator of the port connecting the nozzle module to the computer is off. 1. After the power is off, reinsert the network cable (Category 7 shielded) or 29PIN cable to ensure that the network cable is properly connected.
Page 65 Maintenance User Manual DC500L Series DIKAI Double imaging in printing Check whether the nozzle plane is parallel to the surface of the printed object. The two surfaces of the nozzle plane must be kept parallel (such as A=B=C=D in the left figure), and the high-resolution nozzle is often spliced by multiple rows of nozzle holes.
Page 66 Maintenance User Manual DC500L Series DIKAI Poor treatment of printing effect The relevant reasons for the poor printing effect are as follows, excluded one by one. 1. The nozzle hole is blocked, mainly due to curing lamp irradiation, long-term exposure to the air of the nozzle, external damage of the nozzle surface, the use of unqualified or expired ink, the nozzle contact with other chemical liquids, the circuit aging or damage.
Page 67 Maintenance User Manual DC500L Series DIKAI No printing process Non-printing caused by incorrect hardware and software Settings. 1. Place a piece of white paper under the nozzle, according to the software "flash spray", observe whether there is ink spray marks on the white paper, if there is, it can be determined that the hardware and software Settings are not correct caused by the printing.
Page 68 Maintenance User Manual DC500L Series DIKAI 3. If no ink is displayed after performing step 2, check whether the inkjet software is connected. If no ink is displayed, perform the "Inkjet software Display Hardware is not connected" command to ensure that the software is connected.
