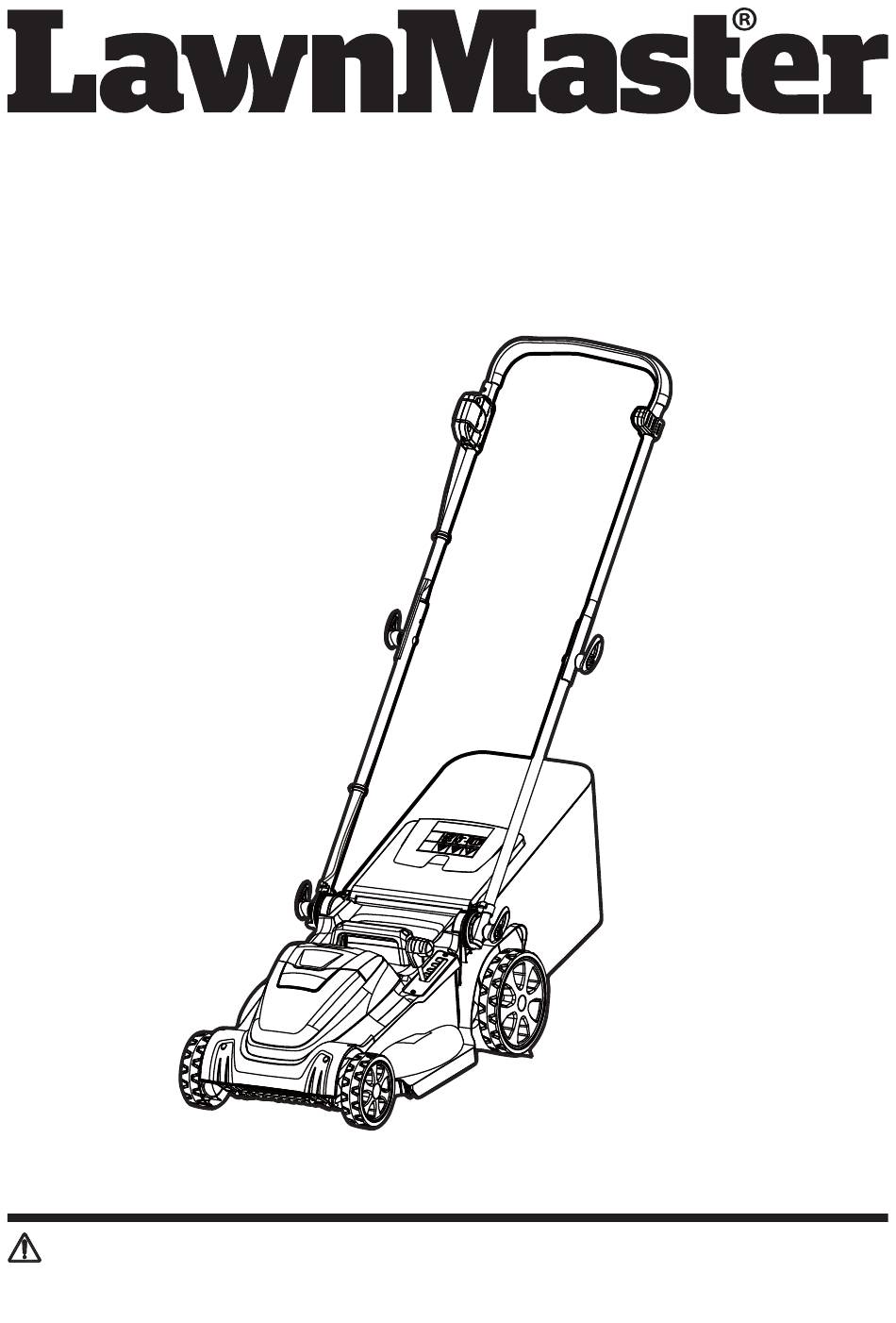

Operator's Manual

17" 48V MAX* Lithium-Ion Cordless Brushless Mower CLMF4817E

Save this manual for future reference

* Maximum initial battery workload voltage (measured without a workload) is 48 volts (2*24 V).

Nominal voltage is 43.2 volts (2*21.6 V).

Battery Model Number is 24LB4005-C

Charger Model Number is 24LFC15-ETL

Read all safety rules and instructions carefully before operating this tool.

Distributed By: Suzhou Cleva Electric Appliance Co., Ltd.

NO.8 Ting Rong Street 215122 Suzhou - China

Need help?

Do you have a question about the 24LB4005-C and is the answer not in the manual?

Questions and answers

Summary of Contents for LawnMaster 24LB4005-C

Page 1 * Maximum initial battery workload voltage (measured without a workload) is 48 volts (2*24 V). Nominal voltage is 43.2 volts (2*21.6 V). Battery Model Number is 24LB4005-C Charger Model Number is 24LFC15-ETL Read all safety rules and instructions carefully before operating this tool.
Page 2 TABLE OF CONTENTS SPECIFICATIONS IMPORTANT SAFETY INSTRUCTIONS SYMBOLS 9-11 KNOW YOUR LAWN MOWER 12-13 ASSEMBLY 14-19 BATTERY PACK AND CHARGER 20-22 OPERATION 23-25 MAINTENANCE 26-30 ENVIRONMENTALLY SAFE BATTERY DISPOSAL TROUBLESHOOTING 32-33 ® LAWNMASTER WARRANTY EXPLODED VIEW PARTS LIST NOTES 37-38...
Page 3 120 V ~ 60 Hz 120 W Charger Output 24 V D.C. 4.0 A 150 minutes (For two 24LB4005-C) Charging Time 80 minutes (For one 24LB4005-C) * Maximum initial battery workload voltage (measured without a workload) is 48 volts (2*24 V).
Page 4 IMPORTANT SAFETY INSTRUCTIONS INTRODUCTION This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate. WARNING This symbol indicates important safety instructions.
Page 5 IMPORTANT SAFETY INSTRUCTIONS is intended. OPERATION mower. equipment, or cause the operator to lose their balance or footing. opening at all times. Regular glasses have only impact resistant lenses. They are NOT safety glasses. Following this rule will reduce the risk of eye injury. Use face mask if operation is dusty. backing.
Page 6 - Step back from the mower in order to fully extend your arms. - Be sure that you are well balanced. - Pull the mower back slowly. BATTERY PACK ® LawnMaster 24LFC15-ETL, 24LFC14-ETL, 24LFC02-ETL or 24LSC01-ETL chargers. pack.
Page 7 This will ensure that the safety of the product is maintained. BATTERY CHARGER ® LawnMaster 24LB4005-C, 24LB1304, 24LB2004, 24LB2605, or 24LB4005 lithium-ion batteries. of batteries may burst, causing personal injury or damage. If damaged, immediately discontinue use. Replace the charger with the identical unit as listed in the Parts List of this manual.
Page 8 IMPORTANT SAFETY INSTRUCTIONS another battery pack. FCC COMPLIANCE conditions: - This device may not cause harmful interference, and - This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Page 9 SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Direct Current Type or a characteristic of current Amperes Current...
Page 10 SYMBOLS SYMBOL NAME DESIGNATION/EXPLANATION Keep hands and feet Danger: Keep hands and feet away. away Cutting Width Cutting diameter Lithium-Ion Battery Designates that this tool is in compliance with Recycling lithium-ion battery recycling program requirements. Do not dispose of battery packs in rivers or immerse Keep Away From Water in water.
Page 11 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not DANGER avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which, if not WARNING avoided, could result in death or serious injury.
Page 12 KNOW YOUR LAWN MOWER...
Page 13 KNOW YOUR LAWN MOWER Components 8.Rear Wheel 15.Cable Clip (X2) 1.Start/Stop Bale Switch 9.Deck 16.Control Cable 2.Foam Grip 10.Safety Key (Inside the Battery 17.Safety Switch Button 3.Upper Handle Pack Compartment) 18.Mulching Plug 4.Locking Knob (X4) 11.Front Wheel 19.Battery Pack (X2) 5.Lower Handle 12.Battery Compartment Cover 20.Battery Charger...
Page 14 ASSEMBLY UNPACKING This product requires assembly. Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. Inspect the product carefully to make sure no breakage or damage occurred during shipping. Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
Page 15 ASSEMBLY WARNING If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to heed this warning could result in serious personal injury. Do not attempt to modify this product or create accessories not recommended for use with this leading to possible serious personal injury, and will void the warranty.
Page 16 ASSEMBLY ASSEMBLING THE UPPER HANDLE 1. Fix the upper handle using the bolts, washers and the locking knobs as shown in Fig. 2, and turn the locking knobs clockwise to tighten (Fig. 2). The handle can be adjusted to 2 different height positions.
Page 17 ASSEMBLY Removing the grass collection bag: 2. Lift the grass collection bag by its handle, and unhook the grass collection bag from the mower. NOTE: Under normal usage, bag material is subject to wear. To reduce the risk of injury, frequently inspect the collection bag and replace if there are any signs of wear or deterioration.
Page 18 ASSEMBLY ATTACHING/REMOVING THE MULCHING PLUG WARNING safety key. Do not attach the grass collection bag and the mulching plug at the same time. NOTE: The mulching plug MUST be removed if grass collection bag is used during mowing operation. The mulching plug prevents grass from being collected by blocking the collection chute.
Page 19 ASSEMBLY INSTALLING/REMOVING THE BATTERY PACKS WARNING If any parts are broken or missing, do not attempt to install the battery packs to the mower or operate the mower until the broken or missing parts are replaced. Failure to do so could result in serious injury. Do not install the batteries and/or the safety key before the product is completely assembled.
Page 20 BATTERY PACK AND CHARGER BATTERY CHARGING ® 1. Use only with 24V LawnMaster the lithium-ion battery used in this tool. 2. Check the power voltage! Battery chargers operate on 120V. 3. The battery is charged between 40°F (4°C) and 100°F (38°C). This ensures an optimum battery service life.
Page 21 BATTERY PACK AND CHARGER The indicator lights on the charger show the charger status: SYMBOL INDICATOR LIGHTS STATUS Red, continuous. Connected to power supply . Green, blinking. Charging. Green, blinking. Battery is overheated. Green, continuous. Fully charged. Red, blinking. Charging problem: See Technical Issue above.
Page 22 BATTERY PACK AND CHARGER CHARGING THE BATTERY PACK Fig. 11 WARNING If any part of the charger is missing or damaged, do not operate it! Replace the charger with a new one. Failure to heed this warning could result in possible serious injury. Check the voltage! The voltage must comply with the information on the rating label.
Page 23 OPERATION WARNING Do not allow familiarity with this type of product to make you careless. Remember that a careless WARNING Always wear safety goggles or safety glasses with side shields when operating this product. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury. WARNING Do not use any attachments or accessories not recommended by the manufacturer of this product.
Page 24 OPERATION GENERAL OPERATION Check the product, its power cord and accessories for damage before each use. Before use, please ensure all power connections are in good working order prior to installing the power key and battery. If damage is present or observed, please stop and have mower serviced before use. Do not use the product if it is damaged or shows wear.
Page 25 OPERATION MOWING ON A SLOPE (Fig. 15) 1. Slopes are a major factor related to slip and fall accidents that can result in severe injury. Mowing on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For your safety, do not attempt to mow slopes greater than 15 degrees.
Page 26 MAINTENANCE WARNING When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING Always wear safety goggles or safety glasses with side shields during power tool operation. If operation is dusty, also wear a dust mask. GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts.
Page 27 REPLACING THE MOWER BLADE NOTE: Remove safety key and batteries before performing any maintenance! ® NOTE: Only use identical replacement blades. LawnMaster mower blade replacement part # 111193114. 1. Stop the motor and allow the blade to come to a complete stop.
Page 28 MAINTENANCE Wooden Block Blade Bolt Fig. 16 Fig. 17 SHARPENING THE BLADE For best mowing performance, the mower blade must be kept sharp. A dull blade does not cut grass evenly and overloads the motor. Under normal circumstances, sharpening the blade twice during the may be required.
Page 29 MAINTENANCE Fig. 18 Fig. 19 STORING THE MOWER 1. Remove mower safety key and batteries. 2. Turn mower on its side and clean grass clippings that have accumulated on the underside of the mower deck. 3. Wipe the mower clean with a dry cloth. 4.
Page 30 MAINTENANCE CLEANING THE MOWER WARNING To reduce the risk of electric shock, do not expose the mower to water. WARNING removing the safety key and battery pack. The underside of mower deck should be cleaned after each use as grass clippings, leaves, dirt and other debris will accumulate causing rust and corrosion.
Page 31 ENVIRONMENTAL SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this battery pack: lithium-ion, a toxic material. WARNING environment. Before disposing of damaged or worn out lithium-ion battery packs, contact your local instructions. WARNING If the battery pack cracks or breaks, with or without leaks, do not recharge it and do not use it.
Page 32 TROUBLESHOOTING Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorized service center Problem Possible Cause Solution...
Page 33 TROUBLESHOOTING High grass and low cutting height. Rear of Mower is hard to push. Raise the cutting height. mower housing and blade dragging in heavy grass. The cutting blade is not Tighten the blade bolts. assembled securely. Sharpen and balance the blade Mower vibrates overly The blade is not balanced.
Page 34 ® LAWNMASTER WARRANTY...
Page 35 EXPLODED VIEW...
Page 36 PARTS LIST Key Number Drawing Number Description Quantity Handle Assembly Motor Housing 211070103 Safety Key Reduction Gear Box Assembly Battery Compartment Assembly PCB Controller Assembly 211070107 Rear Wheel Assembly 111054104 Wheel Axle Ring Cable Clamp Deck 211070109 Front Wheel Assembly Front Wheel Axle Wheel Axle Clamp Ballast...
Page 37 NOTES...
Page 38 NOTES...
