Summary of Contents for Sangean WR-16SE

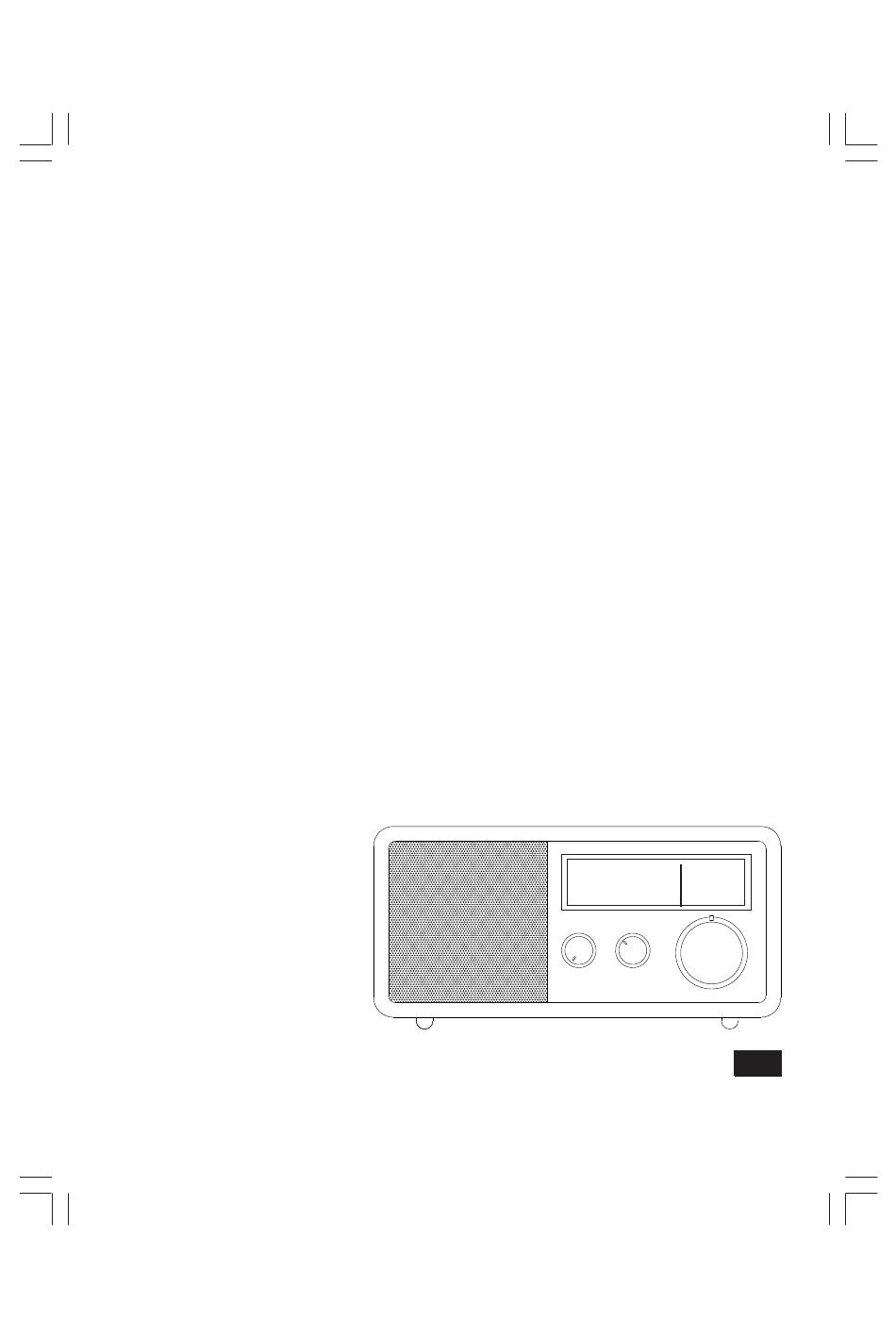

- Page 1 WR-16 Version 1...
- Page 2 ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by SANGEAN ELECTRONICS INC. is under license.
- Page 3 Important safety instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with clean dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instruc- tions.
- Page 4 Important safety instructions The Shock Hazard Marking and Associated Graphical Symbol is provided on the back of unit. Apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids should be placed on the radio. Excessive sound pressure on your ears with or without headphones could impair your hearing ability.
- Page 5 Controls and connections Front view Tuning LED indicator Speaker Tuning Control knob Dial scale Power and Band selecting knob Dial indicator Volume Control knob...
- Page 6 Controls and connections Back view 13 12 11 12V DC input socket External / Internal antenna switch Headphone socket F-type external antenna terminal REC out socket AM external antenna terminal (USA version only) Aux in socket AC power cord socket USB charging socket...
- Page 7 Controls and connections Top view NFC detection area...
- Page 8 Power your radio AC operation Before you plug the AC cord into the radio, be sure the AC voltage is correct. Insert the plug on the end of the supplied power cord into the AC power socket on the back of the radio. DC operation For outdoor use, you can power the radio by using a 12V DC input socket from a DC power supply (not included) (example, from the power supply of vehicles or boats).
- Page 9 Operating your radio AM Connecting the antenna The radio comes with a built-in AM antenna which should be enough for normal listening. To improve the AM reception, you may connect an outdoor AM antenna (not included) to the AM antenna terminal (USA version only).
- Page 10 ● If ‘SANGEAN WR-16 shows in your Bluetooth device list but your device cannot connect with it, please delete the Sangean WR-16 item from your list and pair the device with the WR-16 again following the steps described previously.
- Page 11 Pairing and playing your device via NFC The WR-16 is equipped with wireless NFC (Near Field Communication) feature which allows NFC- enabled devices to pair and play music to the WR-16. For non-NFC devices, please refer to the above section for standard Bluetooth pairing. Rotate the Band selecting knob to the Bluetooth setting.
- Page 12 Headphone use Headphone use with this radio should be fitted with a 3.5 mm connector. Insert the headphones con- nector into the socket marked on the back side of the radio. When the headphones are plugged in, the loudspeaker is automatically disconnected. AUX IN socket A 3.5mm Auxiliary Input socket is provided on the back of your radio to permit an audio signal to be fed into the unit from an external audio device such as iPod, MP3 or CD player.
- Page 13 Charging with USB socket Your radio has a USB socket which is intended for charging an iPhone, smart phone or similar devices. Charge time may vary and in some cases may take longer to charge than when using the manufactur- ers charging unit supplied with the smart phone.
- Page 14 Specifications FM 87.50-108 MHz Frequency Coverage: AM 520-1710 kHz AC 120V / 60Hz / 25W (USA version) Power: AC 230V / 50Hz / 25W (European version) (For actual power requirement please refer to the back panel) AM Built-in ferrite antenna Internal Antenna System: FM Built-in wire antenna AM antenna terminal (USA version only)
- Page 15 Weight: 5.23lbs. Sangean reserves the right to amend the specification without notice. If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
