Summary of Contents for Sangean WR-15WL

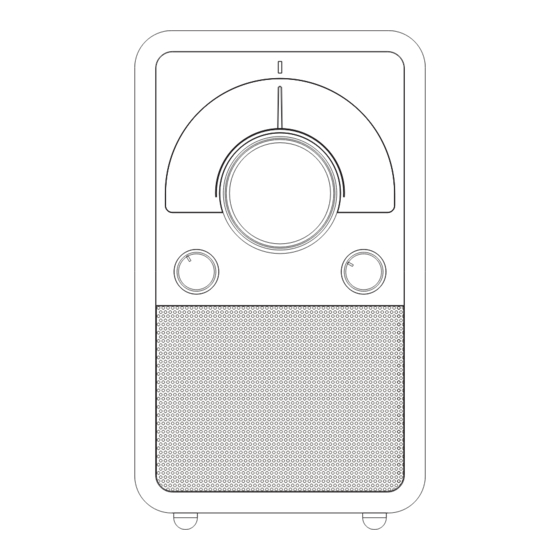

- Page 1 User Manual of Product 1: Sangean WR-15WL AM/FM Table Top Wooden Radio, Walnut User Manual of Product 2: Sangean WR-11SE AM/FM Table Top Radio 40th Anniversary Edition Walnut...
- Page 2 WR-15 / WR-15BT 中文 Version 1...
- Page 3 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by SANGEAN ELECTRONICS INC. is under license.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Page 5 O n l y u s e a t t a c h m e n t s / a c c e s s o r i e s s p e c i f i e d b y t h e manufacturer.
- Page 6 8. Excessive sound pressure on ear-and headphones could impair the hearing ability. Higher setting that idle on the equalizer leads to higher signal voltages on the output for ear and headphones. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted.
- Page 7 WR-15BT WR-15...
- Page 8 Controls AM/FM/Aux in/Bluetooth band selecting rotary (Bluetooth band is only available in WR-15BT) Tuning LED indicator Dial indicator Dial scale Tuning Control Volume control/Power knob Speaker F-type external antenna terminal WR-5: AM external antenna terminal WR-5BT: Bluetooth status indicator VDC socket Headphone socket Line out socket Aux in socket...
-
Page 9: Power Your Radio
Power your radio The AC power adaptor required for this unit should be volts DC at .A center pin positive. Insert the adaptor plug into the DC socket on the rear of the radio. Plug the adaptor into a standard manis socket outlet. - Page 10 Operating your radio AM . Connecting the antenna The radio comes with built-in AM antenna which should be enough for normal listening. To improve the AM reception, you may connect the outdoor AM antenna with AM antenna terminal (USA version only).
- Page 11 Bluetooth device can pair or link with your radio. 3) If `SANGEAN WR-15BT' shows in your Bluetooth device list but your device cannot connect with it, please delete the item from your list and pair the device with the radio again following the...
-
Page 12: Disconnecting Your Bluetooth Device
4) The effective operation range between the system and the paired device is approximately 10 meters (30 feet).Any obstacle between the system and the device can reduce the operational range. 5) Bluetooth/NFC connectivity performance may vary depending on the connected Bluetooth devices. Please refer to the Bluetooth capabilities of your device before connecting to your radio. - Page 13 Pairing and playing your device via NFC WR-15BT(only available in WR-15BT) is equipped with wireless NFC (Near Field Communication) feature, allowing playing NFC- enabled devices to pair and play the music. For non-NFC devices, please refer to the above sections for standard Bluetooth pairing. .
-
Page 14: Headphone Use
Disconnecting your NFC-enabled device To disconnect your device, simply touch it again on the top of the unit. The LED light for Bluetooth icon will then start to flash indicating your radio is discoverable again for pairing. Headphone use Headphone use with this radio should be fitted with a 3.5 mm jack plug. -
Page 15: Line Out Socket (3.5Mm Jack)
Line out socket (3.5mm Jack) A 3.5mm Line Out socket located on the rear of your radio is provided for connecting the audio signal to an external amplifier. Inserting an audio cable into this socket will not mute the internal loudspeaker. Set the volume control on the radio to minimum if desired. - Page 16 Aux in socket: 3.5 mm dia. Stereo jack. Input sensitivity: IN 300mV Output 6.5 W @ 00 Hz Input impedance: 47 Kohm REC OUT: output impedance: . Kohm DC IN: V/. A center pin positive External diameter: 5.5 mm Internal diameter: .0 mm Accessories: FM F-terminal antenna wire...
- Page 17 WR-11 Version 1...
- Page 18 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Page 19 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
- Page 20 Features (1) AM/FM 2 bands. (2) Wooden cabinet made of MDF in real cherry or walnut or other optional wood veneer. (3) Soft and precision tuning. (4) Rotary tuning and volume control. (5) Tuning LED indicator. (6) Detachable power cord. (7) Headphone socket.
- Page 21 (10) 3 inches 7W full range heavy-duty magnet speaker. (11) Dynamic Bass compensation for rich bass. (12) External AM antenna terminal to connect outdoors AM antenna (USA version only). (13) External F type FM antenna terminal to connect outdoors FM antenna. (14) Internal/External FM antenna switch to select built-in or external antenna.
- Page 23 Controls Power and AM/FM band switch Volume Control Speaker Dial scale Dial indicator Tuning Control AC power cord socket 12V DC input socket ( ideal for vehicles/boats ) Headphone socket REC out socket Aux in socket External/Internal antenna switch F-type external antenna terminal AM external antenna terminal (USA version only ) Tuning LED indicator Power your radio...
- Page 24 Operating your radio FM 1. Connect the Antenna The radio comes with built-in AM/FM antenna. To improve FM reception, insert the end of the supplied FM wire antenna into the F-type antenna terminal and adjust the wire for best reception. A 75 ohm coaxial cable of outdoor antenna may also be attached to the terminal.
- Page 25 Operating your radio AM 1. Connecting the antenna The radio comes with built-in AM antenna which should be enough for normal listening. To improve the AM reception, you may connect the outdoor AM antenna with AM antenna terminal (USA version only). 2.
- Page 26 REC out socket The radio can be used as a separate tuner by connecting this input to Hi-Fi system (amplifier) or using this input to make recording in mono from audio program. Specifications Frequency Coverage: FM 87.50 - 108 MHz 520 - 1710 kHz Power: AC 120 V/60 Hz/25W or AC 230 V/50 Hz/25W Internal Antenna System:...
- Page 27 Aux in socket: 3.5 mm dia. Stereo jack. Input sensitivity: IN 180mV Output 7W @100Hz Input impedance: 47 Kohm REC OUT: output impedance: 2.2Kohm DC IN: 12V/1A center pin positive (operational voltage 9-14V) External diameter: 5.5mm Internal diameter: 2.0 mm Accessories: FM F-terminal antenna wire AC Power Cord...
