- Page 1 Rock Light Models: SEI-RCK1/ SEI-RCK4 User Guide...
- Page 2 Important · Please read the User Guide before installation and use. · The Rock Light is compatible with the ECOXGEAR audio and LED lighting EcoSystem, which includes LEDCast and EcoCast Innovations. Look for the LEDCast and EcoCast logos on the growing family of ECOXGEAR and SoundExtreme audio and lighting solutions.

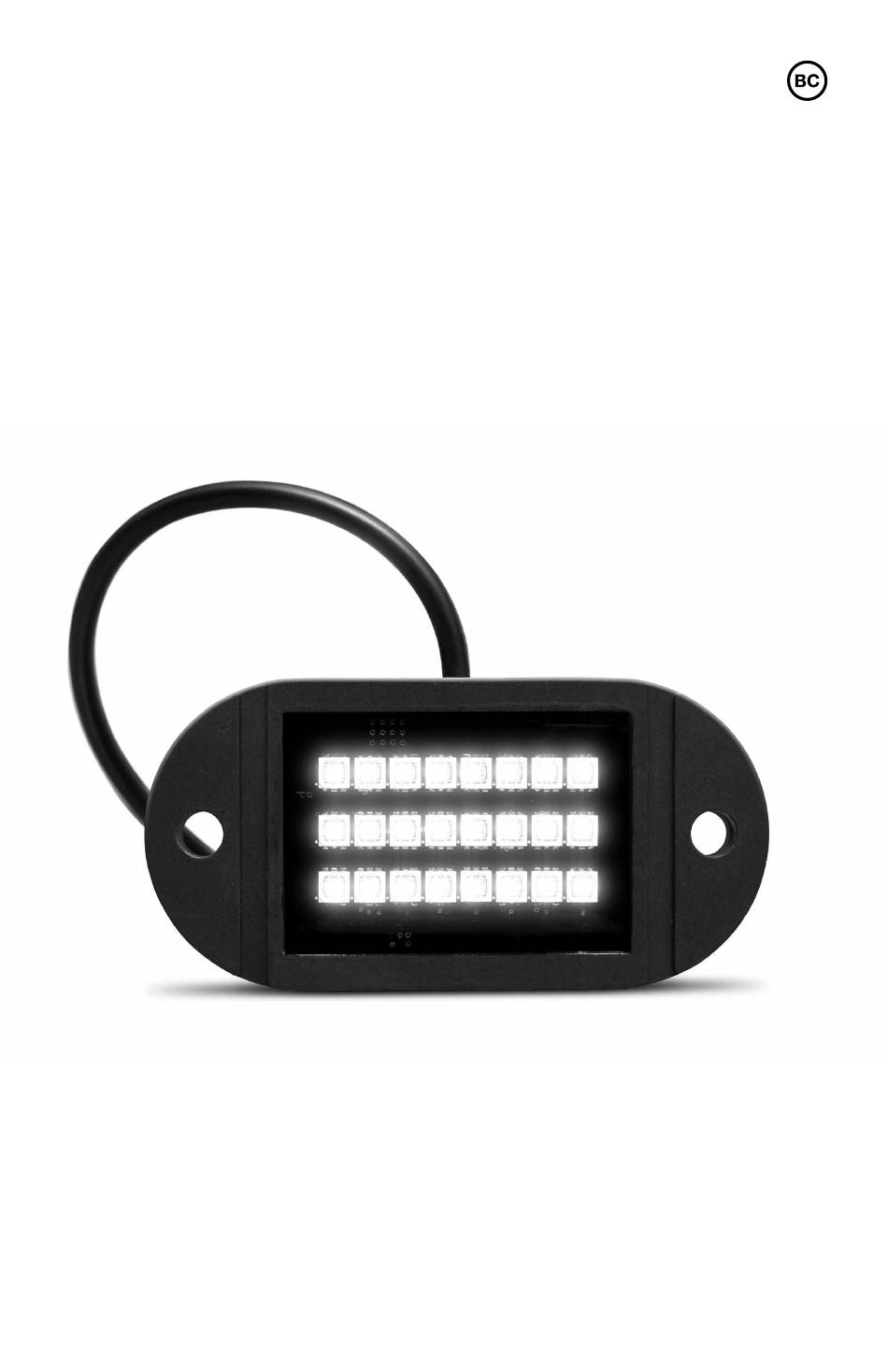

- Page 3 Rock Light Overview Rock Light Layout Groove LED Lights Groove Screw Mounting Hole Screw Mounting Hole Magnetic Strip Magnetic Strip · LED – 24 Addressable RGB lights · Groove – For mounting with included zip ties. · Screw Mounting Hole – For mounting with included self-drilling screws.
- Page 4 Installation and Wiring Installation and Wiring Safety · IMPORTANT: BEFORE installation, power off your LED controller to avoid potential electric damage to your Rock Lights or the LED controller. · For easier assembly, it is recommended you run all wires prior to mounting your unit in place.
- Page 5 Installation and Wiring Wiring Layout for Four Rock Lights with an ExtremeController If you have a set of 4 Rock Lights, you have 2 wiring layout options when connecting to an ExtremeController: 1. You can connect each of the 4 Rock Lights to each of the 4 LED control output connectors.
- Page 6 Installation and Wiring ii. Connect the next Splitter to an output of the first Splitter. iii. Connect the last Splitter to the remaining output on the first Splitter. iv. You should now be able to connect the four Rock Lights to each of the four outputs of the latter two Splitters.
- Page 7 Installation and Wiring LED Lighting Control Connections 1. Once you determine the wiring layout, run the LED Extension Cable(s) from the ExtremeController to each Rock Light, making sure the cable does NOT touch any moving parts on the vehicle. If the cable is longer than required, do NOT cut the cable and reconnect.
- Page 8 Installation and Wiring Mounting Options 1. Magnetic Mount – The two magnetic strips embedded on the back of Rock Light provide an effortless, steadfast attachment to any metal surface. No need to drill into metal surfaces, no harm to your vehicle, and freely move your Rock Light anywhere, anytime.
- Page 9 Specifications Dimensions 3.23 in / 82 mm Ø 0.2 in / 7.3 mm 3.94 in / 100 mm 0.46 in / 11.6 mm Unit Weight 0.29 lbs (130 g) Maximum Working Current 0.4A (12V Power Supply) Storage Temperature -4°F to 122°F / -20°C to 50°C Operating Temperature 23°F to 95°F / -5°C to 35°C Waterproof / Dustproof Rating...
- Page 10 Important Legal Information FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.) This device may not cause harmful interference, and 2.) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 11 Important Legal Information You should never 1.) Never power your SoundExtreme unit if you suspect water has entered the device. Powering a device with water inside could be potentially hazardous and cause fire or a spark. 2.) Never use your SoundExtreme unit if you have dropped it or thrown it against a hard surface which may have destroyed the integrity of the housing.
- Page 12 What’s in the Box 1 Pack | SEI-RCK1 4 Pack | SEI-RCK4 (1 pc) Rock Light (4 pcs) Rock Light (1 pc) 3-Pin LED Extension (4 pcs) 3-Pin LED Extension Cable – 12 ft long Cable – 12 ft long...
