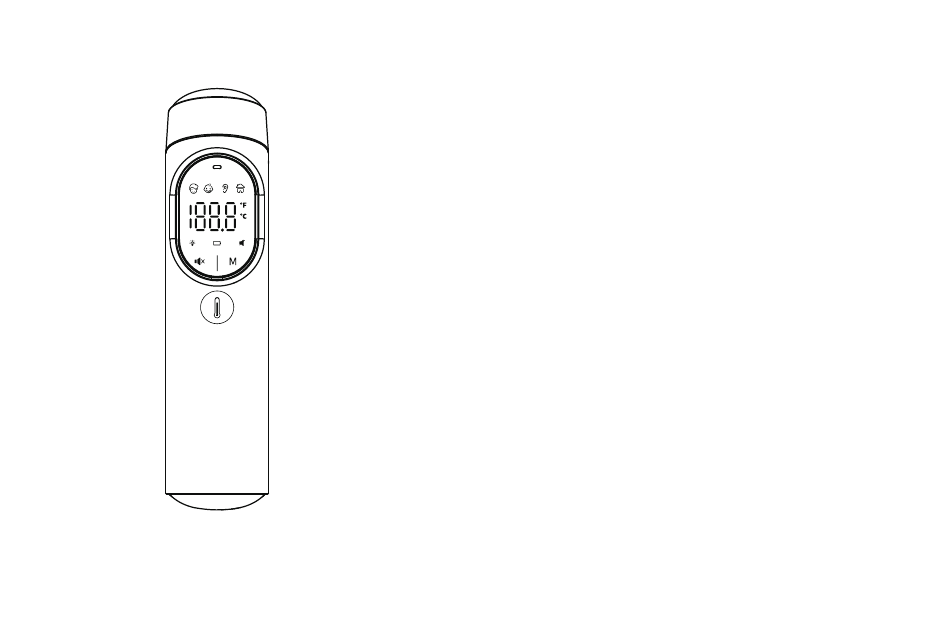

- Page 1 AOJ-20F Instruction Manual Infrared Thermometer...
- Page 2 Contents Notice Unpacking and Inspection • Dear user, thank you for purchasing our Infrared Thermometer. Packing List For proper use of this product, please read the Instruction Manual Safety Precautions carefully before use and operate the thermometer according to Symbols and Descriptions the instructions.
- Page 3 Unpacking and Inspection Caution • The lens of the probe is a fragile part of the infrared Before initial use, please carefully open the package and check thermometer. Please protect it carefully. whether all parts are intact based on the packing list and wheth- er the parts are damaged during transportation, and strictly •...
- Page 4 • Do not immerse the thermometer into water or any other Warning liquid. For cleaning and disinfecting methods, please follow • Do not forcibly insert the probe into the ear canal, otherwise “ . ” the ear canal may get injured. •...
- Page 5 Symbols and Descriptions Common Knowledge of Human Body Temperature Symbol Description Generally, human body temperature is measured via the follow- ing main sites: forehead, cochlea, armpit, oral cavity and anus, Type BF applied part etc., because temperature readings obtained from the above sites are the closest to human body temperature.
- Page 6 Body Temperature Day-Night Variation Graph 2) Product Structure The thermometer consists of an outer casing, LED screen, a t/℃ buzzer, an infrared temperature sensor and a microprocessor, etc. 37.4 3) Measuring Principle 37.2 The infrared temperature sensor collects the infrared energy emitted from the eardrum or forehead skin surface, the collect- 37.0 ed energy passes through the optical filter and is then absorbed...
- Page 7 Main Structure 6) Physiological Effects The product will not produce toxic substances, no harm to human body or cause any sensitization, etc. ⑥ Product Features ⑤ ⑦ ⑧ ① 1) Safe to Use ② ④ • Passive infrared receiver technology. 2) Easy to Operate ③...
- Page 8 Display Description Sound and Indicator Description ① ② ③ ④ Temperature range Sound Indicator status Forehead temperature ⑤ 32.0℃-37.5℃/ One long beep Green 89.6℉-99.5℉ ⑦ ⑥ 6 short beeps (2 short 37.6℃-38.0℃/ Orange beeps each time) 99.6℉-100.4℉ 6 short beeps (2 short 38.1℃-42.9℃/ beeps each time) 100.5℉-109.2℉...
- Page 9 Note: When the measured forehead temperature or ear Properly insert the “ temperature falls in the range of 32.0℃-37.5℃ (89.6℉-99.5℉), Indicator probe into the ear the buzzer of the thermometer will issue a long beep and the canal, press the Description”...
- Page 10 Out of measurement range Checking 40 sets of memory data Ear temperature mode: One long beep, In power-on status or No sound. when the measured the indicator power-off status, press ear temperature is lights up in red. and hold the memory higher than 42.9℃...
- Page 11 Switching between mute/unmute Human body tempera- No sound. In power-on status, One long beep ture mode includes press the mute/unmute when the sound forehead temperature buttton ( button) to is turned on. ) mode and turn on or turn off the ear temperature ( sound.
- Page 12 Measuring Ear Temperature Internal storage data One long beep, error or temperature the indicator calibration is not lights up in red. 1.For initial use of the thermometer, please first install the batteries. completed, and the thermometer will 2.Take off the probe cover before measuring the ear tempera- ture.
- Page 13 Measuring Forehead Temperature After a Measurement 1.After each measurement, you can enter memory mode to 1.For initial use of the thermometer, please first install the query the recorded temperature readings. For more details, batteries. “ . ” 2.Keep the probe cover on when measuring the forehead 2.After the measurement, clean the thermometer with a dry, temperature.
- Page 14 7.Let the thermometer rest in current environment for more Please make sure the polarities of the batteries are not than 30 minutes before taking a measurement. When measur- reversed when installing the batteries, otherwise damage ing, do not touch the probe with your hands so as to reduce may be caused to the thermometer.
- Page 15 Cleaning and Disinfection It’ s recommended to clean the thermometer once every week, and each cleaning should be completed within 3 minutes. You shouldn’ t repeatedly clean the thermome- Cleaning: ter for more than 3 times each time. After disinfection, you Recommended cleaning agents: need to wait for at least 10 minutes before next-time use.
- Page 16 Troubleshooting Cleaning and disinfection should be carried out under the following conditions: Temperature: +0℃~+40℃ (32℉-104℉), relative humidity: 15%~85%RH, non-condensing, atmospheric pressure: Malfunction Possible cause Solution 86kPa~106kPa. Unable to power on The battery level is Replace with new Maintenance too low. batteries.
- Page 17 Technical Specifications ±0.2℃/±0.4℉; out of this range, the maximum allowable error is Product name Infrared thermometer ±0.3℃/±0.6℉. Model AOJ-20F Adjusted temperature: within the range of 0.0℃‒100.0℃ (32.0℉‒ Power supply mode Battery-powered 199.0℉), the error is ±1.0℃/ Working voltage DC 3V ±2.0℉.
- Page 18 Security Type Auto shut-down The thermometer will automatical- ly turn off if there is no operation Type of protection against electric shock: Internally powered within 30s. equipment. Dimensions (mm) 165.0mm×40.0mm×43.0mm Degree of protection against electric shock: Type BF applied part, indicated by the icon Weight (g) 75g (without batteries) Ingress Protection rating: IPX0, not waterproof.
- Page 19 Appendix ・Failure resulting from unauthorized disassembly and modifi- cation. ・Failure resulting from an unexpected dropping during Guidance and manufacturer’ s declaration - electromagnetic application or transportation. emissions - for ALL EQUIPMENT AND SYSTEMS ・Failure resulting from not following the instructions in the instruction manual.
- Page 20 Guidance and manufacturer’ s declaration - electromagnetic Guidance and manufacturer’ s declaration - electromagnetic immunity - for ALL EQUIPMENT AND SYSTEMS immunity - for EQUIPMENT AND SYSTEMS that are not LIFE-SUPPORTING Guidance and manufacturer’s declaration - electromag - Guidance and manufacturer’s declaration - electromag - netic immunity netic immunity The Infrared Thermometer is intended for use in the electro-...
- Page 21 NOTE 1: At 80 MHz and 800 MHz, the higher frequency range Recommended applies. separation distance NOTE 2: These guidelines may not apply in all situations. √ Electromagnetic propagation is affected by absorption and ]√ 80 MHz to reflection from structures, objects and people. 800 MHz Field strengths from fixed transmitters, such as base stations ] √...
- Page 22 0.12 0.23 0.38 0.73 Shenzhen AOJ Medical Technology Co., Ltd. Add: Room 301&4F, Block A, Building A, Jingfa Intelligent For rated maximum output power of transmitter not listed Manufacturing Park, Xiaweiyuan, Gushu Community, above, the recommended separation distance d in meters (m)
