- Page 1 DIGITAL THERMOMETER Model： AOJ-25A INSTRUCTION MANUAL...
-
Page 2: Product Structure

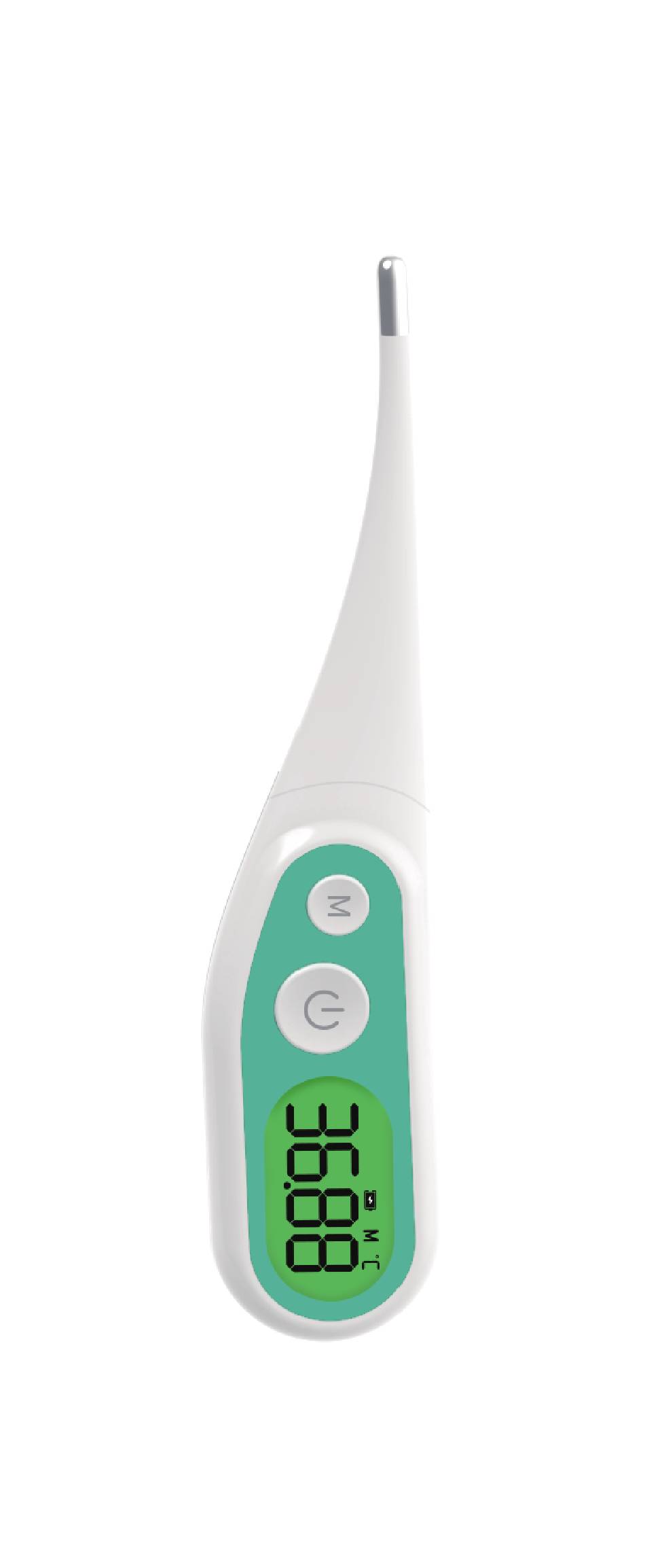

Thank you for purchasing this Digital Thermometer. Please carefully read this instruction manual in any case before using. Product Structure Probe Tip Mode Button Display ON/OFF Button Battery Cover Display screen Temperature value Battery symbol Memory mode Temperature unit Package Include 1 x Digital Thermometer (battery included) 1 x Instruction Manual Important Safety Notes... - Page 3 • If the product will not be used for a long time, please remove the battery and place it properly. • When ambient temperature is 40, The time from minimum storage temperature to use is at least 1 hour; The time from maximum storage temperature is at least 2 hour.
-
Page 4: Symbol Definition
Symbol Definition Comply with local regulations Consult the instructions for use Manufacturer Production Date Type BF Applied Part This way up CE marking keep away from sunlight Fragile, handle with care Ingress Protection Rating Indicates the entity importing the Keep dry medical device intothe locale Warning information, refer to the lndicates the item is a medical device... -
Page 5: Correct Measurement
NOTES: • To clean the probe before and after using the thermometer to ensure an accurate reading and avoid cross contamination approximately. • If the temperature is lower than 32℃, it will be displayed in • If the temperature is higher than 42.9℃， it will be displayed in Correct Measurement Measurement accuracy cannot be assured when the method used to measure the temperature is incorrect. -
Page 6: Memory Recall
• Lock the probe tip under the arm, using the arm to slightly apply pressure inwards. The angle should be 35-45 degrees in relation to the arm. Thermometer Angle 35 ~ 45 * In the case of infants and very young children, gently hold the arm to prevent movement. -
Page 7: Battery Replacement
Battery Replacement 1. Use a coin to take off the battery cover. Battery Cover Coin 2. Remove the battery. Battery 3. Insert the new battery with the “+” pole facing up as shown in the diagram. The “+” mark faces up wards 4. -
Page 8: Care And Maintenance
Care and Maintenance Keep the thermometer clean. • Do not use strong jets of water to clean the thermometer or leave it immersed in water for long periods of time. • Wipe the thermometer with a soft clean cloth and sterilize the probe with ethyl alcohol. •... -
Page 9: Technical Specifications
Technical Specifications Display Segment LCD, 3-color LED backlight (green, orange, red) Measurement Range 32.00°C~42.90°C (89.60°F~109.22°F) Measurement Sites Oral, Rectal， Underarm Measurement Accuracy ±0.1℃/32.18℉ Display resolution 0.01℃ °C/°F, Switchable Temperature Units d.c. 3V, CR2032 Battery (Included) Service Life 3 years （ device only, not included battery) Automatic Shutdown Normal Mode: 30 seconds Memory... -
Page 10: Emc Information
EMC Information Electromagnetic Emis s ions G uidance and manufacturer's statement - Electromagnetic emis s ion Emis sion Compliance tes t RF emissions Group 1 CISPR 11 RF emissions Class B CISPR 11 Harmonic emissions Not applicable IEC 61000-3-2 Voltage fluctuations/ flicker emissions Not applicable IEC 61000-3-3... - Page 11 Electromagnetic Immunity G uidance and manufacturer's declaration - Electromagnetic Immunity IEC 60601-1-2 Test Band Compliance level Maximum Distance Test Level Frequency Service Modulation (MHz) (V/m) Power (W) (V/m) (MHz) Pulse TETRA 380‒390 modulation 18 Hz FM± 5 kHz GMRS 460 430‒470 deviation1 kHz FRS 460...
- Page 12 Address: Heerdter Lohweg 83, 40549 Düsseldorf, GERMANY Tel:0049 179 5666 508 E-mail: EU-Rep@share-info.com Shenzhen AOJ Medical Technology Co., Ltd. Add: Room 301&4F, Block A, Building A, Jingfa Intelligent Manufacturing Park, Xiaweiyuan, Gushu Community, Xixiang Street, Bao'an District, 518126 Shenzhen, CHINA Date of Issue: February 2021 File No.：...
