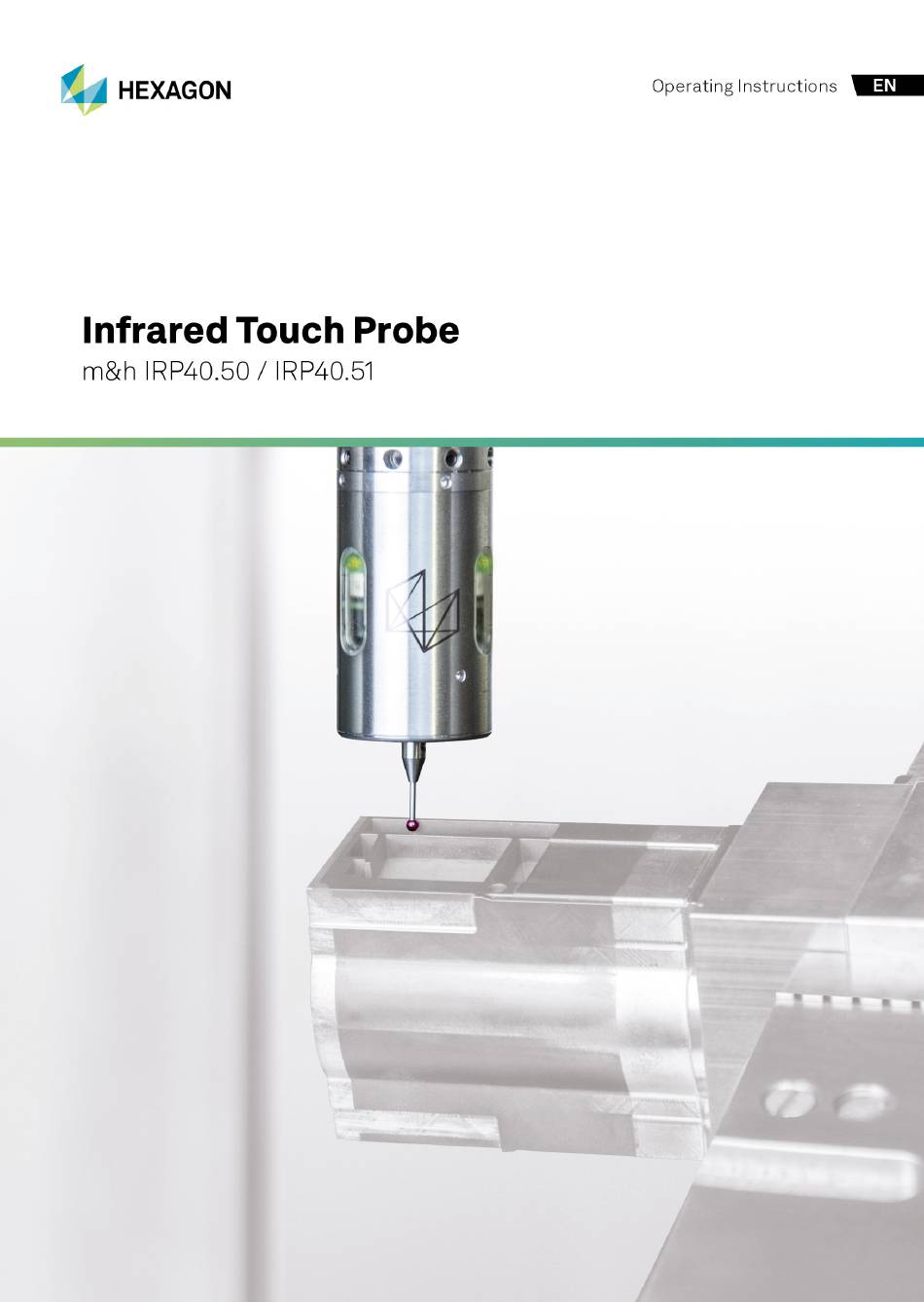

  • Page 2 Manual Version REV06 Release Date 2023-12-15...

  • Page 3: Table Of Contents

    IRP40.50/IRP40.51 Table of Contents Table of Contents Description ................................. 4 General ..............................4 1.1.1 Preface ............................4 1.1.2 Safety Instructions ........................4 1.1.3 Declaration of Conformity ......................5 1.1.4 Validity ............................5 Purpose ..............................5 System Components ..........................5 Technical Data ............................6 Dimensions ..............................

  • Page 4: Description

    Description IRP40.50/IRP40.51 Description General 1.1.1 Preface The safety instructions in this manual have to be strictly observed to guarantee a safe and reliable function of the touch probe and to avoid personal and material damage. The meaning of the symbols related to the safety instructions is described in the table below: NOTICE indicates information considered important, but not hazard-related (e.g.

  • Page 5: Declaration Of Conformity

    IRP40.50/IRP40.51 Description 1.1.3 Declaration of Conformity The EU/UKCA Declaration of Conformity can be found at the end of these operating instructions. If required, a copy of the signed original declaration of conformity may be requested from the address given on the back cover.

  • Page 6: Technical Data

    Description IRP40.50/IRP40.51 Technical Data Sensing Directions ±X; ±Y; -Z Maximum Stylus Overtravel XY = ±11°; Z = -3 mm Trigger Force with 16 mm Stylus XY = 1,3 N; Z = 3 N Recommended Probing Feedrate Max. 2000 mm/min Power Supply 3x 3 V Battery, type CR2032 Standby: 12 months, operation: 400 h Material...

  • Page 7: Transmission-/Reception Area

    IRP40.50/IRP40.51 Description Transmission-/Reception Area INFORMATION Fig. 3 shows the possible transmission angles of the receiver and the reception angles of the touch probe. The mounting position of the receiver must be chosen so that the touch probe is in the receivers transmission range for switching ON/OFF.

  • Page 8: Delivery Contents, Accessories And Spares

    Tool holders A variety of different tool holders are available for touch probes from Hexagon Metrology. It is possible to adapt the touch probe system to a wide range of use cases. A comprehensive overview of the possible tool holder options can be found in the accessories catalogue.

  • Page 9: Operation

    5369 Hexagon key AF1.5 mm 40.50-HS C-Spanner 3079 Dial gauge 40.50-TB Toolbox 3x battery (3 V / CR2032) (5309) 1x Mounting pin (0885) Not illustrated 2x Hexagon key AF1.3 mm (5370) 1x Hexagon key AF1.5 mm (5369) 2x C-Spanner (40.50-HS)

  • Page 10: Mounting/Dismounting The Shank

    Insert both clamping screws „C“ and tighten lightly. 2.3. Insert adjustment screws „A“ and tighten lightly. Align the stylus to spindle center (refer to chapter 2.5). Calibrate the probe. Hexagon key AF1.3 mm (5370) AF1.5 mm (5369) A = Adjustment screw M2,5x5 (AF1,3 mm) (4x)

  • Page 11: Stylus Change

    IRP40.50/IRP40.51 Operation Stylus Change NOTICE Risk of property damage! • The measuring mechanic is sensitive, thus the stylus must not be screwed in with high force! Unscrew the stylus from the touch probe using the mounting pin. Carefully screw the new stylus into the touch probe (Fig. 5). Align the stylus to spindle center (refer to chapter 2.5).

  • Page 12: Battery Replacement

    Operation IRP40.50/IRP40.51 Battery Replacement NOTICE Risk of property damage! • Wipe the probe clean and dry before opening! Do not use compressed air for cleaning! • • Replace empty batteries immediately Insert a C-spanner in each of the notches provided for them on the upper and lower sections of the housing. Screw the upper housing section off the lower housing section.

  • Page 13: Aligning Stylus To Spindle Centre

    Tighten the clamping screws C (Fig. 7) (4x). Tighten the adjustment screws A (Fig. 7) (4x) against each other. Check the alignment. Calibrate the probe. Hexagon key AF1.3 mm (5370) AF1.5 mm (5369) C = Clamping screw M3x0,5x6,5 (AF1,5 mm) (4x) M= 1.5 Nm (1.11 lbf.ft)

  • Page 14: Optical Status Display

    Operation IRP40.50/IRP40.51 Optical Status Display Subsequent table gives an overview of the blinking patterns of the LED (Fig. 8) and their meaning. LED blinking green Probe is transmitting signals LED blinking green/red Low battery warning LED blinking orange Stylus deflected Fig.
