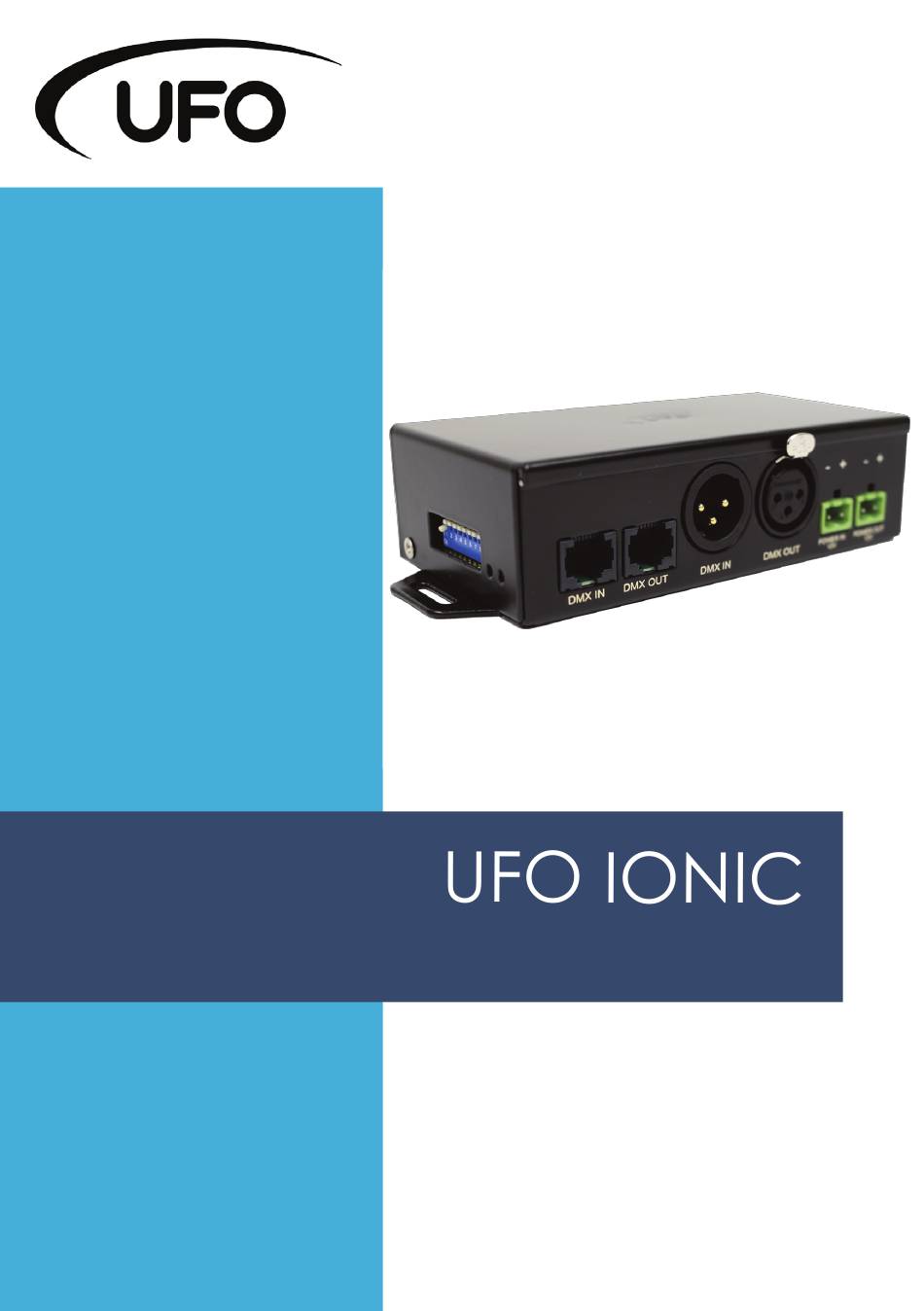

- Page 1 User Guide GLOBAL DMX DRIVER Rev. D1 UK This guide contains important safety information and installation instructions. Please read fully before installing, operating or performing any maintenance on the product.
- Page 2 This unit is a constant voltage driver designed to drive the UFO Ionic track lighting system with luminaires drawing up to 60W*. Always check the total load of the Ionic LED fittings as detailed in the table below, to ensure the total load of the driver does not exceed 60W prior to powering up the system.
- Page 3 The driver is suitable for indoor/dry areas and must not be installed in damp or wet conditions. Please refer to the separate Ionic User Guide for full details of the Ionic luminaires, the track extrusion and the accessory range. * Note that we would always recommend leaving approx. a 10% buffer from the total Wattage to allow for any power fluctuations that may occur.
- Page 4 DMX controller. Each driver is able to power a maximum of 60W worth of Ionic luminaires. See the table on page 2 for details of luminaire power consumption.
- Page 5 Dip Switch Settings On the side of the driver is a bank of 10 dip switches which are used to set the unit’s DMX address and to control DMX termination. Switches 1 to 9 are used for address setting and switch 10 is the termination switch.
- Page 6 Input DC Wiring Specifications Connector type Screw terminals Wire type Solid or stranded copper Wire cross section 0.5 - 1.5mm /AWG 20 -16 Wire strip length 9.0mm (11/32 in) Output DC Wiring Specifications Connector type Screw terminals Wire type Solid or stranded copper Wire cross section 0.5 - 1.5mm /AWG 20 -16...
- Page 7 Driver Wiring Guide - One Ionic Track Dip Switch Settings When only one Global DMX Driver is being used, switch 10 must be set to the on position. See page 5 for details of other switches.
- Page 8 Driver Wiring Guide - Multiple Ionic Tracks / 1 DMX Controller Dip Switch Settings When only one Global DMX Driver is being used, switch 10 must be set to the on position. See page 5 for details of other switches.
- Page 9 Driver Wiring Guide - Multiple Ionic Tracks / Multiple Controllers A Dip Switch Settings When multiple Global DMX Drivers are being used, switch 10 must be set to the on position on the last driver in the chain. It should be off on all other...
- Page 10 Driver Wiring Guide - Multiple Ionic Tracks / Multiple Controllers B Dip Switch Settings When multiple Global DMX Drivers are being used, switch 10 must be set to the on position on the last driver in the chain. It should be off on all other...
- Page 11 Product Name UFO Ionic Global DMX Driver UFO Product Code UFO IONDR-DMX-CV-DC-12-60-D Description Constant voltage DMX dimmable driver Input Voltage 12V DC, Class 3 / SELV power supply unit Rated Power Output Current Output Voltage 12V DC DMX Addressing Dip switches to address up to 512 DMX channels...
- Page 12 Coldstream, TD12 4DT United Kingdom +44 (0) 1890 883416 www.ufo.lighting Universal Fiber Optics USA 1749 Northgate Blvd Sarasota, FL34238 United States 941-343-8115 www.fiberopticlighting.com UFO Licht GmbH Andreastraße 20 93059 Regensburg Deutschland +49 (0) 9491 955880 www.ufo-licht.de ...
