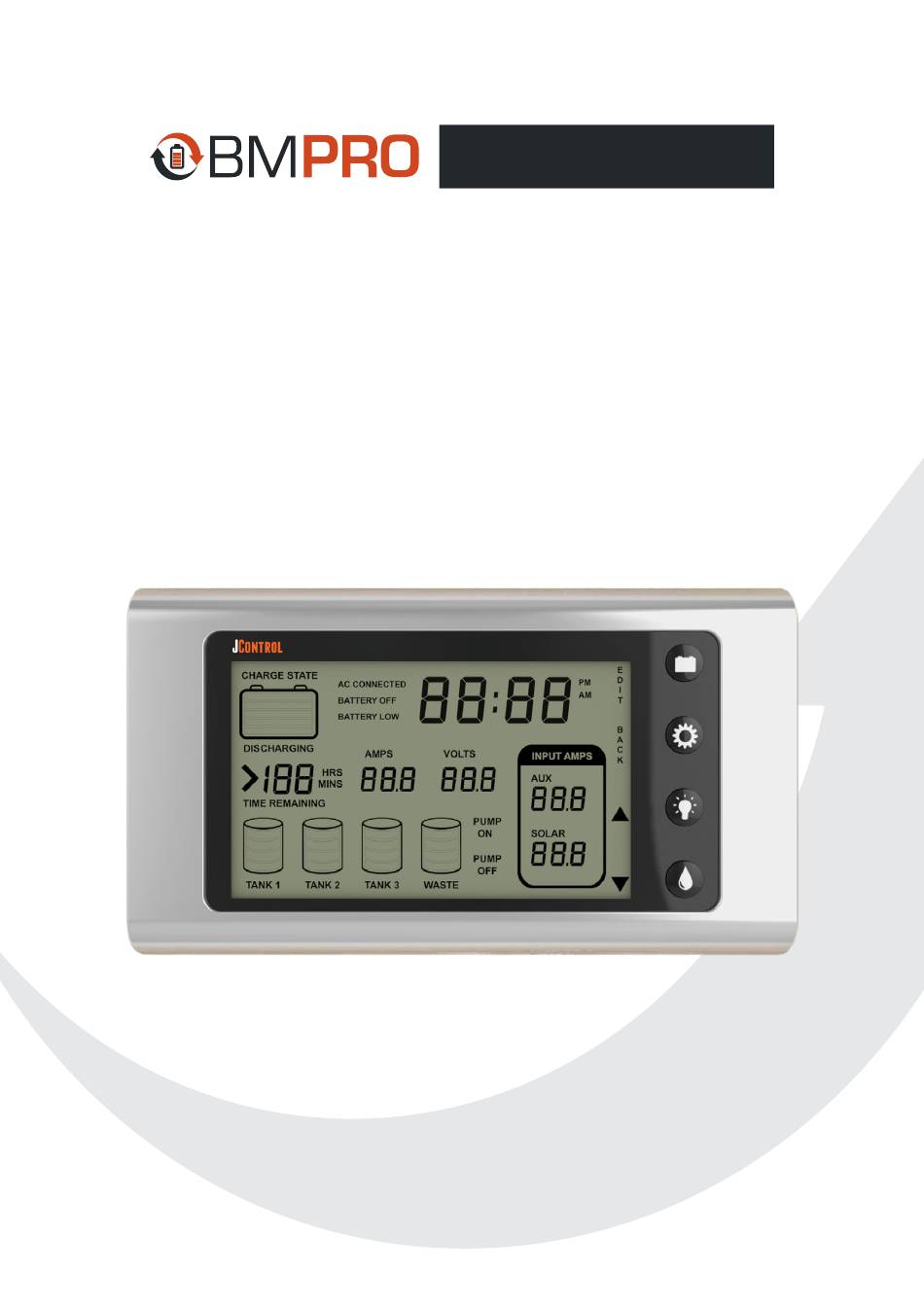

- Page 1 OWNER’S MANUAL JControl TEAMBMPRO.COM...
- Page 2 WARNING Correct installation is the most critical factor in ensuring the safe use of the JControl. If every consideration of these instructions has been satisfied, the JControl will be safe to operate.
- Page 3 SAFETY PRECAUTIONS ..... . 2 ABOUT THE JCONTROL ..... . 4 DESCRIPTION OF PARTS.
- Page 4 ABOUT THE JCONTROL The JControl is designed specifically to operate with BMPRO’s J35 and ASPower power management systems. The JControl provides vital data at a glance including caravan battery voltage and charging/discharging current. The JControl also provides an indication of the battery’s remaining charge capacity as well as the time remaining before the...
- Page 5 DESCRIPTION OF PARTS AC Connected Appears when the J35 or ASPower is connected to AC mains. Battery Off Battery off will appear when: The user presses the battery button to enter Sleep Mode. The J35 or ASPower has automatically entered Sleep Mode to preserve battery capacity until the battery can be charged.
- Page 6 If either of the inputs are unavailable to the J35 or ASPower, the JControl will display “--.-“. If either of the inputs are available to the J35 or ASPower but not in use, the JControl will display “00.0”...
- Page 7 12. Tank Level Indicators Monitor water levels of up to 4 water tanks. By default, tanks 1, 2 and 3 are set- up to monitor clean water and tank 4 as dirty water. Tank properties are configurable in Set-Up mode. The tank level indicator will flash when the monitored tank is empty (clean water) or full (dirty water).
- Page 8 The JControl does not have an ON/OFF button. The JControl receives power directly from the J35 or ASPower through the connected data cable. The JControl will automatically turn off if it is not receiving power from the J35 or ASPower.
- Page 9 Back Use the Setting button on the JControl to return to the previous ‘Screen’ or menu function. Repeatedly press the Setting button to return to the JControl’s home screen. Scroll Arrows Use the Backlight and Water Pump buttons on the JControl to navigate the Set- Up menu and change values when configuring the JControl.
- Page 10 Exiting Set-Up Mode To exit Set-Up mode or to exit from any menu function available in Set-Up mode, repeatedly press the BACK button until the JControl enters the Home screen. Alternatively, wait and the JControl will automatically revert to the Home screen, saving any changes made when editing the menu functions.
- Page 11 24-Hour Format Enter Set-Up mode by holding the SETTINGS button down until SET UP is seen in the AMPS and VOLTS display. Navigate to the CLOCK menu function. Follow the below directions to set the time in 24-hour format:...
- Page 12 WATER TANK MENU FUNCTION Use the Water Tank menu function to choose to monitor and display (enable on/ disable off) a water tank and configure the water tank type (clean/dirty). Enable and Disable Water Tank Monitoring and Display Enter Set-Up mode by holding the SETTINGS button down until SET ...
- Page 13 Configure Water Tank Type The ability to configure a water tank type is only available if monitoring of the tank is enabled. To configure a water tank type: Enter Set-Up mode by holding the SETTINGS button down until SET UP seen in the AMPS and VOLTS display.
- Page 14 CONFIGURING BATTERY ALARM Configure the battery alarm and set the low battery voltage warning threshold to trigger the Battery Low warning on the JControl Home screen to indicate that the battery requires charging. By default, the low voltage warning threshold is 11V.
- Page 15 LCD BACKLIGHT Use the LCD Backlight function to change the brightness level of the JControl’s LCD backlight. The brightness can be adjusted between 0 and 100% in steps of 10%. To configure the LCD backlight brightness: Enter Set-Up mode by holding the SETTINGS button down until SET ...
- Page 16 ADVANCED MENU FUNCTIONS Clear External Shunt This function is only available if the BC300 + CommLink external shunt is installed on the caravan battery. This menu item should be used when communication with the external shunt is lost. See FAQs and Troubleshooting for more details.
- Page 17 Why has the JControl screen turned off? The JControl receives power to run the monitor from the J35 or ASPower. If the J35 or ASPower shuts power to the monitor, the JControl screen will turn off. The J35 or ASPower will shut power to the JControl if: The load isolation switch connected to the J35 or ASPower has been activated.
- Page 18 SPECIFICATIONS TREK3 Input Voltage Range 8-15V Battery Drain < 21mA with backlight off Ambient Temperature 0-50°C Dimensions 164 x 95 x 22mm...
- Page 20 This warranty is provided by SETEC BMPRO Pty Ltd (59 646 354 127) (“BMPRO”) for its products. Warranty benefits are applied along with any rights and remedies required by Australian State and Federal legislation that cannot be excluded.
- Page 21 (k) the fault is a result of common wear & tear. LIMITATIONS No express warranties or representations are made by BMPRO other than what is set out in this warranty. The absolute limit of BMPRO’s liability under this express warranty is the repair or replacement of the product or part of the product.
- Page 24 BMPRO TEAM customerservice@teambmpro.com BMPRO 19 Henderson Rd, Knoxfield VIC 3180 Australia .COM teambmpro.com...
