Model 3/Y 12V Power Circuit for Third-Party Accessories,
CD-19-17-001 R5
This Service Document supersedes CD-19-17-001 R4, dated 08-Mar-2023. This new revision, R5,
updates the information on power availability. Each content change is marked by a vertical line in
the left margin. Discard the previous version and replace it with this one.

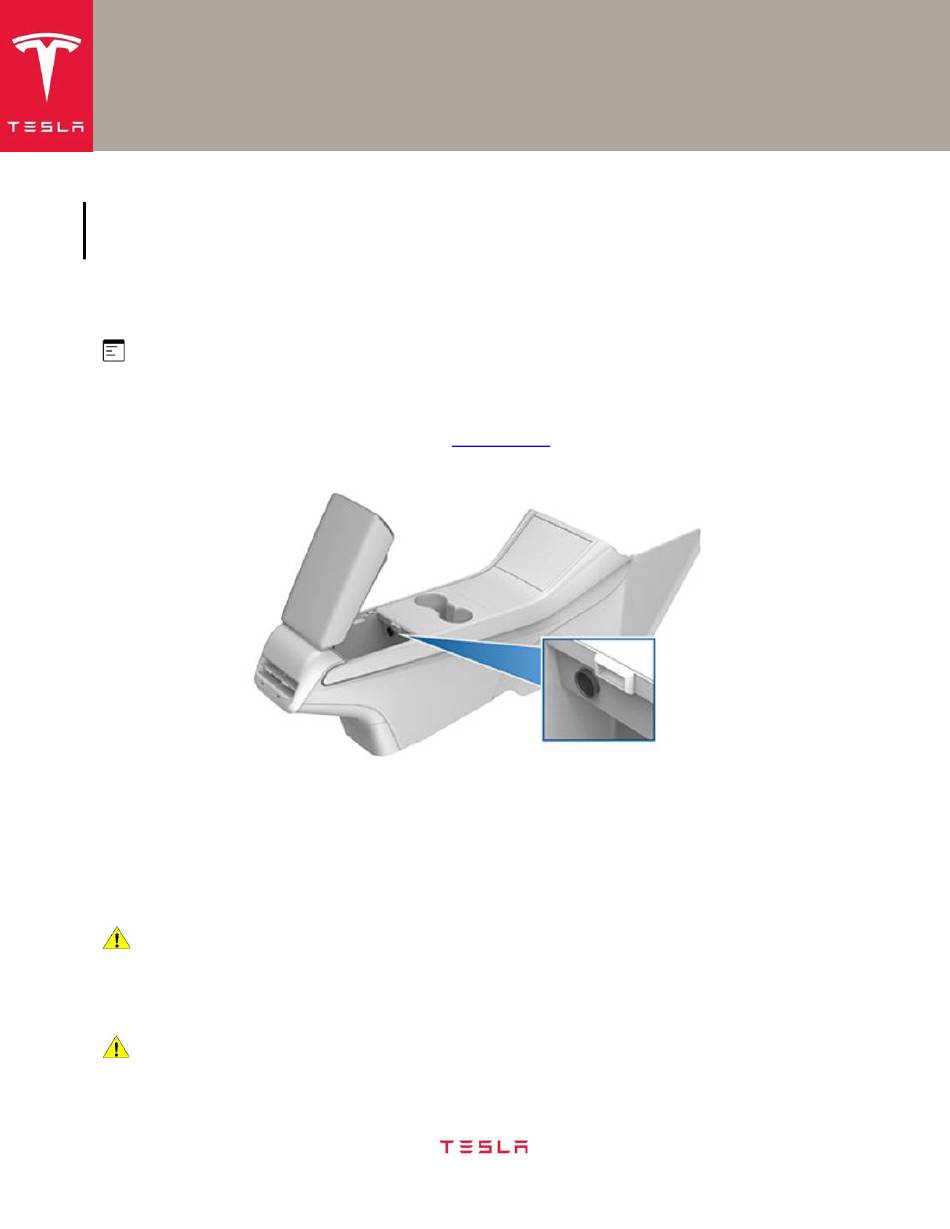

All 2017-2023 Model 3 and Model Y vehicles are equipped with a 12V power socket which is located in the
center console's rear compartment (Figure 1).
NOTE: This procedure provides instructions for Model 3 and Model Y with the first generation center
console (Model 3 vehicles built before approximately October 2, 2020, Model Y vehicles built before
approximately December 8, 2020). For instructions for Model 3 or Model Y with the second generation
center console (Model 3 vehicles built on or after approximately October 2, 2020, Model Y vehicles built on
or after approximately December 8, 2020), refer to CD-20-17-002, "Model 3/Y 12V Power Circuit for Third-
Party Accessories, Second Generation Center Console".
The purpose of this power socket is to provide a switched power source that reduces the risk of vehicle
damage due to improperly installed third-party equipment. Only when a more permanent installation is
required should the circuit that feeds the power socket be used. This document is intended to help locate the
recommended 12V power circuit, and provides informational support to individuals looking to safely splice
into the 12V power circuit.
CAUTION: Splicing into the 12V system is done solely at the user's risk and can result in increased
draining of, or potential damage to, the vehicle or 12V battery. Potential effects of modifying Model 3/Y with
third-party components can include, but are not limited to, reduced driving range and increased
electromagnetic interference (EMI).
CAUTION: Always refer to the Service Manual for the most up-to-date instructions on disconnecting
and reconnecting 12V power and removing and installing center console trim components. The instructions
in this document may not be applicable to the particular vehicle you are working on due to build date,
configuration changes, market region, etc.
CD-19-17-001 R5
First Generation Center Console
Figure 1
Last updated: 5 November 2024
Page 1 of 6
Advertisement
Related Manuals for Tesla 3
Summary of Contents for Tesla 3
- Page 1 Each content change is marked by a vertical line in the left margin. Discard the previous version and replace it with this one. All 2017-2023 Model 3 and Model Y vehicles are equipped with a 12V power socket which is located in the center console’s rear compartment (Figure 1).
- Page 2 NOTE: On certain Model 3 and Model Y vehicles, the X181 connector can supply switched or continuous power to third-party accessories. Refer to CD-20-17-001, “Model 3 / Model Y Third-Party CAN Bus Interface”. NOTE: Tesla does not endorse the use of third-party equipment and does not accept any responsibility for any damage incurred from installing non-OEM equipment.
- Page 3 3. On both sides of the center console, remove the screws (x7) (Figure 3) and release the tabs that attach the bracket to the center console. Remove both brackets from the center console. Figure 3 – LH side shown; RH side similar 4.
- Page 4 Splicing Into the 12V Power Circuit CAUTION: Failure to properly disconnect 12V power prior to splicing into the 12V power circuit can result in damage to the vehicle or the 12V battery. Tesla is not responsible for any damage to the vehicle or 12V battery.
- Page 5 12V power supply in case of overcurrent draw. If an overcurrent draw is detected, 12V power will be restored once Model 3/Y has been powered off and on, assuming the cause of the overcurrent is no longer present. Powering off Model 3/Y can be done by closing all doors and walking out of range from the vehicle with the phone key for a few seconds or by locking the doors with the key fob or key card and waiting a few seconds.
- Page 6 3. Lower the armrest to close the rear center console compartment. 4. On both sides of the center console, install the screws (x7) (Figure 3) and engage the tabs that attach the bracket to the center console. Tighten the screws to 1.6 Nm (1.18 ft-lbs).
