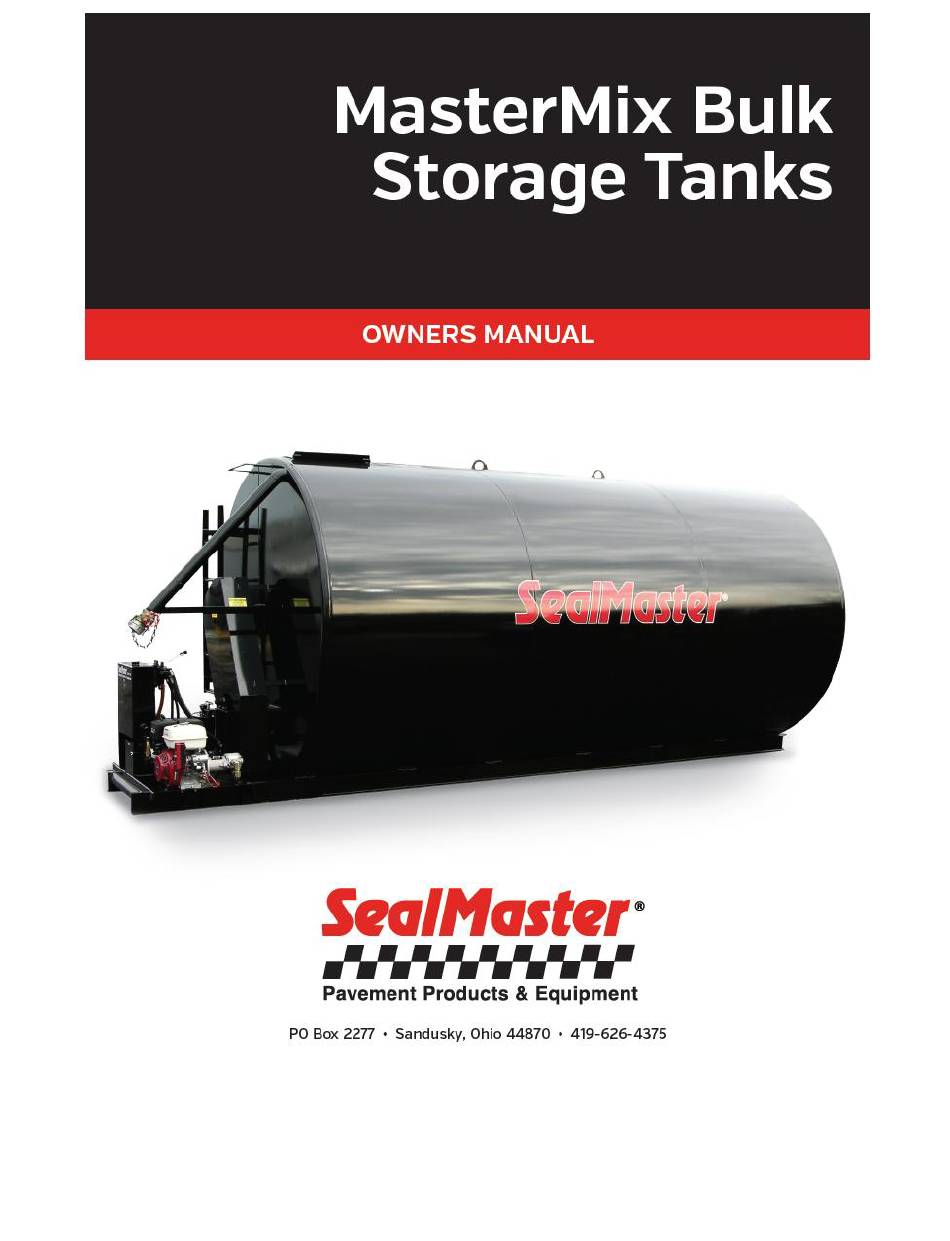

SealMaster MasterMix Bulk Owner's Manual

Storage tanks
Hide thumbs Also See for MasterMix Bulk:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MasterMix Bulk and is the answer not in the manual?

Questions and answers

Related Manuals for SealMaster MasterMix Bulk

Summary of Contents for SealMaster MasterMix Bulk

  • Page 2 MASTERMIX™ BULK STORAGE TANKS Owner’s Manual Version 3.3 Issue Date: November 2024 Effective Date: October 2021 Version Date Changes Approval 5/21 Original Issue 10/21 Motor – Material 1/22 Change Engine Oil – Note 4/22 Added Paint Page 8/22 Added Bowie 3” 3400 9/22 Honda Engine used w/Cooler 9/22...
  • Page 4 Table of Contents CORRESPONDENCE ............................5 SealMaster® LIMITED WARRANTY ........................ 6 SAFETY PRECAUTIONS AND CAUTIONS ......................7 PRECAUTIONS ............................7 CAUTIONS ..............................7 STARTUP ................................ 8 1- BEFORE STARTING THE ENGINE-HONDA ....................8 STARTING THE ENGINE ..........................8 2- BEFORE STARTING THE ENGINE-VANGUARD BEFORE 3/23 ..............9 3- STARTING THE ENGINE .........................
  • Page 5 PARTS LIST PICTURE-9 CHAIN DRIVE ....................... 31 PARTS LIST PICTURE-10 PUMP W/ ELECTRIC C FACE MOTOR OPTIONAL ..........32 PARTS LIST PICTURE-11 MATERIAL PUMP STANDARD ................33 PARTS LIST FOR 2” ROPER PUMP 3617 HZ - STANDARD................. 35 ” H.O.D.D. II HYDRAULIC MATERIAL PUMP ..................... 36 WARNING ..............................
  • Page 7 (30) days from the date failure occurs, and in all cases prior to the expiration of the warranty period of one (1) year. It is the intent of this paragraph to limit SealMaster’s liability solely to the cost of replacement parts, F.O.B. factory, or at the option of SealMaster to repair of the defective part or parts.
  • Page 8 SAFETY PRECAUTIONS AND CAUTIONS PRECAUTIONS • Always wear eye and ear protection, and gloves. • Be aware of all CAUTION, WARNING, and DANGER signs on the unit. • Read all Owners Manuals that come with this unit. • Make sure the operator is familiar with the units’ operation. •...
  • Page 9 MASTERMIX™ STORAGE TANKS EQUIPPED WITH HONDA ENGINE STARTUP THROTTLE ENGINE SWITCH CHOKE FUEL 1- BEFORE STARTING THE ENGINE-HONDA • Note: Make sure you check the appropriate oil level. • Check Hydraulic Oil – Maintain level at 4 inches below tank top, when COLD.
  • Page 10 MASTERMIX™ STORAGE TANKS EQUIPPED WITH VANGUARD ENGINE OPERATING INSTRUCTIONS FUEL TANK FUEL SHUT-OFF STARTUP CHOKE ON/OFF THROTTLE STARTER CONTROL SWITCH ENGINE CORD HANDLE 2- BEFORE STARTING THE ENGINE-VANGUARD BEFORE 3/23 • Note: Make sure you check the appropriate oil level. •...
  • Page 11 MASTERMIX™ STORAGE TANKS OPERATING INSTRUCTIONS STARTUP AGITATOR CONTROL LEVER HANDLE AGITATOR CONTROL HYDRAULIC VALVE 4-AGITATOR The agitator can operate in either direction. The agitator control • hydraulic valve #19 meters oil flow, which means how far the lever handle is moved, determines rotation speed. Material left in the tank should be agitated 10 to 15 minutes.
  • Page 12 MASTERMIX™ STORAGE TANKS OPERATING INSTRUCTIONS STARTUP MATERIAL CONTROL LEVER HANDLE MATERIAL FLOW HYDRAULIC VALVE 5-MATERIAL PUMP The material flow hydraulic valve #19 meters oil flow also, so lever • handle movement determines gallons per minute output.
  • Page 13 MASTERMIX™ STORAGE TANKS MACHINE OPERATION RECIRCULATION DISCHARGE VALVE VALVE RETURN BACK MAIN VALVE VALVE DIAPHRAGM PUMP 6-DISCHARGE MATERIAL OUT OF TANK – (SHOWN 3” HODD II PUMP) Open Main valve • Open Discharge valve Close Return back valve Close Recirculation valve Start Engine.
  • Page 14 MASTERMIX™ STORAGE TANKS MACHINE OPERATION RECIRCULATION DISCHARGE VALVE VALVE RETURN BACK MAIN VALVE VALVE DIAPHRAGM PUMP 6-DISCHARGE MATERIAL OUT OF TANK – (SHOWN STEIN PUMP BEFORE 3/23) Open Main valve • Open Discharge valve Close Return back valve Close Recirculation valve Start Engine.
  • Page 15 MASTERMIX™ STORAGE TANKS MACHINE OPERATION 3” GATE VALVE 7-FILL MATERIAL IN TANK All valves should be closed. • Turn fill tube 3” gate valve #2 to open. •...
  • Page 16 MASTERMIX™ STORAGE TANKS MACHINE MAINTENANCE MAINTENANCE SCHEDULE Follow maintenance procedures listed in the engine and pump manuals. MAINTAIN WEEK MONTH MONTHS YEAR CHECK ENGINE OIL LEVELS √ CHANGE ENGINE OIL CHECK ENGINE AIR FILTER √ CHANGE ENGINE AIR FILTER √ CHECK HYDRAULIC OIL LEVELS √...
  • Page 17 MASTERMIX™ STORAGE TANKS TROUBLESHOOTING GUIDE 1. ENGINE • Refer to the engine owner’s manual for all specifications and operating instructions. • Always move the fuel shutoff valve to the off position when finished. Fuel can migrate down into the oil crankcase if the valve is left open. If an electric motor is used, move the disconnect lever to the off position.
  • Page 18 MASTERMIX™ STORAGE TANKS MACHINE MAINTENANCE TROUBLESHOOTING GUIDE 3. AGITATION SYSTEM • The Agitator will not rotate or moves extremely slow. Does the material pump turn at the proper speed? If yes, try the adjustment listed above. The Agitator should now rotate properly. If it doesn’t, then the agitator motor needs replacing.
  • Page 19 MASTERMIX™ STORAGE TANKS MACHINE MAINTENANCE TROUBLESHOOTING GUIDE-CHART PROBLEM POSSIBLE CAUSES/SOLUTIONS SHUTOFF VALVE IS CLOSED / OPEN HYDRAULIC OIL LOW / OIL LEVEL 4” FROM TOP OF TANK AGITATOR COUPLER / REPLACE THE SHEARED KEY DOES NOT ROTATE HYDRAULIC PUMP / HAVE TESTED OR REPLACED OIL SPECIFICATIONS / REFER TO OWNER’S MANUAL ENGINE OPERATING INSTRUCTIONS / REFER TO OWNER’S MANUAL...
  • Page 20 TANK CAPACITY CHART GALLONS ARE APPROXIMATE AND MAY VARY SLIGHTLY TANK TO TANK MATERIAL DEPTH AND GALLON VOLUME MATERIAL 6000 8000 10000 MATERIAL 6000 8000 10000 DEPTH GALLONS GALLONS GALLONS DEPTH GALLONS GALLONS GALLONS 96"x196” 96"x261" 120"x217" 96"x196” 96"x261" 120"x217" INCHES GALLONS GALLONS GALLONS...
  • Page 21 TANK CAPACITY CHART GALLONS ARE APPROXIMATE AND MAY VARY SLIGHTLY TANK TO TANK MATERIAL DEPTH AND GALLON VOLUME MATERIAL 6000 8000 10000 MATERIAL 6000 8000 10000 DEPTH GALLONS GALLONS GALLONS DEPTH GALLONS GALLONS GALLONS 96"x196” 96"x261" 120"x217" 96"x196” 96"x261" 120"x217" INCHES GALLONS GALLONS GALLONS...
  • Page 22 MASTERMIX™ STORAGE TANKS MACHINE PICTURES AND PARTS LIST MANHOLE COVER HYDRAULIC TANK & GATE VALVE AND COUPLER 20” & 16” CLEANOUT COVER AND SEAL CHAIN GUARD PARTS LIST PICTURE-1 TANK ITEM # PART# QTY. DESCRIPTION P50271E MANHOLE COVER – 6K/8K P50271C MANHOLE COVER –...
  • Page 23 MASTERMIX™ STORAGE TANKS MACHINE PICTURES AND PARTS LIST PARTS LIST PICTURE-2 OPTIONAL BEFORE 3/23 ITEM # PART# QTY. DESCRIPTION P601A006 HYDRAULIC PUMP P604A014 PUMP MOUNT P630A031 JAW COUPLER 5/8” BORE WITH 5/32" KEY P630A032 JAW COUPLER 1” BORE WITH 1/4" KEY P631A005 COUPLER INSERT FOR JAW COUPLER P604A002...
  • Page 24 MASTERMIX™ STORAGE TANKS MACHINE PICTURES AND PARTS LIST BATTERY BOX PARTS LIST PICTURE-3 STANDARD HYD. PUMP 11-14 JAW COUPLERS AND INSERT PUMP MOUNT HONDA ENGINE BATTERY CABLE ITEM # PART# QTY. DESCRIPTION P601A006 HYD. PUMP P630A031 JAW COUPLING TYPE LO95 x 5/8"x 5/32" P630A032 JAW COUPLING TYPE LO95 x 1"x 1/4"...
  • Page 25 MASTERMIX™ STORAGE TANKS MACHINE PICTURES AND PARTS LIST HYD. MOTOR & HYD. CONTROL VALVE 3-GAL. LID ASSEMBLY BASKET STRAINER ASSEMBLY BASKET ROPER PUMP WITH HOUSING COUPLING & GUARD & YOKE MOUNT PARTS LIST PICTURE-4 STANDARD ITEM # PART# QTY. DESCRIPTION P474A087 MOTOR-HYD.
  • Page 26 MASTERMIX™ STORAGE TANKS MACHINE PICTURES AND PARTS LIST HYD. MOTOR-HIGH SPEED 26-28 CHAIN COUPLERS 1&3-GAL. LID ASSEMBLY BASKET STRAINER ASSEMBLY BASKET BOWIE PUMP HOUSING PARTS LIST PICTURE-5 OPTIONAL ITEM # PART# QTY. DESCRIPTION P474A024 MOTOR-HYD.- HIGH SPEED P640A025 3"BOWIE 3400 STEEL PUMP-MATERIAL P640A010...
  • Page 27 MASTERMIX™ STORAGE TANKS MACHINE PICTURES AND PARTS LIST PARTS LIST PICTURE-6 STANDARD & OPTIONAL BEFORE 3/23 ITEM # PART# QTY. DESCRIPTION P30003D SURGE TANK - LARGE P474A088 MOTOR – MATERIAL FLOW P479A008 GASKET-FLANGE 5” RING P640A079 PUMP -MATERIAL-HYD. DIAPHRAGM SMALL P981A021 PUMP –...
  • Page 28 MASTERMIX™ STORAGE TANKS MACHINE PICTURES AND PARTS LIST HYD. PUMP HYD. MOTOR CHAIN COUPLER CHAIN COUPLER CHAIN ELEC. MOTOR PARTS LIST PICTURE-7 PUMP W/ ELECTRIC MOTOR OPTIONAL ITEM # PART# QTY. DESCRIPTION P601A004 HYDRAULIC PUMP P630A024 5016 Chain Coupling 5/8"bore w/ 5/32" Key P630A012 5016 Chain Coupling 1-3/8"...
  • Page 29 MASTERMIX™ STORAGE TANKS MACHINE PICTURES AND PARTS LIST SEAL FLANGE BEARING REAR SET-UP FRONT SET-UP SEAL HOUSING BEARING SEAL PLATE FLANGE SLEEVE BEARING STEIN-O-GLAND ll COMPLETE ASSEMBLY SEAL/CERAMIC GLAND PARTS LIST PICTURE-8 BEARING HOUSINGS – FRONT & REAR SET-UPS AFTER 11/24 ITEM # PART# QTY.
  • Page 30 MASTERMIX™ STORAGE TANKS MACHINE PICTURES AND PARTS LIST 47/51 PACKING GLAND SEAL 49/53 SEAL ASSEMBLY 48/52 BEARING HOUSING PACKING SPRING SIDE OF SEALS TO FLANGE SEAL BEARING 10 PUMPS WEEKLY- USE BEARING GREASE THRU 36” GREASE LINE 1/4 -28 ZERK BEARING HOUSING OIL SEALS ASSEMBLY...
  • Page 31 MASTERMIX™ STORAGE TANKS MACHINE PICTURES AND PARTS LIST 48/44 BEARING STEINER BEARING HOUSING ASSEMBLY 80/81 SEAL BACKING PLATE 49/63 SEAL 36” GREASE LINE WITH 1/4 – 28 ZERK PARTS LIST PICTURE-8 BEARING HOUSINGS – REAR SET-UPS BEFORE 11/24 ITEM # PART# QTY.
  • Page 32 MASTERMIX™ STORAGE TANKS MACHINE PICTURES AND PARTS LIST 60/61 CHAIN SPROCKET & SPROCKET BUSHING SPROCKET SHAFT PILLOW SPROCKET - DRIVE BLOCK BEARING PARTS LIST PICTURE-9 CHAIN DRIVE ITEM # PART# QTY. DESCRIPTION P435A003 PILLOW BLOCK BEARING P435A004 PILLOW BLOCK BEARING 10K &...
  • Page 33 MASTERMIX™ STORAGE TANKS MACHINE PICTURES AND PARTS LIST HYD. PUMP ELEC. C-FACE MOTOR 66 - 69 COUPLERS & INSERT AND ACCESS COVER PUMP MOUNT PARTS LIST PICTURE-10 PUMP W/ ELECTRIC C FACE MOTOR OPTIONAL ITEM # PART# QTY. DESCRIPTION P601A004 HYDRAULIC PUMP P630A069 JAW COUPLING –...
  • Page 34 MASTERMIX™ STORAGE TANKS MACHINE PICTURES AND PARTS LIST PARTS LIST PICTURE-11 MATERIAL PUMP STANDARD ITEM # PART# QTY. DESCRIPTION P30003L SURGE TANK – LARGE P474A095 MOTOR – MATERIAL FLOW P640A092 PUMP –MATERIAL 3” H.O.D.D. II P978A026 PUMP – REBUILD KIT P397A002 2”...
  • Page 35 MASTERMIX™ STORAGE TANKS PUMP DIAGRAM...
  • Page 36 MASTERMIX™ STORAGE TANKS PARTS LIST FOR 2” ROPER PUMP 3617 HZ - STANDARD ITEM DESCRIPTION S/M PART # QTY. PUMP - ROPER 2” P640A071 WASH. HD. CAP SCREW P904A013 HEX HD. CAP SCREW P904A014 BACK PLATE ASSEMBLY P905A017 BRG. LONG BRONZE P904A032 BRG.
  • Page 37 ” H.O.D.D. II HYDRAULIC MATERIAL PUMP...
  • Page 38 WARNING 1. Read the operator’s manual before using the pump for the first time. Failure to do so may damage the pump. 2. Always check the oil level before operation. 3. The Hydraulic motor MUST operate in a clockwise rotation. 4.
  • Page 39 Hydraulically Actuated Material Pump. The replacement parts for this pump are available only through the SealMaster distribution network. Visit our website sealmaster.net, or you can call the ThorWorks Parts Department at 1-800-395-7325 (ARO 3” Actuated Material Pump is still available.)
  • Page 40 BODY VIEW CENTER HOUSING...
  • Page 41 PARTS LIST FOR 3” H.O.D.D. II” HYDRAULIC MATERIAL PUMP – BODY VIEW ITEM PART NUMBER DESCRIPTION QTY. P978A003 MANIFOLD – INLET P978A011 FLUID CAP P978A013 MANIFOLD – OUTLET P978A025 HEX CAP SCREW 3/8”-16 X 4-3/4” LONG P978B028 AIR CAP – RIGHT P978B027 AIR CAP –...
  • Page 42 CENTER HOUSING – EXPLODED VIEW...
  • Page 43 PARTS LIST FOR 3” H.O.D.D. II HYDRAULIC MATERIAL PUMP CENTER HOUSING EXPLODED VIEW ITEM PART NUMBER DESCRIPTION QTY. P980B017 DRIVE HOUSING P474A095 HYDRAULIC DRIVE MOTOR P980B022 1-1/2” X 2-5/8” X 9/16 SEALED BALL BEARING P980B031 CENTER BLOCK HOUSING P980B032 SHAFT BEARING P980B016 PITTMAN SHAFT P980B033...
  • Page 45 Hydraulic agitation pressure test/change To test agitation or pump pressure you will need a 3000 psi gauge w/female & male JIC fittings. Start by making sure the machine is not running and break loose one of the hydraulic lines (doesn’t matter which one) that go directly to either the agitation or the material pump.
  • Page 46 Hydraulic agitation pressure test/change Put the gauge on the fitting on the valve you just removed the line from. Make sure to tighten up the gauge and the cap/plug on the line and the other side of the gauge. On the side of the valve is a relief that has a plug in the center of it that has an Allen wrench hole.
  • Page 47 Hydraulic agitation pressure test/change Once the plug is removed inside that hole is another Allen wrench hole. 5/32”, go ahead and insert the Allen wrench. You can now start the machine. Push or pull the valve lever in the direction of the line that you put the gauge on. For example, in the pictures following this, my gauge is on the top line, so I will pull the lever up towards that line.
  • Page 48 Hydraulic agitation pressure test/change If you are raising your pressure you’ll turn the Allen wrench clockwise, if you are decreasing the pressure, you will turn it counterclockwise. Once you have reached the pressure you want to turn the machine off, pull out the Allen wrench, you may consider putting a small piece of cut rubber in the hole before putting the plug back on, it will keep the machine's vibration from turning your pressure back down.
  • Page 50 MASTERMIX™ BULK STORAGE TANK MACHINE 2” BOWIE PUMP OPTIONAL PARTS LIST FOR 2” 2400 SERIES BOWIE PUMP OPTIONAL BOWIE ITEM S/M PART# QTY. DESCRIPTION P640A030 2” BOWIE PUMP 2400 SERIES -STEEL 2419C P741B010 STEEL GEAR & IDLER SHAFT 2420C P741B011 STEEL GEAR &...
  • Page 51 MASTERMIX™ BULK STORAGE TANK MACHINE OPTIONAL 2” BOWIE PUMP BOWIE ITEM S/M PART# QTY. DESCRIPTION 2403 P741A001 CENTER CASE 2406 P741A002 PLATE GASKET 2410 P741A003 ADAPTER FLANGE 2411 P741A004 ADAPTER FLANGE GASKET 2412 P741A005 ADAPTER FLANGE BOLT 2414 P741A006 END PLATE BOLT 2415 P741A007 TAPER PIN...
  • Page 52 OPTIONAL 3” BOWIE PUMP PARTS LIST FOR 3” 3400 SERIES BOWIE PUMP OPTIONAL BOWIE ITEM S/M PART# QTY. DESCRIPTION P640A025 3” BOWIE PUMP 3400 SERIES -STEEL 3419C P741B033 STEEL GEAR & IDLER SHAFT 3420C P741B034 STEEL GEAR & DRIVE SHAFT P640A010 3”...
  • Page 53 OPTIONAL 3” BOWIE PUMP BOWIE ITEM S/M PART# QTY. DESCRIPTION 3403 P741A026 CENTER CASE 3406 P741A027 PLATE GASKET 3410 P741A028 ADAPTER FLANGE 3411 P741A029 ADAPTER FLANGE GASKET 3412 P741A030 ADAPTER FLANGE BOLT 3414 P741A031 END PLATE BOLT 3415 P741A032 TAPER PIN 3416 P741A032G GREASE FITTING...
  • Page 54 OPTIONAL 3” BOWIE PUMP PARTS LIST FOR 3” 3300 SERIES BOWIE PUMP OPTIONAL BOWIE ITEM # S/M PART# QTY. DESCRIPTION P640A059 3” BOWIE PUMP 3300 SERIES HD -STEEL 3304CHD P742A045 STEEL GEAR & IDLER SHAFT 3305CHD P742A046 STEEL GEAR & DRIVE SHAFT P640A066 3”...
  • Page 55 MASTERMIX™ STORAGE TANKS PARTS LIST FOR 2” ARO PUMP OPTIONAL DESCRIPTION S/M PART # QTY. P977A001 BACKUP WASHER P977A002 DIAPHRAGM WASHER P977A003 DIAPHRAGM P977A004 WASHER P977A005 SCREW 5/8”-18 X 2-1/2” P977A006 FLUID CAP OUTER CHAMBER P977A007 SEAT P977A008 BALL P977A009 SCREW M10 X 1.5-6G X 35MM P977A010 SCREW M10 X 1.5-6G X 45MM...
  • Page 56 MASTERMIX™ STORAGE TANKS PARTS LIST FOR 2” ARO PUMP OPTIONAL DESCRIPTION S/M PART # QTY. CENTER BODY P977A024 BUSHING P977A025 INLET PLUG P977A026 PISTON P977A027 U CUP 1-3/8” O.D. P977A028 SPOOL P977A029 WASHER 1.556” O.D. P977A030 O-RING 1/8” X 1-1/4” O.D. P977A031 O-RING 3/32”...
  • Page 57 SPRAY MASTER TANK TRAILER & SKID-MOUNTED NOTE: WITH MAXX-AIR SYSTEM - ARO 2” PUMP IS STANDARD TR 575 – TR 750 – TR 1000 PRO-AIR & PRO-AIR EXTENDED DECK AND SK 575 – SK 750 – SK 1000 PRO-AIR ARO 2” PUMP IS OPTIONAL PARTS LIST FOR ARO 2”...
  • Page 58 MASTERMIX™ BULK STORAGE TANK MACHINE PICTURES AND PARTS LIST SMALL-DIAPHRAGM PUMP PUMP DIAGRAM...
  • Page 59 MASTERMIX™ BULK STORAGE TANK MACHINE PICTURES AND PARTS LIST SMALL-DIAPHRAGM PUMP VERSION II PARTS LIST FOR SMALL-DIAPHRAGM PUMP BEFORE 3/23 ITEM # PART# QTY. DESCRIPTION P640A079 SMALL DIAPHRAGM PUMP ASSEMBLY P981A001 END CAP P981A002 SEAL RING P981A003 DISCHARGE MANIFOLD P981A004 VALVE BALL P981B005 VALVE SEAT...
  • Page 60 MASTERMIX™ BULK STORAGE TANK MACHINE PICTURES AND PARTS LIST LARGE-DIAPHRAGM PUMP VERSION II PUMP DIAGRAM...
  • Page 61 MASTERMIX™ BULK STORAGE TANK MACHINE MACHINE PICTURES AND PARTS LIST LARGE-DIAPHRAGM PUMP VERSION II PARTS LIST FOR LARGE-DIAPHRAGM PUMP BEFORE 3/23 ITEM # PART# QTY. DESCRIPTION P640A087 LARGE DIAPHRAGM PUMP ASSEMBLY P980A026 THREE-WAY FLANGE P980A027 SEAL RING P980A028 INLET MANIFOLD P980A007 ECCENTRIC SHAFT P980A005...
  • Page 62 PARTS FOR ELECTRICAL SET-UP...
  • Page 67 MAINTENANCE AND STORAGE MAINTENANCE During the lubrication stop, inspect all operating parts. Should any damage or excessive wear be evident, replace parts immediately. Straighten any parts as soon as possible. Clean and re-paint all exposed parts using touch-up kit P3020B034 yellow paint or touch-up kit P3020B033 black...
  • Page 68 PARTS FOR PLUMBING Parts for Plumbing Set-Up PICTURE-1 AGITATION LOCATION ITEM # PART# QTY. DESCRIPTION P474A088 HYD. MOTOR W/SAE PORT – P567A006 HYD. FITTING P474A003 HYD. MOTOR W/SAE PORT - P567A013 HYD. FITTING P1014A155 1/2 – 13 X 2-1/4” LONG HEX HD 1/2 –...
  • Page 69 Parts for Plumbing Set-Up PICTURE-2-CONTROL VALVES FOR 3” H.O.D.D. HYD. PUMP ONLY LOCATION ITEM # PART# QTY. DESCRIPTION P472A016 HYDRAULIC CONTROL VALVE P939A025 HYD. VALVE – SEAL KIT (Brand M) P751A020 BRASS ELBOW 90° P565A004 2501-08-08F Hyd. Fitting P560A083 2501-08-12F Hyd. Fitting P72000C013 HYDRAULIC VALVE MOUNT P472A028...
  • Page 70 PICTURE-3-CONTROL VALVES FOR ALL MATERIAL PUMPS (EXCEPT 3” H.O.D.D) LOCATION ITEM # PART# QTY. DESCRIPTION P472A016 HYDRAULIC CONTROL VALVE P939A025 HYD. VALVE – SEAL KIT (Brand M) P751A020 BRASS ELBOW 90° P565A004 2501-08-08F Hyd. Fitting P560A083 2501-08-12F Hyd. Fitting P72000C013 HYDRAULIC VALVE MOUNT P567A013 2404-08-08 Hyd.
  • Page 71 9 THRU 11 PICTURE-4 3” BOWIE & HIGH-SPEED MOTOR - OPTIONAL LOCATION ITEM # PART# QTY. DESCRIPTION P474A024 Motor-Hyd.- HIGH SPEED P567A018 6400-08-12 Hyd. Fitting P569A005 6801-08-06F Hyd. Fitting P560A026 5602-12-12-12F Hyd. Fitting P751A020 139E-1212 Hose End P1010A007 3/4x1/2 Hex Bushing Steel P567A013 2404-08-08 Hyd.
  • Page 72 Parts for Plumbing Set-Up PICTURE-5 FILTER PLUMBING LOCATION ITEM # PART# QTY. DESCRIPTION P909A008 FILTER HEAD-SMALL P397A013 1” BALL VALVE P1000A016 1” CLOSE NIPPLES P560A052 HYDRAULIC 90° ELBOW -1” MALE / 1” FEMALE P1012A004 1” HOSE ADAPTER P1010A022 BUSHING 1-1/4 X 1” P908A003 FILTER P1023A005...
  • Page 73 Parts for Plumbing Set-Up PICTURE-6 PUMP WITH ELECTRIC MOTOR OPTIONAL LOCATION ITEM # PART# QTY. DESCRIPTION P601A004 HYDRAULIC PUMP P570A015 HYDRAULIC FITTING P560A052 HYDRAULIC 90° ELBOW -1” MALE / 1” FEMALE P1012A004 1” HOSE ADAPTER P567A006 HYDRAULIC FITTING P1023A005 Clamp-Hose #16-SS P630A024 5016 Chain Coupling 5/8"bore w/ 5/32"...
  • Page 74 7 THRU 10 PICTURE-7 PUMP WITH GAS ENGINE - STANDARD LOCATION ITEM # PART# QTY. DESCRIPTION P601A006 HYD. Pump P570A015 HYD. Fitting P560A052 HYD. 90° Elbow -1” Male / 1” Female P1012A004 1” Hose Adapter P567A006 HYD. Fitting P1023A005 Clamp-Hose #16-SS P630A031 Jaw Coupling Type LO95 x 5/8"x 5/32"...
  • Page 75 MASTERMIX™ STORAGE TANKS MACHINE PICTURES AND PARTS LIST Parts for Plumbing Set-Up 7 THRU 10 PICTURE-8 PUMP W/ ELECTRIC C FACE MOTOR OPTIONAL LOCATION ITEM # PART# QTY. DESCRIPTION P601A004 HYDRAULIC PUMP P570A015 HYDRAULIC FITTING P560A052 HYDRAULIC 90° ELBOW -1” MALE / 1” FEMALE P1012A004 1”...
