Thermal Imaging Camera User Manual

Handheld Thermal Camera

User Manual

Company Statement

Need help?

Do you have a question about the DP-38 and is the answer not in the manual?

Questions and answers

Summary of Contents for DYT DP-38

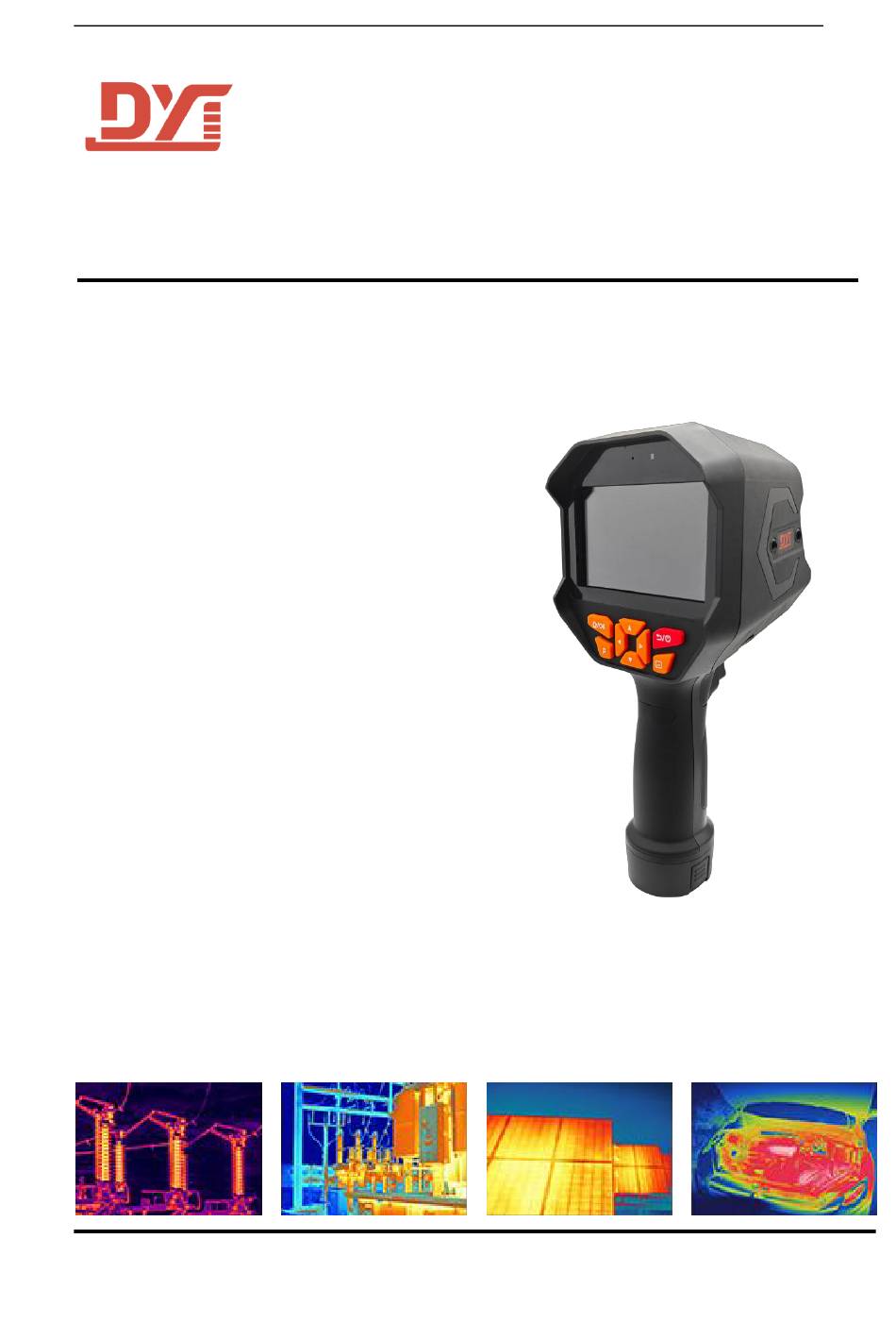

Page 1 Thermal Imaging Camera User Manual Handheld Thermal Camera User Manual Company Statement...
Page 2 Thermal Imaging Camera User Manual Our company is committed to providing customers with high-quality, high-performance infrared thermal imaging products. We have a professional R&D team and advanced production technology to ensure that each product meets strict quality standards. Our goal is to meet the needs of various industries for infrared thermal imaging technology through continuous innovation and improvement, and to bring customers a better and more convenient user experience.
Page 3 Thermal Imaging Camera User Manual Table of contents PRODUCT INTRODUCTION ................1 FEATURES ....................... 1 SPECIFICATIONS ....................2 THERMAL IMAGER PARTS INTRODUCTION ............5 FUNCTION INTRODUCTION ................9 ................9 UTTON ESCRIPTION ..................10 NTERFACE 5.2.1 Measurement ................10 5.2.2 Measurement correction ............10 5.2.3 Color Swatches ................
Page 4 Thermal Imaging Camera User Manual 1 Product Introduction DP-38/DP-64 infrared thermal camera is a new generation of professional temperature measurement thermal imaging products of Dianyang Technology Company. It supports 384*288 and 640* 480 high-definition thermal imaging resolutions, and realizes a variety of applications by combining visible light and thermal imaging.
Page 5 Thermal Imaging Camera User Manual  With a 384×288/640×512 resolution infrared detector and 8-megapixel visible light, the image is clearer.  Adopting Dianyang's unique TisoView image technology, it realizes super-resolution, DDE enhancement, image saturation adjustment, gain adjustment and other algorithms to make the image clearer ...
Page 6 Thermal Imaging Camera User Manual Parameter Specification Model DP-38D DP-38DI DP-64D DP-64DI Resolution 384*288 384*288 640*512 640*512 Working band 8~14um Frame rate 25 Hz ＜40mK@25℃ NETD Field of view 17.46°X13.14° 15mm (standard), 19mm, 25mm 25mm (standard), 19mm, 35mm Lenses (optional) (optional) Temperature Infrared...
Page 7 Thermal Imaging Camera User Manual Not supported support Not supported support Electronic compass Not supported support Not supported support Customized Customized according to according to Gas Sensors Not supported demand Not supported demand Voice Annotation Not supported support Not supported support Battery Removable 5000mAh lithium battery...
Page 8 Thermal Imaging Camera User Manual Thermal imager parts introduction...
Page 9 Thermal Imaging Camera User Manual Part Name illustrate  ① Menu/ok multiplex buton On the main interface, short press to enter the first level menu;  In the first level menu, short press to enter the second level menu;  Select the corresponding option on the setting interface and press short press to save the setting;...
Page 10 Thermal Imaging Camera User Manual Left and right arrow keys  On the main interface, short press to switch the color palette;  In the menu setting interface, short press to move left or right to select;  ⑥ Open or close via menu function ...
Page 11 Thermal Imaging Camera User Manual space.  ⑰ Type-C Users can connect to the PC through this interface to perform operations, including image export, deletion, formatting, etc.  ⑱ HDMI Can transmit images by connecting HDMI cable  ⑲ Lens cap Protect the lens...
Page 12 Thermal Imaging Camera User Manual 5 Function Introduction 5.1 Button Description Button Name Functional Description  Long press to turn on the device when it is powered off;  Power button Long press in the power-on state to shut down; ...
Page 13 Thermal Imaging Camera User Manual 5.2 Main Interface 5.2.1 Measurement Select the measurement function in the first-level menu to turn on or off the image center temperature, maximum temperature, and minimum temperature. You can use the touch screen to draw points, lines, and frames on the image to measure temperature, as well as the distance measurement function.
Page 14 Thermal Imaging Camera User Manual 5.2.3 Color Palette Select the color palette function in the first-level menu. The color palettes include Iron Red, Rainbow, Rainbow High Contrast, White Hot, Black Hot, Arctic, Lava, Red Hot, etc. You can switch the corresponding color palette according to different application scenarios. 5.2.4 Image Select the image function in the first level menu.
Page 15 Thermal Imaging Camera User Manual  Infrared  Visible light  Edge Blending  Picture in Picture  Infrared contrast  Overlay Fusion Adjustment  Fusion bias adjustment  Edge blending strength adjustment 5.2.5 Record Select the record function in the first level menu. The record function includes: ...
Page 16 Thermal Imaging Camera User Manual 5.3 Photo Album Select the Album function in the first-level menu to enter the gallery. The interface is as follows: 5.4 Setting Select the setting function in the first-level menu to enter the setting interface:...
Page 17 Thermal Imaging Camera User Manual Function illustrate Supports switching between English, French, Spanish, Portuguese, German, Russian, Arabic, Japanese, Korean, Language Chinese (Simplified), and Chinese (Traditional) Date Date and time can be set Brightness Adjust screen brightness Emissivity 0.01 to 0.99 adjustable Temperature Units automatic switching among ℃, ℉...
Page 18 Thermal Imaging Camera User Manual switch, Wi-Fi switch, Bluetooth switch Does the temperature follow the cross or is it displayed in the Temperature display upper left corner? Automatic shutdown time setting without keystrokes and Automatic shutdown touch screen operation Current memory usage and formatting, including how much is used, how much is occupied by the operating system, and the Storage total capacity...
Page 19 Thermal Imaging Camera User Manual Laser pointer Turn laser pointer on or off 5.6 Drop-down menu Click the drop-down menu icon on the main interface to open the drop-down menu, which contains the following contents:  Date and Time  Remaining power ...
Page 20 Thermal Imaging Camera User Manual...
Page 21 Thermal Imaging Camera User Manual 6 Product Configuration List name quantity Thermal camera Type-C cable Lanyard manual...
Page 22 Thermal Imaging Camera User Manual 7 Precautions  Do not expose this device to dust or moisture.  Do not allow strong light sources such as sunlight and lasers to directly shine on the lens, otherwise it may cause permanent physical damage. ...
Page 23 Thermal Imaging Camera User Manual Shenzhen Dianyang Technology Co., Ltd. Address: 2nd Floor, First Block, Honghui Industrial Park, Baoan, Shenzhen, China Tel: +86 755 2850 5260 Mobile: +8615920025448 Website: www.dyt-ir.com...

This manual is also suitable for:

Dp-64Dp-38dDp-38diDp-64dDp-64di
