NARC iD
with CompX cabinet eLock
Thank you for purchasing CompX NARC iD with built-
in CompX eLock. The information contained in these
instructions is intended to serve as a guide to allow
NARC iD to be quickly and easily put into service.
CompX's eLock can be configured to work in conjunction

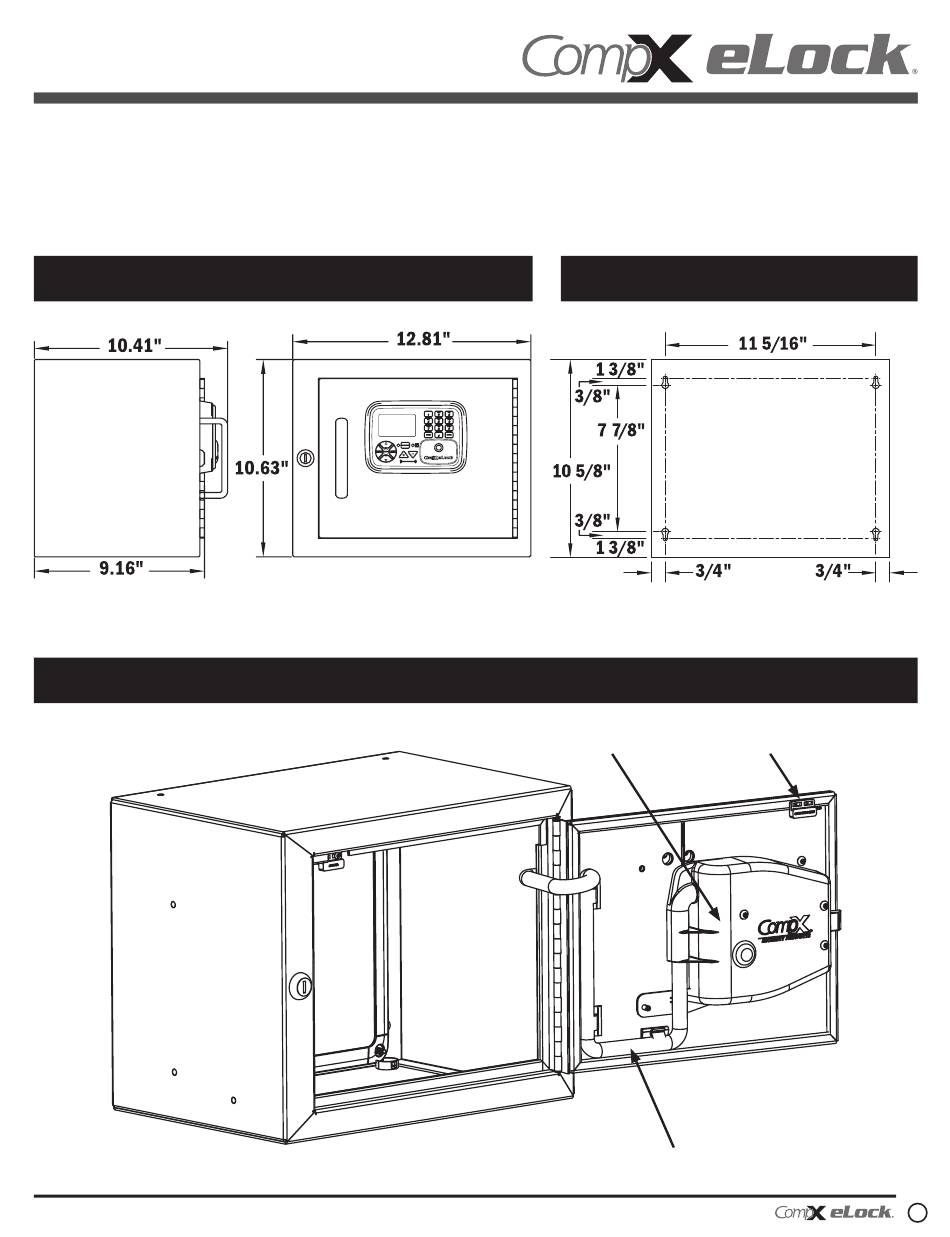

Narcotics box dimensions with CompX eLock installed
Narcotics box dimensions with CompX eLock — components
NARCOTICS BOX with NARC iD — CompX cabinet eLock Instructions
with existing 802.11b/g/n networks. For complete set
up instructions for networked and stand-alone eLocks,
please see the "Help" section in CompX's LockView
v5iDPro software.
Mounting hole locations
Integrated eLatch
control module
Power converter cable
Door position
switch
1
